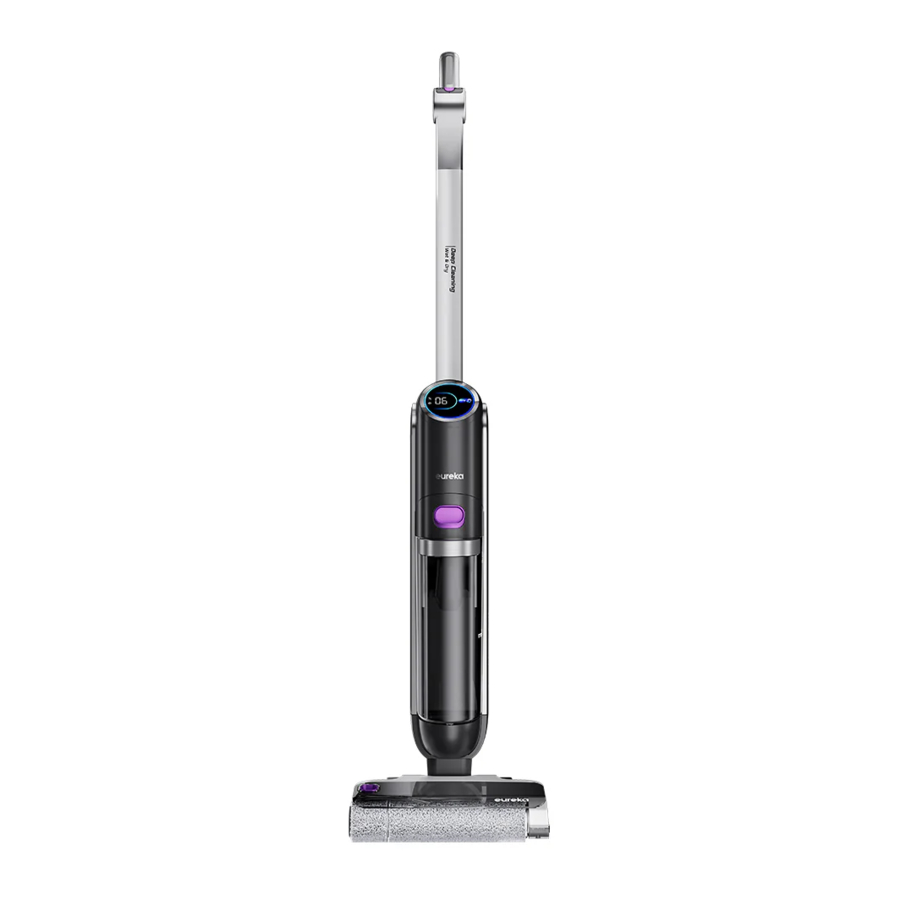

Eureka NEW630 Manual

PRODUCT OVERVIEW

List of Accessories

Parts

Auto mode

• The water from the machine wets the brush roller to clean the floor.


Turbo mode

• The speed of the brush roller and the amount of water are increased to forcefully remove the heavy stains on the floor.


Quick mode

• The machine stops discharging water, and sucks dry garbage or residual water.


Charging base

• After use, put the machine into the charging base for charging, self-cleaning and drying.

Cleaning brush

• One end is a brush to clean the stubborn dirt attached to the dirty water tank and the pipe under the ventilation pipe.

• The other end is a rotating blade to clean the hair wrapped on the brush roller.


Accessory holder

• Insert the protruding part of the accessory holder into the groove of the station.
• It is used to store brush roller, cleaning brush and filter.

Cleaning solution

• Pay attention to the proportion of clean solution added.
• Use the clean solution that comes with the product.

PRODUCT INSTALLATION

Handle Installation and Removal

Installation
Insert the end of the handle into the port of the main unit along the vertical direction until there is a click, which indicates the installation is successful.

Charging Battery

ATTENTION
Charge the product before the first use.

1. Connect the power plug to 220-240V~ power supply.
2. Put the machine upright into the charging base, and make sure that the bottom of the body completely falls into the charging base. At this moment, a voice will prompt "start charging", and the screen will display the charging quantity.
3. It takes about 4 hours to fully charge the machine. When the battery is fully charged, the screen will go out and the machine will automatically power off.

Filling clean water tank

ATTENTION
Fill water only to the clean water tank.

1. Press the clean water tank button with the thumb and pull outward to remove the clean water tank.

2. Open the top cover of the clean water tank and fill tap water to the tank.

3. If deep cleaning is required, pour clean solution into the tank according to the instructions on the bottle.

4. Tighten the cover of the clean water tank.

5. Install the clean water tank back to the body as it is, and the installation is successful when you hear a click.

6. When the clean water tank is short of water, there will be voice prompt; in this case, no water is sprayed in auto mode, but the dry mode can be used normally.


OPERATION INSTRUCTIONS

Turning on and Cleaning

1. Step on the floor brush and pull the handle, and the machine enters standby state.

2. Press the On/Off button to turn on/off the machine.

3. It enters auto mode after turning on; you can press the quick suction button to switch to quick suction mode.

4. Press the Mode button to enable or disable this function.


ATTENTION
After using the machine, it is recommended to place it vertically on the specially designed charging base.

Upright Pause Function

In working state, you can step on the floor brush to make the body upright, the machine will stop working and enter standby state; it will automatically turn off after 3 minutes of standby.

Self-cleaning + quick Function

How to start self-cleaning:
Put the machine into the charging base, ensure that it is in the charging state, step on the pedal of the charging base with your foot.
During the process, if you need to stop the self-cleaning/drying function, step on the pedal for 3 seconds or press the On/Off button.
After self-cleaning, clean the dirty water tank in time; if there are residual stains on the base, clean it in time.
Self-cleaning: the machine automatically cleans the brush roller and body pipe (about 2 minutes);
Drying: Keep blowing warm air on the charging base, and dry the brush roller properly (about 40 minutes).

CLEANING AND MAINTENANCE

ATTENTION

1. After cleaning, it is recommended to place the machine upright in the charging base; do not place the machine in places with direct sunlight or moisture.
2. In order not to affect the performance of the machine, it is recommended that you regularly maintain its parts.
3. Before cleaning, please disconnect the power supply to stop the machine
4. Scrub with water or neutral detergent, wring out the cleaning cloth before scrubbing to avoid water leaking into the electrical components.

1. Press the button of dirty water tank with your thumb and pull outward to remove the tank.

2. Hold the tank with one hand and pull out the top cover of the tank with the other hand.

3. As shown in the figure, pour out the dirty water from the side of the tank. If there is stubborn dirt on the inner wall of the tank, please clean it directly with a cleaning brush.

4. Take out the filter from the top cover of the dirty water tank and check whether there is any debris stuck on the cover.

5. Wash with clean water after taking it out, dry it thoroughly and put it back as it was.

6. Press the following elastic buckles on both sides to remove the air duct and rinse it with water; install as it was after rinsing.

7. Install the dirty water tank back to the machine until there is a click sound; (when installing dirty water tank, it is recommended to hold the body with another hand to avoid tipping over).


Brush roller and Cover cleaning

ATTENTION

1. It is recommended that after each use, the brush roller and cover should be cleaned and dried in time;
2. If residual stains are found on the suction surface of the floor brush, wipe it with a wet cloth. Do not rinse it with water.

1. Press the latch as shown, and remove the cover and the brush roller.

2. Remove the cover and the brush roller, open the rotating blade of the cleaning brush, and remove the hair and other entanglements on the brush roller.

3. Remove the small brush roller and large brush roller in the direction shown in the figure and rinse the brush rollers and cover.

4. After cleaning, install the small and large brush rollers in turn according to the direction shown in the figure. The installation is successful when you hear a click sound.

5. If residual stains are found in the suction port of the floor brush (exposed part after the brush roller is removed), wipe it.
   ATTENTION
   Do not rinse the floor brush as it's not waterproof.

6. After cleaning, align the cover of the brush roller and one end of the brush roller with the driven shaft of the floor brush motor, and then align the latch of the cover of the brush roller with the latch slot of the cover of the brush roller. The installation is successful when you hear a click sound.


PROBLEM SOLVING

Please check the following table in case of any abnormal scenarios when using the product.

SPECIFICATIONS

SAFETY INSTRUCTIONS

• This product is suitable for hard floors in the indoor environment, including waxed floors, stone floors, rubber floors, marble floors, granite floors, terrazzo floors, solid wood floors, composite floors, bamboo floors, as well as glazed tiles, ceramic facing tiles and other flat ground. It may not achieve the best results if the product is used on uneven ground surface.
• Do not use this product near or on the surface of flammable and explosive objects, which may cause fire and explosion.
• Do not use this product near a working fireplace or heater to prevent deformation of the machine casing.
• Do not use it to clean high-temperature substances (unextinguished cigarette butts, matches or hot ash, etc.), ultra-fine substances (such as lime, cement, wood chips, gypsum powder, ashes, charcoal, etc.), dangerous substances (such as solvents, descaling agents, etc.), chemical substances (such as acidic substances, detergents, etc.) and other substances with uncertain physical properties.
• Do not use this floor cleaner to absorb detergent, kerosene, gasoline, alcohol, paint or perfume, or else it may cause short-circuit, fire or explosion.
• Do not use this floor cleaner to absorb toner used in laser printers and copiers, or else it may cause fire or explosion.
• Do not use this floor cleaner to absorb sharp or large objects, such as glass shards, small toys, pins, paper clips, stones, plaster and large pieces of paper, or else it may block up and damage the machine.
• Do not use this floor cleaner to absorb any burning or smoking objects, such as soot from the unextinguished heat source, burning cigarette butts or matches.
• This product can' t be used to clean stains of strong grease, strong viscosity, or strong dyeing properties such as shoe polish, paint, and pigments. Do not touch the plug or any live part of the product with wet hands to avoid the risk of electric shock.
• Stop using it if the plug is damaged. Please call our service personnel for replacement in order to avoid hazards.
• Please keep the airflow channels and moving parts of this product away from long hair, loose clothing, fingers and other parts of the body. Do not point the suction tube, accessory tip or tool to the eyes or ears, or put them in the mouth.
• Please use the cleaning agent produced by our company and the manufacturer approved by us.
• Do not add other solutions to avoid generating toxic and harmful gases.
• If electric leakage, motor over-temperature, abnormal noise, peculiar smell or weak suction is found during use, stop using it immediately and call our service personnel.
• After using the machine, please clean the dirty water tank in time to avoid peculiar smell, and keep the ventilation path unobstructed, so as to avoid obstruction, or else it will cause the suction power to drop, the motor to heat up, and will affect the service life of the floor cleaner.
• After using the machine, please store it in a dry place. A humid place will affect the insulation and service life of the appliance.
• Do not soak or rinse the floor cleaner or floor brush in water.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children should not play with the appliance.
• Please check the suction pipe regularly. If there is a blockage, please clear it in time to avoid decrease in suction and affecting the performance of the machine.
• Turn off the power before replacing the brush.
• In the following situations, do not use the machine, contact to our customer service for help in time:
  1. Obvious damage or abnormal operation caused by drop;
  2. Power cord is damaged.
• Do not disassemble the enclosed machine without permission. There are no user serviceable parts. Do not try to change the performance of the machine, or else it will cause danger.
• Using a voltage that does not match the specifications will cause damage to the product and more likely to cause harm to the user. The correct rated voltage is marked on the nameplate.
• When cleaning the stairs, be extra cautious to prevent falling.
• Do not shake or impact the machine up and down to prevent dirty water from flowing into the motor.
• When the motor is working, do not lift or carry the appliance up and down, and do not put the machine on its side to prevent the dirty water from entering the motor. To prevent tip-over, place the machine against the wall after use.
• Do not use the floor cleaner before the clean water tank and dirty water tank are installed properly.
• Do not place any small objects in the outlet or block the outlet. Remove any small objects that may interfere with the flow of air through the outlet to prevent overheating of the machine.
• Do not wet the machine body, or it may cause damage and fire due to short circuit.
• This is only allow to use the charging base for charge the battery.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance. All the technologies and other data in this manual are obtained by our company or the designated third party testing company, and we reserve the right of final interpretation.

Use and Precautions of Washer Detergent

• Mix and clean according to instructions. It is recommended to use cleaning solution produced by our company or manufacturers approved by our company, which do not contain acid, alkali solutions or substances harmful to the environment.
• If a large amount of cleaning solution is added, more foam will be generated when used, which may infiltrate into the motor and cause danger.
• The cleaning solution should be kept out of reach of children. If the cleaning solution accidentally gets into eyes, rinse thoroughly with clean water; in case of accidental ingestion, seek medical treatment immediately. Follow local environmental protection regulations when handling dirty water and cleaning solution.
