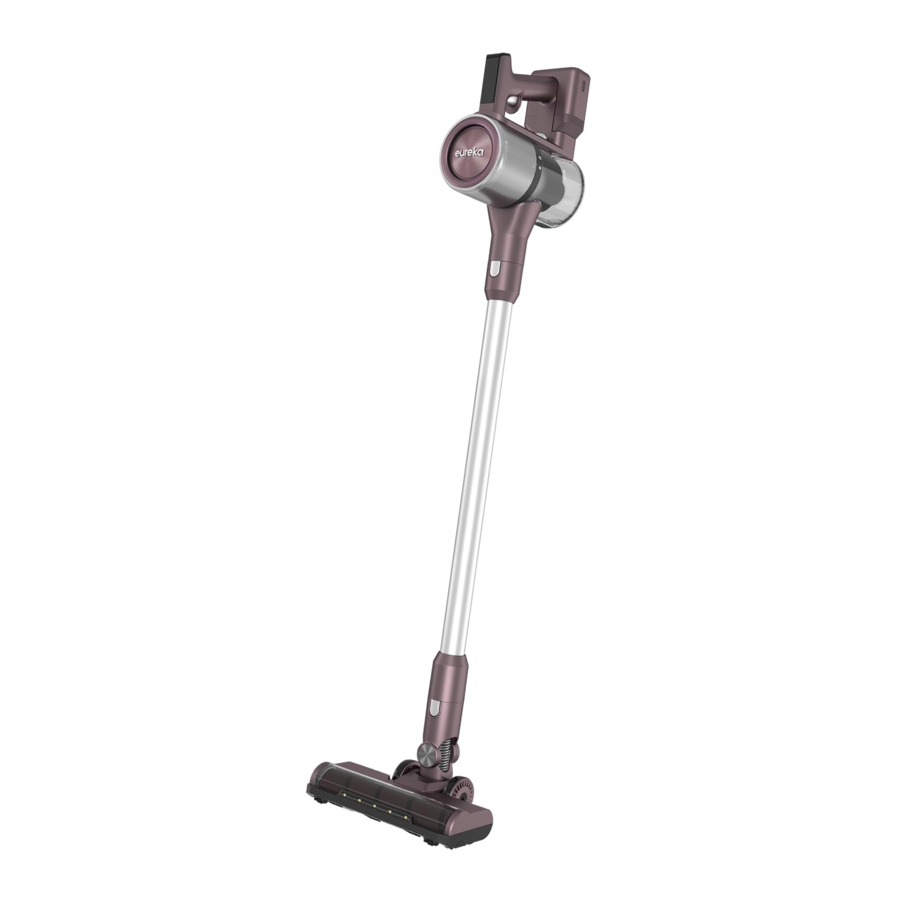

Eureka AK10 Series Manual

PRODUCT OVERVIEW

INSTALLATION OF ALL PARTS

1. Installation of HEPA component
   Install the HEPA component and the air outlet plate component, and then install the motor cover component and screw it into place.

2. Installation of cyclone cone component
   Put cyclone cone into dust cup, then insert filter cotton into cyclone cone.

3. Installation of dust cup component
   Insert motor cover component into the dust cup, and screw them.

4. Installation of handle component
   Fasten the upper lock first, and then install the handle component.

5. Installation of battery pack component
   Insert the battery pack into the bottom of the machine until you hear a "click" lock sound. You shall pay attention to the direction.

6. Connection of metal tubes
   When installing the metal tube component, insert the plug end of the metal tube into the socket of the handheld component until you hear a sound. "click" lock.

7. Connection of floor brush
   Insert the metal tube component into the floor brush until you hear a "click" lock sound.

8. Connect accessories with the handheld component
   Insert the accessory into the handheld component until you hear a "click" lock sound.

9. Connect accessories with the metal tube component
   When the accessory is installed on the metal tube component, insert it into the metal tube component until you hear a "click" lock sound.

10. Introduction to the use of AK10 Pro bent pipe
    1. Hold the machine with one hand and press the illustrated arrow button with the other hand;

    2. Tilt the machine downward

11. Storage of the machine
    The wall mount is fixed on the wall by expansion screws. The rear of the.host is inserted into the wall mount to hang vertically. And the accessories are inserted into the accessory rack on the wall mount.


DISASSEMBLY OF ALL PARTS

1. Disassembly of metal tube component
   Press the lock button on the metal tube and pull out the metal tube.

2. Disassembly of the floor brush component
   Press and hold the lock button on the floor brush and pull out the metal tube.

3. Disassembly of the battery pack
   Press and hold the battery pack button, then pull out the battery pack.

4. Disassembly of handle component
   Press the dust cup release button and pull out the handle component.

5. Dust cup empty
   Press the dust cup empty button, dust cup lid will pop to and pour the ash.


FUNCTION OPERATION

BATTERY CHARGING

1. The battery is not charged when leaving the factory, please be sure to fully charge the battery before use.
2. Do not charge in an environment below 5°C and above 40°C
3. When the product power is running low, the battery power indicator flashes to remind,
4. When the battery life of the machine is obviously shortened, and the charging time becomes longer, please ask professionals to replace the battery. Please do not disassemble the machine by yourself to avoid danger.
5. Charge the battery pack

The charging port is shown in the below figure.

CHARGING INSTRUCTIONS

When you use this product for the first time, the battery capacity of the vacuum cleaner may not be full. You need to plug in the power adapter to fully charge the battery before it can be used. The about 4-5 hours charging time is.

The battery pack can be charged separately, the battery charging indicator flashes to indicate that it is charging. When the indicator is always kept on, it indicates that the battery is fully charged. (At this time, the charging is still going on for 0.5-1 hours, so the charging effect is better)

CLEAN UP

1. In order to avoid blocking the air duct, please clean up large pieces of garbage in the area (such as large pieces of paper and packaging film etc).
2. Do not use and store the battery in an environment below 5°C and above 40°C.
3. When you dispose of this product, please remove the battery from the machine.
4. It is strictly forbidden to modify the machine, accessories, adapter or battery.

OPERATION INSTRUCTIONS

Press the ON/OFF button, the machine runs and starts cleaning. Press the ON/OFF button again to shut down the machine and stop cleaning.

INTRODUCE OF OPERATING BUTTON

The machine adopts a trigger switch to start and shut down machine which is the ON/OFF button. And you can adjust three gears of Low/Medium/High by touching the speed control area. Information and status of battery and motor power will been shown on the display screen.

START

Press the power ON/OFF button, the machine starts at the Medium gear by default, at the moment, it can be used to clean the ground that needs to be cleaned routinely.

SPEED CONTROL

Touch the speed control area to switch to mid-gear, and then touch the speed control area again to switch to high-gear. The high-gear mode is generally used in areas that are difficult to clean, such as carpets and crevices. Touch the speed control area again to restore the low gear. The three gears are indicated on the display screen by the following icons.

SHUT DOWN

Press the power ON/OFF button again to shut down the machine and stop cleaning.

USE THE ELECTRIC FLOOR BRUSH

Electric floor brushes can be used for vacuuming on short-haired carpets or hard floors, floor tiles, and car seats and foot pads.

USE THE ACCESSORIES

1. Insert the two-in-one accessory into the suction base, fix it and use it.
2. Push the brush head of the two-in-one accessory back, and when you hear a "click" sound, it is fixed. It can clear gaps in corners, stairs and keyboards etc. Push the brush head of the two-in-one accessory forward, when you hear a "click" sound, it is fixed, you can clean the hard-to-clean places such as furniture, bookshelves and curtains.

3. Push the brush head of the two-in-one accessory forward, when you hear a "click"sound, it is fixed It can clean up areas that are difficult to clean, such as furniture, bookshelves and curtains.


CLEANING AND MAINTENANCE

DUST CUP DISASSEMBLY AND CLEANING

To maintain the suction power of the vacuum cleaner, please clean up the dust regularly

1. Press the dust cup empty button to pour out the dust.

2. Press the dust cup release button to remove the handle component.

3. Rotate the motor cover component to remove the dust cup component.

4. Remove the filter cotton from the cyclone cone, and then take out cyclone cone from the dust cup component for cleaning.


CLEANING THE ROLLER BRUSH

1. Press the button to release the electric floor brush

2. Press the roller brush release lock to release the roller brush

3. Take out the brush roller from the slot and then clean it up
4. After cleaning or replacement, assemble in the reverse order of disas sembly and reset the cover of brush roller.


SAFETY PRECAUTIONS

Before using the appliance read all instructions and cautionary in this manual and on the appliance.

• Do not pick up wash detergent, kerosene, broken glass, needle, cigarettes, wet dust, sewage, match etc.
• Do not pick up small particle or large object like cement, land plaster, calcimine. Toy spitball, or cause model blocked, motor burned etc.
• Do not operate the vacuum cleaner too close to heaters, radiators and other hot surface.
• Never use the appliance without filters and brush roller in place.
• Never operate with blocked air inlet or blocked floor brush roller whenusing, or it may cause burned motor.
• Do not immerse the body of vacuum cleaner into water as this would Increase short circuit and burned model.
• New battery first or long time stocked running, battery must be fully charged.
• Long time no using, please keep charge/release electric per 3 month. Please plug off when fully charged or cleaning or maintaining, do not stretchor pull the cable.
• Use dry cloth to clean the appliance and do not use petrol, lacquer. Use dry cloth to clean the appliance and do not use petrol, lacquer thinner etc or surface of model is easy to be cracked and color fading.
• Please do not use and store the appliance in hot or cold environment.
• Only operate in a dry indoor area where the temperature is more than 0°C but less than 40°C, prohibited long time exposure by sun.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
   • Cleaning and user maintenance should not be made by children without supervision.
   •
     If the appliance is not working when fully charged as it should, must be sent to maintenance station and checking, do not disassemble the appliance as incorrect reassembly may result in an electric shock or fire
   • Waste batter should be safely recycled. Do not throw away.
   • Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts
   • The appliance is only to be used with the power supply unit provided with the appliance
2. If a vacuum cleaner can be equipped with a hand-held accessory with rotating parts a warning has to be given concerning entrapment.

We Offer 2-Year Limited Warranty.
Email Our Customer Service:
global_service@eureka.com
Our Official Site:
https://www.eureka.com/uk
https://www.eureka.com/de
