Levolor PREMIER Shadings Installation Instructions Manual

Touch control

Advertisement

Quick Links

Shadings Collection
Touch Control Installation Instructions
24-0025-097 January 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREMIER Shadings and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Levolor PREMIER Shadings

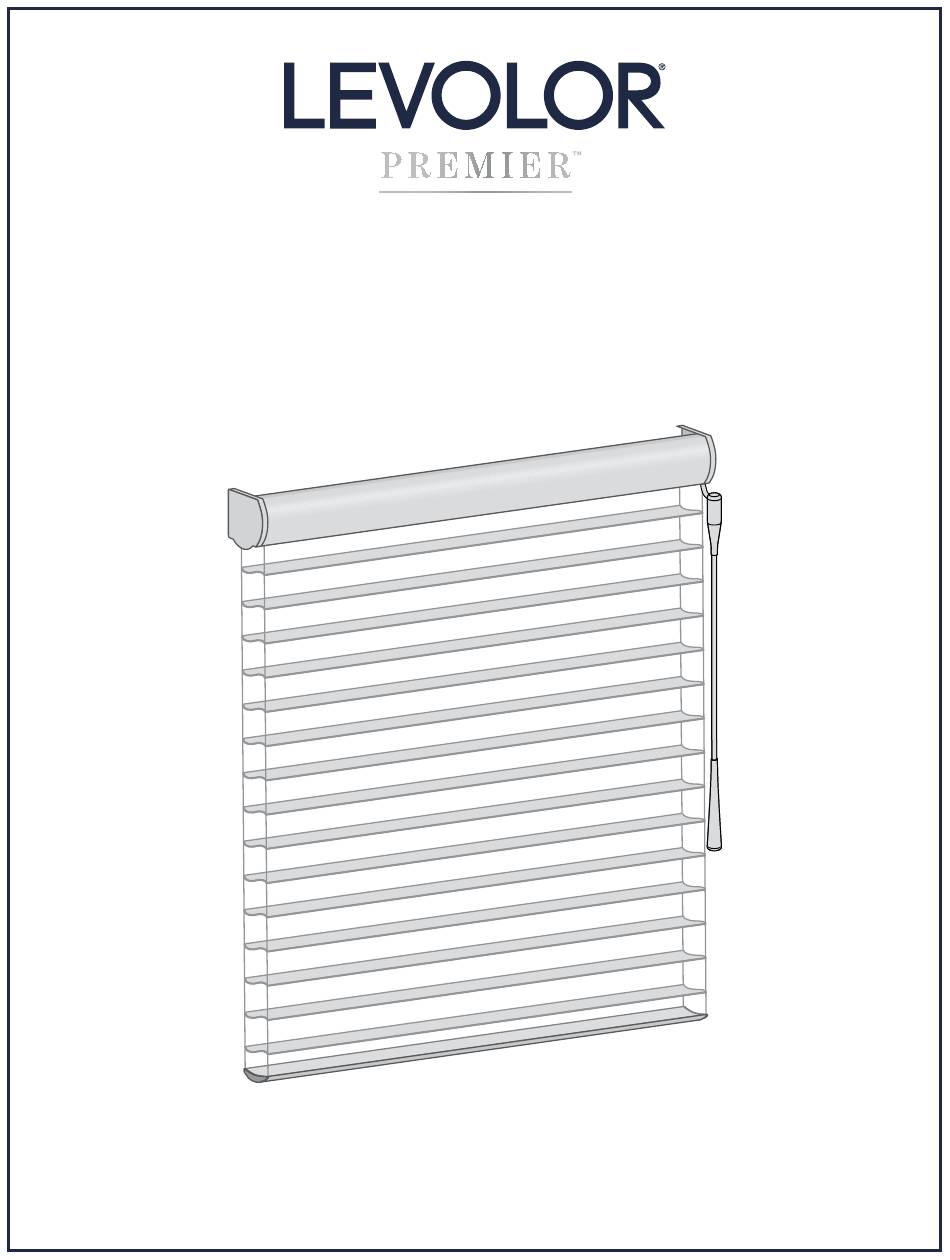

  • Page 1 Shadings Collection Touch Control Installation Instructions 24-0025-097 January 2025...
  • Page 2: Table Of Contents

    CONTENTS GETTING STARTED .......................... 1 Product View ............................1 Tools and Fasteners Needed ....................... 2 INSTALLATION ..........................3 Installation Overview .......................... 3 STEP 1: Mount the Installation Brackets ..................3 Mount the Installation Brackets — Inside Mount ................4 Mount the Installation Brackets — Outside Mount ................. 6 Mount the Installation Brackets —...
  • Page 3: Getting Started

    GETTING STARTED Product View Battery Wand Battery Wand Clips Power Cable Installation Brackets Activation Limit Stops Wand Magnetic Hold-Down Brackets Weight (Optional) Bottom Rail Clip Balance Weight Weight Clip...
  • Page 4: Tools And Fasteners Needed

    GETTING STARTED Thank you for purchasing the LEVOLOR ® PREMIER ™ Shadings Collection. With proper installation, operation, and care, your new shadings will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. If your shading has a protective cover on the fabric-covered headrail, keep the plastic in place until the shading is installed.
  • Page 5: Installation

    INSTALLATION INSTALLATION Installation Overview To install your shading, you will need to perform the following four steps: STEP 1: Mount the Installation Brackets STEP 2: Mount the Battery Wand and Connect the Power Cable, If Applicable STEP 3: Install the Shading STEP 4: Connect the Power Source, If Applicable STEP 1: Mount the Installation Brackets The number of installation brackets required varies with shading width, as shown in the table.
  • Page 6: Mount The Installation Brackets - Inside Mount

    INSTALLATION INSTALLATION Mount the Installation Brackets — Inside Mount Back Cover Bracket Top Tab Prepare the Installation Brackets NOTE: Back cover is not available with rechargeable battery wand. Back Cover If using the optional back cover: Slots ■ Bottom Tab NOTE: If you have a battery wand, do not remove the top tab on the back cover brackets.
  • Page 7 INSTALLATION INSTALLATION Center the installation brackets on your marks and mark the location of the screw holes. Jamb ■ Allow sufficient rear clearance when positioning the brackets. ➤ Nearest NOTE: Rear clearance is the distance between the back of the installation Obstruction Rear bracket and the glass or frame.
  • Page 8: Mount The Installation Brackets - Outside Mount

    INSTALLATION INSTALLATION Mount the Installation Brackets — Outside Mount Mount the Installation Brackets Center the headrail over the window opening at the desired height. Use a pencil to lightly mark each end of the headrail. ■ Alternatively, measure the width of the headrail and use that width to mark the headrail end points over the window ➤...
  • Page 9: Mount The Installation Brackets - End Mount

    Back Cover Bracket Top Tab INSTALLATION INSTALLATION Back Cover Mount the Installation Brackets — End Mount Slots Bottom Tab End mount the headrail when conventional mounting techniques will not work — for example, in an arched window opening. If you ordered a back cover, attach the back cover brackets to the installation brackets. ■...
  • Page 10: Step 2: Mount The Battery Wand And Connect The Power Cable, If Applicable

    INSTALLATION INSTALLATION STEP 2: Mount the Battery Wand and Connect the Power Cable, If Applicable For the headrail-mounted battery wand and rechargeable battery wand, battery wand clips and battery wand/rechargeable battery mount are installed before the shading is installed. Any other power options, the power source will be connected after the shading is installed.
  • Page 11: Step 3: Install The Shading

    INSTALLATION INSTALLATION STEP 3: Install the Shading Install the Optional Back Cover (If Applicable) The optional back cover is used on inside and end mounts only. Install the back cover into the back cover brackets ■ All Other Shadings Shading with Battery Wand on the rear of the installation brackets, as shown.
  • Page 12: Step 4: Connect The Power Source, If Applicable

    For an optional satellite-mounted rechargeable battery wand, see page 11. ➤ For an optional“18V DC Power Supply” on page 12. ➤ For an optional “18V DC Power Supply with Daisy-Chain Connections” on page 12. ➤ For any other LEVOLOR PREMIER power supplies, see applicable instructions. ® ™ ➤...
  • Page 13 INSTALLATION INSTALLATION Headrail-Mounted Rechargeable Battery Wand Insert the Rechargeable Battery Wand into the Battery Mount NOTE: The rechargeable battery wand ships fully charged, so it is ready to install out of the package. Match the direction of the arrow on the underside of the ■...
  • Page 14 INSTALLATION INSTALLATION 18V DC Power Supply Power cable from shading motor NOTE: When power is connected to the motor, a green LED inside the control button housing will flash to indicate the shading is ready for operation. Plug the power cable from the shading motor into the extension cable. ■...
  • Page 15: Unpack The Wand And Attach The Activation Arm

    INSTALLATION INSTALLATION Unpack the Wand and Attach the Activation Arm Unpack the wand. ■ Attach the top of the wand (magnet side) to the activation arm. ■ Activation Magnet Attach Magnetic Hold-Down Brackets (Optional) Lower the shading, keeping the vanes closed. ■...
  • Page 16: Operation

    INSTALLATION OPERATION Basic Operation To Lower the Shading Briefly pull the wand down to move the shading in the down/closed direction. ■ The shading will move to the fully closed position. ■ Lower Shading To Open the Vanes With the shading fully lowered, briefly pull the wand down to open the vanes. Open ■...
  • Page 17: Troubleshooting

    Press the cap on until it latches. Squeeze Latch NOTE: LEVOLOR PREMIER recommends AA alkaline batteries for use with our battery-powered shadings. These will provide more than one year of operation, depending on the usage. Lithium and rechargeable batteries are not recommended.
  • Page 18 Rechargeable battery needs recharging. Solution There are two methods for charging the rechargeable battery wand — the dual charging station or the single charger. CAUTION: The rechargeable battery wand can only be charged with these LEVOLOR PREMIER provided charging ®...
  • Page 19 INSTALLATION TROUBLESHOOTING Problem Rechargeable battery needs recharging (continued). Solution Recharging Via the Single Charger Remove the rechargeable battery wand from the mount, or insert the single charger cable without removing from the shading. Attach the plug adapter to the charger. ■...
  • Page 20 INSTALLATION TROUBLESHOOTING Problem The vanes do not open when the shading is first operated. Solution Make sure the shading is completely lowered. Open and close the shading several times to help open the vanes. If necessary, gently pull down on the bottom rail when the shading is fully lowered.
  • Page 21 INSTALLATION TROUBLESHOOTING Problem The shading is hard to raise or lower, or will not raise or lower. Solution Shadings cannot be forced into tight inside mount window openings. If an inside mount, check that the headrail is installed correctly. Make sure there is clearance between the ends of the shading and the window treatment. Check that the installation brackets are level and aligned.
  • Page 22 INSTALLATION TROUBLESHOOTING Problem The shading limits need to be adjusted. Solution Adjust the Upper Limit NOTE: Programming mode timeout is 20 seconds. If there is no action within 20 seconds, programming mode exits. Move the shading to the fully open position (shading is completely inside the headrail). See “Basic Operation” on ■...
  • Page 23: Care

    CAUTION: Be very careful not to tear or damage the fabric. Carefully pull the headrail to completely remove the shading from the brackets. ■ Cleaning Procedures LEVOLOR PREMIER Shadings are made of 100% polyester, which means they are inherently durable and resilient. However, care ®...
  • Page 24: Child Safety

    INSTALLATION CHILD SAFETY...
  • Page 25: Year Limited Warranty

    • LEVOLOR PREMIER motorization components reinstallation. are covered for 5 years from the date of purchase. LEVOLOR PREMIER (or its licensed fabricator/distributor) will repair or replace the product or components found to be defective. TO OBTAIN WARRANTY SERVICE: • Contact your original dealer (place of purchase) for warranty assistance.
