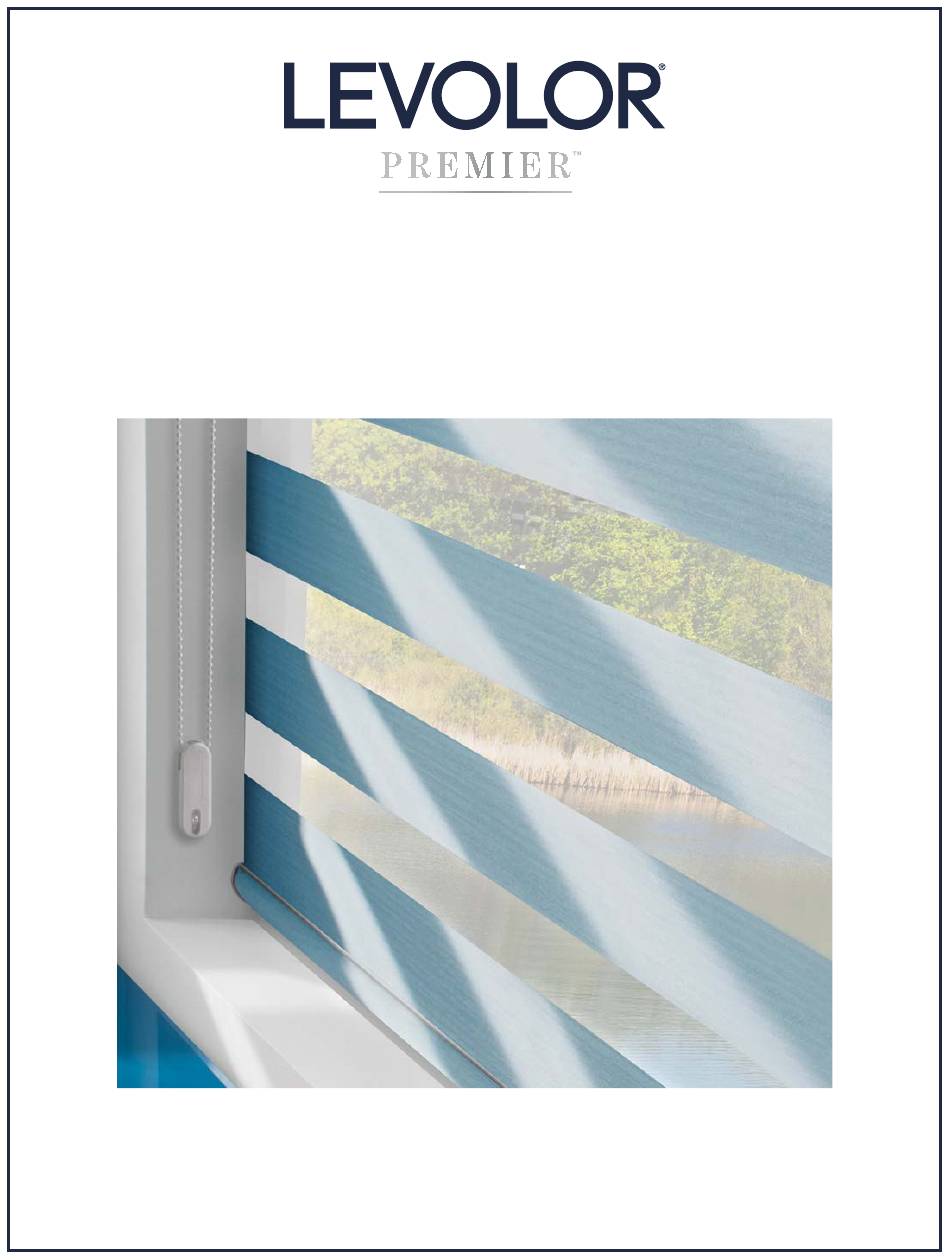

- Page 1 Banded Shade Collection Clutch Control Installation Instructions 24-0025-068 November 2024...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED ................1 Product View — Clutch Control - Cassette ...........1 Product View — Clutch Control - Profile ..........2 Tools and Fasteners Needed ..............3 Installation Overview ................3 INSTALLATION ..................4 STEP 1: Mount the Installation Brackets ..........4 STEP 2: Install the Shade ................7 STEP 3: Attach the Universal Cord Tensioner ........8 OPERATION ...................9 Operate the Shade ..................9... -
Page 3: Getting Started
GETTING STARTED Product View — Clutch Control - Cassette Cassette Installation Brackets Cassette Beaded Chain Loop Universal Tensioner and Bracket Align Center Hole with Mark Bottom Bar End Cap... -
Page 4: Product View - Clutch Control - Profile
GETTING STARTED Product View — Clutch Control - Profile Profile Installation Brackets Profile Headrail Profile Side Bracket Beaded Chain Loop Universal Tensioner Bracket Bottom Endcap... -
Page 5: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing LEVOLOR PREMIER Banded Shades. With proper installation, operation, and care, your new shades will ® ™ provide years of beauty and performance. Please thoroughly review this instruction booklet before beginning the installation. Tools and Fasteners Needed Flat blade and Phillips screwdrivers ■... -
Page 6: Installation
INSTALLATION INSTALLATION STEP 1: Mount the Installation Brackets Mounting Types and Window Terminology If the installation brackets are mounted correctly, the rest of the installation process will follow easily. To prepare for this ■ important first step, review the mounting types and basic window terminology illustrated below. Molding Head Jamb Jamb... - Page 7 INSTALLATION INSTALLATION Install the Back Cover Clips (Optional) Snap on a back cover clip to the back of each provided installation bracket. ■ Align the hooks of the clips to the slots in the bracket and press down to secure the clip to the brackets. ■...
- Page 8 INSTALLATION INSTALLATION Mount the Cassette Installation Brackets — Outside Mount Center the cassette over the window opening at the desired height and mark the end of the cassette. ■ Mark 4" from each end of the cassette for the bracket location. ■...
-
Page 9: Step 2: Install The Shade
INSTALLATION INSTALLATION Mount the Profile Installation Brackets — Outside Mount MPORTANT: To ensure each bracket is mounted properly, the white tab should be at the bottom. Center the mounting profile over the window opening at the desired height. Use a pencil to lightly mark each end of the ■... -
Page 10: Step 3: Attach The Universal Cord Tensioner
If side bracket covers are used, slide cover onto the side bracket by pushing up around the side bracket. ■ STEP 3: Attach the Universal Cord Tensioner For bead chain products, see the Universal Cord Tensioner Installation Instructions booklet provided on levolor.com/premier. ■... -
Page 11: Operation
INSTALLATION OPERATION Operate the Shade To Lower the Shade and Transition the Band Position Pull the back of the beaded chain to lower the shade. ■ Pull until the shade is at the desired height or the bands are aligned at the desired position. ■... -
Page 12: Troubleshooting
Troubleshooting If your shade is not operating correctly: Refer to the following troubleshooting procedures for specific solutions for your shade. ■ If questions remain, please contact LEVOLOR® PREMIER ™ Consumer Support at 1-800-478-1538. Problem The shades raises or lowers unevenly. -
Page 13: Care
INSTALLATION CARE Remove the Shade Remove the Cassette Move the shade to the fully raised position. ■ While keeping one hand on the cassette at all times, push up on the plastic release tabs of the end bracket until you hear them ■... -
Page 14: Child Safety
INSTALLATION CHILD SAFETY WARNING ADVERTENCIA Products with a Damaged, Productos con un Dispositivo Loose, or Missing Tension Tensor Dañado, Suelto o Device Pose a Strangulation Austente Presentan un Riesgo Risk to Children. de Estrangulatmiento Para los Niños. This Window Blind is equipped with a Tension Device Esta Persiana está... -
Page 15: Year Limited Warranty
• LEVOLOR PREMIER motorization components reinstallation. are covered for 5 years from the date of purchase. LEVOLOR PREMIER (or its licensed fabricator/distributor) will repair or replace the product or components found to be defective. TO OBTAIN WARRANTY SERVICE: • Contact your original dealer (place of purchase) for warranty assistance.
