Summary of Contents for Levolor PREMIER Cellular Shade

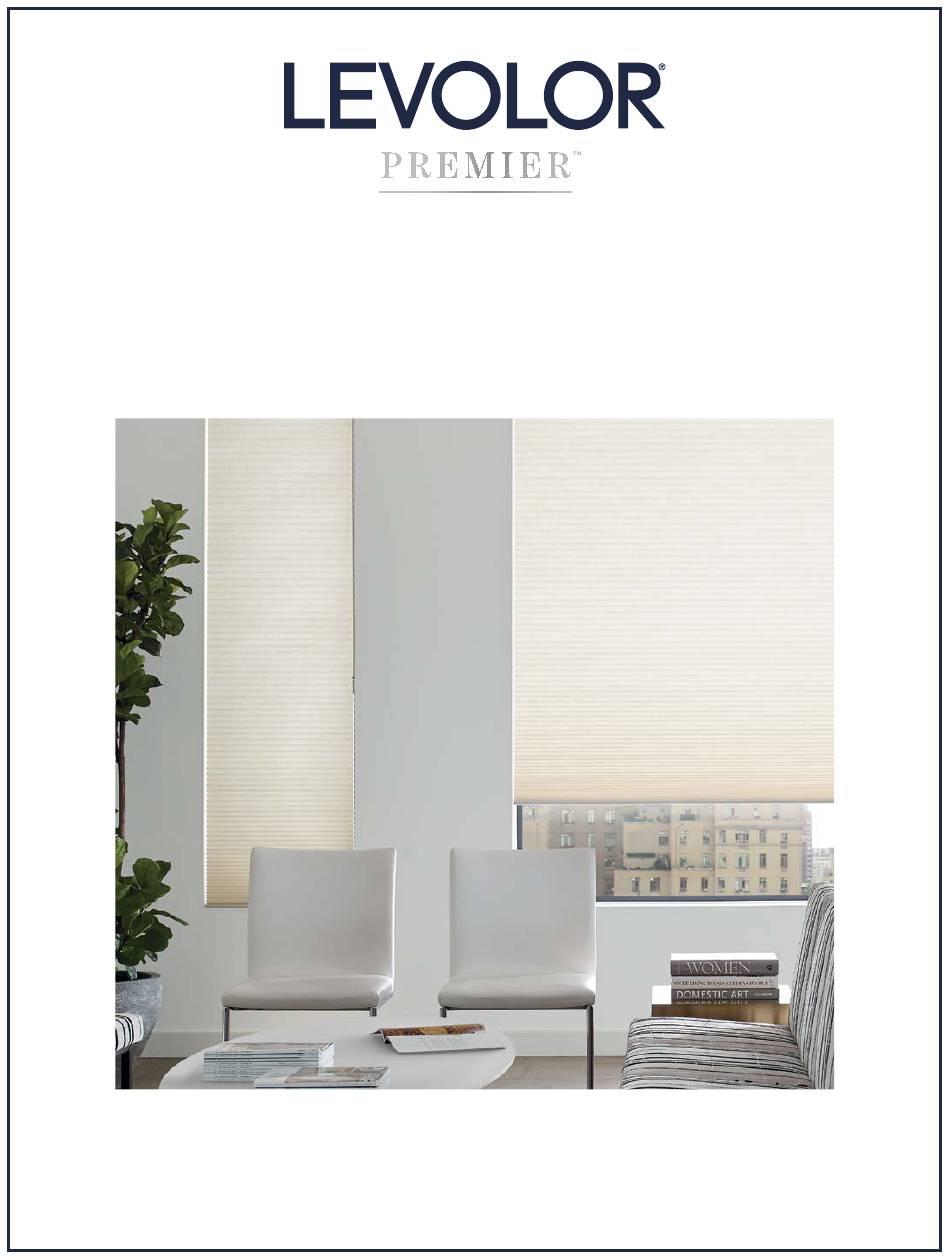

- Page 1 Cellular Shade Collection Clutch Control Installation Instructions 24-0025-032 January 2025...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED ................ 1 Product View ................... 1 Tools and Fasteners Needed ............2 INSTALLATION ................3 Installation Overview ..............3 Mount the Installation Brackets — Inside Mount ......4 Mount the Installation Brackets — Outside Mount ....5 Mount the Installation Brackets —... -
Page 3: Getting Started
GETTING STARTED Product View Installation Brackets Headrail Clutch Control Standard Bottom-Up Shade Cord Loop Tensioner Magnetic Hold-Down Brackets (Optional) Clutch Control Top-Down/ Bottom-Up Shade Cord Loop Middle Rail Tensioner Cord Loop Tensioner Bottom Rail Not Shown: Day/Night and Two-On-One Headrail Shades... -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing the LEVOLOR PREMIER Cellular Shade Collection. With proper installation, operation, and care, your ® ™ new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation.. -
Page 5: Installation
INSTALLATION INSTALLATION Installation Overview Shade Brackets Your order will include the correct number of installation brackets for your shade width, as Width Required ■ shown in the table. 12" – 36" ⁄ " – 72" There are two sizes of installation brackets, one for ⁄... -
Page 6: Mount The Installation Brackets - Inside Mount
INSTALLATION INSTALLATION Mount the Installation Brackets — Inside Mount Measure 2" from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s)evenly between the two end brackets ➤ and mark their location. Mount into wood whenever possible. 2"... -
Page 7: Mount The Installation Brackets - Outside Mount
INSTALLATION INSTALLATION Mount the Installation Brackets — Outside Mount Center the headrail over the window opening at the desired height. Use a pencil to lightly mark each end of the headrail on the ■ mounting surface. Alternatively, measure the width of the headrail and use that width to mark the headrail end points over the window ➤... - Page 8 INSTALLATION INSTALLATION Attach the installation or extension brackets using the screws provided. ■ IMPORTANT: The front edges of the installation brackets must be level and aligned to each other. If using spacer blocks, first attach the installation bracket to the ⁄...
-
Page 9: Mount The Installation Brackets - End Mount
INSTALLATION INSTALLATION Mount the Installation Brackets — End Mount " End mount the headrail when conventional mounting techniques will not work — for example, in an arched window opening. Minimum Position the end mount brackets so that the top of the attached installation brackets is at the ordered height of the shade. ■... -
Page 10: Install The Shade
“Removing the Shade, If Necessary” on page 15. Good Snap in Place Back of Headrail Snaps into Bracket Attach the Universal Cord Tensioner(s) For cord loop and bead chain products, see the Universal Cord Tensioner Installation Instructions on levolor.com/premier. ■... -
Page 11: Attach Magnetic Hold-Down Brackets (Optional)
INSTALLATION INSTALLATION Attach Magnetic Hold-Down Brackets (Optional) Hold-down brackets provide stability and prevent swaying by securing the bottom rail, for example on French door applications. Hold-down brackets can only be used on outside mount shades. Check the Magnet Polarity Place the magnetic hold-down bracket near one end of the bottom rail. ■... - Page 12 INSTALLATION INSTALLATION Attach the Bracket ■ Drill the pilot hole using a " drill bit ➤ Attach the bracket (and spacer assembly, for shades with 1¼" fabric) using the screw provided. ➤ IMPORTANT: Do not over-torque the screw. For Shades with ¾” Fabric ONLY: Mark the Position for the Second Pilot Hole ■...
-
Page 13: Final Adjustments
INSTALLATION INSTALLATION Place and Attach Second Bracket Repeat the process from “Check the Magnet Polarity” on page 9 to install the second magnetic hold-down bracket. IMPORTANT: Make sure the bottom rail is level when marking the second bracket location. Final Adjustments Verify that the bottom rail is level. -
Page 14: Level The Rail(S), If Necessary
INSTALLATION INSTALLATION Level the Rail(s), If Necessary Lift the bottom rail to locate the pockets on the underside of the rail. ■ With the middle rail on Top-Down/Bottom-Up shades, the pockets are on the top ➤ side of the rail. See below for the middle rail adjustment on Day/Night shades. -
Page 15: Operation
IMPORTANT: If the cord tensioner moves up the cord, you have not secured it to the wall or window frame. You must do so for the shade to operate properly. See the Universal Cord Tensioner Installation Instructions on levolor.com/premier. To operate Day/Night and Top-Down/Bottom-Up shades, the right ■... -
Page 16: Troubleshooting
INSTALLATION TROUBLESHOOTING Troubleshooting If your shade is not operating correctly: ■ Refer to the following troubleshooting procedures for specific solutions for your shade. If questions remain, please contact LEVOLOR PREMIER Consumer Support at 1-800-478-1538. ® ™ Problem The shade will not fit into the installation brackets. -
Page 17: Care
Bottom Then roll the back of the headrail down and out from the bracket. ■ Cleaning Procedures LEVOLOR PREMIER Cellular Shades are made of anti-static, dust-resistant fabric which repels dirt and dust. For most cellular ® ™... -
Page 18: Child Safety
INSTALLATION CHILD SAFETY WARNING ADVERTENCIA Products with a Damaged, Productos con un Dispositivo Loose, or Missing Tension Tensor Dañado, Suelto o Device Pose a Strangulation Austente Presentan un Riesgo Risk to Children. de Estrangulatmiento Para los Niños. This Window Blind is equipped with a Tension Device Esta Persiana está... -
Page 19: Year Limited Warranty
• LEVOLOR PREMIER motorization components reinstallation. are covered for 5 years from the date of purchase. LEVOLOR PREMIER (or its licensed fabricator/distributor) will repair or replace the product or components found to be defective. TO OBTAIN WARRANTY SERVICE: • Contact your original dealer (place of purchase) for warranty assistance.
