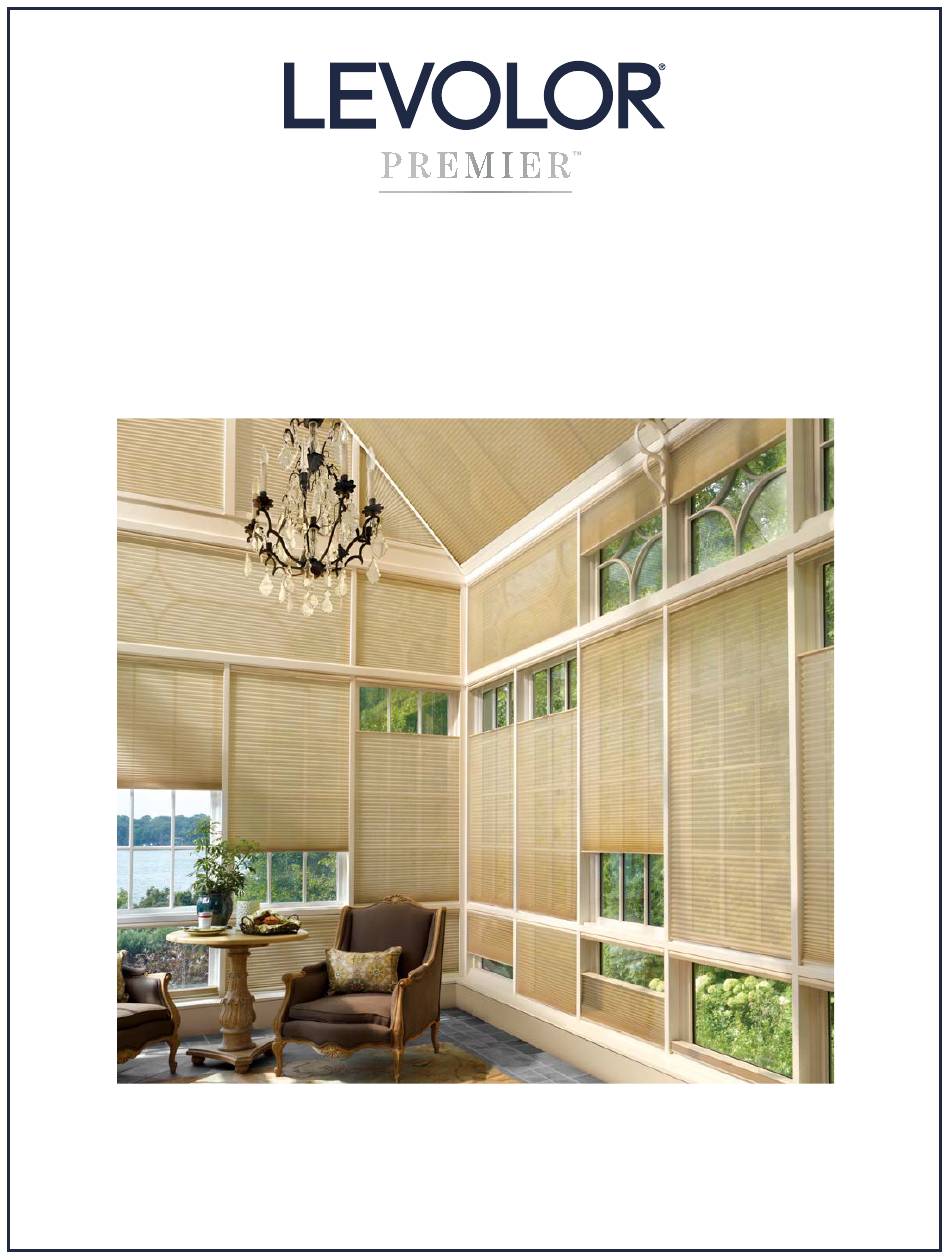

- Page 1 Cellular Shade Collection Skylight and Skylight with Day/Night Manual Installation Instructions 24-0025-037 January 2025...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED ..........3 Product View – Skylight ..........3 Product View – Skylight with Day/Night ...... 4 Tools Needed ..............5 ASSEMBLY ..............6 Arrange the Shade Components for Assembly .... 6 Insert the Top Tension Plates in Place ......8 Attach the Side Rails to the Top and Bottom Rails .. -
Page 3: Getting Started
GETTING STARTED Product View – Skylight Corner Bracket Tension Screw Top Tension Corner Cover Top Rail Plate Inside Mount Installation Bracket Side Rail Moving (Right) Rail End Cap Moving Rail Tension Cable Side Rail Bottom Tension (Left) Plate and Screw Bottom Corner Bracket... -
Page 4: Product View - Skylight With Day/Night
GETTING STARTED Product View – Skylight with Day/Night Note: The bottom rail on Skylight with Day/Night shades will not raise. Only the middle rail can be lowered or raised. Corner Bracket Tension Screw Top Tension Corner Cover Top Rail Plate Inside Mount Installation Bracket... -
Page 5: Outside Mount
GETTING STARTED Thank you for purchasing the LEVOLOR PREMIER Cellular Shade Collection. With proper installation, operation, and care, your ® ™ new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. Installation and assembly instructions are the same for Standard and Day/Night shades. -
Page 6: Assembly
ASSEMBLY Arrange the Shade Components for Assembly Unwrap the shade components. ■ Clear a large, clean space on the floor and position the components for assembly. ➤ Remove the bubble wrap from the shade. ➤ Orient the top rail with the fabric colored side facing up and the bottom rail with the control knob facing up. Arrange the side ■... - Page 7 ASSEMBLY Inside Mount shades only: Light gap seals should be inserted into the front ■ channel of all four rails. Make sure they are inserted in the correct orientation, as shown. Front of Shade Light Gap Seal Back Inside Mount shades only: If the angle of the installed shade will be 45° or ■...
-
Page 8: Insert The Top Tension Plates In Place
ASSEMBLY Insert the Top Tension Plates in Place IMPORTANT: Make sure the bottom rail and the bottom corner bracket with the “R” sticker are placed on the right side before beginning the assembly. Position the left side rail close to the top rail. ■... -
Page 9: Attach The Side Rails To The Top And Bottom Rails
ASSEMBLY Attach the Side Rails to the Top and Bottom Rails Attach the Left Side Rail to the Top Rail Insert the top left corner bracket into the top rail and the moving rail end cap into ■ the moving rail, while keeping the fabric stacked. IMPORTANT: Make sure both prongs of the moving rail end cap are in the bottom channel of the moving rail. - Page 10 ASSEMBLY Attach the Right Side Rail to the Top Rail Insert the top right corner bracket into the top rail and the moving rail end cap into the ■ moving rail, while keeping the fabric stacked. IMPORTANT: Make sure both prongs of the moving rail end cap are in the bottom channel of the moving rail.
- Page 11 ASSEMBLY Secure the Side Rails to the Top Rail Hook one end of the bead chain between the third and fourth bead from the end ■ in the slot in the top left corner bracket. Pull the bead chain taut and secure the other end of the bead chain in the slot in ■...
-
Page 12: Insert The Bottom Tension Plates In Place
ASSEMBLY Insert the Bottom Tension Plates in Place Tension Cable Place the bottom rail tension plate under the tension cable bracket in the bottom rail on the left Bracket ■ side. Tension Plate If you moved the tension cable bracket out of the way, move it back against the bottom ➤... -
Page 13: Adjust The Tension
ASSEMBLY Make sure all the tension cables are in the center of the holes in the rail cover. ■ Move the tension bracket(s) if necessary. ➤ IMPORTANT: Be sure the cover is centered on the bottom rail. To remove the bottom rail cover: Place your finger under one edge of the cover ■... -
Page 14: Test The Shade
ASSEMBLY Test the Shade Prior to installing the shade in the window, test its operation. If you have an extension pole: The extension pole can be assembled to create either a short pole (extends from 51" to 72") or ■ a long pole (extends from 80"... -
Page 15: Installation
INSTALLATION INSTALLATION INSTALLATION Install the Shade — Inside Mount Your order will include four installation brackets per shade and two mounting screws per installation bracket, plus four extra screws. Installation Bracket Trim the Light Gap Seals Trim the excess light gap seal at all ■... - Page 16 INSTALLATION INSTALLATION Mount the Shade Slip the upper portion of the shade into the window frame. ■ Make sure the installation brackets fit into the notches on the plastic hooks (inset). Slip a screwdriver behind the shade and push back the brackets ■...
-
Page 17: Install The Shade - Outside Mount
INSTALLATION INSTALLATION Install the Shade — Outside Mount Your order will include four installation brackets (two for each side rail) as well as one ⁄ " screw and two 1 ⁄ " screws per installation bracket. IMPORTANT: You may need another person to assist you with this installation. Attach the Installation Brackets to the Shade Attach the installation brackets to the shade through pre-drilled holes on the side rails using the ⁄... - Page 18 INSTALLATION INSTALLATION Mount the Shade Place the shade over the window opening at the desired location. ■ Mark the screw holes and drill them using a ⁄ " drill bit. ■ IMPORTANT: Use drywall anchors when mounting into drywall. Attach the installation brackets to the mounting surface using the 1 ⁄...
-
Page 19: Operation
OPERATION INSTALLATION OPERATION Operate the Shade If you have a crank handle: See the operating instructions on 20. ■ If you have an extension pole: Set the extension pole to the correct length, if necessary. ■ Locate the pole lock and press the lock in firmly. ➤... -
Page 20: To Lower The Shade
INSTALLATION OPERATION To Lower the Shade Rotate the crank handle or the extension pole counterclockwise to lower the shade. ■ To Raise the Shade Rotate the crank handle or the extension pole clockwise to raise the shade. ■... -
Page 21: Troubleshooting
INSTALLATION TROUBLESHOOTING Troubleshooting If your shade is not operating correctly: Refer to the following troubleshooting procedures for specific solutions for your shade. ■ If questions remain, please contact LEVOLOR PREMIER Consumer Support at 1-800-478-1538 ® ™ Problem The shade operates in the opposite direction. -
Page 22: Care
■ Outside Mount Unscrew the installation screws from the mounting surface. ■ Cleaning Procedures LEVOLOR PREMIER Cellular Shades are made of anti-static, dust-resistant fabric which repels dirt and dust. For most cellular ® ™ fabrics, the following cleaning options are available. -
Page 23: Year Limited Warranty
TO OBTAIN WARRANTY SERVICE: • Contact your original dealer (place of purchase) for warranty assistance. • Contact LEVOLOR PREMIER at 1-800-478-1538 for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
