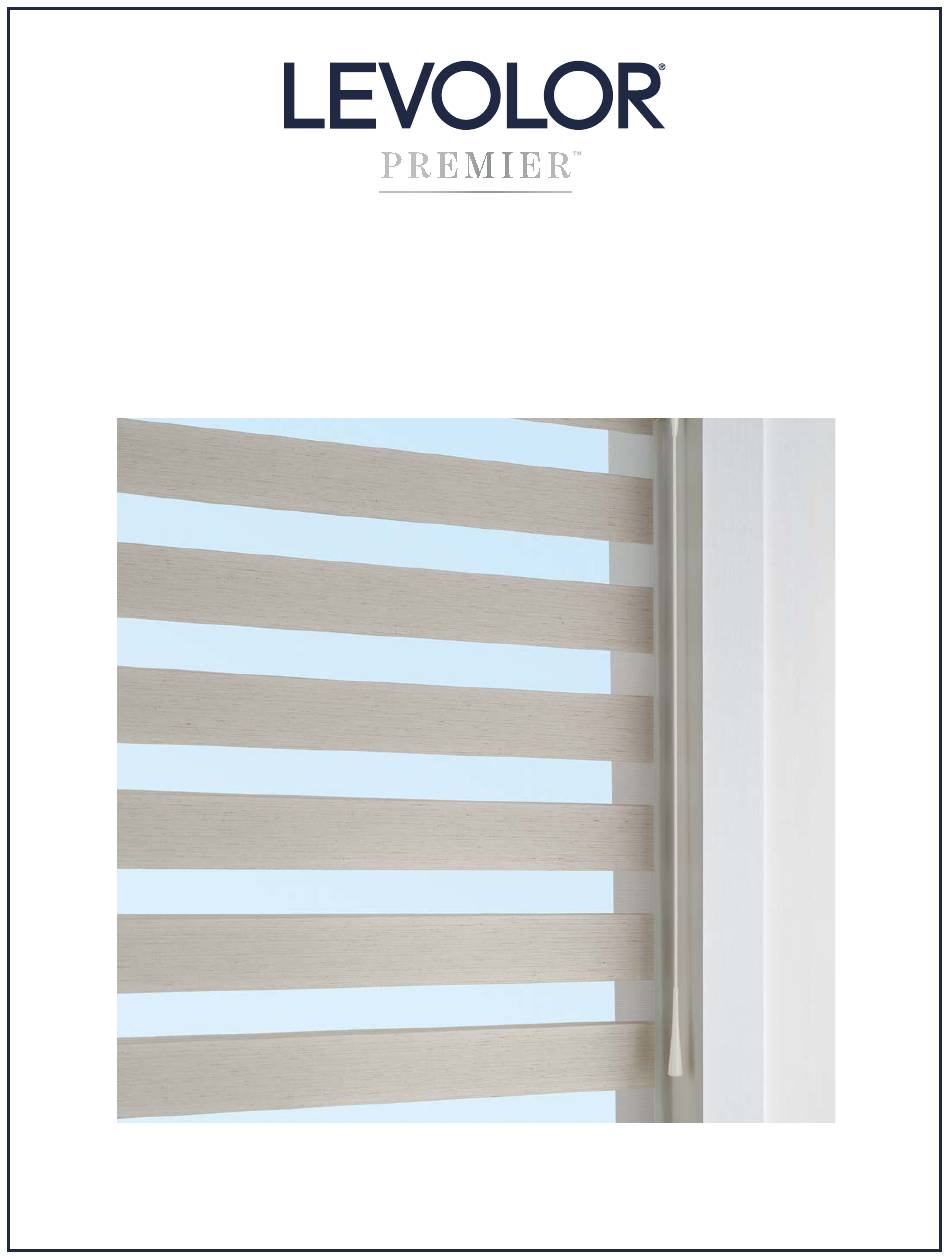

- Page 1 Banded Shade Collection Retractable Wand Installation Instructions 24-0025-071 December 2024...
-
Page 2: Table Of Contents
INSTALLATION CONTENTS GETTING STARTED ................ 1 Product View — Retractable Wand ..........1 INSTALLATION ................2 STEP 1: Mount the Installation Brackets ........2 Inside Mount for Cassette ..............2 STEP 2: Install the Shade ..............4 STEP 3: Install the Retractable Wand ..........5 OPERATION.................. -
Page 3: Getting Started
GETTING STARTED Product View — Retractable Wand Cassette Installation Brackets Cassette UltraGlide Wand Bottom Bar End Cap... -
Page 4: Installation
INSTALLATION INSTALLATION STEP 1: Mount the Installation Brackets Mounting Types and Window Terminology If the installation brackets are mounted correctly, the rest of the installation process will follow easily. To prepare for this important first step, review the mounting types and basic window terminology illustrated below. Molding Head Jamb Jamb... - Page 5 INSTALLATION INSTALLATION Install the Back Cover Clips (Optional) Snap on a back cover clip to the back of each provided installation bracket. ■ Align the hooks of the clips to the slots in the bracket and press down to secure the clip to the brackets. ■...
-
Page 6: Step 2: Install The Shade
INSTALLATION INSTALLATION If using spacer blocks, snap each block into a bracket before installing the bracket. ■ Cassette Spacer Block Cassette Bracket Center the brackets on your marks, then mark each of the screw holes. ■ 4" A minimum 4" flat vertical surface is required to mount the brackets. ■... -
Page 7: Step 3: Install The Retractable Wand
INSTALLATION INSTALLATION STEP 3: Install the Retractable Wand, If Applicable The wand must be securely attached to the shade for proper operation. Gently pull out the bumper and threaded connector until it is visible. ■ Bumper Connector Slide the bumper away from the threaded connector. ■... -
Page 8: Operation
INSTALLATION OPERATION Operate the Shade Retractable Wand For smooth operation, keep the wand close to the fabric when raising and lowering the shade. To Lower the Shade Hold the wand toward you and away from the shade. ■ Pull the wand using short, even strokes. Allow the wand to retract after each stroke. Continue ■... -
Page 9: Troubleshooting
INSTALLATION TROUBLESHOOTING Troubleshooting If your shade is not operating correctly: Refer to the following troubleshooting procedures for specific solutions for your shade. ■ If questions remain, please contact LEVOLOR PREMIER Consumer Support at 1-800-478-1538. ® ™ Problem The shades raises or lowers unevenly. -
Page 10: Care
INSTALLATION CARE Remove the Shade Remove the Cassette Move the shade to the fully raised position. ■ While keeping one hand on the cassette at all times, push up on the plastic release tabs of the end bracket until you hear ■... -
Page 11: Year Limited Warranty
• LEVOLOR PREMIER motorization components reinstallation. are covered for 5 years from the date of purchase. LEVOLOR PREMIER (or its licensed fabricator/distributor) will repair or replace the product or components found to be defective. TO OBTAIN WARRANTY SERVICE: • Contact your original dealer (place of purchase) for warranty assistance.
