Levolor InMotion User Manual

Remote control
Hide thumbs Also See for InMotion:
Table of Contents

Advertisement

Quick Links

Remote
Control
Guide
Top-Down/
Bottom-Up
and
Day/Night
© LEVOLOR
2022
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InMotion and is the answer not in the manual?

Questions and answers

Related Manuals for Levolor InMotion

Summary of Contents for Levolor InMotion

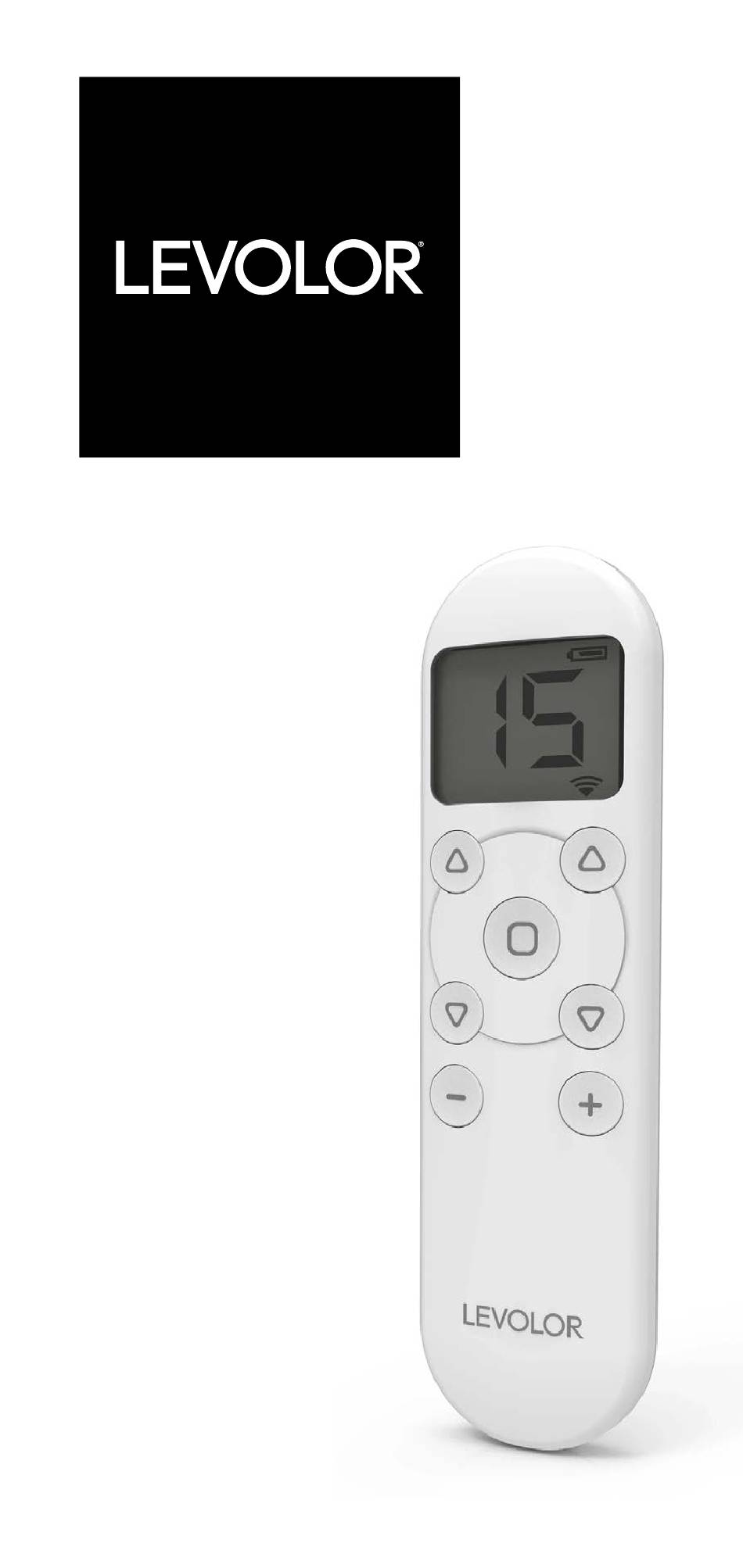

  • Page 1 Remote Control Guide Top-Down/ Bottom-Up Day/Night © LEVOLOR 2022 ®...

  • Page 2: Table Of Contents

    Table of Contents Thank you for choosing LEVOLOR InMotion motorized ® ™ window coverings. This product has been custom built for you from the highest quality materials. To avoid errors and save valuable time, please read these instructions to ensure you are properly programming your new remote.

  • Page 3: Product Overview

    Product Overview Shade Styles This remote is designed to control Top-Down/Bottom-Up and Day/Night lift style shades. Top-Down/Bottom-Up Day/Night Shade Headrail Headrail Fabric Panel A Middle Middle Rail Fabric Rail Fabric Panel Panel B Bottom Bottom Rail Rail Product Positioning Each shade comes with predefined position limits that can be adjusted as needed.

  • Page 4: Top-Down/Bottom-Up And Day/Night Shades

    Product Overview Top-Down/Bottom-Up and Day/Night Shades Programming Programming button, charging port, and indicator light are located in the shade’s right headrail end cap. Programming button does not act as a manual control and the shade will not move when the button is pressed. During setup, the shade will confirm programming by jogging, with a slight down and up movement.

  • Page 5: Remote Overview

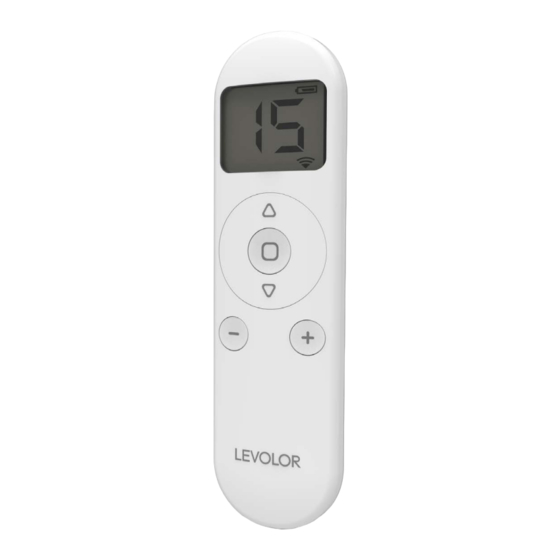

    Remote Overview Remote Control The LEVOLOR InMotion remote has 15 available channels and each channel can control up to 20 shades at once. This remote is designed to control Top-Down/Bottom-up and Day/Night style shades. Front View LCD Display Bottom Rail - Up...

  • Page 6: Battery Installation

    Remote Overview Battery Installation Gently press down on cover and slide to remove. Install 2 AAA batteries (included). Align batteries as shown below. Program your remote, replace the back cover and install closure screw. Remove Back Cover Install (2) AAA Batteries As Shown Replace...

  • Page 7: Wall Holder

    Remote Overview Wall Holder Provide a home for LEVOLOR remotes with the remote holder. Tools Needed to Mount Remote Holder • Power drill • 3⁄32” drill bit • Phillips screwdriver • Pencil Remote Holder Mounting Instructions Choose location and mark wall plate placement.

  • Page 8: Programming

    Programming Getting Started During programming, shades will jog by moving slightly down and up. Certain programming functions will affect all shades on the selected channel such as – favorite position, travel limits, operating mode, and motor speed. To program an individual shade, pair to its own channel or put all other shades into sleep mode.

  • Page 9: Favorite Position

    Programming Pair Remote to Shade Use the and + buttons to select the channel to pair. Press and hold the programming button on the motor (about 2 seconds) until the motor jogs x 1. In the next 10 seconds, press and hold the   stop button on the remote until the motor jogs x 2.

  • Page 10: Operating Mode

    Programming Operating Mode This procedure will set the operating mode on all shades assigned to a specific channel. All shade motors can be set to two different operating modes. Continuous Mode (Default setting) Recommended for cellular shades. Motor continues to move after a short press of the   up or ...

  • Page 11: Motor Speed

    Programming Motor Speed This procedure will set the motor speed on all shades assigned to a channel. All motors have 3 speeds available and are set to the slowest speed by default. Set to Faster Speed Press one P2 button in the battery compartment of the remote until motor jogs x 1.

  • Page 12: Travel Limits

    Programming Travel Limits This procedure will adjust the travel limits on all shades assigned to a channel. Upper and lower travel limits are set at the factory during production to your order specification. Upon installation, adjustment of these limits may be necessary to better suit your needs.

  • Page 13: Operation

    Programming Disable Limit Setting After all programming is complete, lock the remote to prevent accidental or unintended changes to motor direction, travel limits, and operating mode. Remove cover from back of remote and locate the lock switch between the P2 buttons above batteries. Move the switch to the left to lock.

  • Page 14: Additional Information

    Place all other motors to same channel. respond). sleep. See page 6 for more information. Warranty Visit LEVOLOR.com/warranty or call customer service at 1-800-LEVOLOR for more information. Customer Service To contact customer service with an questions or concerns, you may reach us at...

  • Page 15: Specifications

    Additional Information Specifications Voltage ................3V Radio Frequency ......433.92 MHz Bi-directional Transmitting Power ........... 10 milliwatt Operating Temperature ..14°F to 122°F (-10°C to 50°C) RF Modulation ..............FSK Lock Function ..............Yes IP Rating ................IP20 Transmission Distance ......up to 200m (outdoor) Declarations U.S.
  • Page 16 L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. LEVOLOR 2022 © 20-0048-201 Remote Control Guide Home...
