Remove the jumper to enable the
internal tamper switches.
Move the jumper over from the two
pins linking out Z2, so that it now links
the RS pins.

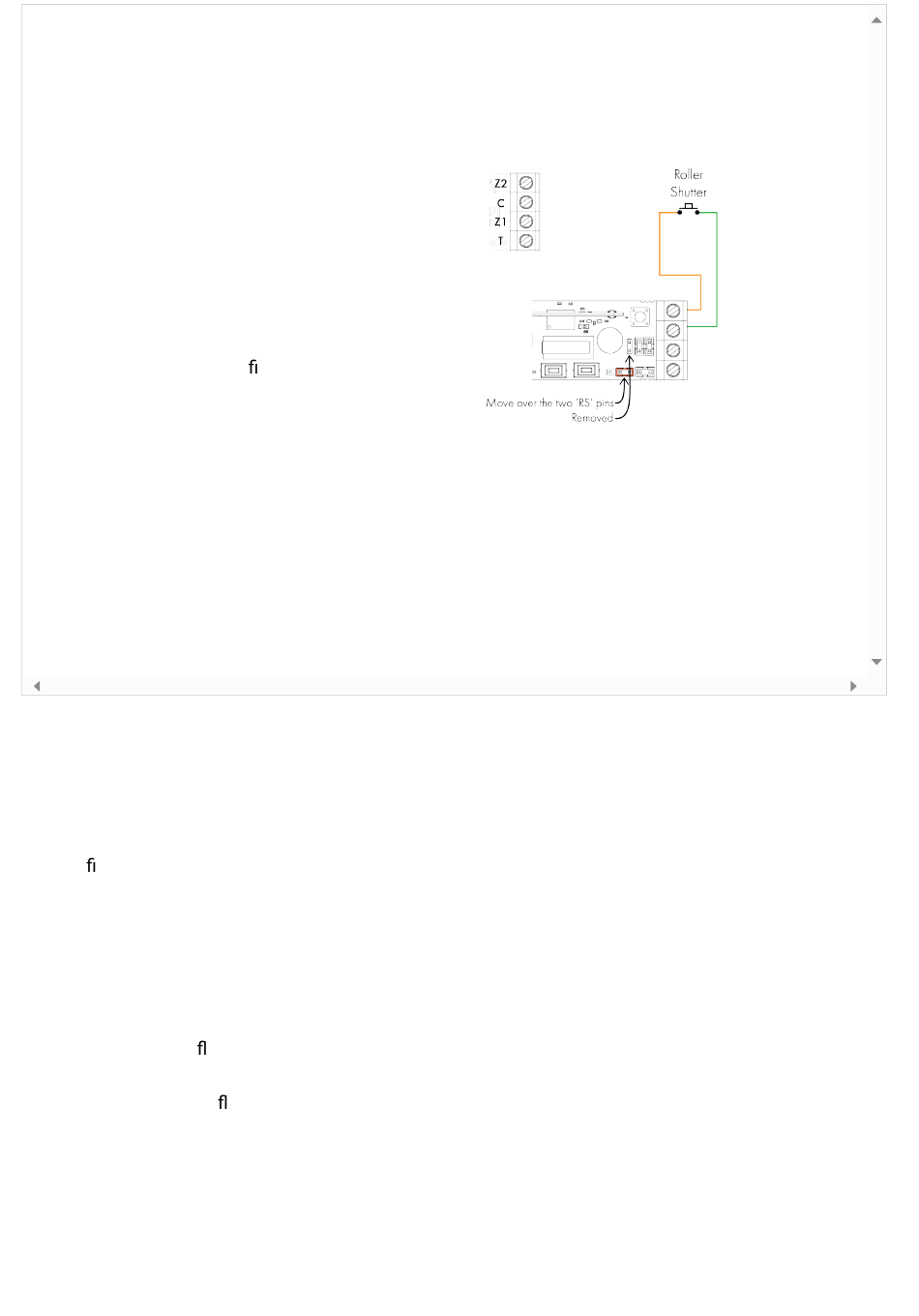

Wire the roller shutter circuit between
the C and Z2 terminals.
When the device is con gured in 'roller
shutter mode', it requires 7 activations to
trigger the zone into alarm. These 7
activations have to be sequential without
a 30 seconds period of inactivity. If 30
seconds elapses without an activation, the
counter will reset to 0.
E.g if all 7 activations are 29 seconds
apart, the device will trigger into alarm.
Calibration Mode
For the rst 5 minutes after the device is powered up, the device enters calibration mode. This allows
the installer to check that the zones are triggering as intended.
During this period, the blue alarm LED is disabled whilst the green and red LEDs indicate whether zone
1 or zone 2 are being triggered:
The red LED will ash when the shock or the external wired input into zone 1 is triggered.
The green LED will ash when the reed switch or the external input wired into zone 2 is triggered.
After this period of 5 minutes, up until an hour has passed, the blue alarm LED will light up if any of the
shock sensor, reed switch or external inputs are triggered.
After 1 hour from power up, all LEDs on the device will be disabled however, this sequence can be
initiated again by tampering the device.
