Pyronix MC1Z2/SHOCK-WE Installation Manual page 6

s s used to dete
for zone 2.
Descriptions below are given holding the
device vertical with the battery to the
bottom.
Bottom 2 pins linked
The external input is disabled.
No pins linked
Double pole external input wired to Z2
terminal.
Top 2 pins linked
External roller shutter input wired to Z2
terminal.

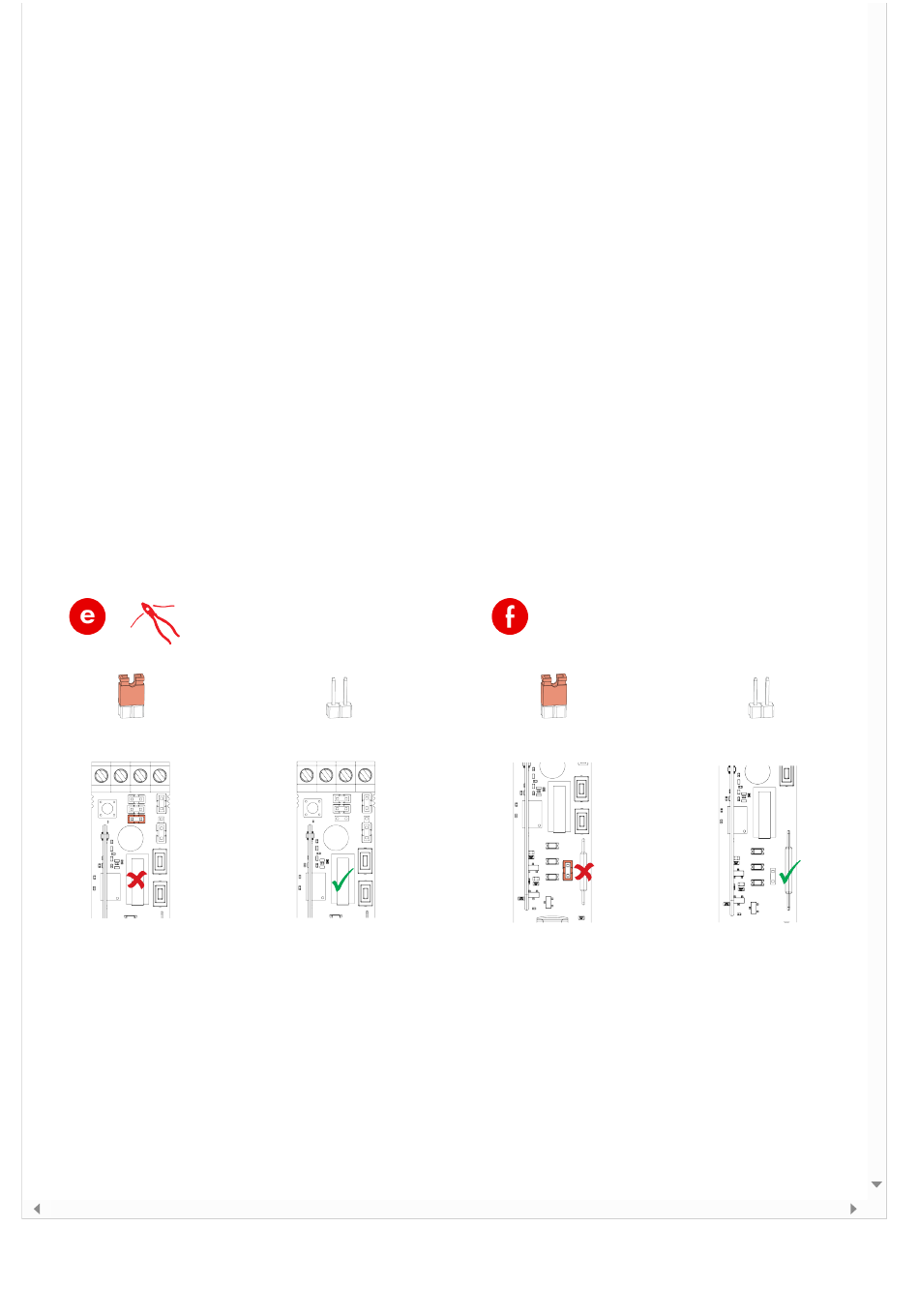

e. Internal tamper enable/disable
Linking this two pin header out with a
jumper disables the internal front and rear
case tampers on the PCB.
e t e type o put utt g a ju pe o t s t o p
disables the T terminal.
f. Reed switch enable/disable
The two pin header next to the reed switch
is used to disable it. This is generally used
when the external zone input is being
utilised.
