KX10DP-WE Specifications
®
Model: KX10DP-WE 10m Internal detector
Colour:
WHITE
Casing: 3mmABS, 0.4mm HDPE in LensArea
Transmission Frequency: 868MHz, FMTransceiver Narrow Band
Tranmission Method: Fully Encrypted Rolling Code
Transmission Range: 300m Free Space
Detection Method: Low Noise Pyroelectric Sensor
Sensitivity: High, Low
Temperature Compensation:
AdvancedAutomatic
Detection Range: 10m
Detection Zones: 74
Detection Speed: 0.3 - 3.0 m/s
Detection Angle: 85
Battery: CR123A Lithium Battery
Battery Life: Greater than 2 years
Mounting Height: 2m to 2.8m
Nominal Mounting Height: 2.4m
Tamper Switch: Front + Optional RearTamper
Storage Temperature: -20 C to 50 C
Operating Temperature: -10 C to 50 C
Accessories: Wall and ceiling mounting brackets optional
Emissions: EN55022 Class B
Immunity: EN50130-4
Coverage Pattern
Horizontal Coverage
1 0 m
9m
8m
85
7m
74 zones
6m 7 planes
5m
4m
3m
2m
1 m
1 m 1 0 m
2m 3m 4m 5m 6m 7m 8m 9m
Vertical Coverage
2.4m
1m
1m 10m
2m 3m 4m 5m 6m 7m 8m 9m

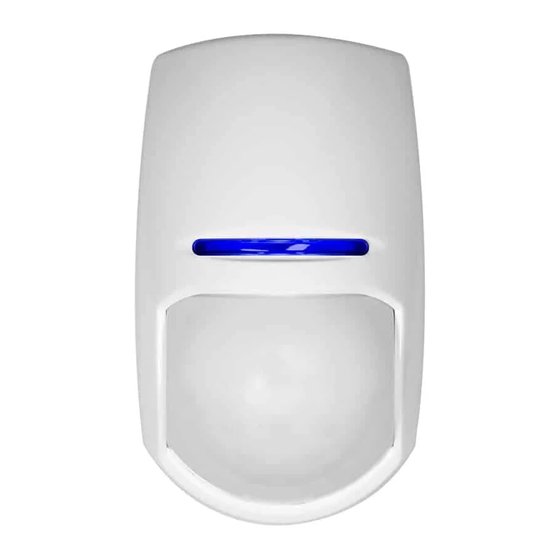

KX10DP-WE ®
10m Wireless PIR Detector
The detector will tolerate animals
of up to 20kg when the height of
the animal is less than 1 metre.
This product is approved for use in the Residential,
Commercial and Light Industrial Environment.
EN50131-2-2:2008
EN50131-5-3:2005
2
Security Grade 2
Environmental Class II
O
Customer Support Line : +44(0)0845 6434 999
or telephone 01709 535225
E-mail: customer.support@pyronix.com
website: www.pyronix.com
Pyronix Limited, Secure House, Braithwell Way,
Hellaby, Rotherham, S66 8QY. UK
WARRANTY
This product is sold subject to our standard warranty
conditions and is warranted against defects in
workmanship for a period of two years
excluded)
In the interest of continuing improvement of quality,
customer care and design, Pyronix Ltd reserves the
right to amend specifications, without giving prior
notice.
.
(batteries
RINS1421-1
