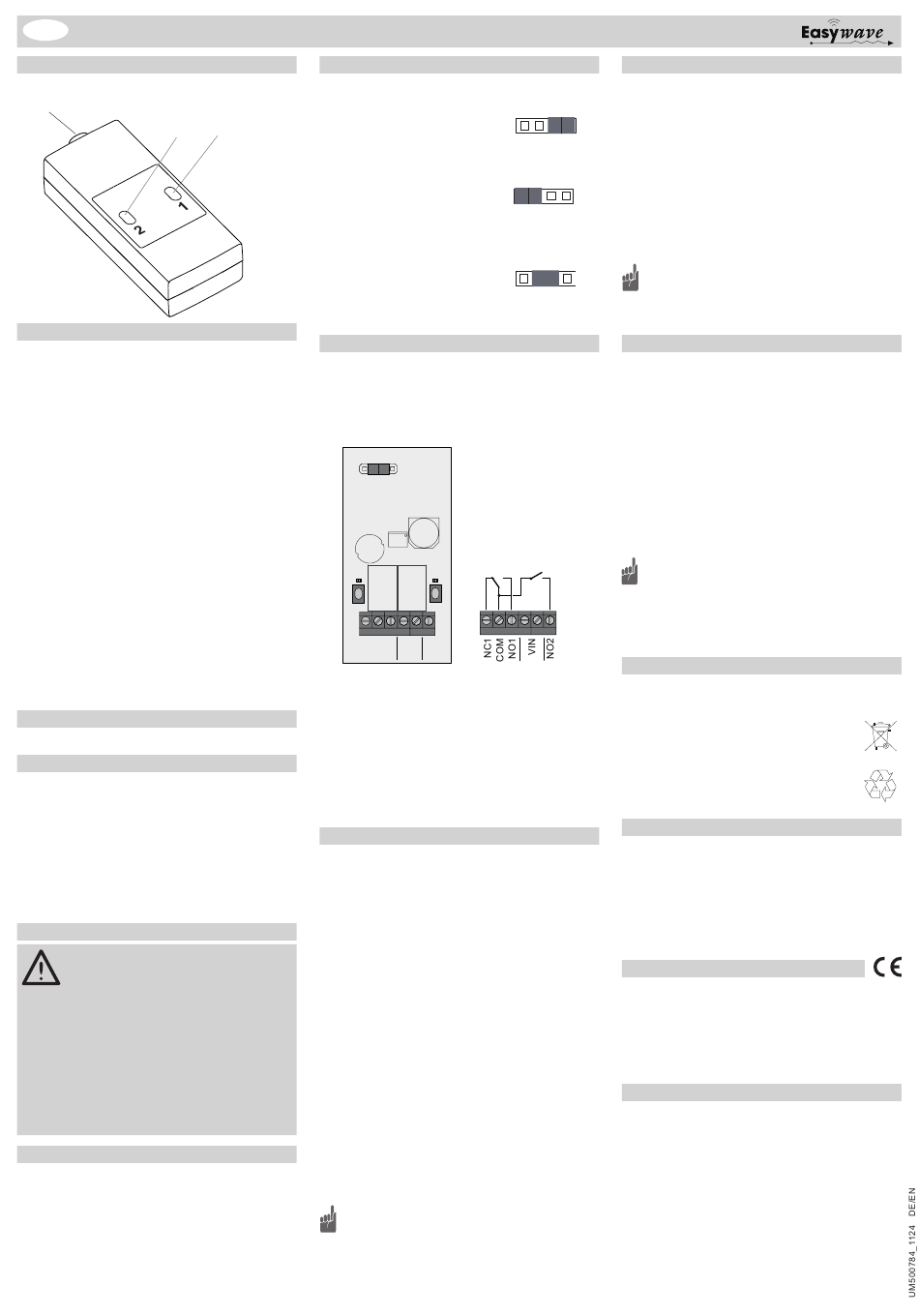

Eldat RCL07 Quick Start Manual page 2

Mini receiver RCL07
EN
Model
Cable entry Programming
with cord grip buttons with LED
TA2
RCL07E5002A30
Technical Details
Frequency: 868.30 MHz
Modulation: FSK
Coding: Easywave
Power supply: 12-24 V AC
12-32 V DC
Max. current consumption: 10 mA / 45 mA Load*)
Output: 2 potential-free
relay contacts
(1 CO and 1 NO)
Max. contact rating AC (Ω)
max. switching voltage: 120 V AC
max. switching current: 1 A
max. switching power: 62 W
Max. contact rating DC
max. switching voltage: 50 V DC
max. switching current: 1 A
max. switching power: 30 W
Output: 2 potential-free
relay contacts
(1 CO and 1 NO)
Operating temperature: -20 °C to +60 °C
Degree of protection: IP54
Dimensions (w/l/h): 35 / 80 / 20 mm
Weight: 38.0 g
Connecting cable: Ø 5 mm
*) Both relays are switched.
Scope of Delivery
Mini receiver RCL07, operating instructions
Intended Use
The device may only be operated with safety extra
low voltage (SELV) and may only be used as a ra-
dio control for switching devices with safety extra
low voltage (SELV). All information on the maxi-
mum contact load refers to resistive loads. If an
inductive load (e.g. motor) is connected, the maxi-
mum contact load is reduced depending on cos ϕ.
The manufacturer shall not be liable for any dam-
age caused by improper or non-intended use.
Safety advice
Before using the device, carefully read
through the operating instructions!
- Observe the permissible supply voltage and
the maximum contact load of the switching
outputs! The specified maximum values for
switching voltage, switching current and
switching power must not be exceeded!
- Have faulty radio controls checked by the
manufacturer!
- Do not make any unauthorized alterations
or modifications to the receiver!
Function
The RCL07 Easywave mini receiver can be op-
erated in a voltage range of 12-24V AC or 12-
32 V DC.
A total of 32 different Easywave radio transmis-
sion codes can be programmed. The distribution
across channels is arbitrary. If a transmitter is pro-
grammed into both channels, it still only takes up
one memory slot.
Operating modes
The operation mode for programming is set with
Jumper J1:
DEAD MAN
(1-button operation)
TA1
flickers when a
The relay is switched as long as the correspond-
radio signal is
ing transmitter button is pressed (max. 36 sec).
detected.
ON/OFF
(2-button operation)
The relay can be switched ON or OFF as re-
quired. The transmitter button A or C switch ON,
the transmitter button B or D switch OFF.
PULSE
(1-button operation)
If a transmitter button is pressed, the correspond-
ing relay is triggered for 1 second.
Start-Up
1. Remove the housing cover.
2. Select the desired operating mode with jum-
per J1. The factory setting is PULSE.
3. Connect the supply voltage and the safety extra
low voltage devices to be switched as follows:
J1
4 3 2 1
CH1
NC1 COM NO1
4. Re-install the housing cover.
5. Program the codes of the transmitters into
the receiver (see section "Programming the
transmission codes").
Caution: Make sure there is no interference with
the wireless connection. Do not mount the device
in a distribution box, in metal casings, in direct
proximity to large metal objects, on the floor or
close to it.
Programming the transmission codes
In the programming mode you can transfer the
codes of your transmitter buttons to the receiver.
The operating mode set on the jumper J1 at this
time is adopted during the storage process and is
valid for the stored transmission code.
If a previously programmed transmitter is repro-
grammed, the previous operating mode will be
overwritten with the currently selected mode.
1. Briefly (< 1.6 sec) press the programming but-
ton TA1 for channel 1 or TA2 for channel 2.
The receiver is for approx. 30 sec in the pro-
gramming mode, the corresponding channel
LED flashes.
2. Press the transmitter button you want to pro-
gram. If the code has been programmed, the
LED lights up and the receiver is going into op-
erating mode. Release the transmitter button.
In the ON/OFF mode, the code of the corre-
sponding button is assigned automatically.
3. Repeat step 1 and step 2 to program addi-
tional transmitters.
If the LED flickers for 4 seconds during the
programming process, the memory is full.
4 3 2 1
4 3 2 1
4 3 2 1
change-over contact:
NC1, COM, NO1
normally open contact:
COM, NO2
Power supply: VIN
(12-24V AC / 12-32 V DC)
VIN CH2
12-24VAC NO2
12-32VDC
Deleting specific transmission codes
1. Press and hold the programming button TA1
for channel 1 or TA2 for channel 2 for more
than 1.6 sec. The LED TA1 or TA2 flashes
J1
rapidly. The receiver is for approx. 30 sec in
the delete mode.
2. Press the transmitter button to be deleted.
When the code has been deleted, the LED
J1
lights up and the receiver returns to operating
mode.
In the ON/OFF mode, the code of the corre-
sponding button is also deleted.
If the LED flickers for 2 seconds during de-
J1
letion, the transmitter was not programmed
into the selected output! The receiver re-
mains in deletion mode.
Deleting all transmission codes (Reset)
1. Press and hold the programming button TA1
for channel 1, TA2 for channel 2 or both but-
tons for a RESET of both channels simultane-
ously for longer than 1.6 sec. The LED TA1,
TA2 or both flash quickly. The receiver is in
RESET mode for approx. 30 sec.
2. Press the same programming button(s) used
in step 1 again for longer than 1.6 sec, to
execute the RESET. When all transmission
codes have been deleted, the corresponding
LEDs light up briefly and the receiver switch-
es to the operating mode.
Canceling programming oder deleting op-
erations is possible at any time by pressing
the button TA1 or TA2 briefly or you can
wait approx. 30 sec, until the receiver is re-
turns to operating mode.
Disposal
Waste electrical products are not to be dis-
posed of with household waste!
Dispose of the waste product via a col-
lection point for electronic scrap or via
your specialist dealer.
Put the packaging material into the re-
cycling bins for cardboard, paper and
plastics.
Warranty
Within the statutory warranty period we undertake
to rectify free of charge by repair or replacement
any product defects arising from material or pro-
duction faults.
Any unauthorized tampering with, or modifica-
tions to, the product shall render this warranty
null and void.
Conformity
Hereby, ELDAT EaS GmbH declares that the ra-
dio equipment type RCL07 is in compliance with
Directive 2014/53/EU.
The full text of the EU declaration of conform-
ity is available at the following internet address:
www.eldat.de
