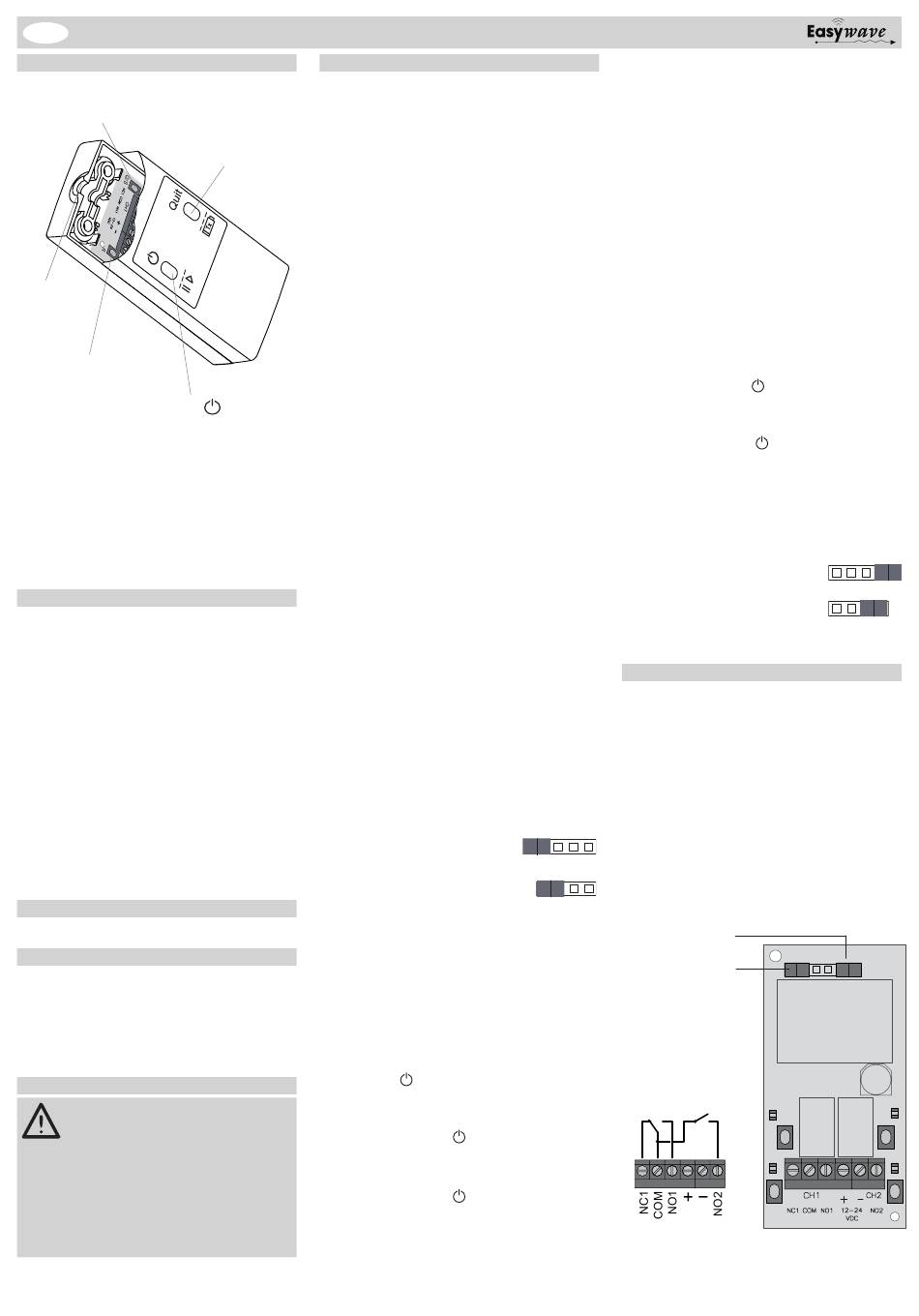

Eldat RCL07 Manual

RCL07 Call receiver with internal programming
EN
Model
Programming button Q/S
Acknowledge button Quit
Programming and deleting
Acknowledge a call
FUNCTION transmitters
red LED
illuminates: call received
flashes:
Cable entry
with cord
grip
Programming button R
Programming and deleting
CALL transmitters
Function button
Activate/deactivate function
green LED
illuminates: RCL07 ready for
operation
flashes: CARE function active
off: MUTE function active
or
RCL07 without power supply
RCL07E5002C01
Technical Details
Frequency: 868.30 MHz
Modulation: FSK
Coding: Easywave
Power supply: 12-24 V DC
Current consumption:
12 V DC: 19 mA stand by / 65 mA load *)
24 V DC: 11 mA stand by / 31 mA load *)
Max. contact rating: 30 V / 1 A / 30 W
Output: 2 potential-free
relay contacts
(1 CO and 1 NO)
Operating temperature: -20 °C to +60 °C
Degree of protection: IP54
Dimensions (w/l/h): 35 / 80 / 20 mm
Weight: 38.0 g
Connecting cable: Ø 5 mm
*)
Both relays are switched.
Scope of delivery
Call receiver RCL07, operating instructions
Intended use
The unit may only be operated with safety extra
low voltage (SELV) and may only be used as a ra-
dio control for switching devices with safety extra
low voltage (SELV).
The manufacturer shall not be liable for any dam-
age caused by improper or non-intended use.
Safety advice
Before using the device, carefully read
through the operating instructions!
- Caution! Observe the permissible supply
voltage and the max. contact rating!
- Have faulty radio controls checked by the
manufacturer!
- Do not make any unauthorized alterations or
modifications to the receiver!
Functions
The RCL07 call receiver has two channels. Chan-
nel 1 (CH1) is used for signal incoming calls. If the
RCL07 receives an undervoltage telegram, chan-
nel 2 (CH2) switches for one second.
The following applications can be realized with
battery low voltage
this:
CALL Function
When the RCL07 receives the telegram from a
CALL transmitter or PRIORITY transmitter, chan-
nel 1 (CH1) switches according to the operating
mode selected.
A maximum of 32 transmission codes for CALL
and PRIORITY transmitters can be programmed.
Programming is carried out using the internal pro-
gramming button R (page 2 "Programming CALL
transmitters" or "Programming PRIORITY trans-
mitters").
When programming, each transmitter can be as-
signed one of the following operating modes:
PULSE
1-button operation
If a transmitter button A/B/C/D is pressed, the
relay CH1 switches for one second.
ON/OFF
2-button operation
The relay CH1 can be specifically switched ON
or OFF. The transmitter buttons A or C switch
ON, the transmitter buttons B or D switch OFF.
To change the operating mode of an already pro-
grammed transmitter, first delete the transmitter's
transmission code and then program it again with
the desired operating mode.
ACKNOWLEDGE Function
When the ACKNOWLEDGE function is activated,
the QUIT LED will light up red once a call is in-
coming.
The red LED switches off and channel CH1
is reset as soon as the incoming call has been
acknowledged with the QUIT button or a pro-
grammed ACKNOWLEDGE transmitter.
A maximum of eight transmission codes can be
programmed. Programming is carried out using
the internal programming button Q/S (page 2
"Programming FUNCTION transmitters").
The ACKNOWLEDGE function can be activated
or deactivated by setting jumper J2 accordingly:
activated:
deactivated:
The ACKNOWLEDGE function is activated ex-
factory.
CARE Function
If the CARE function is activated, all calls will be
ignored for 15 minutes.
After these 15 minutes, the CARE function is de-
activated automatically, but can also be deacti-
vated manually at any time.
The CARE function is activated or deactivated
with a separate CARE transmitter or on the de-
vice using the
activate
(green LED flashes)
Button code B or D of a CARE transmitter
Function button
or
deactivate
Button code A or C of a CARE transmitter
Function button
or
While the CARE function is active, the green LED
flashes.
4 3 2
J2 Pos. 4
4 3 2
J2 Pos. 3+4
J2 J1
4 3 2 1
button.
:
(> 1.6 s but < 10 s)
:
(green LED lights up/off)
< 5 s
Q/S
A maximum of eight CARE transmitters can be
programmed. Programming is carried out using
the internal programming button Q/S (page 2
'Programming FUNCTION transmitters").
MUTE function
The MUTE function enables unlimited muting of
CALL transmitters.
As soon as the MUTE function is active, only calls
from programmed PRIORITY transmitters are ac-
cepted. (Page 2 'Programming PRIORITY trans-
mitters'). Calls from normal CALL transmitters are
ignored.
The RCL07 can be muted either on the device it-
self or with a MUTE transmitter to be programmed
separately (page 2 'Programming FUNCTION
transmitters'):
MUTE the RCL07
(green LED off)
Button code B or D of a MUTE transmitter
Function button
or
Un-MUTE the RCL07
Button code A or C of a MUTE transmitter
Function button
or
When the MUTE function is activated, the green
LED is off. It is not possible to check the supply
voltage in this state.
After a power interruption, the RCL07 is always
un-muted.
To be able to use the MUTE function, it must first
be enabled at jumper J1:
disabled: J1 Pos. 1
enabled: J1 Pos. 1-2
The MUTE function is disabled ex-factory.
Commissioning
Ensure that the radio connection is unobstructed.
Avoid installation in a distribution box, in enclo-
sures made of metal, in the immediate vicinity of
large metal objects, on or close to the floor.
1. Loosen the two screws on the back and open
the enclosure.
2. Activate or deactivate the desired functions
with jumpers J1 and J2.
3. Connect the supply voltage and the safety
1
extra-low voltage consumers to be switched.
4. Transfer the coding of the transmitters to the
receiver (page 2 'Programming').
1
5. Screw the enclosure back together.
Jumper J1
Jumper J2
CH1 :
(change-over contact)
NC1, COM, NO1
CH2 :
(normally open contact)
COM, NO2
Power supply
: +,-
(12-24V DC)
R
:
> 10 s
:
(green LED lights up)
> 5 s
4 3 2 1
4 3 2 1
J2 J1
4 3 2 1
Q/S R
