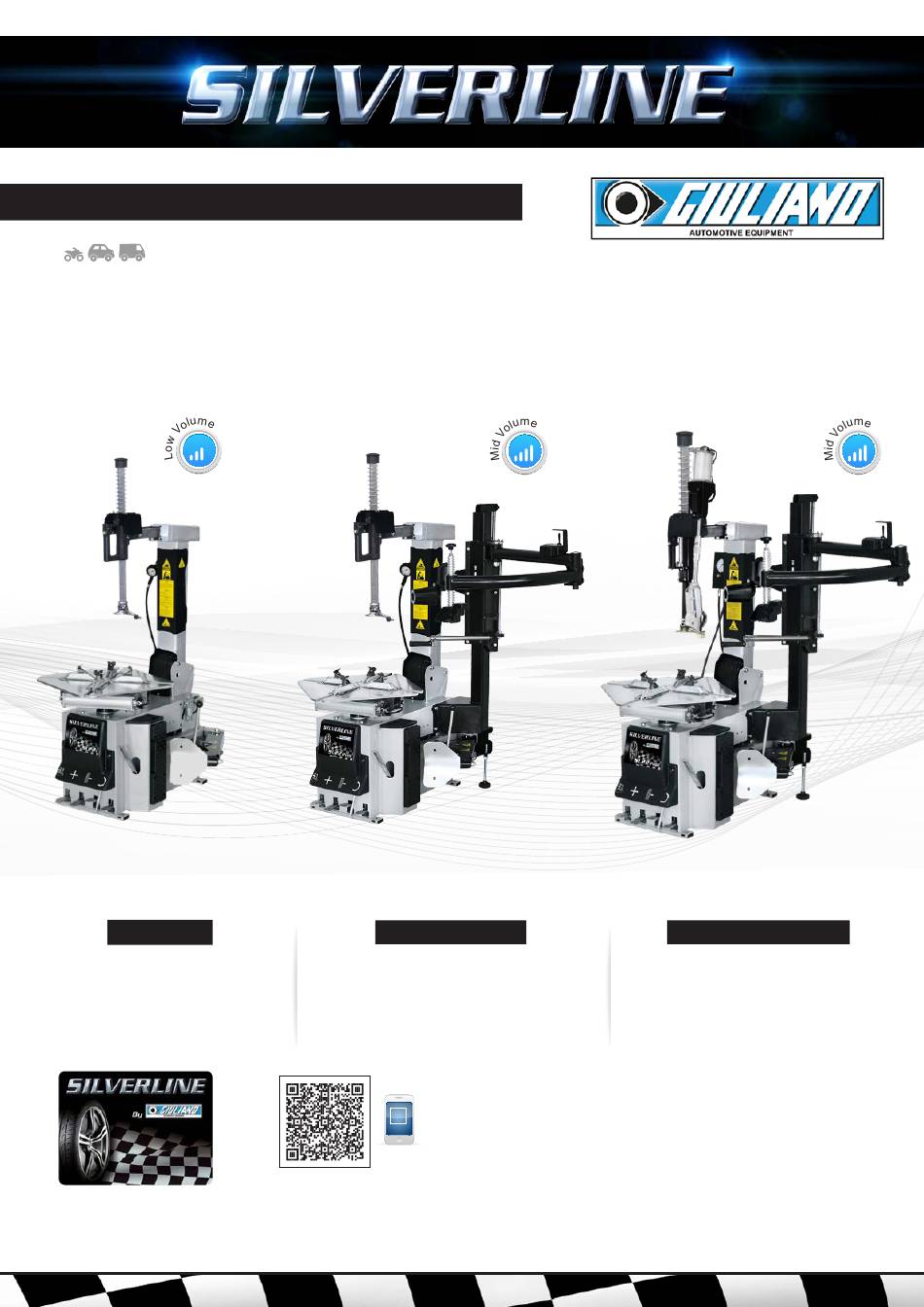

The best choice for the average tyre shop with budget goal.
2
ANS
USE AND MAINTENANCE INSTRUCTION MANUAL
B
SL22
AUTOMATIC TILT BACK TYRE CHANGER
FOR CAR WHEELS 10" – 24"
English
B
B
SL22 PRO
AUTOMATIC TILT BACK TYRE CHANGER
ASSIST ARM FOR CAR WHEELS 10" – 24"
Discover on
our website!
Original Instructions
by
www.giuliano-automotive.com
Int Diameter
Ext Diameter
Int distance
Ext distance
WITH DUAL
AUTOMATIC LEVER - NO LEVER TILT
BACK TYRE CHANGER
ARM FOR CAR WHEELS 10" – 24"
SL22 - SL22PRO - SL22PRO LL
B
SL22 PRO LL
WITH DUAL ASSIST
Ed.10/2021 Cod. 3045136
