2.4.1

Tower Installation

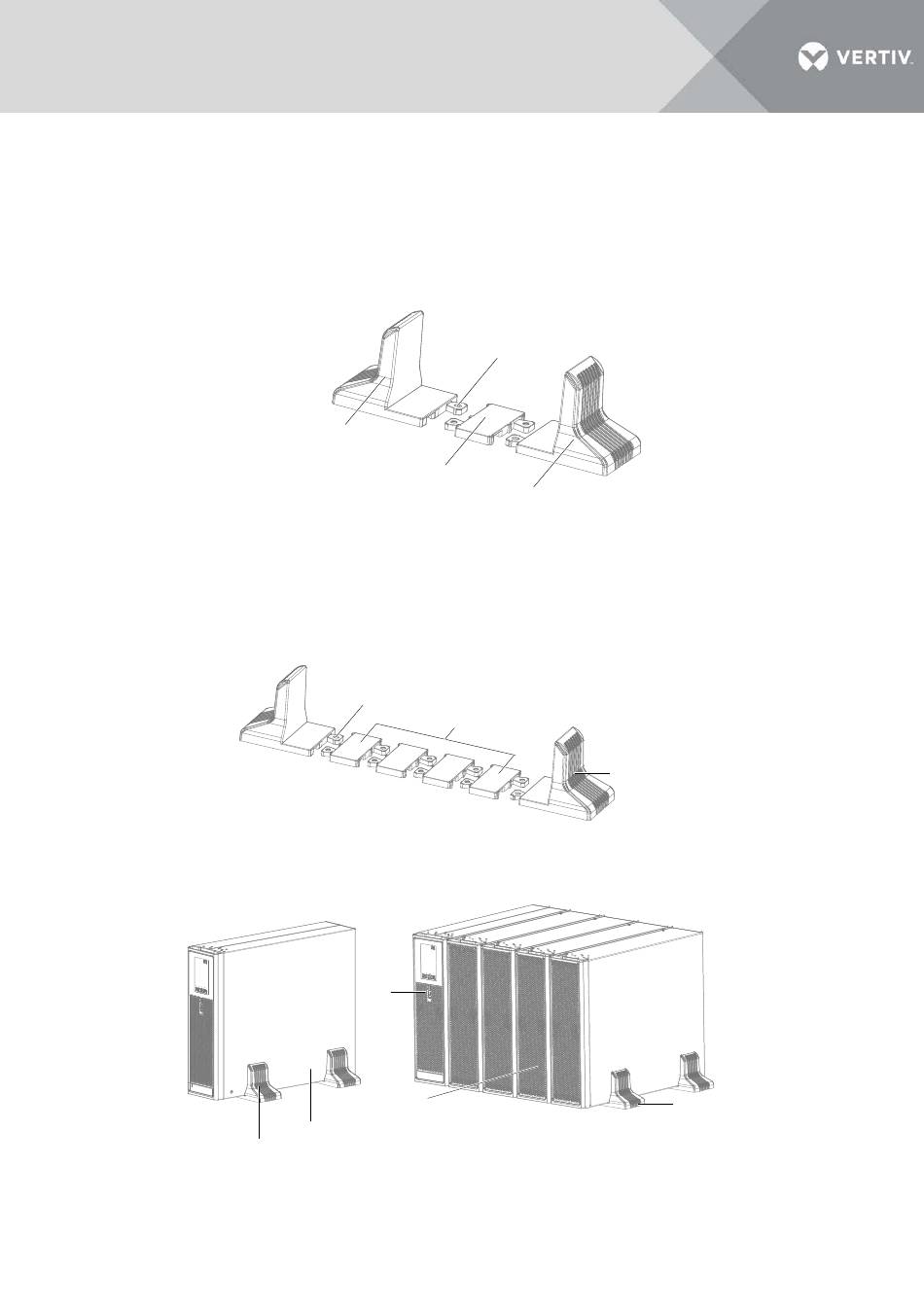

1. Take out the support bases from the accessories, assemble a pair of support bases and a
support base extension (accessory) together through the fastenings, as shown in Figure
2-1, and put them onto the flat installation table.
Fastening
Support base
Support base extension
Support base
Figure 2-1 Connecting the support base with support base extension
2. If battery module installation is necessary, take out other support base extensions
delivered with the battery module, and then assemble the support base extensions and the
support bases through the fastenings, as shown in Figure 2-2.
Fastening
Support base extension
Support base
Figure 2-2 Connecting the support base with support base extension
3. Place the UPS on the support bases and support base extensions, as shown in Figure 2-3.
UPS
Support base
Battery module (4pcs)
UPS
Support base
Figure 2-3 UPS and battery module installation complete
