SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com
|
Phone: 818-991-1778
RED
RZR3
FOLLOW THE COLOR CODE ON EACH STEP FOR YOUR VEHICLE'S SPECIFIC INSTRUCTIONS
8
pg
Panels, Dash Disassembly, and Wiring
12
pg
Glovebox Subwoofer Installation
16
pg
Amp Tray Installation
18
pg
Kick Panel Speakers Installation
20
pg
Cage Mount Speakers Installation
23
pg
MRB3 and Dash Kit Installation
|
Fax: 866-293-6751
2014-2018
RZ34-Q5K3
RZR 3 and RZR 4
Kicker 5 Speaker Audio Kit
BLUE
RZR4
2019+
Phase 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the RZ34-Q5K3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SSV Works RZ34-Q5K3

Summary of Contents for SSV Works RZ34-Q5K3

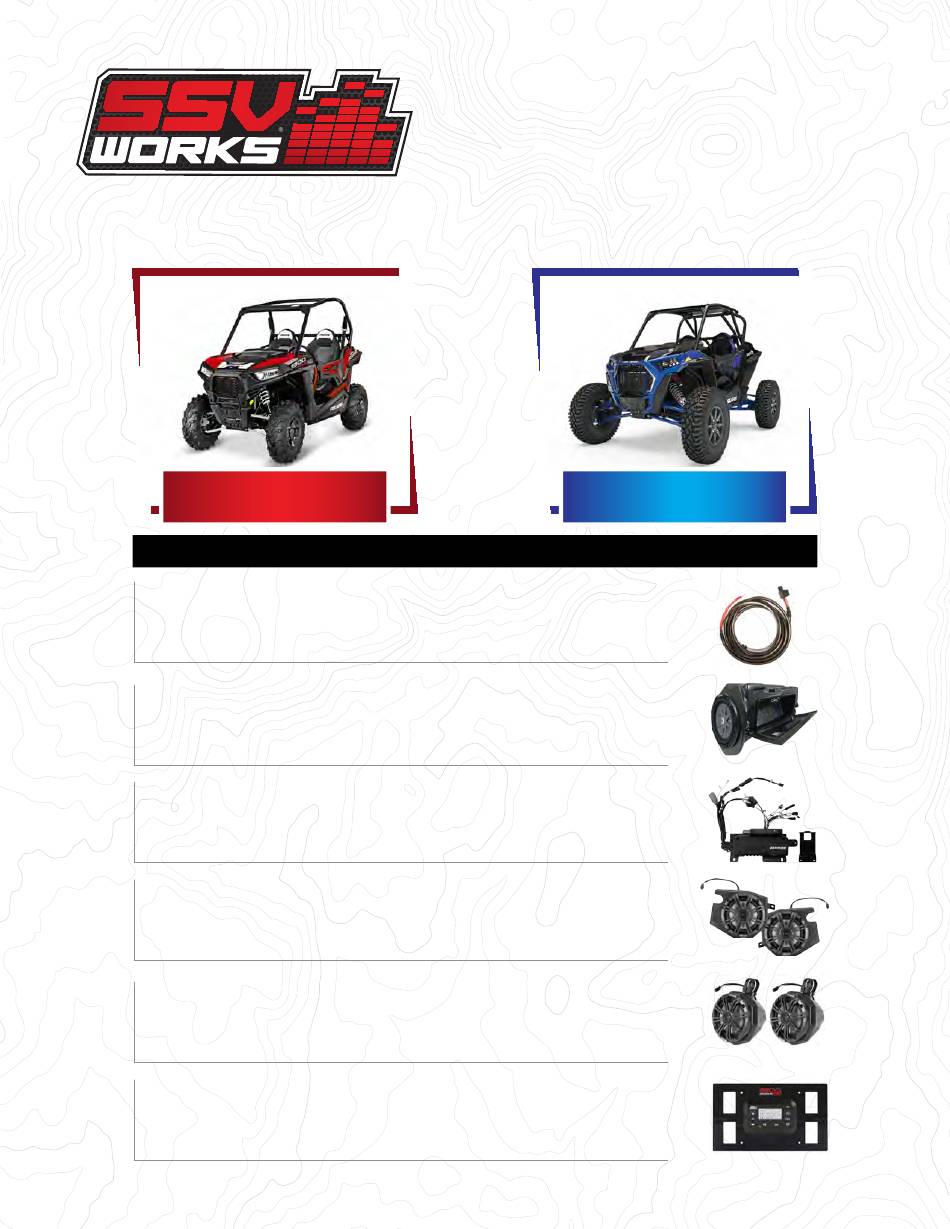

  • Page 1 RZ34-Q5K3 RZR 3 and RZR 4 Kicker 5 Speaker Audio Kit SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030 Phase 5 www.SSVworks.com Phone: 818-991-1778 Fax: 866-293-6751 BLUE RZR3 RZR4 2014-2018 2019+ FOLLOW THE COLOR CODE ON EACH STEP FOR YOUR VEHICLE’S SPECIFIC INSTRUCTIONS...
  • Page 2 All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, against defects in material or workmanship. All Kicker Speakers are covered by a limited 1 or damage to the accessory or vehicle.
  • Page 3 WARRANTY INFORMATION: Please read and understand these All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or instructions completely before workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects installation to avoid possible injury, in material or workmanship.
  • Page 4 All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, against defects in material or workmanship. All Kicker Speakers are covered by a limited 1 or damage to the accessory or vehicle.
  • Page 5 All SSV Works enclosures are covered by a limited lifetime warranty against defects instructions completely before in material or workmanship. All SSV Works Electronics are covered by a limited 1 year installation to avoid possible injury, or warranty against defects in material or workmanship. All Kicker Speakers are covered damage to the accessory or vehicle.
  • Page 6 All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, against defects in material or workmanship. All Kicker Speakers are covered by a limited 1 or damage to the accessory or vehicle.
  • Page 7 All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, against defects in material or workmanship. All SSV Works Speakers are covered by a or damage to the accessory or vehicle.
  • Page 8 PANELS AND DASH DISASSEMBLY (ALL MODELS) A. Remove all seats by releasing the handle behind each seat, B. Disconect the negative battery cable from the battery. push forward slightly while lifting up. PANELS AND DASH DISASSEMBLY (RZR3) C. Remove hood by turning locking pins and lifting up. D.
  • Page 9 G. Remove the factory dash pocket by first extracting the 10mm bolt on the dash frame (G1). Then pull out the dash pocket with bracket attached (G2) - NOTE this bracket will no longer be used for any part of this installation. Save this screw as it will be use later during the amp plate installation. Extract (2) screws securing the sub dash (G3).
  • Page 10 PANELS AND DASH DISASSEMBLY (RZR4) D1. Remove hood by turning locking pins and lifting up. D2. Unscrew the (4) T40 torx screws and extract the (2) push pins from the top-center dash compartment. Lift and remove the top-center dash compartment. From inside the machine, pull the dash towards you to unclip.
  • Page 11 D. Starting from under the hood compartment, feed the connector of the power wire and B-H1912 & B-H1913 rear harness female connector through the grommet into the dash cavity. In order to connect to the amplifier in a later step, pull about 18” of the amp power wire and B-H1912 & B-H1913 into the dash cavity (D1).
  • Page 12 J. Starting from under the hood compartment, feed the connector of the power wire and B-H1912 & B-H1913 rear harness female connector through the grommet into the dash cavity. In order to connect to the amplifier in a later step, pull about 18” of the amp power wire and B-H1912 & B-H1913 into the dash cavity (D1).
  • Page 13 E. While applying pressure to keep the enclosure secure against F. Loosely install the bottom L bracket, align the mounting hole with the front wall, tighten the top brackets, as they tighten they the factory bung and secure with one of the long screws provided will bend slightly to add pressure and avoid any vibration, now (you will tighten the bracket to the enclosure and factory bung tighten the lower L bracket to the enclosure...
  • Page 14 GLOVE BOX SUBWOOFER ENCLOSURE (RZR4) A. Using (4) 8mm screws and washers, attach Bracket “B” to the B. Install door latch onto enclosure with the provided (2) T30 enclosure. M6x8mm screws. C. Install left and right door hinge brackets using (2) 8mm screws and washers D.
  • Page 15 F. Lift the enclosure into place. Using the factory glove box mounting hardware, fasten the enclosure into place. Pull sub enclosure wiring towards the center of the vehicle to avoid being pinched by the chassis. G. Place Bracket “A” into place towards the firewall, and fasten H.
  • Page 16 AMP PLATE INSTALLATION 1. INPUT (FRONT) 2. INPUT (REAR) 3. INPUT (SUB) 4. OUTPUT (SUB) 5. B-H2701 6. OUTPUT (FRONT) 7. OUTPUT (REAR) 8. EXT SWITCH 9. AMP TURN-ON 10. TO POWER INPUT 800 0 .5 AMP 800.5 AMP .5 AMP...
  • Page 17 AMP PLATE INSTALLATION (RZR3) Place the pre-installed amp plate with MRB3 Brain on the frame of the dash and line up the hole on the top of the amp plate to the factory hole where the pocket bracket was previously installed (1). Loosely screw in the factory 10mm screw in this hole location.
  • Page 18 C. Secure the amp tray by using the 10mm factory bolt at the top, and D. Using a scribe or punch, mark the location of the needed pilot hole two (2) T-30 torx bolts at the bottom mounting locations. on the passenger side of the tray. E.
  • Page 19 FRONT KICK PANELS (RZR4) A. Starting at driver side footwell, remove the factory T40 torx B. Place the driver kick pod into location so that both vehicle screw as shown. Save this screw for Step D. screw bosses line up with kick pod brackets. C.
  • Page 20 CAGE POD KICKER 6.5” SPEAKER (ALL MODELS) A. Find the best orientation for the speaker on your bar and B. Loosely install the clamp base to the cage mount pod with the screw in the Set Screws in the OPPOSITE holes of where the two (2) 8mm M6 hex head bolts and washers, place the cage clamp will install into.
  • Page 21 D. Position the speaker to your liking and tighten the hex head E. From the rear of the center console, route the B-H2195 bolts by hand with a 8mm wrench. harness up to each speaker pod and connect. G. Connect the B-H1912 and B-H1913 speaker harness to the SSV F.
  • Page 22 C. Feed in the wires and cable through the factory 12v hole. Keep the D. Feed the plastic nut back through the wires and cables and fuse holder open and empty until it has passed through the hole. screw back onto the port. Hand tighten only. Replace fuse and close fuse holder.
  • Page 23 DASH KIT FOR MRB3 (RZR3) A. Take the MRB3 Remote and pass the din cable through the dash kit panel. Once MRB3 remote is laying flat on the dash panel pass (2) M3 Screws through the remote and kit panel. Flip the kit around and use (2) M3 washers and (2) M3 Nuts to secure the MRB3 down into position. Do not over tighten the nuts, this can cause damage to the dash kit panel.
  • Page 24 DASH KIT FOR MRB3 (RZR4) A. Cut the template to size. Align the template onto the face of the B. Using a 3/32” drill bit, drill out each template guide point and a compartment and tape template into place. Prior to drilling, place the pilot hole into the center guide point.
  • Page 25 G1. Connect the power/ground wire. G2. Connect the antenna. Route the antenna G3.Re-assemble dash and route controller cable wire under dash. into dash cavity and connect to MRB3 brain. NOTE Some RZR models come with the ground “GND” terminal not connected as shown.
  • Page 28 40A fuse, screw the 2 screws back in and reattach the fuse holder top. column away from the drive shaft. THIS CONCLUDES THE INSTALLATION PROCESS. REPLACE THE FACTORY PANELS AND SEATS. QUESTIONS? PLEASE CONTACT SSV WORKS AT 818-991-1778 OR EMAIL SUPPORT@SSVWORKS.COM...
