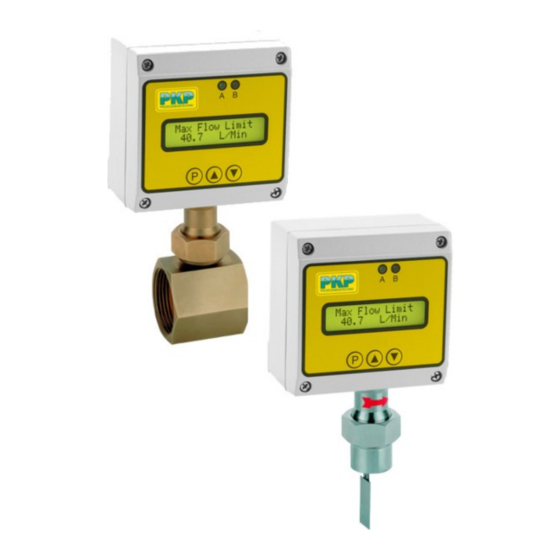

- Page 1 Instruction Manual DP07 Electronic paddle-bellows flowmeter, counter and switch with analogue output PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de www pkp.de...
-
Page 2: Table Of Contents
The series DP07 flow meter devices should not be deployed as the sole agents to prevent dangerous conditions occurring in plant or machinery. Machinery and plant need to be designed in such a manner that faulty conditions and malfunctions do not arise that could pose a safety risk for operators. - Page 3 Qualified Personnel The DP07 devices may only be installed by trained, qualified personnel who are able to mount the devices correctly. Qualified personnel are persons, who are familiar with assem- bling, installation, placing in service and operating these devices and who are suitably trained and qualified.
-
Page 4: Position Of Mounting
• The provided ferrites have to be mounted as described. • Signal and supply cable of the DP07 may not directly taken close to 230 V or 380 V wirings. • The device should not be installed close to inductance, switching loads, engines or similar sources of inductive fields. -
Page 5: Mounting At The Tube
If the device shall be divided from the t-piece or the welding socket, the union nut has to be disconnected and the device carefully taken out of the housing. If both pieces are assembled, please take care that the nut is tightened with a torsional moment of 40 Nm. DP07 Instruction manual 04/2023 page 5... -
Page 6: Electrical Connection
The connection is prevented from mixing the poles. At the connection cable a ferrite must be fixed with one coil. The ferrite is included in deliv - ery. DP07 Instruction manual 04/2023 page 6... -
Page 7: Settings
Pressing this button one time the value changes for one digit. If you keep the buttons on hold the value is changing continuously. After some time velo- city is increasing. At some points of the menu the DP07 informs you which buttons have to be pressed as next step. - Page 8 Adjusting of integration time The DP07 Flow transmitter makes 18870 measurements pro minute. If the result of each measurement would be shown on the display, the indication would change it’s worth con - tinuously and it would be very difficult to read off the indication.
- Page 9 If the max. indica- tion value is reached, DP07 starts with zero again. At the totalizer menu you see the actual value in the moment of switch over to the totalizer function. That means always when the totalizer menu is actuated the indication is updated.
- Page 10 Mounting the ferrite The flow transmitter DP07 is EMI certified and comes up to the corresponding norm. The EMI directive will only be achieved, if the provided ferrites are mounted as mentioned under “Power Supply”, “Analogue output”, “Voltage output”, “Frequency output”, “Connect - ing the relays”.
-
Page 11: Maintenance
Clean the pendulum system before re-installing into the pipe. IMPORTANT! If the DP07 must be separated from the tee loosen nut (A) and cant the unit a little opposed to direction of flow. Then lift the DP07 with pendulum rectangular out of the tee. - Page 12 Typical applications: The DP07 flowmeter work according to the paddle-bellows The DP07 flow transmitters are used to supervise the flow of principle. By the flow of the liquid the paddle arm is moved in low viscosity media up to large flows.
- Page 13 = min. - max. flow (see table „Measuring ranges“) pivoting system made st. steel 1.4310 *female thread DP07...A: R 3/8 bis R 1 1/2; DP07...B: R 3/8 bis R 3/4 flange made of st. steel 1.4571 male thread DP07...A: R 2; DP07...B: R 1 bis R 2...
