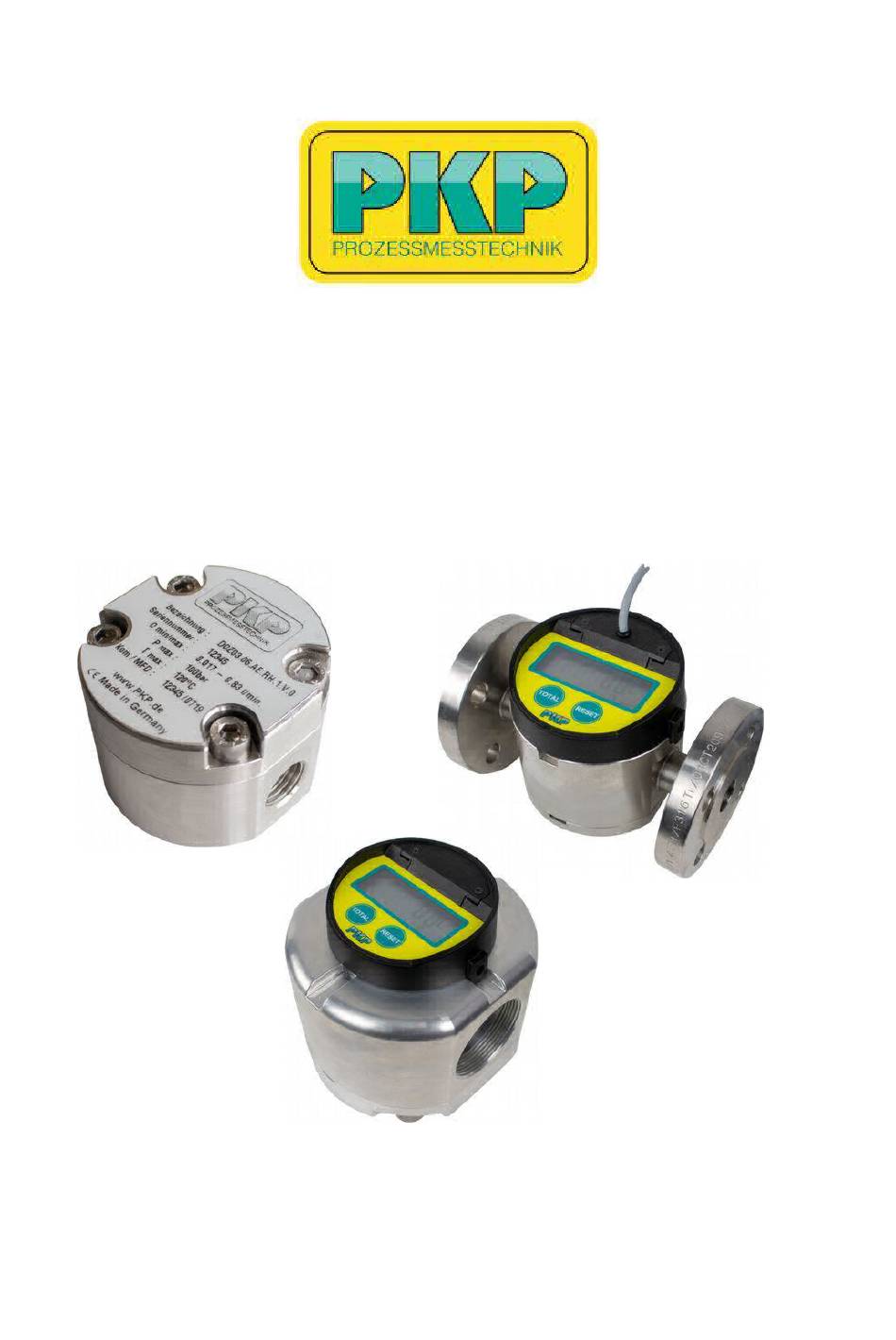

- Page 1 Instruction Manual DOZ03 / DOZ05 / DOZ07 Oval gear flowmeter PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de www pkp.de...
-
Page 2: Table Of Contents
In particular, applications in which shock loads occur (for example, pulsed operation) should be discussed and checked in advance with our technical staff. The series DOZ03, DOZ05 and DOZ07 flow meter devices should not be deployed as the sole agents to prevent dangerous conditions occurring in plant or machinery. Machinery and plant need to be designed in such a manner that faulty conditions and malfunctions do not arise that could pose a safety risk for operators. -
Page 3: Requirements For Use In Hazardous Areas
Qualified Personnel The DOZ03, DOZ05 and DOZ07 devices may only be installed by trained, qualified personnel who are able to mount the devices correctly. Qualified personnel are persons, who are familiar with assembling, installation, placing in service and operating these devices and who are suitably trained and qualified. -
Page 4: Meter Hazards
Use of this product in a manner other than specified in this manual may result in impaired operation or damage to equipment. These meters are designed to dispense a wide range of chemicals. Consult the factory for chemical compatibility. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 4... -
Page 5: Installation
Check for and repair leaks upon initialization of fluid flow. Recommended filter sizes: device size filter / ore width [mesh] filter / pore width [mm] 1/4“ 0,08 1/2“ 0,250 3/4“ 0,250 1“ 0,250 1 1/2“ 0,250 2“ 0,250 3“ DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 5... -
Page 6: Meter Operation
The reed switches send pulses to the microprocessor in the register to change the LED display segments. Pressure loss diagrams DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 6... - Page 7 DOZ07 only: DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 7...
- Page 8 DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 8...
-
Page 9: Evaluation Units General
("Total" key pressed and held, "Reset" key pressed). This can be used for several subtotals. The non-resettable totalisers have 11 digits and count arbitrarily in either gallons or litres. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 9... -
Page 10: Electrical Connection / Evaluation Units
0,017...0,83 l/min appr.4400 1/4“ 0,04...1,67 l/min appr. 2170 1/4“ 0,25...8,33 l/min appr. 390 Note: Pulses per liter are shown unit-specifically on the calibration certificate supplied and on the type plate. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 10... - Page 11 64,4 DOZ07 2“ ca. 9 ca. 34,1 DOZ07 3“ ca. 3 ca. 11,4 Note: Pulses per liter are shown unit-specifically on the calibration certificate supplied and on the type plate. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 11...
- Page 12 4 mA. - Pulse output with internal pull-up resistor (10 KΩ); optional open collector output with output jumper removal; pulse output is scalable in pulses per liter or pulses per gallon. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 12...
- Page 13 Cable length 2 meters (PVC) Core cross-section 0,34 mm² Material Stainless steel 1.4404 (316L) Protection class IP66 / IP67 Marking: Namur CE 0102 / Ex II2G Ex ib IIC T6 Gb DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 13...
- Page 14 64,4 DOZ07 2“ ca. 9 ca. 34,1 DOZ07 3“ ca. 3 ca. 11,4 Note: Pulses per liter are shown unit-specifically on the calibration certificate supplied and on the type plate. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 14...
- Page 15 GROUP ABCD T6 to T5 Class I, Zone 0, Ex ia IIC T6 to T5 ATEX Ex II 1G Ex ia IIC T6 to T4 Ga IIECEx Ex ia IIC T6 to T4 Ga DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 15...
- Page 16 64,4 DOZ07 2“ ca. 9 ca. 34,1 DOZ07 3“ ca. 3 ca. 11,4 Note: Pulses per liter are shown unit-specifically on the calibration certificate supplied and on the type plate. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 16...
-
Page 17: Function Of The On-Site Display
TOTAL button for seconds. The top row displays the 6 most significant digits; the bottom row displays five least-significant digits. NOTE: The non-resettable totalizer normally displays 5 least-significant digits. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 17... - Page 18 At the same time, press and hold the TOTAL and RESET buttons for two seconds to display the programmed scale factor. To return to the normal display, release both buttons. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 18...
-
Page 19: Programming Of The On-Site Display
2. Press and release the TOTAL button to select desired the unit of measure (theselected unit of measure will flash). 3. When the appropriate unit of measure is selected, press the TOTAL button to advance to the scale factor programming. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 19... - Page 20 2. When finished adjusting the pulse rate, press and hold the TOTAL button for one second to advance to the “register orientation” section. NOTE: Error checking will not allow the user to advance to the next screen. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 20...
- Page 21 1. Press the RESET button to toggle between available options (“I, for an inline-to- flow orientation and “P” for a perpendicular-to-flow orientation or “O” for Remote versions and for the oval gear meters (DOZ03 / DOZ05 / DOZ07)). 2. When finished adjusting the register orientation, press and hold the TOTAL button for one second to advance to the “Default Display”...
- Page 22 Following the three flashes, the register display will be blank. NOTE: Pressing the TOTAL or RESET buttons will turn the display back on. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 22...
-
Page 23: Linearisation
Following the three flashes, the register display will be blank. NOTE: Pressing the TOTAL or RESET buttons will turn the display back on. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 23... -
Page 24: Additional Programming Of More Parameters For Display With Pulse And Analogue Output (Type B And D2)
To advance to the next programming screen, hold the TOTAL button. NOTE: Error checking will not allow the user to advance to the next screen. Analogue maximum flow rate screen DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 24... - Page 25 = the required pulse rate in milliseconds. The output pulse rate = the programmed parameter (default = 1.00 PPL/PPG) The maximum meter flow rate = the maximum flow rate of the meter for the application. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 25...
-
Page 26: Cleaning
The batteries contained in our devices must be disposed of properly in accordance with §12 of the BattV. in accordance with §12 of the German Battery Ordinance (BattV) and in accordance with the the EU directive 2006/66/EC. DOZ03 / DOZ05 / DOZ07 Instruction manual 02/2021 page 26... - Page 27 : 120 °C Description: Typical applications: The DOZ03 oval gear flowmeter measures the volume flow of The DOZ03 oval gear flowmeters are used wherever the flow liquid media with a viscosity of up to 500,000 mm rate of liquids with different viscosities has to be measured regardless of the actual viscosity of the medium.
- Page 28 Supply: battery, replaceable (CR123A) Dimensions: Calibration factor: can be entered and stored 9-point linearization: medium: water, for other media please contact PKP. Protection class: IP65 Additional only for option D2: Pulse output: NPN open collector, scaleable, adjustable pulse length Analogue output: 4...20 mA (min / max values...
