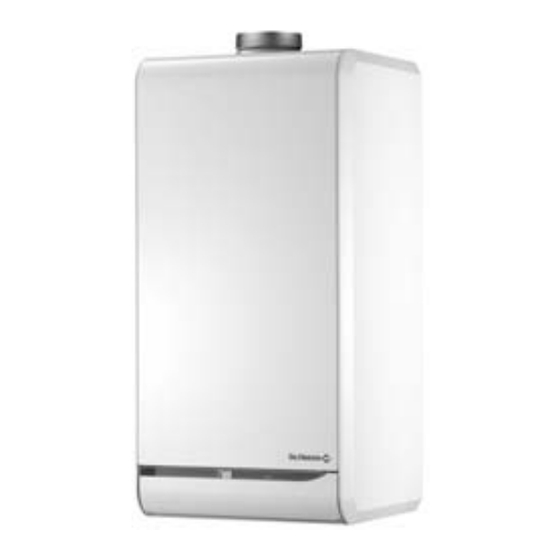

City 1.24/II Chimney and VMC - City 1.24/II FF
City 2.24/II Chimney and VMC - City 2.24/II FF - City 2.28 FF
City 3.24/II Chimney - City 3.24/II FF
City 24 BIC/II - City 24 BIC/II FF
City Condens 1.24, 2.24, 3.24
English
Wall-hung gas boilers
31/08/05
Instructions for
use
Advertisement
Related Manuals for DeDietrich City 1.24/II
Summary of Contents for DeDietrich City 1.24/II

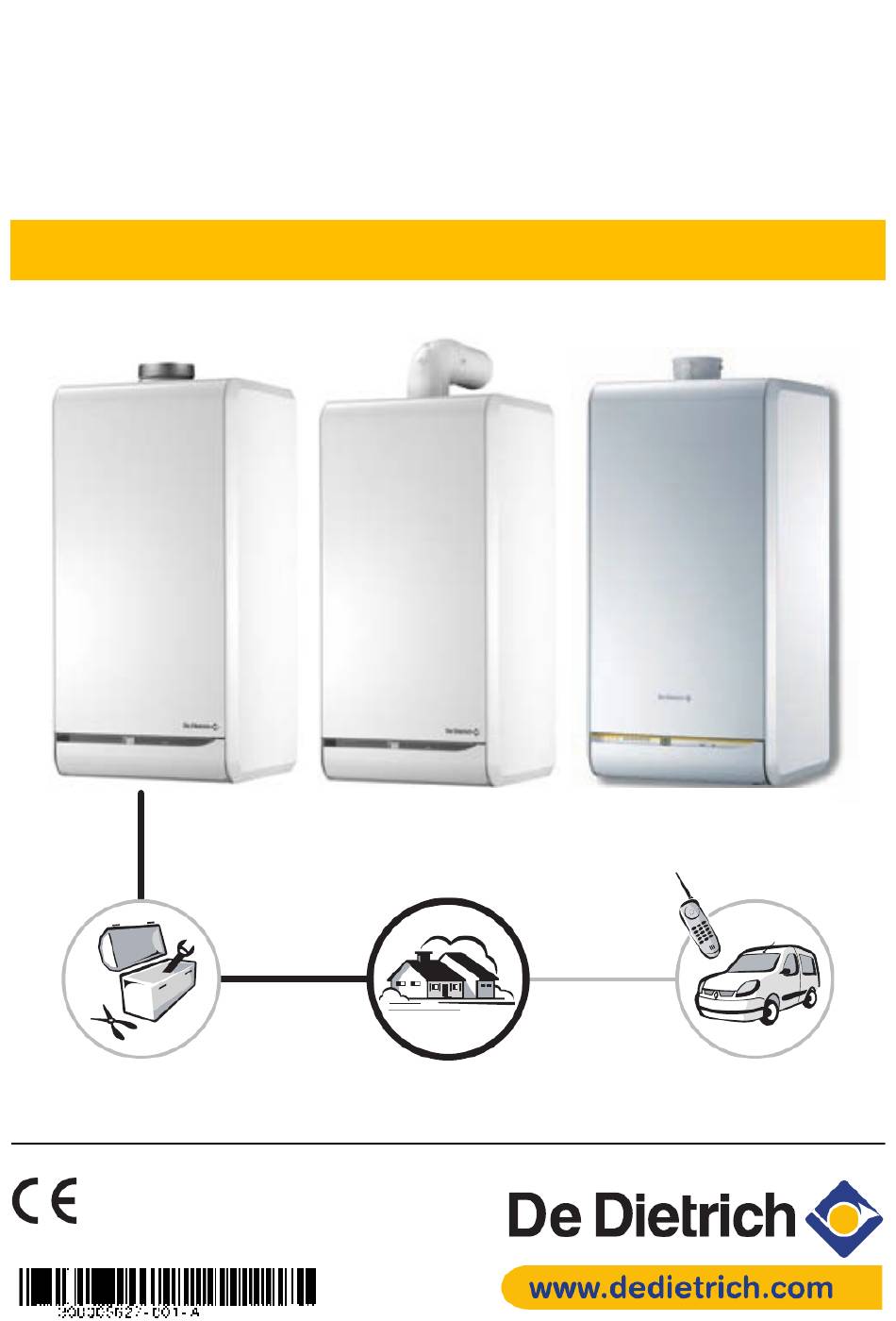

- Page 1 City 1.24/II Chimney and VMC - City 1.24/II FF City 2.24/II Chimney and VMC - City 2.24/II FF - City 2.28 FF City 3.24/II Chimney - City 3.24/II FF City 24 BIC/II - City 24 BIC/II FF City Condens 1.24, 2.24, 3.24...
- Page 2 The air inlet into the premises must in no event be consult your fitter). obstructed, even partially. Control panel (City 1.24/II, 2.24/II, 3.24/II, 24 BIC/II) J Flame presence light A Temperature display K Setting the domestic water temperature B Domestic hot water temperature maintenance override button L "Domestic hot water"...
- Page 3 Operating instructions - Check that the boiler is connected to the electricity. M : Pressure indicator - Open the gas valve (See next page). Displays the pressure in the heating circuit from 0.5 to 2.5 bar. If the red warming light (0.5 bar) is lit, top up with water using the filling G : Switch system (disconnector, consult your fitter (See next page).
- Page 4 Control panel (City Condens 1.24, 2.24, 3.24) N Temperature display O 6-position switch T Domestic hot water temperature maintenance override button (1.24, 3.24) or Maintenance override button for the primary storage tank (2.24) P Safety shutdown light Q Unlock button R Sweeping mode / Previous parameter / Decrementation of the parameter (The previous parameter function is invalidated when an adjustable parameter is concerned)
- Page 5 Operating instructions N : Temperature display Q : Unlock button The display shows the temperature of the water in the domestic hot To restart the boiler after safety shutdown. water heating outlet when there is a request for domestic hot water. V : Heating temperature setting O : 6-position switch Setting range : 30 °C to 90 °C (Hard spot at 68°C)
-
Page 6: Gas Connection
Gas connection If you can smell gas : - Close the gas valve - Open the windows - Do not operate switches - Extinguish all flames - Consult your fitter or the maintenance company - Inform the gas supplier. 1 Opening the gas valve on the boiler (Example with City 2.24/II) Under the boiler, push the yellow lever upwards Under the boiler, turn the lever a quarter turn... - Page 7 3 Topping up the boiler with water (Example with City 2.24/II) A Under the boiler, open (+) the 2 valves until you reach a pressure of between 1 and 2 bar B Close the 2 valves (-) 4 Troubleshooting (30/90 : for City Condens) Checks to make before calling your fitter The burner is not working I t is cold.
- Page 8 I t is cold. There is no domestic hot water (Example with City 2.24/II) - Note the code displayed AL + _ _. Hot water takes a very long time to reach certain draw-off - Press button until the red light goes out. points and not others ...
-
Page 9: Warranty
Warranty You have just purchased a DE DIETRICH appliance and we France thank you for the trust you have placed in our products. The preceding dispositions are not exclusive of benefits for the Please note that your appliance will provide good service for a purchaser of the legal guarantee as stated in Civil Code articles longer period of time if it is regularly checked and maintained. - Page 10 CITY 31/08/05 - 300005627-001-A...
- Page 11 CITY 31/08/05 - 300005627-001-A...
- Page 12 DE DIETRICH THERMIQUE S.A.S. www.dedietrich.com Direction des Ventes France 57, rue de la Gare F- 67580 MERTZWILLER (+33) 03 88 80 27 00 (+33) 03 88 80 27 99 DE DIETRICH HEIZTECHNIK www.dedietrich.com Rheiner Strasse 151 D- 48282 EMSDETTEN 0 25 72 / 23-5 0 25 72 / 23-102 info@dedietrich.de...
