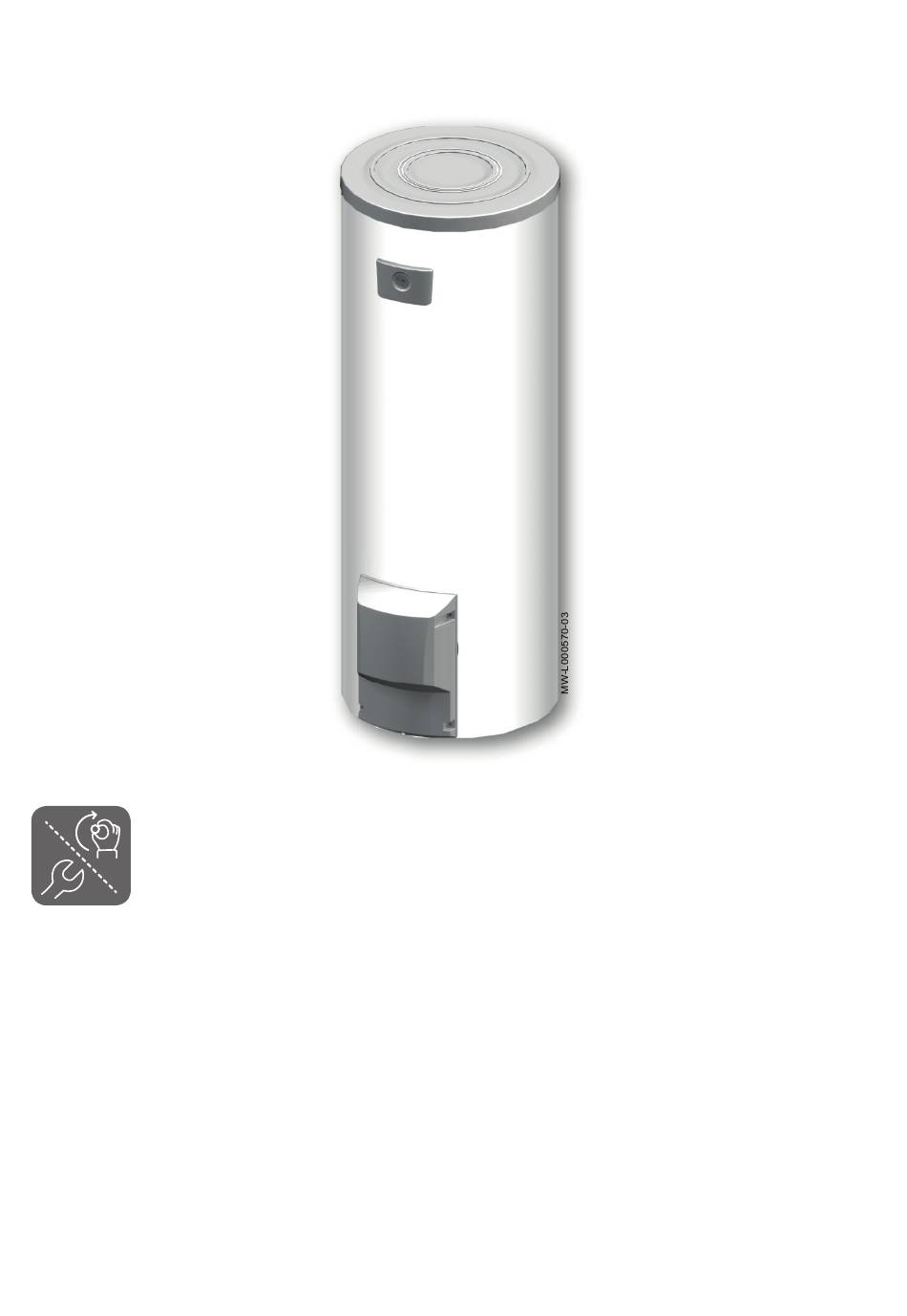

- Page 1 Installation, User and Service Manual Independent domestic hot water tanks BPB 150...501...
-
Page 2: Table Of Contents
10.1 General ..................26 BPB 150...501... - Page 3 12.1 Product fiche - Hot water storage tanks ............30 300027336 - v06 - 13062019 BPB 150...501...
-
Page 4: Safety
Insulate the pipes to keep heat losses to a minimum. Only remove the covers for maintenance and breakdown repair operations and put the covers back in place once these operations are complete. Warning stickers BPB 150...501 300027336 - v06 - 13062019... -
Page 5: Liabilities
Give all the instruction manuals to the user. 1.3.3 User's liability To guarantee optimum operation of the system, you must abide by the following instructions: Read and follow the instructions given in the manuals provided with the appliance. 300027336 - v06 - 13062019 BPB 150...501... - Page 6 Get your installer to explain your installation to you. Have the required inspections and maintenance carried out by a qualified installer. Keep the instruction manuals in good condition close to the appliance. BPB 150...501 300027336 - v06 - 13062019...
-
Page 7: Symbols Used
Reference to other manuals or pages in this manual. Symbols used on the equipment Fig.1 1 Before installing and commissioning the appliance, carefully read the instruction manuals provided 2 Dispose of used products in an appropriate recovery and recycling structure MW-6000691-1 300027336 - v06 - 13062019 BPB 150...501... -
Page 8: Technical Specifications
This product conforms to the requirements of European Directive 2009/125/EC on the ecodesign of energy-related products. Technical data 3.2.1 Specifications of the domestic hot water tank Tab.1 Unit BPB 150 BPB 200 BPB 300 BPB 401 BPB 501 Primary circuit: (Ex changer) Maximum operating tem... - Page 9 3 Technical specifications Unit BPB 150 BPB 200 BPB 300 BPB 401 BPB 501 Hourly flow rate (Domes litres/h 1330 1670 2110 tic hot water, ∆T = 35 °C) Draw-off capacity (∆T = Litres/10 30°C) (10 minutes) Standby heat loss...
-
Page 10: Description Of The Product
General description BPB 150...501 are high performance independent domestic hot water tanks. BPB 150...501 domestic hot water tanks can be connected to central heating boilers used for heating domestic hot water. Main components: The tanks are made of high-quality steel lined with food-quality standard enamel vitrified at 850 °C, which protects the tank from corrosion. -
Page 11: Before Installation
2. Place the appliance on a base frame to facilitate cleaning of the area. 3. Install the appliance on a solid, stable structure able to bear its weight. 300027336 - v06 - 13062019 BPB 150...501... -
Page 12: Main Dimensions
Exchanger inlet G1" Exchanger outlet G1" Domestic cold water inlet and drain opening G1" Anode Sensor tube for DHW sensor Important G: Cylindrical threading, sealed by sheet gasket Tab.4 BPB 150 BPB 200 BPB 300 BPB 401 BPB 501 1152 1262 1220... - Page 13 5 Before installation BPB 200 – BPB 300 – BPB 401 – BPB 501 Fig.4 Ø F L000559-B 300027336 - v06 - 13062019 BPB 150...501...
-
Page 14: Installation
Important The sensor tube separator is provided in the documentation bag. 2. Check that the probes are correctly positioned in the sensor tube. 3. Check the mounting of the sensor tube separator. MW-C003702-2 BPB 150...501 300027336 - v06 - 13062019... -
Page 15: Hydraulic Installation Diagram
25 Domestic hot water tank exchanger primary outlet 67 Manual radiator valve 26 DHW booster pump 68 Condensates neutralisation system 27 Non-return valve 109 Domestic hot water thermostatic mixing valve 28 Domestic cold water inlet 201 DHW expansion vessel 300027336 - v06 - 13062019 BPB 150...501... -
Page 16: Example With A Floor-Standing Boiler
29 Pressure reducer 30 Safety unit 2 cm 54 End of the discharge pipe free and visible 2 to 4 cm above the flow (54) funnel 55 Safety valve 0.7 MPa (7 bar) L000370-C BPB 150...501 300027336 - v06 - 13062019... -
Page 17: Safety Unit (Only For France)
Install the safety valve close to the DHW tank in a place with easy access. Sizing The diameter of the safety unit and its connection to the tank must be at least equal to the diameter of the domestic cold water inlet on the tank. 300027336 - v06 - 13062019 BPB 150...501... - Page 18 Run the domestic hot water circulation loop via the boiler control system or an additional timer program to optimise energy consumption. Measures to take to prevent hot water flow return Fit a non-return valve to the domestic cold water circuit. BPB 150...501 300027336 - v06 - 13062019...
-
Page 19: Commissioning
During the heating process, a certain amount of water may escape via the safety valve or unit because of the expansion of the water. This phenomenon is perfectly normal and no steps should be taken to prevent it. 300027336 - v06 - 13062019 BPB 150...501... -
Page 20: Domestic Water Quality
The softener does not bring about a derogation from our warranty provided that it is approved and set pursuant to the codes of practice and the recommendations given in the instructions for the softener and is regularly inspected and maintained. BPB 150...501 300027336 - v06 - 13062019... -
Page 21: Maintenance
4. Remove limescale deposits from the exchanger to guarantee its performance. 5. Remount the unit. For more information, see Remove the inspection hatches, page 22 Checking the magnesium anode, page 21 Putting the inspection hatches back in place, page 22 300027336 - v06 - 13062019 BPB 150...501... -
Page 22: Removing And Reinstalling The Inspection Hatches
1. Replace the lip gasket and position it in the inspection trap opening, making sure that you place its lug outside the domestic hot water tank. MW-L000389-1 BPB 150...501 300027336 - v06 - 13062019... -
Page 23: Maintenance Form
4. After reassembly, check the tightness of the lateral flange. 5. Proceed with commissioning. For more information, see Commissioning the appliance, page 19 MW-L000561-2 Maintenance form Tab.8 Date Checks made Remarks Signature 300027336 - v06 - 13062019 BPB 150...501... - Page 24 8 Maintenance Date Checks made Remarks Signature BPB 150...501 300027336 - v06 - 13062019...
-
Page 25: Disposal And Recycling
4. Drain the installation. 5. Dismantle all water connections fitted to the domestic hot water tank outlet. 6. Scrap and recycle the domestic hot water tank in accordance with local and national regulations. 300027336 - v06 - 13062019 BPB 150...501... -
Page 26: 10 Spare Parts
Important To order a spare part, give the reference number shown on the list. 10.2 Domestic hot water tanks Fig.16 MW-L000604-3 BPB 150...501 300027336 - v06 - 13062019... - Page 27 89708901 Complete anode, diameter 33 mm - length 330 mm (1x) - for side inspection hatch 89608950 Complete anode, diameter 33 mm - length 420 mm (1x) - for side inspection hatch 300027336 - v06 - 13062019 BPB 150...501...
-
Page 28: 11 Warranty
Our warranty is limited to the replacement or repair of the parts found to be defective by our technical services team, excluding labour, transfer and transport costs. BPB 150...501 300027336 - v06 - 13062019... - Page 29 The warranty shall not apply as regards the replacement or repair of wearing parts under normal use. Such parts include thermocouples, injection nozzles, flame control and ignition systems, fuses and gaskets. 300027336 - v06 - 13062019 BPB 150...501...
-
Page 30: 12 Appendix
12 Appendix 12 Appendix 12.1 Product fiche - Hot water storage tanks Tab.10 Product fiche for hot water storage tanks Brand name - Product name BPB 150 BPB 200 BPB 300 BPB 401 BPB 501 Energy efficiency class Standing loss Storage volume BPB 150...501... - Page 31 © Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical descriptions supplied, remain our property and shall not be multiplied without our prior consent in writing. Subject to alterations.
