2. Insert an anchor bolt (not included in the package) into each drilled hole, then place the mount
bracket over the anchor bolts, and press the mount bracket against the wall.
3. Place the washers and a nut onto each bolt's threaded end, and tighten the nut until the mount
bracket is firmly attached to the wall.

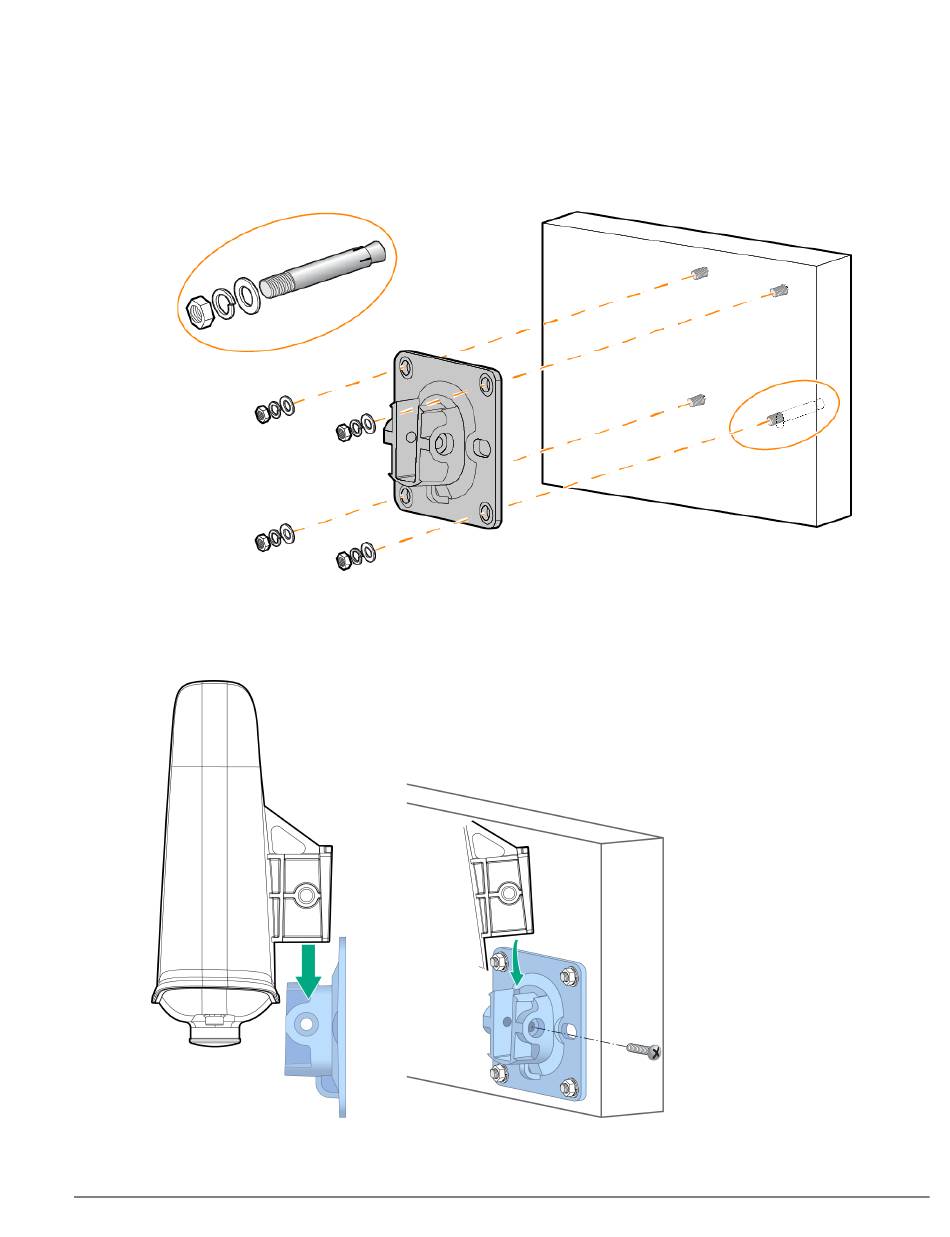

Figure 2 Attaching Mount Bracket to Wall
4. Slide the holder of the AP into the opening of the mount bracket, and use the two M6 x 20 screws
included in the package to secure the AP to the mount bracket.
Figure 3 Attaching AP to Mount Bracket
