Horizon Hobby UMX Cirrus SR22T BNF Basic Instruction Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

UMX

Cirrus SR22T

Scan the QR code and select the Manuals and Support quick links

from the product page for the most up-to-date manual information.

Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks

Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.

Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la

page du produit pour obtenir les informations les plus récentes sur le manuel.

Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla

pagina del prodotto per le informazioni manuali più aggiornate.

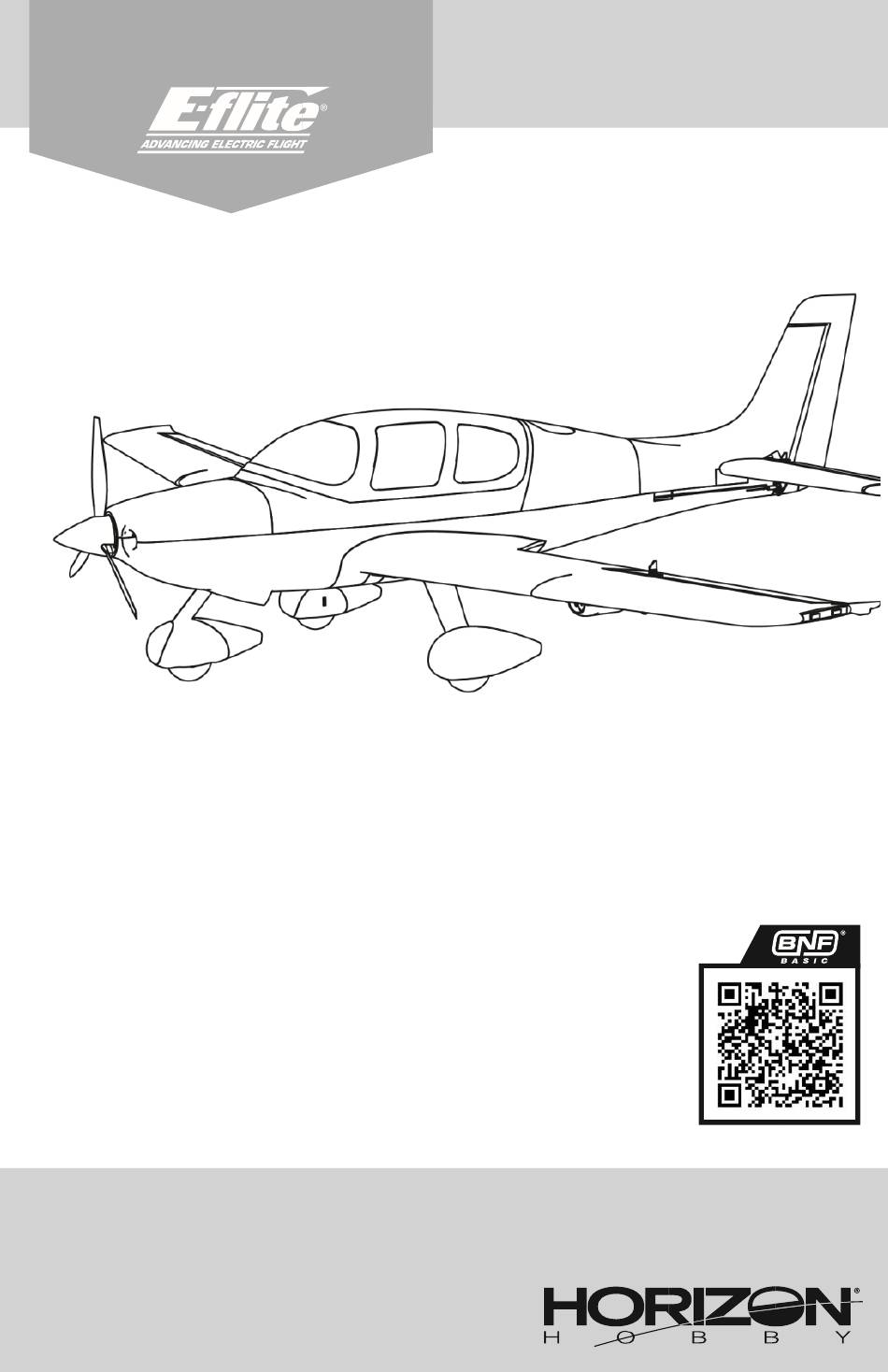

EFLU15950

Instruction Manual

Bedienungsanleitung

Manuel d'utilisation

Manuale di Istruzioni

731024

Created 10/24

Table of Contents

Need help?

Do you have a question about the UMX Cirrus SR22T BNF Basic and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby UMX Cirrus SR22T BNF Basic

Page 1 Cirrus SR22T Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher. Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la page du produit pour obtenir les informations les plus récentes sur le manuel.
Page 2: Safety Precautions And Warnings
Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Page 3: Table Of Contents
• Always use fully charged batteries. Control Centering • Always keep transmitter powered on while ............10 aircraft is powered. Post Flight Checklist • Always remove batteries before disassembly............11 • Always keep moving parts clean. Control Horn Settings .............11 • Always keep parts dry. Service and Repairs •...
Page 4 Important Federal Aviation Administration (FAA) Information ..............15 AMA National Model Aircraft Safety Code .......15 Limited Warranty ............16 Contact Information ............17 FCC Information .............17 IC Information ..............17 Compliance Information for the European Union .....17 UMX Cirrus SR22T BNF Basic...
Page 5: Low Voltage Cutoff (Lvc)
NX Series Transmitter Setup 1. Power ON your transmitter, click on scroll wheel, roll to System Setup and click the scroll wheel. Select YES. 2. Go to Model Select and choose Add New Model near the bottom of the list. Select Airplane Model Type by choosing airplane image, select Create.
Page 6 Set High Rates: 100%, Expo 10% — Low Rates: 70%, Expo 5% 10. Set Dual Rates and Expo: Select Elevator Set Switch: Switch C High Rates: 100%, Expo 10% — Low Rates 70%, Expo 5% UMX Cirrus SR22T BNF Basic...
Page 7: Transmitter And Receiver Binding
11. Set Dual Rates and Expo: Select Rudder Set Switch: Switch G High Rates: 100%, Expo 10% — Low Rates 70%, Expo 5% 12. Set Throttle Cut; Switch: Switch H, Position: -100% • The red LED on the receiver will flash rapidly Transmitter and Receiver when the receiver enters bind mode.
Page 8 SAFE Select has been enabled or disabled. Repeat the process to disable or enable or disable SAFE Select. The aircraft will cycle both ailerons up and down to indicate a change has been made. UMX Cirrus SR22T BNF Basic...
Page 9: Esc/Receiver Arming And Battery Installation
DXe and DXS Transmitters Switch A is the FMODE switch on the these transmitters, and the switch needs to be toggled between position 0 and 2 when disabling/enabling SAFE Select. ESC/Receiver Arming and Battery Installation Arming the ESC/receiver also occurs after binding as previously described, but subsequent connection of a flight battery requires the following steps.
Page 10: Center Of Gravity (Cg)
Po battery from the ESC when not flying to avoid over-discharging the battery. Batteries discharged to a voltage lower than the lowest approved voltage may become damaged, resulting in loss of performance and potential fire when batteries are charged. UMX Cirrus SR22T BNF Basic...
Page 11: Control Direction Test
WARNING: Do not perform this or any other equipment test without turning on throttle cut. Serious injury or property damage could result from the motor starting inadvertently. Control Direction Test If the control surfaces do not respond as shown, DO NOT FLY. Refer to the Troubleshooting Guide for more information.
Page 12: As3X ® Control Response Test
Control Response Test This test ensures that the AS3X ® control system is functioning properly. The AS3X system in your Cirrus SR22T is an advanced stabilization system, and the aircraft must remain stationary during initialization. UMX Cirrus SR22T BNF Basic...
Page 13: Control Centering
Disconnect the flight battery from the ESC. Store the flight battery apart from the aircraft and monitor the battery charge. Power OFF the transmitter. After flying, you may choose to adjust the Remove the flight battery from the aircraft. linkage positions for the desired control response.
Page 14: As3X
5 seconds initialized Aircraft was not kept immobile for 5 Keep the aircraft immobile for 5 seconds after battery was plugged in seconds after plugging in the battery UMX Cirrus SR22T BNF Basic...
Page 15: Troubleshooting Guide
Model flies Trims are moved too far from neutral Neutralize trims and mechanically inconsistently from position adjust linkages to center control flight to flight surfaces Controls oscillate in Propeller is unbalanced, causing Remove propeller and rebalance or flight, (model rapidly excessive vibration replace it if damaged jumps or moves)
Page 16 Set Travel adjust to 100% or less Servo locks or Travel adjust value is set above and/or set sub-trims to zero and adjust freezes at full travel 100%, overdriving the servo linkages mechanically UMX Cirrus SR22T BNF Basic...
Page 17: Replacement Parts
Motor Mount: UMX P-51 BL SPMR7110 NX7e+ 7-Channel DSMX Brushless Outrunner Motor; Transmitter SPMXAM1208B 12082150Kv, 12-Pole Adapter; IC3 Battery / JST- SPMXCA310 A200 2.3g Long-Throw SPMSA200 Linear Off-Set Servo Fuselage w/cowling: UMX Optional Parts and EFL-1751 Cirrus SR22T Accessories UMX Cirrus SR22T BNF Basic...
Page 18: Transmitter Transmitter Only
Spinner Set: UMX Cirrus SR22T Charger NX8+ 20-Channel DSMX EFL-1758 Decal Sheet: UMX Cirrus SPMR8210 Transmitter Only SR22T EFL-1759 Control Horns: UMX Cirrus SR22T LED Light Set: UMX EFL-1760 Cirrus SR22T, 480mm Long SPM-1038 Receiver/ESC: UMX Cirrus SR22T UMX Cirrus SR22T BNF Basic...
Page 19: Important Federal Aviation Administration (Faa) Information
Important Federal Aviation Administration (FAA) Information Use the QR code below to learn more about the If your model aircraft weighs more than .55lbs or Recreational UAS Safety Test (TRUST), as 250 grams, you are required by the FAA to was introduced by the 2018 FAA Reauthorization register as a recreational flyer and apply your Bill.
Page 20: Limited Warranty
(vii) use that violates any applicable Limited Warranty laws, rules, or regulations. What this Warranty Covers—Horizon Hobby, LLC, OTHER THAN THE EXPRESS WARRANTY ABOVE, (Horizon) warrants to the original purchaser that the HORIZON product purchased (the “Product”) will be free from...
Page 21 Purchaser’s Remedy—Horizon’s sole obligation and Inspection or Services—If this Product needs to be purchaser’s sole and exclusive remedy shall be that inspected or serviced and is compliant in the country Horizon will, at its option, either (i) service, or (ii) you live and use the Product in, please use the replace, any Product determined by Horizon to be Horizon Online Service Request submission process...
Page 22 Product for a period of 60 days from notification, after which it will be discarded. 10/15 EU Compliance Statement: EFL UMX Cirrus SR22T BNF Basic (EFLU15950): Hereby, Horizon Hobby, LLC declares that the device is in compliance with the following: EU Radio Equipment Directive 2014/53/EU, RoHS 2 Directive 2011/65/EU, RoHS 3 Directive - Amending 2011/65/EU Annex II 2015/863.
Page 23: Contact Information
Rules. These limits are designed to provide Web: HorizonHobby.com reasonable protection against harmful interference in a residential for help. Horizon Hobby, LLC 2904 Research Rd. CAN ICES-3 (B)/NMB-3(B) This device may not cause interference. Contains IC: 6157A-WACO1T This device must accept any...
Page 24 UMX Cirrus SR22T BNF Basic...
Page 25 ©2024 Horizon Hobby, LLC. E-flite, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, the Bind-N-Fly logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. and are used under license by Horizon Hobby, LLC.

This manual is also suitable for:

Eflu15950
