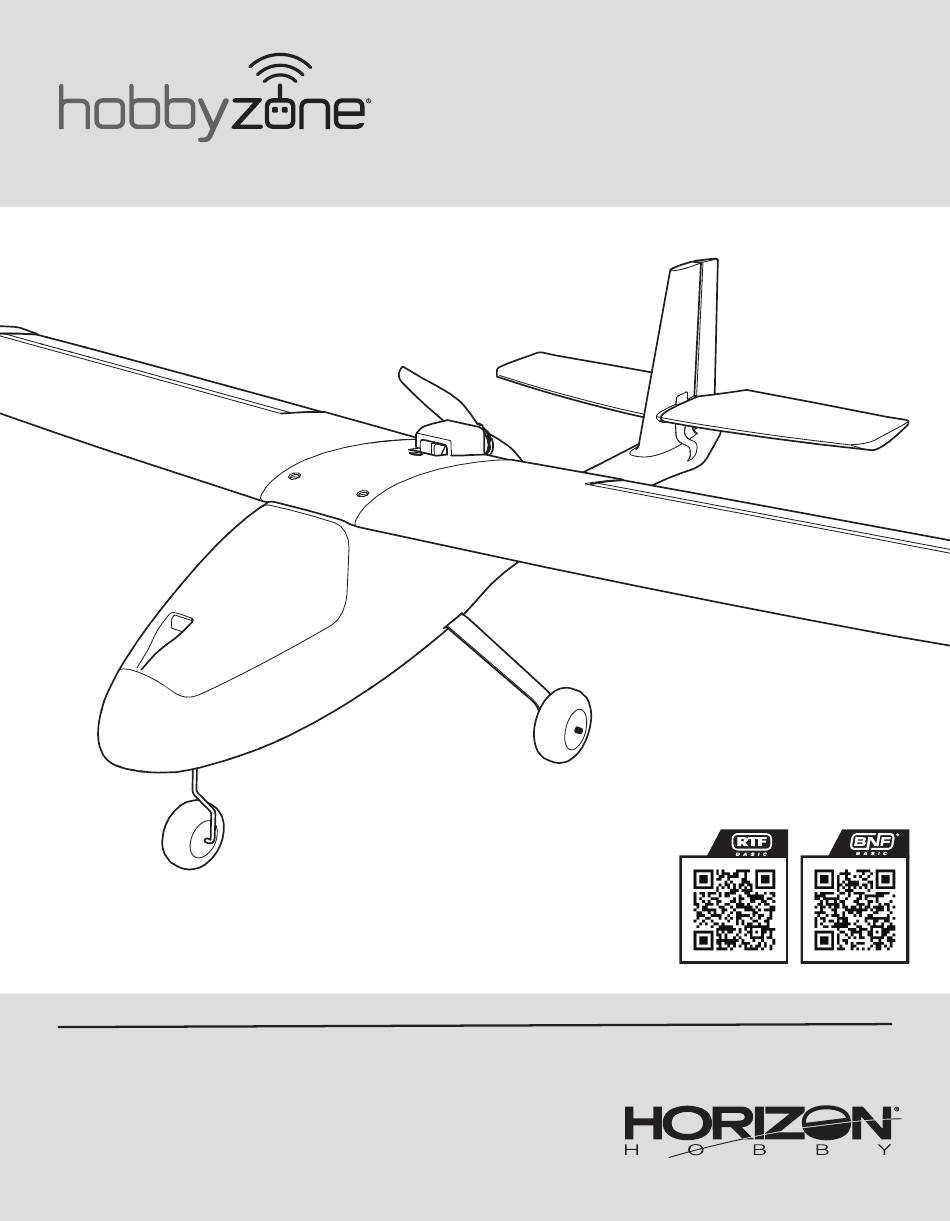

AeroScout S 2 1.1m
Instruction Manual | Bedienungsanleitung
Manuel d'utilisation | Manuale di Istruzioni
Scan the QR code and select the Manuals and Support quick links from the product
page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la page
du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
HBZ380001
HBZ385001
Advertisement
Table of Contents
Related Manuals for Horizon Hobby HobbyZone AeroScout S 2 1.1m
Summary of Contents for Horizon Hobby HobbyZone AeroScout S 2 1.1m
- Page 1 AeroScout S 2 1.1m Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher. Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la page du produit pour obtenir les informations les plus récentes sur le manuel.
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE...
-
Page 3: Table Of Contents
Registration Specifications Wingspan 40.5" (1033mm) Register your product today to join our mailing list Length 45" (1140mm) and keep up to date with product updates, offers and Without Battery: 2.9lbs (1316g) HobbyZone news. ® Weight With Recommended 3S 11.1V 1300–2200mAh 30C LiPo Flight Battery: 3.4lbs (1550g) Included Equipment Transmitter*... -
Page 4: Aircraft Components
Aircraft Components Typical Control Components Control Horn Servo Arm Retaining Sleeve Pushrod Servo Clevis Nose Gear Assembly Canopy/Hatch Aileron Servo Aileron Servo Flight Battery Main Landing Gear Motor Propeller Aileron Horizontal Stabilizer/ Elevator Rudder ®... -
Page 5: Aircraft Assembly
Aircraft Assembly We recommend reading each section of this manual before proceeding with assembly per the steps outlined. We also recommend watching the entire assembly video by scanning this QR code or using this URL: www.horizonhobby.cc/AeroScoutS2assembly. Assembly Video Landing Gear Installation 1. - Page 6 Wing Assembly and Installation We recommend watching the “Wing Assembly and Installation” chapter/section of the assembly video by scanning this QR code or using this URL: www.horizonhobby.cc/AeroScoutS2assembly. 1. Slide the carbon fiber wing joiner fully into a wing panel as shown. Ensure the aileron servo lead exits Assembly Video through the slot in the bottom of the wing.
-
Page 7: Spektrum Dxs Transmitter
Spektrum DXS Transmitter Install the Transmitter Batteries 1. Remove the battery cover. 2. Install the included four AA batteries, noting proper polarity. 3. Reinstall the battery cover. Low Battery Alarm When the transmitter battery voltage drops below 4.7 volts, an alarm sounds and the voltage LEDs flash. -
Page 8: Flight Battery Installation, Safe System And Electronic Speed Control (Esc) Arming
Flight Battery Voltage Indicator The included DXS transmitter is equipped with a flight battery voltage indicator feature that works with compatible Smart technology-equipped receivers, flight controllers and telemetry-capable ESCs. This Smart technology feature gives a visual representation of the approximate flight battery voltage/power remaining via the four LED indicators on the transmitter. -
Page 9: Center Of Gravity (Cg)
Center of Gravity (CG) We recommend watching the “Center of Gravity” chapter/section of the assembly video by scanning this QR code or using this URL: www.horizonhobby.cc/AeroScoutS2assembly. 60–75 mm back from the leading edge at the wing root Assembly Video CAUTION: Never fly the aircraft without ensuring the center of gravity is within the acceptable range. -
Page 10: Control Direction Test
Aileron Stick If the control surfaces do not respond as shown, DO NOT FLY. Refer to the Troubleshooting Guide for more information. If you need more assistance, contact the appropriate Horizon Hobby Product Support department. 1. Power on the transmitter. Transmitter Control Surface Response 2. -
Page 11: Choose A Flying Field
30 paces. If control issues exist, do not attempt to fly. Refer to the Warranty and Service Contact Information table at the end of the this manual to contact Horizon Hobby product support. 7. When the range check is successfully completed, release the bind button to exit range check mode. -
Page 12: Flight Control
Flight Control IMPORTANT: Even though SAFE technology is a very helpful tool, the aircraft still needs to be flown manually. If incorrect input is given at lower altitudes or at slower speeds, the aircraft can crash. Study these control inputs and Throttle/ Elevator/ the aircraft response to each carefully before attempting your first flight. -
Page 13: Sensor Assisted Flight Envelope (Safe) Technology Flight Modes
Sensor Assisted Flight Envelope (SAFE) Technology Flight Modes At any time during a flight you can switch between Beginner, Intermediate Flight Mode Switch and Experienced flight modes or use panic recovery to get your aircraft to a (switch B) safe flying attitude. Change between flight modes by changing the flight mode switch position. -
Page 14: Preflight Checklist
Preflight Checklist Find a safe open area to fly. Perform a radio system range test. Charge the flight battery. Plan flight for flying field conditions. Set a flight time for: Install a fully charged flight battery in the aircraft. 4-6 minutes using a 3000mAh 3S battery pack. Make sure all linkages move freely. - Page 15 Landing 1. Reduce the throttle to around 50% to slow the airspeed. 2. Fly the aircraft downwind past the end of the runway. 3. Turn the aircraft into the wind and line the aircraft up with the runway center line. Wind 4.
-
Page 16: Trimming The Aircraft
Trimming the Aircraft Adjusting Trim in Flight Aircraft Drift Trim Required If your aircraft does not fly straight and level at half throttle with the sticks at neutral, fly into the wind and adjust the trim sliders as indicated in the transmitter table until the aircraft maintains a reasonably straight and level flight path. -
Page 17: Post Flight
If you encounter problems, refer to the troubleshooting guide. If necessary, HOLD contact the appropriate Horizon Hobby product support office. * Failsafe The receiver stores the position of the transmitter throttle control at the time of binding as the failsafe position. If the receiver should ever lose communi- cation with the transmitter, the failsafe function will activate. -
Page 18: Flight Training
Flight Training To the new pilot: This aircraft is easy to fly and helps you apply beginner skills to flying; however, we recommend you get help from a qualified flight instructor for your Trainer Button first radio controlled flights. Some model flying clubs provide flight training at their flying fields. -
Page 19: Optional Transmitter Setup
Optional Transmitter Setup To use a Spektrum transmitter other than the included DXS, use the setup table DX Series Transmitter Setup which corresponds to your transmitter series, DX, NX or iX series, to program 1. Power ON your transmitter, click on scroll wheel, roll to System Setup and the transmitter. - Page 20 NX Series Transmitter Setup iX Series Transmitter Setup 1. Power ON your transmitter, click on scroll wheel, roll to System Setup and 1. Power ON your transmitter and begin once the Spektrtum Airware app is click the scroll wheel. Choose yes. open.
-
Page 21: Service And Repairs
Smart Technology Electronic Speed Control (ESC) The AeroScout S 2 1.1m is equipped with an exclusive Smart technology electronic speed control that can provide a variety of real-time power system RPM: related telemetry data while you fly, including motor RPM, current, battery voltage and more to compatible Spektrum AirWare equipped transmitters. - Page 22 Factory Settings for the Control Horns and Servo Arms Elevator Ailerons Rudder Nose Gear The illustration shows recommended hole settings in the servo arms and control horns. Flying with the Optional Float Set IMPORTANT: Only install the floats if you are comfortable flying your aircraft and have repeatedly taken off, flown and landed with success.
-
Page 23: As3X ® System Trouble Shooting Guide
AS3X System Trouble Shooting Guide ® Problem Possible Cause Solution If you need to adjust the trim more than 8 clicks, return the trim to neutral Trim is not at neutral and manually adjust the clevis to center the trim Trim change when flight mode is switched Sub-Trim is not at neutral Do not use Sub-Trim. -
Page 24: Replacement Parts
Replacement Parts Optional Parts Part # Description Part # Description HBZ3801 Fuselage w/Servos: AeroScout HBZ3811 Float Set: AeroScout HBZ3802 Hatch: AeroScout RFL1201 RealFlight 9.5 Software Only HBZ3803 Wing Set w/Servos: AeroScout RFL1203 RealFlight 9.5 Digital Download HBZ3804 Horizontal Stab Set: AeroScout RFL1205D RealFlight Trainer Edition Steam HBZ3805... -
Page 25: Important Federal Aviation Administration (Faa) Information
Important Federal Aviation Administration (FAA) Information Use the QR code below to learn more about the Recreational UAS Safety Test If your model aircraft weighs more than .55lbs or 250 grams, you are required (TRUST), as was introduced by the 2018 FAA Reauthorization Bill. This free by the FAA to register as a recreational flyer and apply your registration number test is required by the FAA for all recreational flyers in the United States. -
Page 26: Limited Warranty
(iii) modification of or to any part of the Product, (iv) attempted ser- Online Service Request submission process found on our website or call Horizon vice by anyone other than a Horizon Hobby authorized service center, (v) Product to obtain a Return Merchandise Authorization (RMA) number. Pack the Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with securely using a shipping carton. -
Page 27: Fcc Information
EU Importer of Record: RoHS 3 Directive - Amending 2011/65/EU Annex II 2015/863. Horizon Hobby, GmbH HBZ AeroScout S 2 1.1m BNF Basic (HBZ385001): Hereby, Horizon Hobby, Hanskampring 9 LLC declares that the device is in compliance with the following: EU Radio 22885 Barsbüttel Germany... - Page 28 © 2022 Horizon Hobby, LLC Aeroscout, HobbyZone, the HobbyZone logo, E-flite, SAFE, the SAFE logo, DSM, DSM2, DSMX, IC3, Bind-N-Fly, the BNF logo, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
