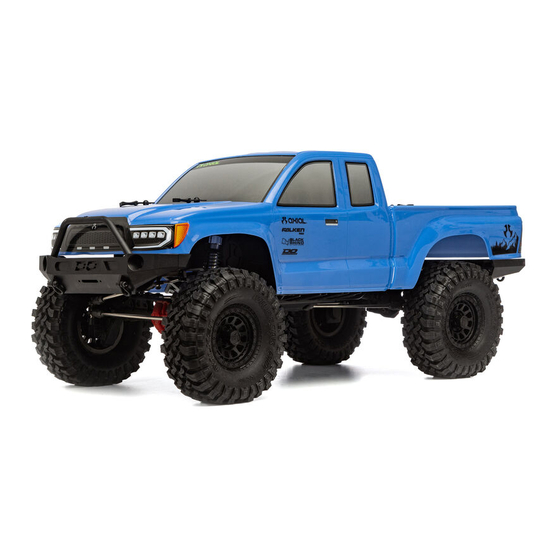

Horizon Hobby axial SCX10 III BASE CAMP Instruction Manual
1/10th scale ready-to-run
Hide thumbs
Also See for axial SCX10 III BASE CAMP:
- Instruction manual (68 pages) ,
- Instruction manual (24 pages) ,
- Instruction manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Horizon Hobby axial SCX10 III BASE CAMP
Summary of Contents for Horizon Hobby axial SCX10 III BASE CAMP

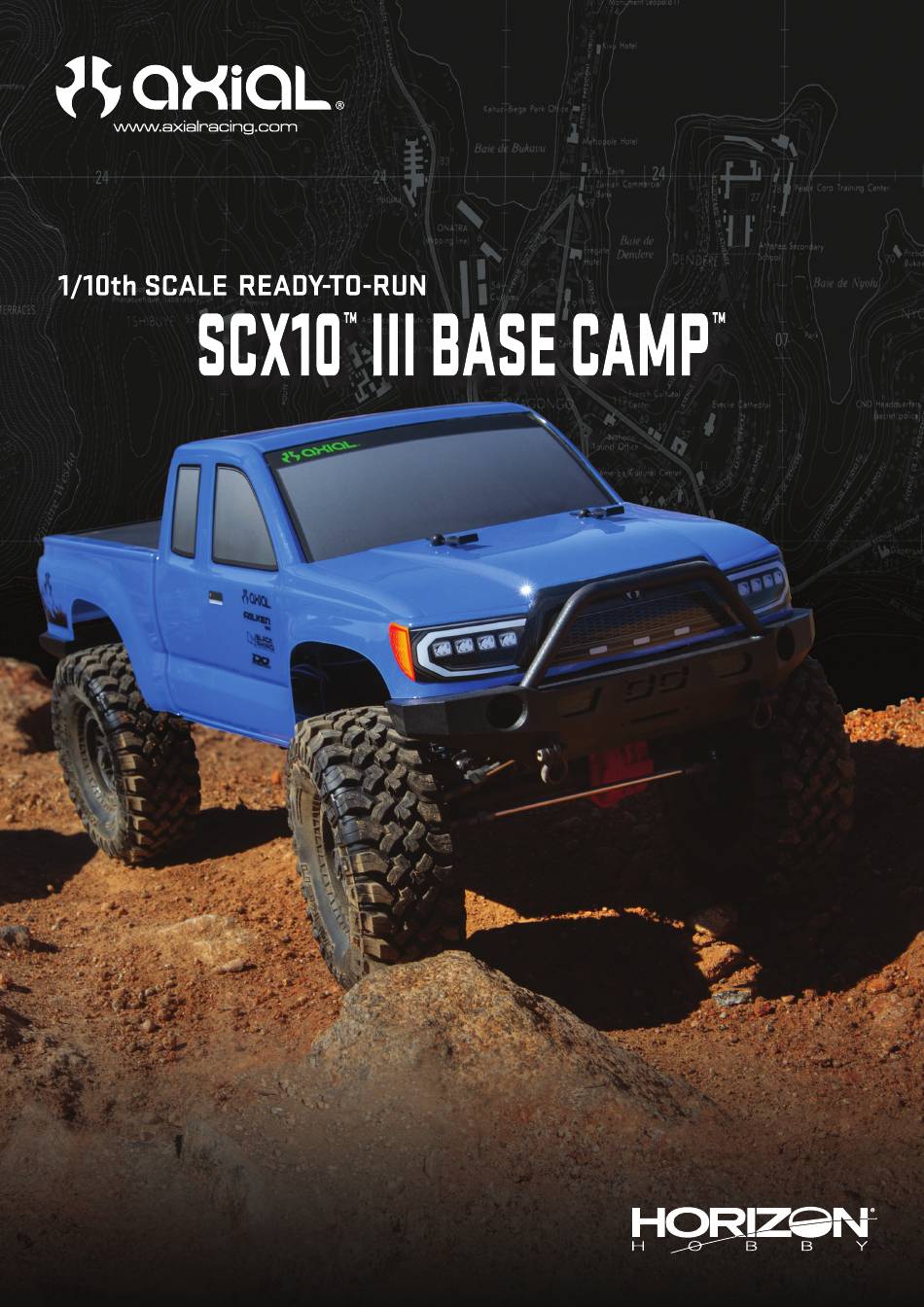

- Page 1 AXI03027 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI...
- Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
-
Page 3: Table Of Contents
Notes ........................ 59 WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with • Even minimal water contact can reduce the life of your motor if it a combination of waterproof and water-resistant components to has not been certified as water-resistant or waterproof. -
Page 4: Box Contents
BOX CONTENTS • Spektrum SLT3 3 Channel 2.4GHz Transmitter (SPMRSLT300) ™ • SCX10 III Base Camp ™ ™ - 35T Electric Motor (DYNS1216) - 40A Smart Brushed ESC (SPMXSE1040) - Spektrum DSMR 3 Channel Receiver (SPMSR315) ® - Water Proof Metal Gear Surface Servo, 23T (SPMS614) - (4) AA Alkaline batteries •... -
Page 5: Getting Started Checklist
GETTING STARTED CHECKLIST Read the manual Power on the transmitter Familiarize yourself with the vehicle and its components Install the vehicle battery in the vehicle Check all screws, especially the driveshaft setscrews, for Check for proper function of the throttle and steering tightness from the factory Range check the radio system Charge the vehicle battery... -
Page 6: Charge The Vehicle Battery
CHARGE THE VEHICLE BATTERY Follow the manufacturer’s directions for your charger to properly charge the vehicle battery. CAUTION: Only use chargers designed to charge the chosen battery type. Using an incorrect charger or incorrect charger settings could cause the battery to catch fire or explode. INSTALL THE TRANSMITTER BATTERIES This transmitter requires 4 AA batteries. -
Page 7: Spmsr315 Dual Pprotocol Receiver
SPMSR315 DUAL PROTOCOL RECEIVER SPECIFICATIONS Dual Protocol 3 Ch Receiver (SLT/DSMR) Type Dimensions (L × W × H) 32.5 x 21.5 x 12.4mm 90mm Antenna Length Channels Weight 2.4GHz Band 3.5–9.6V Voltage Range Bind Type Button BATT AUX 1 ADJUSTING THE VEHICLE BATTERY TRAY The battery trays may be adjusted to fit a wide range of battery sizes. -
Page 8: Install The Vehicle Battery
INSTALL THE VEHICLE BATTERY The following steps show the installation of a standard size battery in the rear battery tray of the vehicle. If you wish to use a “shorty” style battery, it should be installed in the side battery tray location. Power 1. -
Page 9: Range-Checking The Radio System
RANGE-CHECKING THE RADIO SYSTEM The radio system should be checked before operating the vehicle to ensure proper operation and adequate range. 1. Turn on the transmitter. 2. Connect the battery in the vehicle. 3. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts. 4. -
Page 10: Firma 40A Brushed Esc
FIRMA 40A BRUSHED ESC To Receiver Throttle Channel Battery Motor Black SPECIFICATIONS Type Brushed Constant/Peak 40A/180A Resistance 0.002 Ohms Forward/Brake/Reverse, Forward/Brake, Function Forward/Reverse (Crawler Mode) Vehicle Type 1/10 on-road and off-road; 1/10 rock crawler Proportional forward, proportional reverse Operation with braking delay, Crawler Mode Mode Forward/Brake/ 50% Drag... -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Your transmitter and receiver are too Move transmitter 8 to 12 feet away from receiver close together You are near metal objects Move to an area with less metal The receiver is bound to a different Make sure the correct model memory is active in your The system will not connect model memory... -
Page 12: Limited Warranty
What this Warranty Covers submit a Product Support Inquiry, or call the toll free telephone number Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the referenced in the Warranty and Service Contact Information section to product purchased (the “Product”) will be free from defects in materials speak with a Product Support representative. -
Page 13: Fcc Information
Axial SCX10 III Base Camp RTR (AXI03027) EU Manufacturer of Record: Horizon Hobby, LLC Hereby, Horizon Hobby, LLC declares that the device is in 2904 Research Road compliance with the following: EU Radio Equipment Directive 2014/53/ Champaign, IL 61822 USA EU;... - Page 14 AXI03027 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE FRONT AXLE VORDERACHSE ESSIEU AVANT ASSALE ANTERIORE AXI234035 AXI235109 AXI234006 AXI234004 AXA120 AXI234006 AXI234004 AXI234004 AXI234010 AXI234004 AXI234006 AXI234035 AXI234004 AXI232017 AX31028 AXI234035 AX31148 AXI234006 AXI234004 AXI235109 AXA1230 AXI234006 AXI234008 AX31403 AXA120...
- Page 15 AXI03027 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE REAR AXLE HINTERACHSE ESSIEU ARRIÈRE ASSALE POSTERIORE AXI232007 AXI232026 AXI232028 AX31406 AXI232002 AXI232008 AX31065 AX31074 AXA1221 AXI235014 AXA1221 AXI232003 AXA1221 AX31006 AX31406 AXI232023 AXI232018 AXI237009 AXI235016 AXI232028 AXA0286 AX31028 AXI234003 AX31148 AXA1221...
- Page 16 AXI03027 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE TRANSMISSION GETRIEBE TRANSMISSION TRASMISSIONE AXA291 DYNS1216 AX30725 AXI232064 AXA144 AXI232066 AXA0109 AXA146 AXI232067 AXA1218 AXI232065 AXI232069 AXI232067 AX31185 AXI232068 AXA1218 AX31250 AXI236136 AXI232064 AXA1213 AXA1213 AXI232064 AXI232069 AXI232017 AXA1213 AXA1225 AXI232068 AXA144...
- Page 17 AXI03027 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE CHASSIS AXA0286 AXA144 KAROSSERIE CHÂSSIS TELAIO AXI230048 AXI231008 AXI231021 AXA0286 AXI230048 AXA146 SPMXSE1040 AXA0286 SPMSR315 AXI231017 AXA146 AXI231017 AXI231048 AXI231021 AX31185 AXA146 AXI231016 AXI231049 AXA114 AXA114 AXI231015 AXA144 AXI231017 AXI231049 AXA0109 AXA114...
- Page 18 AXI03027 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE BODY ASSEMBLY KAROSSERIEMONTAGE ENSEMBLE DE CARROSSERIE AXA1059 GRUPPO CARROZZERIA AXI230046 AXA1059 AXI230047 AXI235014 AXA1059 AXA0286 AX31066 AXI235014 AX31066 AXI43014 AXI43015 AXI235014 AXI230047 AXA0286...
- Page 19 AXI03027 EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE SHOCK ABSORBERS STOSSDÄMPFER AXI233032 AMORTISSEURS AXI234033 AMMORTIZZATORI AXI233031 AXI233003 AXI233031 AX1392 AXI233033 AXI233032 AXA1201 AXI233031 AXI233015 AXI235099 AXI233031 AXI234004...
-
Page 20: Parts Lists
PARTS LISTS // TEILELISTEN // LISTE DES PIÈCES // ELENCO COMPONENTI Part # Description Beschreibung Description Descrizione Sechskant-Flachkopfschraube, Douille à six pans à tête plate Vite a testa piana esagonale ARAC9759 AR722305 Flat Head Screw 3x5mm M3 x 5mm M3 x 5mm M3 x 5mm Base Camp Gehäuse Satz mit Ens carrosserie Base Camp a/c... - Page 21 Part # Description Beschreibung Description Descrizione Aufhängungsverbindungssatz Jeu de bras de Set bracci sospensioni 313WB: AXI234035 Susp Link Set 313WB: SCX10III B 313WB: SCX10III B suspension 313WB : SCX10III B SCX10III B Vis d’assemblage creuse, M2,5 x Vite a testa cilindrica M2,5 x AXI235014 M2.5 x 10mm, Cap Head Screw (10 Inbusschraube, M2,5 x 10mm (10)
-
Page 22: Recommended Parts
RECOMMENDED PARTS // EMPFOHLENE TEILE// PIÈCES RECOMMANDÉES // PARTI CONSIGLIATE Part # Description Beschreibung Description Descrizione 11.1V 3700mAh 3S 50CLiPo 11,1V 3700mAh 3S 50CLiPo DYNB37353 11,1V 3700mAh 3S 50CLiPo 96mmEC3 11,1V 3700mAh 3S 50CLiPo 96mmEC3 96mmEC3 96mmEC3 7.4V 5000mAh 2S50C LiPo, 7,4 V 5000 mAh 2S 50C LiPo, Li-Po 7,4 V 5000 mAh 2S 50C, boîtier : 7,4 V 5000 mAh 2S 50C LiPo,... -
Page 23: Notes
NOTES // ANMERKUNGEN // REMARQUES // NOTA... - Page 24 ©2021 Horizon Hobby, LLC. Axial, the Axial logo, SCX-10, DSM, DSMR, SLT3, IC3, EC3, Passport, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
