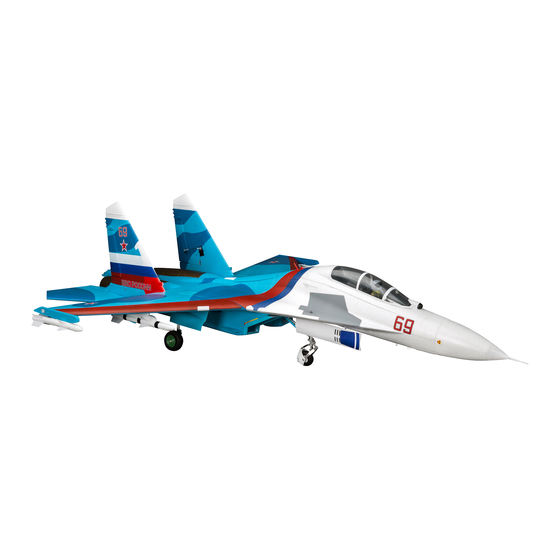

Horizon Hobby E-flite Su-30 Instruction Manual

Horizon Hobby E-flite Su-30 Instruction Manual

70mm twin edf

Advertisement

Quick Links

Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
SAFE
®
Select Technology, Optional Flight Envelope Protection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-flite Su-30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby E-flite Su-30

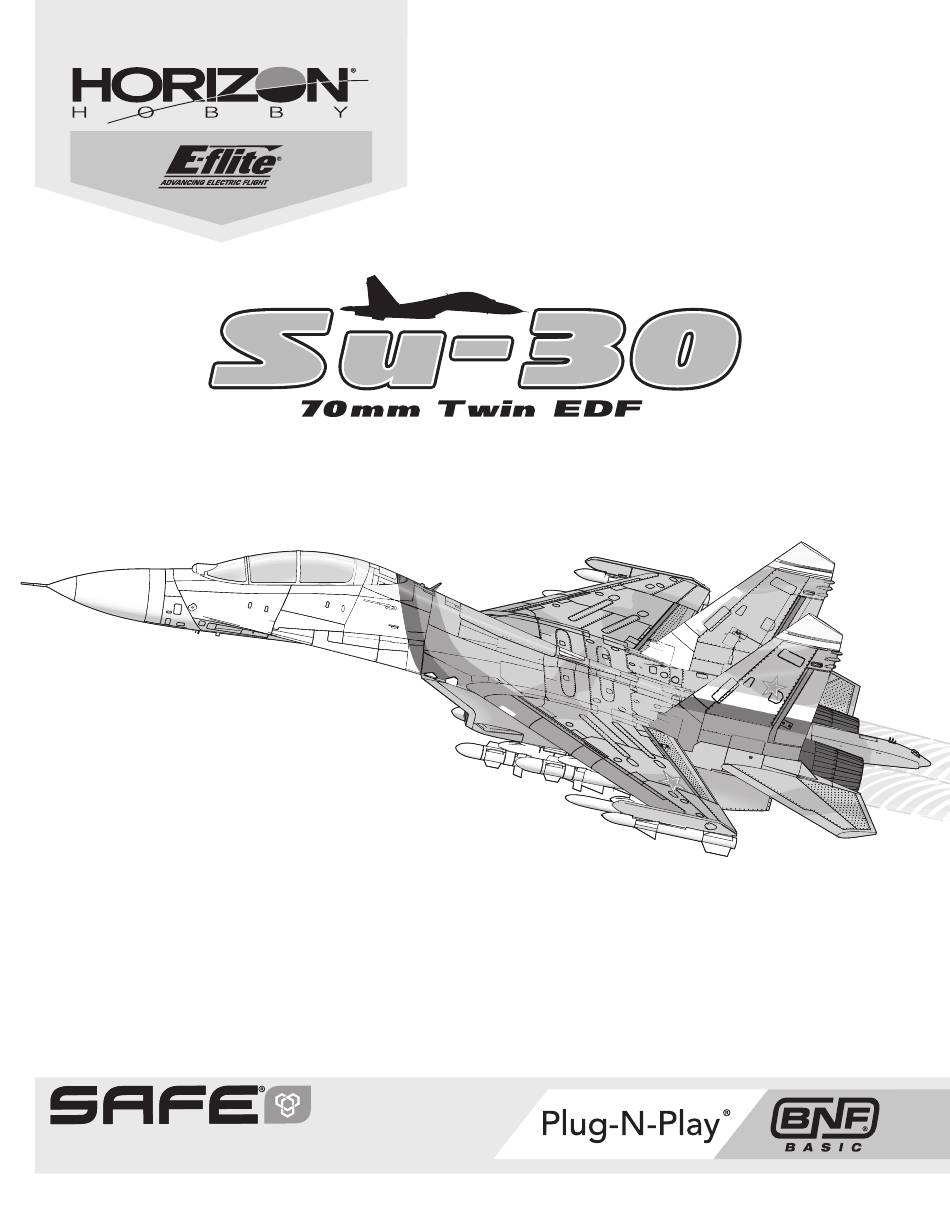

  • Page 1 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE ® Select Technology, Optional Flight Envelope Protection...
  • Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
  • Page 3: Table Of Contents

    Box Contents Quick Start Information 1. Blank (Acro) Model 2. Wing Type: 1 Aileron, 1 Flap Transmitter Setup 3. Servo Reversing: Flaps Reversed, All Others Normal 4. Travel Adjust (All Surfaces): 100% High Rate  = 15mm Aileron  = 15mm ...
  • Page 4: Transmitter Setup (Bnf)

    Transmitter Setup (BNF) IMPORTANT: After you set up your model, always rebind the transmitter and Computerized Transmitter Setup receiver to set the desired failsafe positions. ‡ ‡ (DX6i, DX6e , DX6 , DX7, DX7S, DX8, DX9, DX10t, DX18, DX20 and iX12) If your transmitter allows it, enable the throttle cut feature.
  • Page 5: Using Safe Select With The Dxdx6 And Dxdx6E Transmitters With A Dx6 Channel Aircraft

    ® Using SAFE Select With the DX6 and DX6e Transmitters With a 6 Channel Aircraft The SAFE Select switch must be assigned to the Flap switch (switch D) BEFORE DX6 and DX6e Transmitter Setup for SAFE® Select Operation proceeding to the Transmitter Setup and should start from a blank (reset) model. Failure to assign the SAFE switch prior to programming the other model functions Start all transmitter programming with a blank ACRO model (do a model reset), then name the model.
  • Page 6 Model Assembly (Continued) Vertical Fin Installation (Continued) 1. Secure each fi n with two M3 x 16 mm fl athead screws through rear fi n braces, as shown. Do not over tighten the screws. Horizontal Tail Installation 1. With the bottom of the fuselage facing up, slide the threaded hole end of the torque rod into the hole at the rear of the fuselage.
  • Page 7 Wing Installation 1. Center the wing tube in the tube socket in the fuselage. 2. Slide the right wing over the tube, ensuring the tube slides fully into the wing socket. 3. Align the servo connectors at the rear of the wing with the connectors in the fuselage, and ensure the fuselage alignment pins slide into the holes in the wing.
  • Page 8 Nose Cone Installation 1. Align the nose cone with the front of the fuselage and slide the nose cone into place. Magnets will secure the nose cone to the fuselage. TIP: The pitot tube on the nose cone can be easily removed if desired, simply twist and un-thread until removed.
  • Page 9: Pnp Receiver Selection And Installation

    Optional Scale Missiles Installation The included optional scale missiles are easily installed and removed without the use of tools. • The missile are installed on the inner wing and fuselage mounting points. To install the missiles: 1. Insert the tabs of the missiles in the enlarged end of the mounting point slots. 2.
  • Page 10: Battery Installation And Esc Arming

    Battery Installation and ESC Arming Battery Selection We recommend a 22.2V 5000–7000mAh 30–100C 6S LiPo battery with EC5™ or IC5™ connector for standard operation. If using a different battery, the battery should be of similar capacity, dimensions and weight to fi t in the fuselage. Always be sure the model balances at the recommended CG with the battery chosen.
  • Page 11: Battery Installation And Esc Arming

    Battery Installation and ESC Arming ™ ® ® Bind Plug Installation This product requires an approved Spektrum DSM2 /DSMX compatible transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specifi...
  • Page 12: Dual Rates And Controls Throws

    Dual Rates and Controls Throws Program your transmitter to set the rates and control throws to the values given. High Rate These values have been tested and are a good starting point to achieve  = 15mm successful fl ight. Aileron ...
  • Page 13: Control Direction Test

    Control Direction Test Switch on the transmitter and connect the battery. Use the transmitter to operate Transmitter Control Surface the aileron and elevator controls. View the aircraft from the rear when checking the command Response control directions. Ailerons 1. Move the aileron stick to the left. The right aileron should move down and the left aileron up, which will cause the aircraft to bank left.
  • Page 14: As3X Control Direction Test

    AS3X Control Direction Test This test ensures that the AS3X ® control system is functioning properly. Assemble Aircraft AS3X Reaction the aircraft and bind your transmitter to the receiver before performing this test. Movement 1. Raise the throttle to any setting above 25%, then lower the throttle to activate AS3X technology.
  • Page 15: Flying Tips And Repairs

    Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. NOTICE: After any impact, always ensure the receiver is secure in the fuselage. If you replace the receiver, install the new receiver in the same orientation as the Range Check your Radio System original receiver or damage may result.
  • Page 16: Post Flight

    Post Flight Disconnect the fl ight battery from the ESC (Required for Safety and battery life). Repair or replace all damaged parts. Power OFF the transmitter. Store the fl ight battery apart from the aircraft and monitor the battery charge. Remove the fl...
  • Page 17: System Trouble Shooting Guide

    AS3X ® System Trouble Shooting Guide Problem Possible Cause Solution Damaged rotor or nose cone Replace rotor or nose cone Imbalanced rotor Balance the rotor Motor vibration Replace parts or correctly align fan unit or other parts and tighten fasteners as needed Oscillation Loose receiver Align and secure receiver in fuselage...
  • Page 18: Replacement Parts

    Replacement Parts Recommended Parts Part # Description Part # Description SPMR1000 DXe Transmitter Only EFL01076 Wing Set: Su-30 70mm EDF SPMR8000 DX8 Transmitter Only MD2 EFL01077 Fuselage: Su-30 70mm EDF SPMR9910 DX9 Black Transmitter Only MD2 EFL01078 Horizontal Stab Set: Su-30 EDF SPMX50006S50 5000mAh 6S 22.2V Smart 50C;...
  • Page 19: Ama National Model Aircraft Safety Code

    AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight in the 1. All pilots shall avoid fl ying directly over unprotected people, vessels, vehicles or atmosphere.
  • Page 20: Limited Warranty

    Product in, please use the Horizon Online Service Request submission of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized process found on our website or call Horizon to obtain a Return Merchandise service center, (v) Product not purchased from an authorized Horizon dealer, (vi) Authorization (RMA) number.
  • Page 21: Fcc Information

    EFL Su-30 PNP (EFL01075) Horizon Hobby, LLC hereby declares that this product is in compliance with Horizon Hobby, LLC hereby declares that this product is in compliance with the the essential requirements and other relevant provisions of the RED and EMC essential requirements and other relevant provisions of the EMC Directive.
  • Page 22 E-fl ite, Plug-N-Play, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, Spektrum AirWare, EC5, IC5, AS3X, SAFE, the SAFE logo, ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
