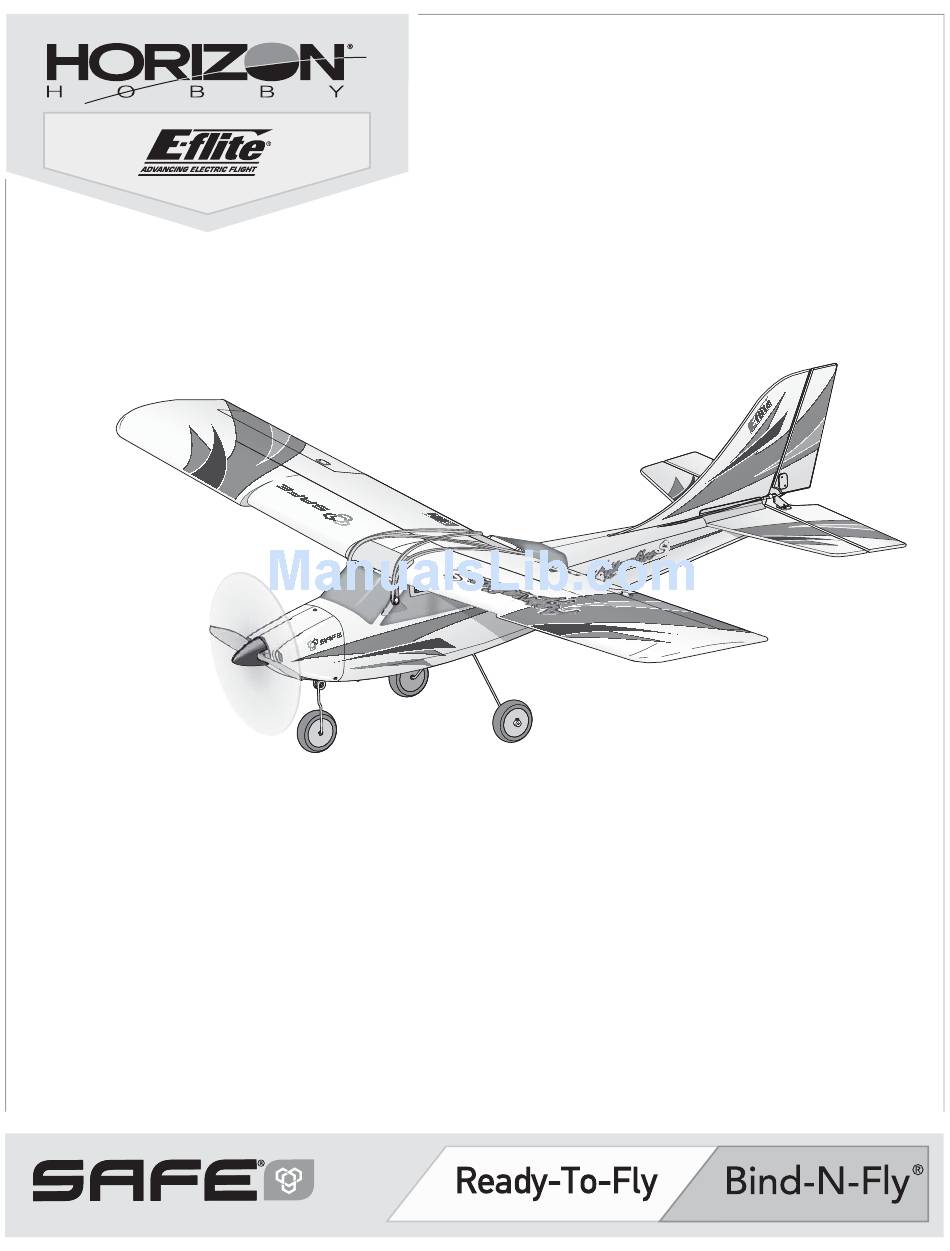

- Page 1 Apprentice S 15e ® Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Charging Warnings
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby LLC. -
Page 3: Table Of Contents
Introduction ® ® Congratulations on choosing the E-fl ite Apprentice S 15e airplane. Within Patented Z-Foam™ construction of the Apprentice S offers durability beyond ® your grasp is the most intelligent RC airplane ever offered by Horizon comparison. Spektrum DSMX radio technology means that you get the Hobby. -
Page 4: Charging The Flight Battery
Charging the Flight Battery Your Apprentice S trainer comes with a DC balancing charger and 3S Li-Po DC Li-Po Balancing Charger Features battery. You must charge the included Li-Po battery pack with a Li-Po specifi c • Charges 2- to 3-cell lithium polymer battery packs charger only (such as the included charger). -
Page 5: Landing Gear Installation
Landing Gear Installation Remove the spinner, nut, washer, spinner back plate and propeller assembly (A). Remove 3 screws (B) and the cowling (C) from the fuselage (D). Tools are required to loosen the nut and screws. Turn the model so you can see the bottom of the fuselage. Under the fuselage, loosen the screw (E) in the nose gear steering arm and insert the strut (F) (fl... -
Page 6: Wing Installation
Wing Installation Carefully apply the 2 strips of double-stick tape (A) to the root of the wing as shown. Assemble the wings on the carbon wing tube (B) so there is no gap. No epoxy is required to hold the wings together; however, if desired, epoxy may be used (instead of the tape) to adhere the wings to each other on the wing tube. -
Page 7: Sensor Assisted Flight Envelope (Safe) Technology
Some control input is still used with panic activated. ® AS3X technology Horizon Hobby has always made RC sport, scale and unique aircraft with the kind of performance experts appreciate. Now the exclusive Artifi cial Experienced Mode Stability 3 axis (AS3X) system helps take performance expectations in aircraft a quantum leap higher. - Page 8 Sensor Assisted Flight Envelope (SAFE) Technology ® You control the help SAFE technology provides while you learn to fl y. As Activating SAFE Technology your fl ying skills grow, decrease SAFE technology assistance. Change SAFE technology is not active until you advance the throttle past 25%. aircraft response at any time by moving the Channel 5 (SAFE Flight mode) Once the SAFE technology is active, the control surfaces may move on the switch on your transmitter.
-
Page 9: Transmitter
Transmitter Installing the Transmitter Batteries Your Spektrum DXe comes prebound to the aircraft. Remove the battery cover, install the four included batteries (noting proper polarity) and reinstall the battery cover. Low Battery Alarm When the battery voltage drops below 4.7 volts, an alarm sounds and the voltage LEDs fl... -
Page 10: Transmitter And Receiver Binding
Transmitter Continued Explanation of DXe Transmitter LEDs, Switches and Modes Channel 5 Switch (C): for the Apprentice. This switch is used to select the SAFE Flight mode. For other conventional receivers, this switch controls a servo connected to the Channel 5/Gear port. Trainer/Bind/Panic Switch (B): This switch is used as both the trainer and bind switch as well as the Panic Switch for your Apprentice S. -
Page 11: Flight Battery Installation, Safe System/Esc Arming
Flight Battery Installation, SAFE system and Electronic Speed Control (ESC) Arming 1. Rest the aircraft on a fl at surface with the landing gear facing up and make sure the ESC switch is OFF. 2. Turn the latch (A) and open the battery hatch. 3. -
Page 12: Control Horn And Servo Arm Settings
Control Horn and Servo Arm Settings NOTICE: Moving a linkage to another position may block the servo arm or affect SAFE technology functionality. The Illustration shows the correct hole settings in servo arms and control horns. Elevator Ailerons Rudder Recommended Rates Use low rates for decreased control throws in all fl... -
Page 13: Control Direction Test
Control Direction Test Power on the transmitter. Make sure the throttle is at 0% and that throttle trim more assistance, contact the appropriate Horizon Product Support department. is fully lowered on the transmitter. Power on the model. Make sure the control Mode 2 is the most common control mode used worldwide. -
Page 14: Flight Control
Flight Control For smooth control of your aircraft, always make small control moves. All • Banking right and left: Move the aileron stick right to make the aircraft drop directions are described as if you were sitting in the aircraft. the wing (bank) to the right and move the aileron stick left to bank left. -
Page 15: Flight Training
Flight Training Trainer Button Simulator Use We recommend using your DXe transmitter with the Phoenix R/C Pro Flight Simulator 5.5 (RTM5500). The simulator software includes the original Apprentice and other trainer aircraft. Use the transmitter with the simulator to practice and experiment with your aircraft without damaging your model. Instruction To the new pilot: This aircraft is easy to fl... -
Page 16: Flight Trimming
Flight Trimming Make yourself familiar with your transmitter’s controls and the aircraft’s IMPORTANT: For best results, trimming should always be done while fl ying response before fl ying by performing the recommended Control Direction directly into the wind using the Intermediate or Experienced Flight Modes. Test. -
Page 17: Range Check
28 meters (90 feet). 5. If control issues exist, do not attempt to fl y. Refer to the contact table at the end of the this manual to contact Horizon Hobby product support. Also, see the Spektrum website for more information. -
Page 18: Takeoff
Takeoff Flying Conditions Ground Launch Take off from the ground in Beginner mode is recommended for fi rst fl ights, A good fl ying day is calm, with winds that are less than 5–7 mph however, if the ground is not hard and level, get help to hand launch your (8–11km/h). -
Page 19: Flying
Flying Let the aircraft climb at full throttle, into the wind, until the aircraft gets about 300 feet (91meters) above the ground, then decrease the throttle to half (50%). 50% throttle In Beginner mode, when properly trimmed, your Full throttle Reduced throttle aircraft will climb at full throttle without use of elevator. -
Page 20: Post Flight
Post Flight NOTICE: When you are fi nished fl ying, never keep the aircraft in the sun. Do not store the aircraft in a hot, enclosed area such as a car. Doing so can damage the foam. Post Flight Checklist 1. -
Page 21: Service Of Power Components
Horizon Hobby does not warrant replacement if the servos are used under • Follow steps 1 and 2 above to remove the propeller. extreme vibration or the stabilization system is used with an unbalanced •... -
Page 22: Water Takeoff And Landing Using The Optional Float Set
Water Takeoff and Landing Using the Optional Float Set IMPORTANT: We recommend fl ying with fl oats only once you have become CAUTION: Never go alone to get a downed model in the water. able to fl y comfortably in Experienced fl ight mode. CAUTION: If at any time water splashes in the fuselage while fl... -
Page 23: Optional Transmitter Setup
Optional Transmitter Setup If using any DSMX transmitter other than the included DXe (3 pos gear switch) Refer to your transmitter’s manual for more information about transmitter the radio will have to be confi gured correctly for the SAFE system to work setup. -
Page 24: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight 1. All pilots shall avoid fl ying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property exclusively for sport, recreation, education and/or competition. -
Page 25: Troubleshooting Guide For Safe Technology
Troubleshooting Guide for SAFE Technology Problem Possible Cause Solution Flying over recommended Reduce air speed airspeed Damaged propeller or Replace propeller or spinner spinner Balance the propeller. For more information, view John Redman’s propeller balancing video at www. Imbalanced propeller horizonhobby.com Oscillation Motor vibration... -
Page 26: Troubleshooting Guide
Troubleshooting Guide Transmitter too near aircraft during connecting Move powered transmitter a few feet from aircraft, disconnect and reconnect process fl ight battery to aircraft Aircraft or transmitter is too close to large metal Move aircraft and transmitter to another location and attempt connecting again object, wireless source or another transmitter Bind plug left installed in bind port Rebind transmitter to the aircraft and remove the bind plug before cycling power... -
Page 27: Limited Warranty
Product, (iv) attempted service by copy of your original sales receipt must be included for warranty consideration. anyone other than a Horizon Hobby authorized service center, (v) Product not Be sure your name, address, and RMA number are clearly written on the purchased from an authorized Horizon dealer, or (vi) Product not compliant outside of the shipping carton. -
Page 28: Contact Information
Compliance Information for the European Union EFL Apprentice BNF (EFL3180) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provi- sions of the R&TTE, EMC and LVD Directives. -
Page 29: Replacement Parts
Tiges de fi xation d’aile avec capu- Barrette fi ssaggio ala con EFL2737 Apprentice 15e festigung chons: Apprentice S 15e cappucci Apprentice 15e EFL2738 Rubber Bands (8): Apprentice S 15e E-fl ite Apprentice S: Gummibänder (8) Elastiques (8): Apprentice S 15e Elastici (8): Apprentice S 15e... -
Page 30: Optional Parts
Description Descrizione Numéro | Codice Float Set: Apprentice S 15e E-fl ite Apprentice S : Schwimmerset Set de fl otteurs: Apprentice S 15e Set galleggianti Apprentice S 15e EFLA550 Celectra 80W AC/DC Celectra 80 W AC/DC Chargeur de batterie AC/DC... - Page 31 Apprentice S 15e © 2016 Horizon Hobby, LLC. E-fl ite, Apprentice, AS3X, ParkZone, Blade, Celectra, EC3, DSM, DSM2, DSMX, Z-Foam, Bind-N-Fly, ModelMatch, SAFE, the SAFE logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.
