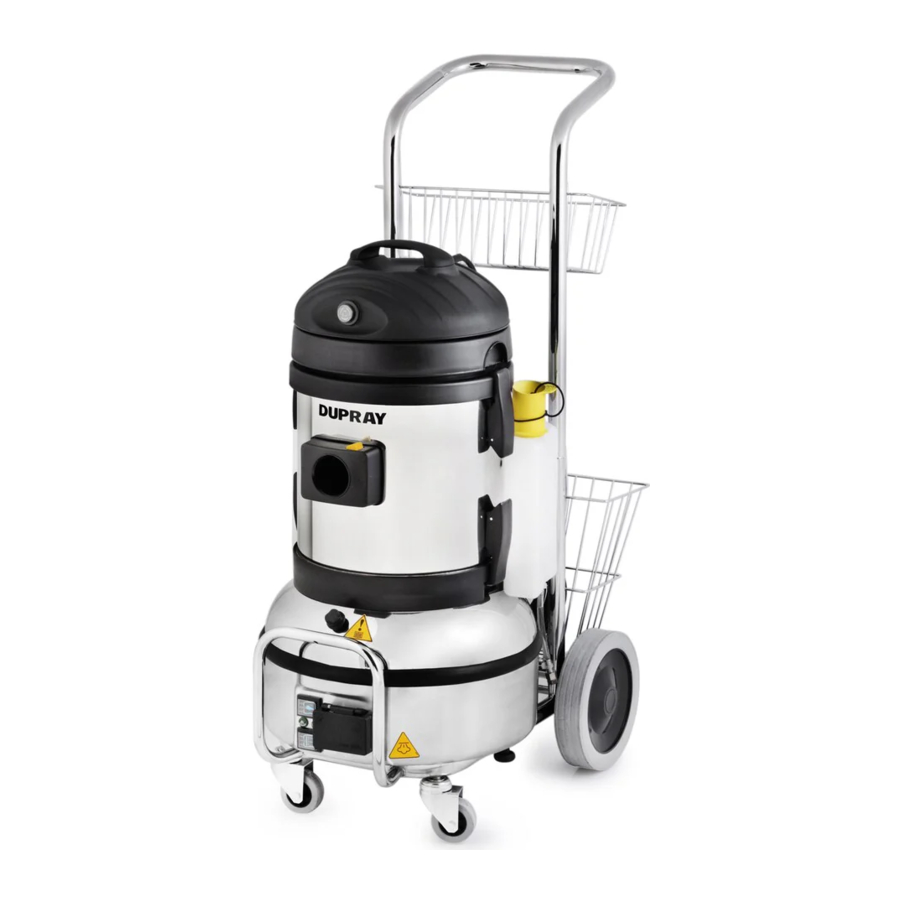

Dupray Carmen Super Inox Manual

DESCRIPTION

1. VACUUM HEAD
2. MAIN VACUUM BUTTON
3. VACUUM FILTER
4. HOLDING CLAMPS
5. VACUUM DRUM
6. VACUUM HOSE LOCKING BUTTON
7. VACUUM HOSE CONNECTION
8. VACUUM ELECTRICAL CORD
9. WATER TANK CAP
10. WATER TANK
11. WATER TANK DRAIN PLUG
12. ADI™ DISPLAY
13. MAIN POWER SWITCH
14. STEAM HOSE CONNECTION OUTLET
15. BOILER DRAIN CAP
16. DETERGENT TANK DRAIN PLUG
17. HANDLE BAR
18. SMALL BASKET
19. DETERGENT TANK CAP
20. DETERGENT TANK
21. LARGE BASKET
22. CONNECTION FOR VACUUM ELECTRICAL CORD
23. ELECTRICAL CORD
24. POWER BUTTON
25. POWER INDICATOR
26. BOILER ACTIVATION INDICATOR
27. BOILER ACTIVATION BUTTON
28. DETERGENT FLOW INCREASE BUTTON (+)
29. DETERGENT FLOW DECREASE BUTTON (-)
30. STEAMREADY™ INDICATOR
31. LOW WATER INDICATOR

ACCESSORIES

32. STEAM PRESSURE INDICATORS
33. STEAM PRESSURE CONTROL BUTTON
34. VACUUM ACTIVATION INDICATOR
35. VACUUM ACTIVATION BUTTON
36. LOW WATER INDICATOR
37. DERTERGENT INJECTION INDICATOR
38. DETERGENT INJECTION BUTTON
39. STEAM VACUUM HOSE
40. STEAM RELEASE TRIGGER
41. STEAM HOSE LOCKING PIN
42. STEAM HOSE CONNECTOR
43. VACUUM HOSE CONNECTOR
44. CONNECTOR
45. EXTENSION TUBES
46. LOCKING LATCH
47. RECTANGULAR TOOL
48. CLOTH HOLDING CLIPS
49. LANCE
50. GUM REMOVAL TOOL
51. BRISTLE UPHOLSTERY TOOL
52. WINDOW TOOL
53. SQUEEGEE INSERT
54. BRUSH INSERT
55. CARPET INSERT
56. SMALL BRUSH/SQUEEGEE INSERT
57. SUCTION NOZZLE
58. SUCTION LANCE
59. SMALL NYLON BRUSH
60. SMALL BRASS BRUSH
61. SMALL STAINLESS STEEL BRUSH
62. STAINLESS STEEL GUM REMOVAL BRUSH
63. THREADED TRIANGULAR NYLON BRUSH
64. MICROFIBER PAD
65. PLUNGER TOOL
66. STEAM SCRAPPER
67. LARGE NYLON BRUSH
68. STEEL WOOL
69. MICROFIBER CLOTH

HOW TO USE YOUR STEAM CLEANER

Unpacking: Insert the handle bar (17) into the cart and install the two baskets (18 and 21).

1. Fill the blue water tank (10) with up to 0.8 gal / 3 litres of clean tap water.
   Securely replace the water tank cap rubber cover. Never put detergent in the water tank!
2. Fill the yellow detergent tank (20) with up to 0.8 gal / 3 litres of diluted detergent solution (see the Refilling with detergent section for details).
3. Connect the steam cleaner electrical cord (23) to a power outlet.
   For 110 V: Unravel completely the electrical cord (23). Connect the electrical cord to a 15 or 20 amp 110V/120V power outlet.
   (make sure the circuit is not already used by another high wattage appliance).
   For 220 V: Connect to a 220V/240V electrical outlet with a minimum of 20 amps available. If you're using a generator, you will require a minimum of 4000W running power on 220V/240V. Ask a certified electrician to make sure the voltage and amperage correspond to your steam cleaner specifications and that your steam cleaner is safely wired.
4. TurnON the main power switch (13) and press the power button (24) and boiler activation button (27).
   The SteamReady™ indicator (30) will light up when the steam cleaner is ready to use, after approximately 15-20 minutes on 110 V, 5-10 minutes on 220 V of heat up time.
5. Connect the steam hose (39) by inserting the steam hose connector (42) in the steam hose connection outlet (14) and press firmly until the hose locking hook clicks. Connect the vacuum hose (43) into the vacuum hose connector (7). To release, press the vacuum hose locking button (6).
6. Connect the vacuum electrical cord (8) to the connection (22) on the steam cleaner. Press the main vacuum button (2) if you want to use the vacuum and activate it by pressing on the vacuum activation button (35) on the hose handle.
7. Select the desired steam pressure (on the hose handle) between minimum, medium and maximum (33).
8. Connect the steam hose (39) to the accessory that you want to use.
9. To release steam, press the steam release trigger (40) on the hose handle.
10. When the steam cleaner is low on water, an audible alarm will come on and the low water indicator (31, 36) will light up, indicating the need to safely refill with water.
11. When you are done using your steam cleaner, turn the unitOFF by pressing on the main power button (13). Your steam cleaner is now ready for storage after it cools down.

    Always turn OFF the main power button (13) when leaving the machine unattended.
12. It is safe to leave water in the boiler when the steam cleaner is not in use. If it is for an extended period of time (months), then it is best to flush out the remaining water from the boiler. To do so, follow the water removal instructions as outlined in the maintenance of the boiler section. You can also drain the blue water and yellow detergent tanks by unscrewing the tank drain caps (11 and 16) under the unit.

REFILLING WITH WATER

Equipped with CST™ (Continuous Steam Technology), your steam cleaner can be refilled at anytime during operation.
When the water level inside the tank is low, the low water indicator light (31,36) will turn ON and the low water alarm will sound.
You can simply refill the water up to a maximum of 0.8 gal / 3 liters and confirm by pressing the flashing boiler activation button (27).

Never put anything else other than clean water in the water tank.

REFILLING WITH DETERGENT

You can refill the yellow detergent tank (20) at any time. Do not put anything else than authorized non-foaming diluted detergent in the tank. Always dilute the solution to approximately 1 part concentrated detergent to 10 parts water. Putting only water in the detergent tank can cause faults to the mixing circuit. To drain the detergent tank, unscrew the detergent tank cap (16) located under the tank cleaner. If the detergent doesn't come out, you need to prime the pump. To do so, please refer to the troubleshooting section.

Once heated to temperatures above 100°C, some detergents available in commerce will emanate highly dangerous toxic gases. Always use the detergent injection feature in a well ventilated area.
Always consult the MSDS data sheet from the manufacturer.

Detergents used in extraction systems are foamy and will cause damages to the machine.

Never put any solvents or acidic detergent inside the detergent tank.

This machine has been designed for use with cleaning agent supplied or recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the machine.

FEATURES

This model is equipped with the following features:

LOW WATER INDICATOR (31,36)
A red warning light signals that the water tank (10) needs to be refilled. If you wish to continue steam cleaning, see the "Refilling with Water" instructions.

VARIABLE PRESSURE CONTROL (32, 33)
With the steam pressure regulator, it is possible to select the steam pressure that you wish to use during your cleaning from minimum, medium and maximum.

WET / DRY VACUUM

To activate the vacuum, press the main vacuum button (2) on the vacuum head (1). Activate the vacuum with the vacuum activation button (35) on the hose handle. Make sure the vacuum is properly connected to the steam cleaner behind the unit (22). You can use the vacuum independently from the steam cleaner.

DETERGENT INJECTION (38)
To release a jet of detergent in the steam, press the detergent injection button (38) and hold the steam release trigger (40) at the same time. Do not hold for more than 5 seconds at a time.
You can regulate the detergent flow by pressing on the (28) to increase or (29) to decrease detergent.

STEAMREADY™ INDICATOR (30)
Lets you know when the steam cleaner is operating at optimal pressure and ready to use.

ADI™ DISPLAY (12)
TEMPERATURE AND PRESSURE DISPLAY
While the steam cleaner is ON (number 13, 24 and 27), the temperature indicated on the display is in Farenheit. To display the operating pressure in psi, press and hold the boiler activation button (27). After 10 seconds, the display will return to the operating internal temperature.

HOUR COUNTER
This device is equipped with two hour counter; C1 and C2. C1 is fixed and C2 is resettable by the user. To display them, turn off the unit with the power button (24), then press the boiler activation button (27); every time you will press the button (27), the display will show respectively the hour counter C1 and the hour counter C2.

RESETTING THE HOUR COUNTER C2
Turn the steam cleaner off by pressing the main power switch (13) located in front of the the unit.
Press both buttons (24) and (27) and hold them; in the meantime turn the machine on by pressing the main power switch (13).

MAINTENANCE REMINDER DESCALE BOILER
The steam cleaner is equipped with a maintenance reminder which indicates DESCALE BOILER on the display alternating with the temperature. When the display indicates DESCALE BOILER, it is time to perform a boiler maintenance. Let the steam cleaner cool down for at least 8 hours before proceeding. Please refer to the maintenance instructions to complete the boiler maintenance.

USING THE ACCESSORIES

CONNECTING THE HOSE (39)
Insert the steam hose connector (42) into the steam hose connection outlet (14) all the way, making sure it cannot be pushed in further. Ensure the hose locking pin (41) is in place. Insert the vacuum hose connector (43), in the connection (7) on the vacuum drum (5).

This hose contains electrical connections, do not immerse in water for cleaning.

CONNECTOR (44)
The connector is used to connect the rectangular tool or the window tool to the steam hose or to the extension tubes. Simply slide it in place and lock it with the yellow blocking pin.

EXTENSION TUBES (45)
Connect the steam hose (39) to the extension tubes (45) and press on the locking latch (46). All the accessories are connected the same way.

RECTANGULAR TOOL (47)
The rectangular tool (47) is used to clean walls, floors and carpets. Use it with the microfiber cloth (69) or to the microfiber pad (64) to glide smoothly over the surface by attaching it to the cloth holding clips (48). Change the cloth when saturated with dirt. Use the rectangular with the brush or squeegee insert (53, 54) tool directly when you need additional scrubbing action, for example when cleaning ceramic or porous tiles. These inserts cam be easily installed on the rectangular tool. You will need the connector (44) to connect to the extension tubes or to the steam hose. Use the carpet insert (55) to glide over carpet.

MICROFIBER PAD (64)
The microfiber pad (64) is used to glide smoothly over floors and carpets. To use this accessory, place the rectangular tool directly over it. Wrap the extremities of the cloth around the tool and under the cloth holding clips (48).

Always respect the surface that you are cleaning, adhere to the surface cleaning instructions and do a colour test on a hidden section before you begin cleaning.

WINDOW TOOL (52)
The window tool (52) makes the cleaning and degreasing of windows easy. Attach the window tool to the extension tubes (45) or directly on the steam hose (39). You will need the connector (44) to install the window tool on the steam hose or to the extension tools. Use the foam side to steam, scrub and vacuum the window and flip the tool to wipe off dirt and condensation using the squeegee side. Wipe corners with a cloth.

During cold weather, warm up the windows with the window tool from a 2"-4" distance and with very little steam flow before starting the actual cleaning ( to prevent possible damage to the window ).

BRISTLE UPHOLSTERY TOOL (51)
The bristle upholstery tool is the standard tool for steam cleaning, scrubbing and vacuuming furniture, chairs, car carpet, seats and more.

GUM REMOVAL TOOL (50)
The gum tool is used to remove chewing gum from any surface. Use it with the threaded stainless steel gum brush (62) for cement surfaces or with the threaded triangular nylon brush (63) for delicate surfaces.

LANCE (49) WITH BRUSHES: NYLON (59), BRASS (60), STAINLESS STEEL (61)
The lance (49) can be used with or without one of the brushes supplied with the steam cleaner. For items that are particularly prone to scratches, it is best to use the lance without a brush. For all other areas, start with the nylon brush (59) (least abrasive) and carefully work your way up to the brass (60), then the stainless steel brush (61). It is always best to be careful when using the brushes to prevent damage or scratching of delicate surfaces.
The use of the lance alone is particularly good for cleaning and degreasing many working surfaces, ventilation hoods, oven doors, ventilation grating, kitchen furniture, stainless steel or enamel sinks, hand-basins, bath-tubs, water taps (to remove scale and water residue), doors, metal frames, car wheel rims, pet areas etc. The nylon brush, because of its softness, is ideal for removing the dirt from grout, sinks and other surfaces where you need some light scrubbing action, but need to be careful not to scratch the surface. Use the large nylon brush (67) with or without the steel wool (68) to clean larger surfaces.
Tougher cleaning jobs may require the use of the brass brush that is supplied. Please make sure you are careful that this tool does not scratch the surface. Brass is tougher than nylon, but softer than stainless steel.
For surfaces (grout for example) where the dirt is not being properly lifted with the nylon brush, carefully using the brass brush may give the best results.
For the toughest cleaning assignments (very caked on grease, rust, BBQ grills, very dirty grout), we recommend that you use the stainless steel brushes (61).
When using the lance with or without the brushes, you will need a cloth to wipe off the moisture and dirt that has been lifted through cleaning.

Always respect the surface that you are cleaning, adhere to the surface cleaning instructions and do a colour test on a hidden section before you begin cleaning.

STEAM SCRAPPER (66)
The steam scrapper (66) is used for removing stickers, wallpapers and adhesives. Attach it to the lance (49), and let steam dissolve the glue. Slowly pull the adhesive with your fingers to remove it.

PLUNGER TOOL (65)
The plunger tool (65) is used to unclog drains. Attach the plunger tool to the lance (49), place the tool firmly on the drain and blow the steam inside the drain for a few seconds. Steam will melt away residue and remove odors.

MAINTENANCE

MAINTENANCE OF THE BOILER
To maintain your steam cleaner in good condition and to ensure constant performance, we recommend that you periodically clean the boiler after every 20 hours of use or less depending on the water hardness. The ADI™ will display DESCALE BOILER when the boiler needs to be maintained.

CLEANING INSTRUCTIONS

Before cleaning the boiler, please make sure that the boiler is at room temperature, that it has not been used for at least 8 hours, and that the steam cleaner is disconnected from the power source.

1. Place the steam cleaner above a sink or a bucket. Unscrew and remove the boiler drain cap (15) (use the provided Allen key). Empty all the remaining water in the boiler. Put the boiler drain cap back on.
2. Refill the water tank with equal parts of water and white vinegar. Reconnect the steam cleaner to a power outlet and turn the steam cleanerON (press the buttons 13 and 24). Doing so will fill the boiler with the vinegar solution. Do NOT press the boiler activation button (27).
3. When the boiler is full, turn the steam cleanerOFF, (press the buttons 13 and 24), disconnect and let sit overnight.
4. Place the steam cleaner above a sink or a bucket. Unscrew and remove the boiler drain cap (15). Empty the vinegar solution into the sink or bucket.
5. Flush the system with clean water by refilling the water tank with clean water, reconnecting the steam cleaner to a power outlet and turning the steam cleanerON (press the buttons 13 and 24). Do NOT press the boiler activation button (27). At this point the boiler drain cap (15) is still removed.
6. Let the water drain into the sink or bucket from under the machine until the water tank is empty.
7. Replace the boiler drain cap. Refill the water tank with clean water.
8. To reset the DESCALE BOILER display, turn on the appliance by activating the main power switch (13) then press and HOLD the boiler activation button (27) for approximately 10 seconds, the DESCALE BOILER indicator will disappear from the display and will only appear at the next maintenance interval.

It is not recommended that you use any other chemical to clean this product. Doing so will automatically void the warranty.

ATTACHMENT COUPLINGS
If the attachment connection s dry up after intensive use or if it difficult to put them together, put a small amount of petroleum jelly (Vaseline) around the O-rings on the male attachment.

VACUUM MAINTENANCE
To empty the vacuum, remove the vacuum head (1) and drum (5) by lifting the 4 holding clamps (4) and disconnecting the vacuum electrical cord (8). Empty the vacuum and clean the drum (5), the float and the vacuum head filter (3) with water.

Do not immerse the vacuum head in water.

TECHNICAL SPECIFICATIONS

TROUBLESHOOTING

Do not operate the steam cleaner with a damaged cord, plug or if the steam cleaner has been dropped or damaged. To avoid risk of electric shock, do not disassemble or attempt to repair the unit on your own. Return the unit to Dupray for examination, repair or replacement. All service is to be performed by authorized professionals of Dupray service centers.

IMPORTANT WARNING
Steam is a powerful tool. Like any other tool, it should be used with caution. Certain surfaces, fabrics, materials and finishes are water
cleaned before using steam. and heat sensitive and can be damaged or discolored by steam. TEST a small, hidden surface to make sure the surface can be steamed. ALWAYS check with the manufacturer of the surface or product being
DO NOT leave steam in one spot on any surface for any period of time with a wet cleaning cloth/pad attached as this will damage your floors.
DO NOTSurfaces that have been treated with wax or no-wax floors may be damaged by heat. use on unsealed wood, on wood or tile floors that are highly worn, unfinished or have a wax or oil finish.
DO NOT use on leather, synthetic fabrics, velvet or other delicate, steam-sensitive materials.
DO NOT use the steam cleaner for any other purpose than what is described in the instructions manual.
In no event is Dupray liable for incidental or consequential damages to anyone, of any nature whatsoever. Some states/provinces do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

ELECTRICAL INSTRUCTIONS
110V: To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit simultaneously with the steam cleaner. If an extension cord is necessary, a 15-amp rated cord with a 3-prong grounded plug should be used. Cords rated for less may overheat and cause damage.
220V: The electrical connection of this devise must be made by a qualified electrician and comply with UL/CSA regulations.
Only use this steam cleaner with a 220V/240V electrical outlet with a minimum of 20 amps available. If you're using a generator, you will require a minimum of 4000 W running power on 220V/240V.

EXTENSION CORD
3-PRONG GROUNDED PLUG
This system features a 3-prong grounded plug. As a safety feature, this plug will fit into a grounded outlet only one way.
If the plug does not fit fully into the power outlet, contact a qualified electrician. Do not attempt to defeat this safety feature.

Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by means of a cord reel which keeps the socket at least 60mm above the ground.

WATER INSTRUCTIONS
Your steam cleaner has been designed to use with normal tap water. In order to extend the life of this product, if you are living where the level of water hardness is very high, we recommend using 50% normal water with 50% distilled water.

Never put anything else other than clean water in the boiler.
