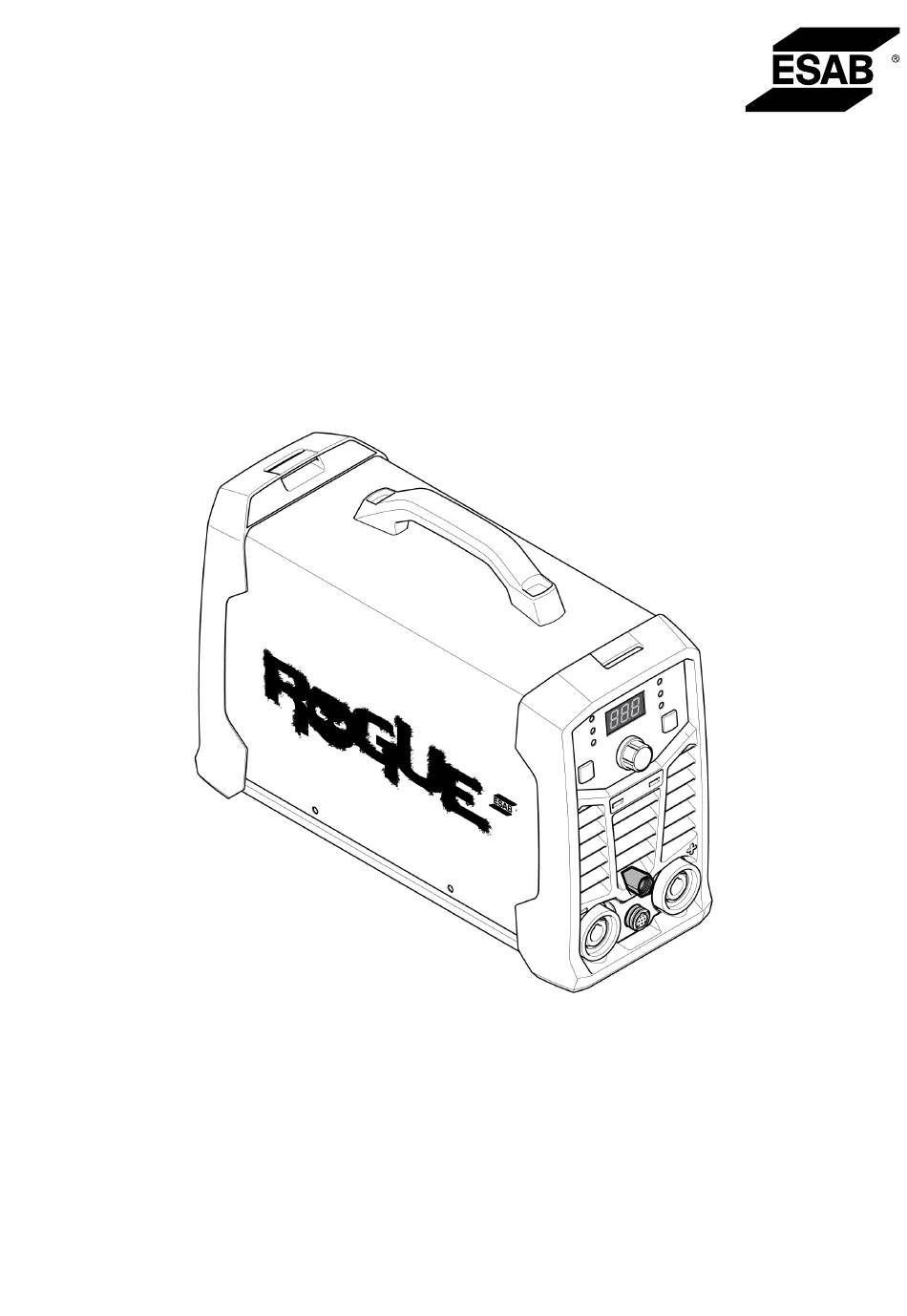

- Page 1 Rogue ET 201iP PRO Instruction manual Valid for: HA430-xxxx-xxxx 0448 683 001 US 20241029...
- Page 2 Functions and symbols ........................ Setting panel ......................Remote control .......................... MAINTENANCE ....................Routine maintenance ..................Cleaning the power source ........................ TROUBLESHOOTING ....................... ORDERING SPARE PARTS .............................. DIAGRAM ......................... ORDERING NUMBERS ............................. ACCESSORIES 0448 683 001 - 2 - © ESAB AB 2024...
- Page 3 Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace.
- Page 4 If equipped with ESAB cooler Use ESAB approved coolant only. Non-approved coolant might damage the equipment and jeopardize product safety. In case of such damage, all warranty undertakings from ESAB cease to apply. For ordering information, see the "ACCESSORIES" chapter in the instruction manual.
- Page 5 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0448 683 001 - 5 -...
- Page 6 This product can expose you to chemicals including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after use. For more information, go to www.P65Warnings.ca.gov. 0448 683 001 - 6 - © ESAB AB 2024...

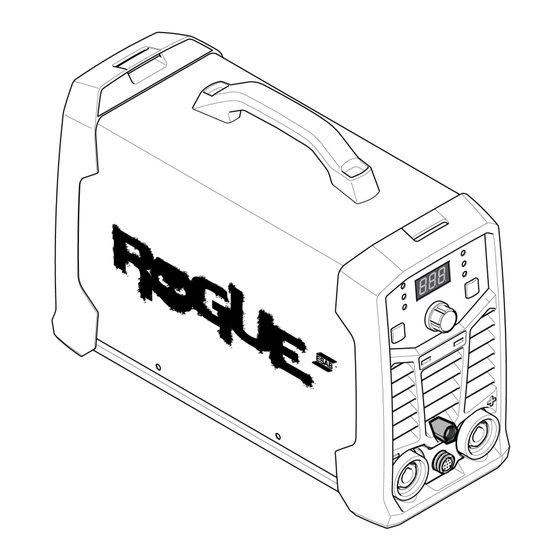

- Page 7 2 INTRODUCTION INTRODUCTION Rogue ET 201iP PRO is an inverter-based power source intended for MMA / SMAW / Stick, MMA pulse, TIG / GTAW, TIG pulse, and HF TIG welding. ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual.
- Page 8 3 TECHNICAL DATA TECHNICAL DATA Rogue ET 201iP PRO Outlet voltage 230 V±15% 120 V±15% 1~ 50/60 Hz 1~ 50/60 Hz Primary current MMA / Stick / SMAW 30 A 25.7 A TIG / GTAW 19.5 A 24 A No-load power demand when 50 W 50 W in energy-saving mode...
- Page 9 3 TECHNICAL DATA Rogue ET 201iP PRO Dimensions l × w × h 403 × 153 × 264 mm (15.9 × 6 × 10.4 in.) Weight 9.6 kg Insulation class transformer Enclosure class IP23S Application class Mains supply, S sc min Minimum short circuit power on the network in accordance with IEC 61000-3-12. Duty cycle The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at a certain load without overloading.
- Page 10 WARNING! Falling equipment can cause serious personal injury and equipment damage. Lift the unit with the handle on top of the case. 0448 683 001 - 10 - © ESAB AB 2024...
- Page 11 4 INSTALLATION Mains supply NOTE! Rogue ET 201iP PRO complies with IEC 61000-3-12 provided that the short-circuit power is greater than or equal to S at the interface point between the user's supply and the public scmin system. It is the responsibility of the installer or user of the equipment to ensure, by...
- Page 12 12 AWG, 0.13 in extension cord size NOTE! Different variants of Rogue ET 201iP PRO are certified for different outlet voltages. Always refer to the rating plate for the specification of the power source in use. NOTE! Use the power source in accordance with the relevant national regulations.
- Page 13 (+) or negative welding terminal (-), depending on the type of electrode used. The connection polarity is stated on the electrode packaging. 1) Connect the return cable to the other output on the power source. 0448 683 001 - 13 - © ESAB AB 2024...
- Page 14 Use a low value of arc force to get a calm arc with little spatter and use a high value to get a hot and digging arc. Arc force only applies to MMA / Stick / SMAW welding. 0448 683 001 - 14 - © ESAB AB 2024...
- Page 15 The VRD function ensures that the open-circuit voltage does not exceed 35 V when welding is not being carried out. This is indicated by a lit VRD indicator on the panel. Contact an authorized ESAB service technician to activate this function. Pulse welding...
- Page 16 Press the Process selection button (9) for 3 sec to go to the advanced feature menu and press the Process selection button (9) to select the values. Control knob (8): To change the values. In GTAW HF or LiftArc mode: 0448 683 001 - 16 - © ESAB AB 2024...
- Page 17 Connect the remote control to the front of the power source. When the remote control is connected, it is automatically activated. The maximum setting of the power source will be determined by the respective front panel control, irrespective of the remote control device setting. 0448 683 001 - 17 - © ESAB AB 2024...
- Page 18 To maintain the performance and increase the lifetime of the power source, it is mandatory to clean it regularly. How often depends on: • The welding process • The arc time 0448 683 001 - 18 - © ESAB AB 2024...
- Page 19 2) Open the enclosure and use a vacuum cleaner to remove any accumulated dirt, metal filings, slag and loose material. Keep the shunt and lead screw surfaces clean as accumulated foreign material may reduce the welder's output welding current. 0448 683 001 - 19 - © ESAB AB 2024...
- Page 20 Refer to power source “Duty cycle” in Section 3 "Technical data", page 9. Make sure that the air inlets or outlets are not clogged. Clean the inside of the machine using routine maintenance methods. 0448 683 001 - 20 - © ESAB AB 2024...
- Page 21 Repair and electrical work should be performed by an authorized ESAB service technician. Use only ESAB original spare and wear parts. The Rogue ET 201iP PRO is designed and tested in accordance with the international and North American standards CSA E60974-1 and ANSI/IEC 60974-1. On completion of service or repair work, it is the responsibility of the person(s) performing the work to ensure that the product still complies with the requirements of the above standards.
- Page 22 APPENDIX APPENDIX DIAGRAM From serial number HA430-xxxx-xxxx 0448 683 001 - 22 - © ESAB AB 2024...
- Page 23 Type Notes 0705 002 023 Power source Rogue ET 201iP PRO 0448 683 * Instruction manual The three last digits in the document number of the manual show the version of the manual. Therefore they are replaced with * here. Make sure to use a manual with a serial number or software version that corresponds with the product, see the front page of the manual.
- Page 24 50 mm WS200G10 Ground clamp, 200 A and lead assembly, 3 m, 50 mm 0781-2701 Regulator flow meter GRF400-580 W4014000 Power adapter 0700 500 086 Shoulder strap W4014450 Foot pedal, 8-pin 0448 683 001 - 24 - © ESAB AB 2024...
- Page 25 APPENDIX 0448 683 001 - 25 - © ESAB AB 2024...
- Page 26 For contact information visit http://esab.com ESAB Corporation, 2800 Airport Road Denton, TX 76207, USA, Phone +1 800 378 8123 manuals.esab.com...
