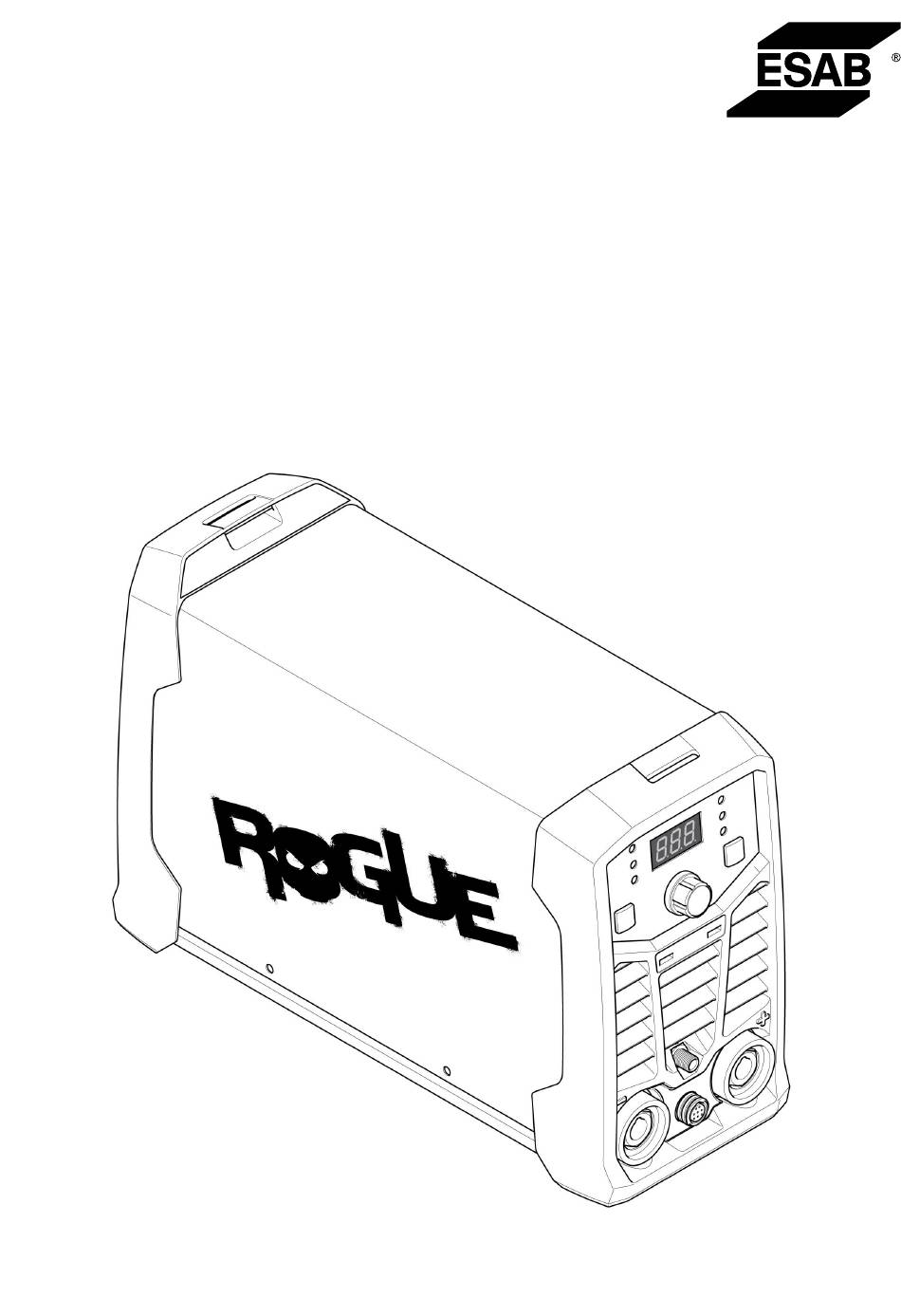

- Page 1 Rogue ET 200iP PRO Instruction manual Valid for: HA027-xxxx-xxxx 0463 712 101 GB 20210224...
-
Page 3: Table Of Contents
Remote control ..................MAINTENANCE ................... Routine maintenance ................Cleaning instruction ................TROUBLESHOOTING ................. ORDERING SPARE PARTS ................ DIAGRAM ......................ORDERING NUMBERS ..................24 ACCESSORIES ....................25 Rights reserved to alter specifications without notice. 0463 712 101 © ESAB AB 2021... -
Page 4: Safety
Safety Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 If equipped with ESAB cooler Use ESAB approved coolant only. Non-approved coolant might damage the equipment and jeopardize product safety. In case of such damage, all warranty undertakings from ESAB cease to apply. Recommended ESAB coolant ordering number: 0465 720 002.
- Page 6 There may be potential difficulties in ensuring electromagnetic compatibility of class A equipment in those locations, due to conducted as well as radiated disturbances. 0463 712 101 - 6 - © ESAB AB 2021...
- Page 7 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0463 712 101 - 7 - ©...
-
Page 8: Introduction

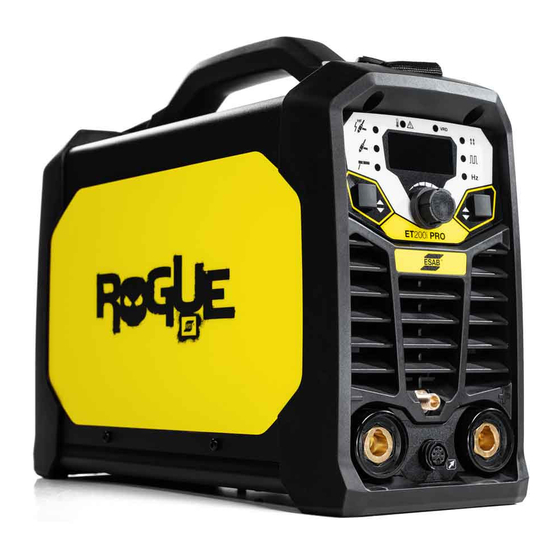

2 INTRODUCTION INTRODUCTION Overview Rogue ET 200iP PRO is an inverter-based power source intended for MMA (Manual Metal Arc) and TIG (Tungsten Inert Gas) welding, HF TIG (High Frequency Tungsten Inert Gas) welding. ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual. -
Page 9: Technical Data
3 TECHNICAL DATA TECHNICAL DATA Technical data Rogue ET 200iP PRO Outlet voltage 230 V±15% 115 V±15% 1~ 50/60 Hz 1~ 50/60 Hz Primary current 30 A 29 A TIG 19.5 A 24 A No-load power demand when in energy-saving mode 50 W 50 W Setting range 20-200 A 20-110 A 10-200 A 10-140 A Permissible load at MMA 25% duty cycle 200 A / 28 V... - Page 10 3 TECHNICAL DATA Rogue ET 200iP PRO Insulation class transformer Enclosure class IP23S Application class Mains supply, S sc min Minimum short circuit power on the network in accordance with IEC 61000-3-12. Duty cycle The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at a certain load without overloading.
-
Page 11: Installation
WARNING! Falling equipment can cause serious personal injury and equipment damage. Lift the unit with handle on top of case. 0463 712 101 - 11 - © ESAB AB 2021... -
Page 12: Mains Supply
4 INSTALLATION Mains supply NOTE! Rogue ET 200iP PRO complies with IEC 61000-3-12 provided that the short-circuit power is greater than or equal to S at the interface point between the user's scmin supply and the public system. It is the responsibility of the installer or user of the... - Page 13 4 mm 4 mm NOTE! Different variants of Rogue ET 180i, ET 200i, ET 200iP PRO are certified for different outlet voltages. Always refer to the rating plate for the specification of the power source in use. NOTE! Use the power source in accordance with the relevant national regulations.
-
Page 14: Operation
Connect the return cable to the other output on the power source. Secure the return cable’s contact clamp to the workpiece, and make sure that there is a good contact between the workpiece and the output for the return cable on the power source. 0463 712 101 - 14 - © ESAB AB 2021... -
Page 15: Turning The Power On/Off
Do not turn off the power source during welding (with load). Fan control The ET 200iP PRO is fitted with a fan as needed feature. Fan as needed automatically switches the cooling fan off when it is not required. This has two main advantages; (1) to minimize power consumption, and (2) to minimize the amount of contaminants such as dust that are drawn into the power source. - Page 16 The VRD function ensures that the open-circuit voltage does not exceed 35 V when welding is not being carried out. This is indicated by a lit VRD indicator on the panel. Contact an authorised ESAB service technician to activate this function.
-
Page 17: Setting Panel
Down slope time (SLPD 0 - 10 s) • End current (FINA 10 - 100%) • Gas post flow time (POSG 0.5 - 15 s) • Background current (BKGA 10 - 100%) In MMA mode: 0463 712 101 - 17 - © ESAB AB 2021... -
Page 18: Remote Control
Connect the remote control to the front of the power source. When the remote control is connected, it is automatically activated. The maximum setting of the power source will be determined by the respective front panel control, irrespective of the remote control device setting. 0463 712 101 - 18 - © ESAB AB 2021... -
Page 19: Maintenance
Cleaning instruction To maintain the performance and increase the lifetime of the power source it is mandatory to clean it regularly. How often depends on: 0463 712 101 - 19 - © ESAB AB 2021... - Page 20 Open the enclosure and use a vacuum cleaner to remove any accumulated dirt, metal filings, slag and loose material. Keep the shunt and lead screw surfaces clean as accumulated foreign material may reduce the welders output welding current. 0463 712 101 - 20 - © ESAB AB 2021...
-
Page 21: Troubleshooting
Refer to power source “Duty cycle” section in the TECHNICAL DATA chapter. Make sure that the air inlets or outlets are not clogged. Clean the inside of the machine using routine maintenance methods. 0463 712 101 - 21 - © ESAB AB 2021... -
Page 22: Ordering Spare Parts
Repair and electrical work should be performed by an authorised ESAB service technician. Use only ESAB original spare and wear parts. The Rogue ET 200iP PRO is designed and tested in accordance with the international and European standards EN60974-1 and EN60974-10. On completion of service or repair work, it is the responsibility of the person(s) performing the work to ensure that the product still complies with the requirements of the above standards. -
Page 23: Diagram
DIAGRAM DIAGRAM From serial number HA027-xxxx-xxxx 0463 712 101 - 23 - © ESAB AB 2021... -
Page 24: Ordering Numbers
ORDERING NUMBERS Ordering number Denomination Type Notes 0700 500 081 Power source Rogue ET 200iP PRO CE 0700 500 083 Power source Rogue ET 200iP PRO UAE 0700 500 093 Power source Rogue ET 200iP PRO SEA 0463 712 *... -
Page 25: Accessories
Electrode holder Handy, 200 A with 25 mm , 3 m, OKC 50 0700 500 084 Remote control, MMA 4 W4014450 Foot pedal, with 4,5 m (15 ft) cable, 8 PIN 0700 500 086 Shoulder strap 0463 712 101 - 25 - © ESAB AB 2021... - Page 26 For contact information visit esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 http://manuals.esab.com...
