This product is an automotive diagnostic device based on the Android operating system. It connects to vehicles via
a diagnostic cable to communicate with the vehicle's various electronic control systems, obtaining operational
data. This data provides a basis for vehicle maintenance and repair. The product includes three software
configurations, each corresponding to different software functionalities.
1.Product Introduction

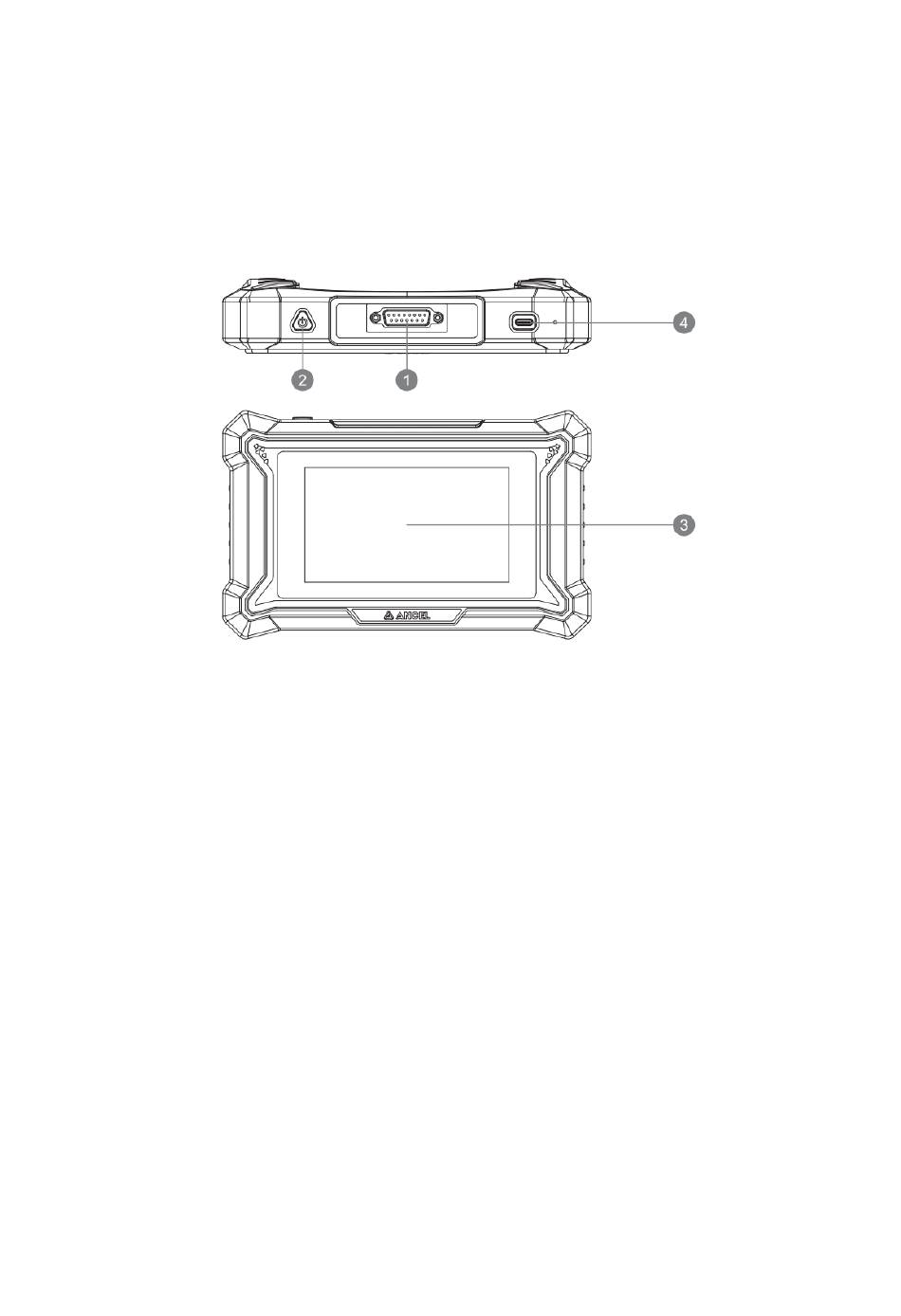

1. I/O Port: Connect the device to the vehicle's diagnostic port [OBD] using the diagnostic cable.
2. Power Button: Press and hold for 3 seconds to power on or display the shutdown prompt; press for 1 second
to turn off the screen.
3. Screen: 5-inch touchscreen; after powering on, all diagnostic operations can be performed by pressing the
screen menu.
4. USB Port: Type-C, used for charging and data transfer. Please use a power adapter with a 5V output for
charging.
2.Product Parameter
CPU：Quad-core 1.3GHz
Memory：2GB+32GB
Screen：5 inches 854*480
Working Voltage: 5V
Working Current: ≤ 2.5A
Working Environment: 0°C ~ 50°C (32°F ~ 122°F)
Software Configuration:
DS160: Full functionality for a single vehicle brand. Currently available for Ford, KIA, Benz, and Porsche.
DS100: Supports 100+ vehicle models for diagnosing 4 ECUs (ECM, TCM, ABS, SRS). Only basic functions are
available, including reading fault codes, clearing fault codes, reading ECU ID information, and reading data
streams.It includes 7 maintenance functions, namely ABS Bleeding, Battery Matching, Brake Reset, Electric
Throttle Relearn,Oil Maintenance Reset, Steering Angle Reset, and Gear Learn.
DS160 &DS100&DS200
User Manual
Advertisement
Related Manuals for ANCEL DS160
Summary of Contents for ANCEL DS160
- Page 1 Working Environment: 0°C ~ 50°C (32°F ~ 122°F) Software Configuration: DS160: Full functionality for a single vehicle brand. Currently available for Ford, KIA, Benz, and Porsche. DS100: Supports 100+ vehicle models for diagnosing 4 ECUs (ECM, TCM, ABS, SRS). Only basic functions are available, including reading fault codes, clearing fault codes, reading ECU ID information, and reading data streams.It includes 7 maintenance functions, namely ABS Bleeding, Battery Matching, Brake Reset, Electric...
- Page 2 DS200: Includes all the functions of the DS100, along with 15 additional maintenance functions, which are: AdBlue Reset, Airbag Reset, A/F Reset, ABS Bleeding, Battery Matching, Gearbox Relearn, Brake Reset, DPF Regen, Electric Throttle Relearn, Gear Learn, Injector Coding, NOx Sensor Reset, Oil Maintenance Reset, Steering Angle Reset, and TPMS (Reset).
- Page 3 3.4 Enter the Main Interface After reviewing and agreeing to the privacy policy, you will enter the main interface. Select the corresponding function on the interface to perform diagnostic tasks. 4.Function Introduction 4.1 AutoSearch Function This function obtains the vehicle's VIN through the OBDII interface, analyzes the VIN, and automatically identifies the vehicle model to enhance diagnostic accuracy.
- Page 4 If the VIN code cannot be recognized, you can manually enter the VIN. You can also navigate to the "Diagnose" menu and select the corresponding option based on the vehicle's year and model. 4.2 Diagnose Function In this menu, directly select the corresponding vehicle brand, year, and model. You can then perform a full vehicle diagnostic scan to retrieve the fault codes from all ECUs.
- Page 5 This function is currently available only on DS200. It consolidates all maintenance functions from various vehicle diagnostic software into a separate menu, making the diagnostic software more user friendly. In the DS160 series, you can find the corresponding maintenance functions within the specific ECU system, for example, the oil reset function can be found in the engine's special functions menu.
- Page 6 4.6 Consult OBD Fault Code Library: Use the OBD fault codes generated during the diagnostic process to query detailed fault descriptions. Coverage Lists: Quickly check the supported models and functions available on the current device. Learning: Access video tutorials that provide guidelines for equipment usage, maintenance, and diagnostics. Video: Watch instructional videos that demonstrate how to operate the device effectively.
- Page 7 A Wi-Fi connection is required during the upgrade. Please note: Since the DS160 is a full-function diagnostic device for a single vehicle brand, its upgrade interface layout may vary slightly.
- Page 8 Clear Data: Clear the cache, reset settings, and restart the app. About: View version information for the device. 4.10 Shortcut Swipe down from the top of the screen to open a floating window, providing quick access to settings like brightness adjustment and the screenshot feature. 5.FAQ Here we list some frequently asked questions and answers related to this device.
- Page 9 Compensation for any damage to the dashboard caused by this equipment is limited to repair or replacement. ANCEL is not liable for any indirect or incidental losses. The nature of the equipment damage will be assessed according to ANCEL's established inspection methods.
Need help?
Do you have a question about the DS160 and is the answer not in the manual?
Questions and answers

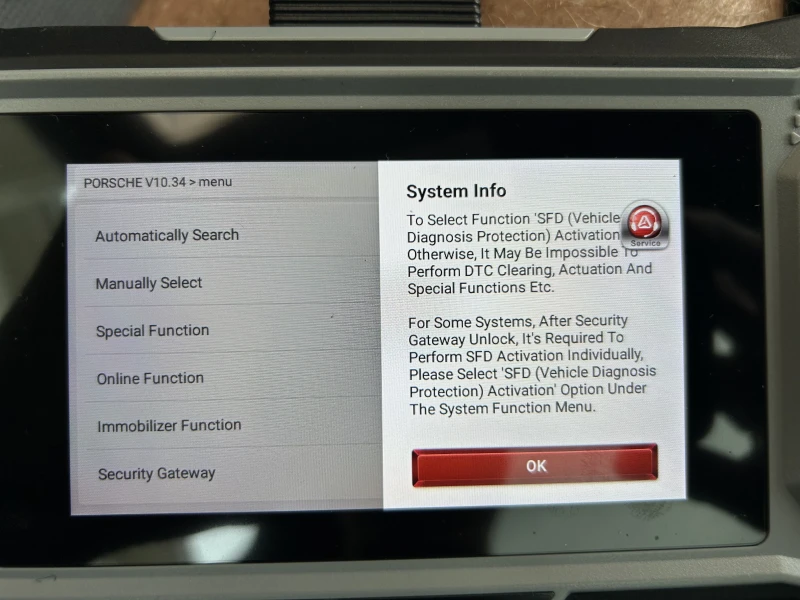

Resetting change oil light in 2024 Porsche Panamara. Trying to get past security gateway but explanations are not clear.
