Sloan ESD-410 Installation Instructions

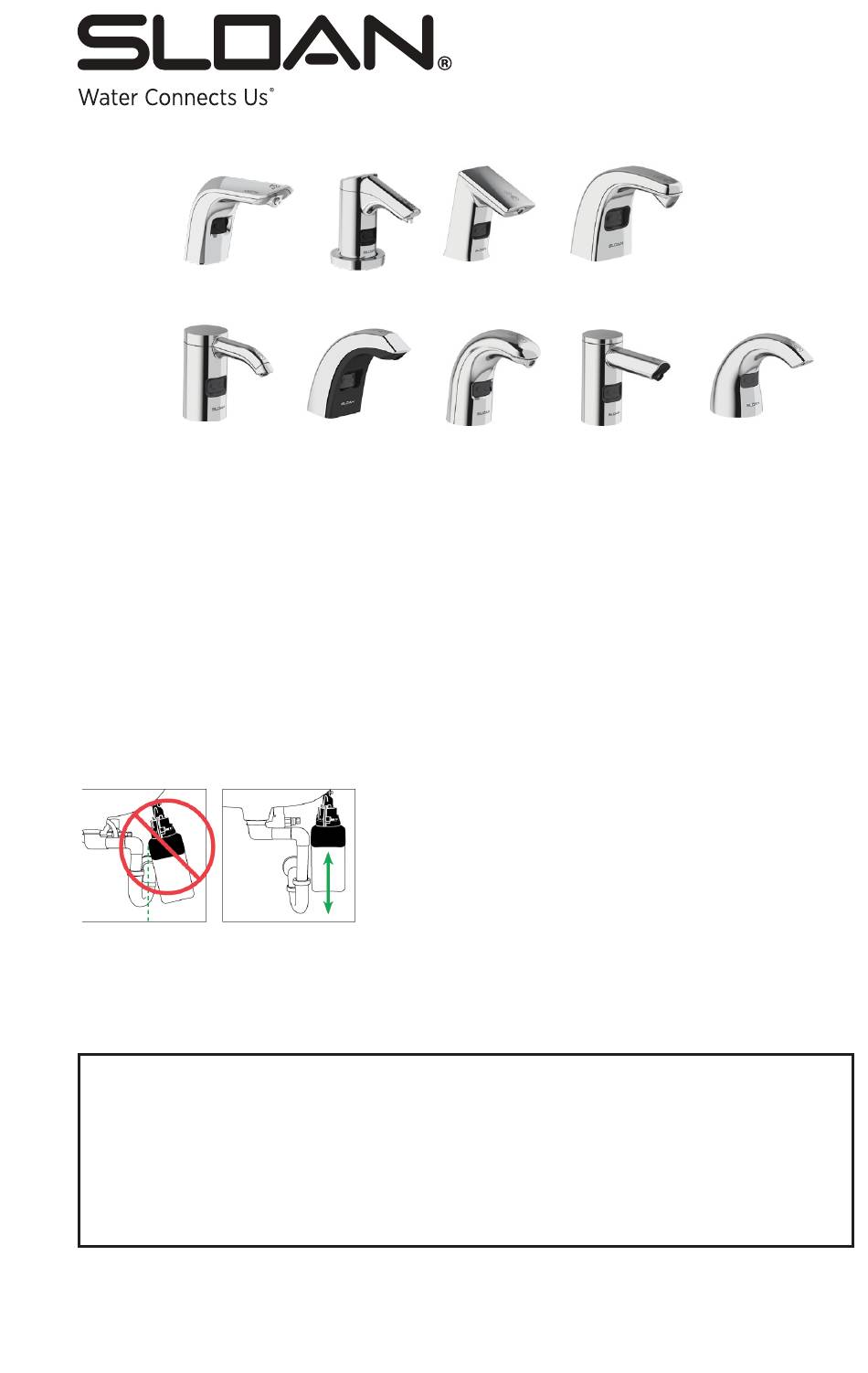

SLOAN DECK MOUNTED SOAP DISPENSER (ESD-SERIES) INSTALLATION INSTRUCTIONS
ESD-410
ESD-700
Touchfree Counter Mounted System Installation Guide
If there is a dispenser currently installed
• Remove the existing unit, both the above and below counter assemblies
• Clean the counter area where the previous dispenser was located
• Verify the size of the existing counter hole is 15/16" to 1-1/4" in diameter
If there is no hole in the counter
• Prior to drilling, examine below the counter to ensure adequate clearance for the new unit
• Drill a 1" diameter hole in the counter top
• The hole can be drilled to either the right or left of the faucet, ensuring adequate clearance for the below counter assembly
• Clean the counter area where the new hole is located
Prior To Installation
New Soap Dispenser Installation:
• Ensure that dispenser does not interfere with anything
above or below the lavatory/counter top area
• Drill a 1" diameter hole in counter top
• Clean area around hole
Proper installation allows
Improper installation of the
the unit to vertically hang
Counter Mounted Dispenser
beneath the sink.
could result in
breakage.
Dispenser must hang freely
underneath the sink.
Unless otherwise noted, Sloan Valve Company warrants its Products to be made of first class materials, free from defects of material or workmanship under
normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for
a period of three years (1 year for SF Faucets, special finishes and PWT electronics and 30 days on PWT software) from date of purchase. During this
period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan Valve Company, at
customer's cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labor, transportation or other incidental costs.
This warranty extends only to persons or organizations who purchase Sloan Valve Company's products directly from Sloan Valve Company for purpose of
resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • www.sloan.com
ESD-420 ESD-500
ESD-800
ESD-1500
LIMITED WARRANTY
ESD-600
ESD-2000
To Order Replacement Soap Cartridges
800.321.9647
GOJO Industries
Refills are also available through your local plumbing or janitorial supply
distributor.
When the soap bottle is empty, a new bottle must be used. The bottle
furnished with the unit is not designed to be refilled. Altering the bottle and
refilling it with soap will void the warranty of the product.
Code no. 0816203
Rev1 (01/17)
ESD-2100
