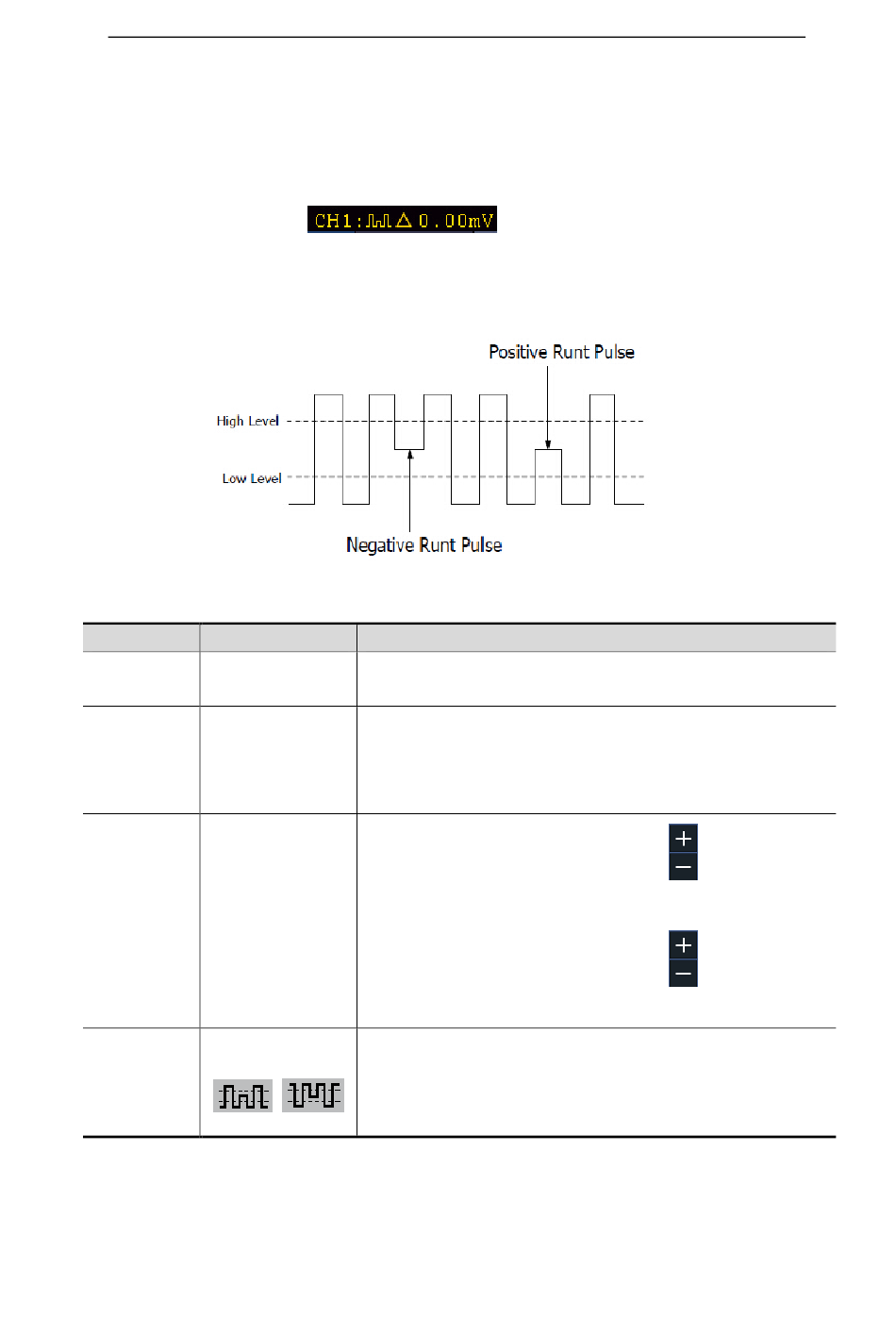

5.Runt Trigger
Trigger pulses that pass through one trigger level but fail to pass through the other
trigger level. Shown as below figure,
In Runt Trigger mode, the trigger setting information is displayed on bottom right of
the screen, for example,
trigger source is CH1, polarity is positive, 0.00mV is the differential between up level
and low level threshold.
Runt Trigger menu list:
MENU SETTING
Single
Runt
Mode
Source
Up Level
Threshold
Low Level
Polarity
Condition
User Manual
Runt Trigger
INSTRUCTION
Set vertical channel trigger type as runt trigger.
CH1 Select CH1 as the trigger source
CH2 Select CH2 as the trigger source
CH3 Select CH3 as the trigger source
CH4 Select CH4 as the trigger source
Adjust the M rotary control or click
level threshold.
Adjust the M rotary control or click
level threshold.
Positive Polarity, the oscilloscope triggers on the
positive runt pulse.
Negative Polarity, the oscilloscope triggers on the
negative runt pulse.
，indicates that trigger type is runt,
43
to set the up
to set the low
