idp SMART-81 User Manual

Retransfer card printer
Hide thumbs Also See for SMART-81:

Advertisement

Quick Links

Download this manual
SMART-81
Retransfer Card Printer
User Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMART-81 and is the answer not in the manual?

Questions and answers

Related Manuals for idp SMART-81

Summary of Contents for idp SMART-81

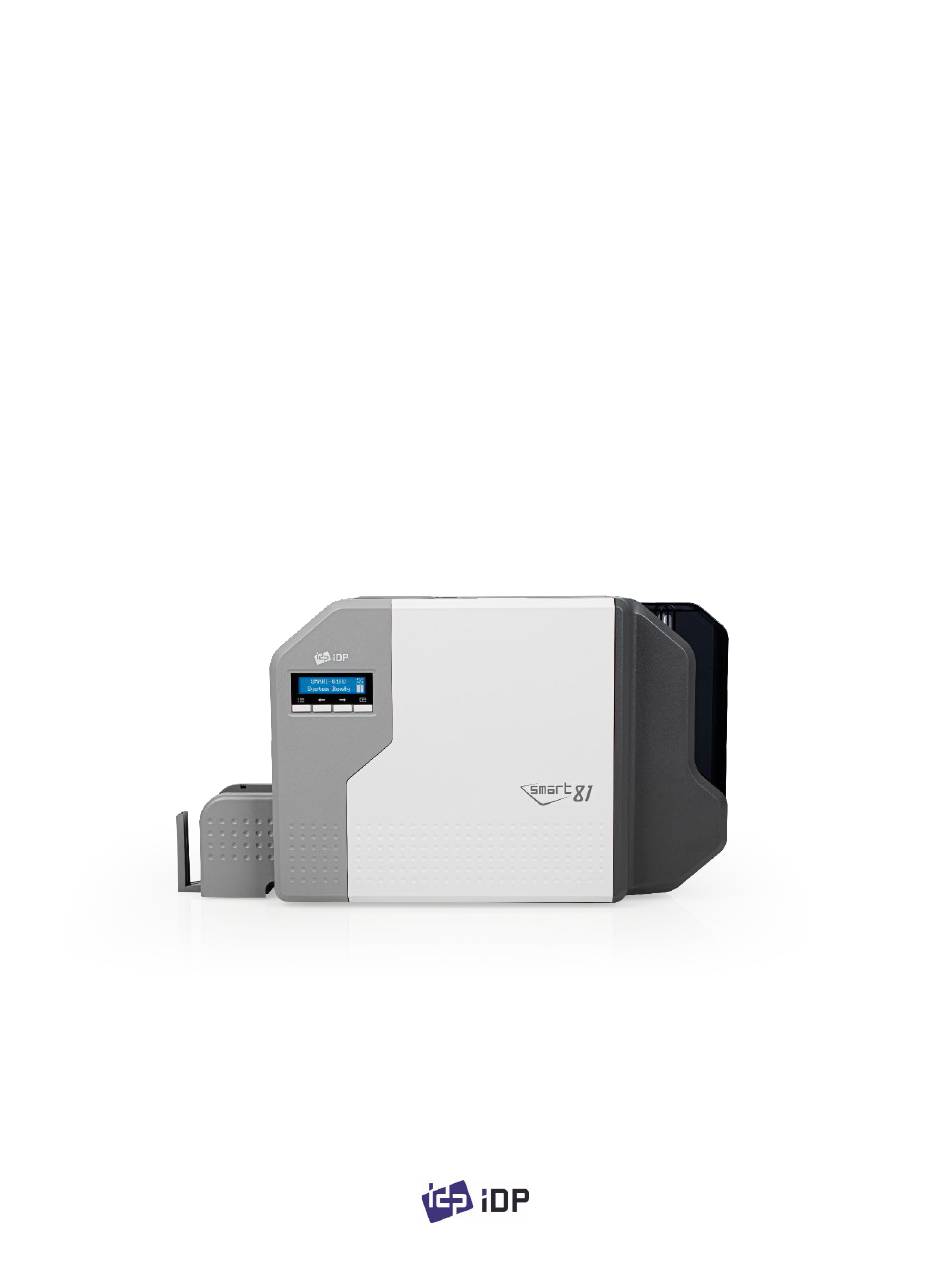

  • Page 1 SMART-81 Retransfer Card Printer User Manual...
  • Page 2 IDP Reseller. The IDP partners will bear the costs of shipping and ensuring the printer from the repair location to the address from which the printer was shipped.
  • Page 3 Table of Contents 1. BASIC INFORMATION ....................10 1.1. Printer external features ........................10 1.2. Printer internal feature ........................13 1.3. Display & buttons ..........................16 2. PRINTER INSTALLATION ....................30 2.1. Connection power and USB cable ..................... 30 2.2. Fitting the Film, Ribbon, Cleaning roller ..................31 2.3.
  • Page 4 4.3. Card Printer Test ........................... 74 4.4. Firmware update ........................... 82 5. TROUBLESHOOTING ..........ERROR! BOOKMARK NOT DEFINED. 5.1. Error Messages ............................84 5.2. Cleaning and Replacement Printer air filter ..................88 5.3. Cleaning the printer ..........................90 5.4. TPH (Thermal Print Head) replacement ................... 93 5.5.
  • Page 5 Figure 5 SMART-81 internal features ....................13 Figure 6 SMART-81 Display and buttons ..................16 Figure 7 SMART-81 Connection of power and USB cable ............30 Figure 8 Front cover open ........................31 Figure 9 Removal film cartridge ......................31 Figure 10 Removal Ribbon Cartridge ....................
  • Page 6 Figure 24 Loading the card 1 ........................ 37 Figure 25 Loading the card 2 ........................ 37 Figure 26 Installation SMART-81 card stacker ................38 Figure 27 Install printer driver 1 ......................39 Figure 28 Install printer driver 2 ......................39 Figure 29 Install printer driver 3 ......................
  • Page 7 Figure 60 CardPrinterConfig Start ......................57 Figure 61 CardPrinterConfig Basic setup ..................58 Figure 62 CardPrinterConfig – Advanced setup ................61 Figure 63 Rear view of SMART-81 ...................... 66 Figure 64 Running NetAdmin ........................ 66 Figure 65 Network printer is not found .................... 67 Figure 66 Connecting to USB Port ......................
  • Page 8 Figure 68 USB port state .......................... 68 Figure 69 Rebooting network module....................69 Figure 70 Reset to default settings ....................69 Figure 71 Upgrade the firmware 1 ...................... 70 Figure 72 Upgrade the firmware 2 ...................... 70 Figure 73 Upgrade the firmware 3 ...................... 71 Figure 74 DHCP Dynamic IP configuration ..................
  • Page 9 Figure 91 Printer cleaning step 4 ......................92 Figure 92 Printer cleaning step 5 ......................93 Figure 93 Print head ..........................93 Figure 94 Print head setup ........................94 Figure 95 Print head disassemble ......................94 Figure 96 Print head assemble ......................95 Figure 97 Print quality Issue 1 .......................
  • Page 10 1. Basic Information 1.1. Printer external features For the user’s convenience, the SMART-81 status is displayed on the LCD. The printer can be controlled by four buttons under the LCD display. Communication with the computer (Windows or MAC) can be done using the USB or Ethernet ports.
  • Page 11 (SMART-81D). An optional laminator can be added as a field upgrade to add durability and security to printed cards. (Figure. 3) shows the standard SMART-81 card printer. It features single-sided printing with optional upgrades to dual-sided printing, and magnetic or smart card encoding.
  • Page 12 (Figure. 4) shows the SMART-81 with the optional laminator module(81L). The SMART-81 printer and laminator can print and laminate both sides of a card. Figure 4 SMART-81 with laminator...
  • Page 13 1.2. Printer internal features In the SMART-81 printer, ribbon and transfer film are installed with a reloadable cartridge. The following shows the internal features of your SMART-81 printer. ④ ① ② ⑥ ⑤ ③ Figure 5 SMART-81 internal features ①...
  • Page 14 ② Ribbon cartridge Shown is the cartridge to which the printer ribbon is loaded. The unit can be removed by holding and pulling the “Ribbon” handle. This reloadable cartridge is a component of the printer. Do not discard the cartridge with spent ribbon. The printer will not operate correctly if it is broken or damaged ③...
  • Page 15 ⑥ Cleaning roller cartridge Shown is the cartridge to which the cleaning roller is loaded. It can be removed from the printer by holding and pulling the handle. The cleaning roller will remove dust from the surface of the card before printing to improve print quality.
  • Page 16 1.3. Display & Buttons The SMART-81’s control panel consists of a 2-line LCD and 4 buttons. The LCD displays the status of the printer and guides you through setting changes. Figure 6 SMART-81 Display and Buttons During printer boot-up, the status of the SMART-81 will display ‘Initializing’. Once complete, the status will change to ‘System Ready’.
  • Page 17 The left side shows the remaining balance of the retransfer film, and the right side shows the remaining balance of the ink ribbon. If an ‘X’ is displayed, it indicates that no ribbon was found, or it was installed incorrectly. Figure 7 Film &...
  • Page 18 - Laminator LED status by color When using the optional laminator with the SMART-81(Figure 7), you can see the status of laminator indicated by the LED’s color. ※ Laminator LED Location LED Status Description Blue (on) Normal standby ■ Green (on) Executing Printer command.
  • Page 19 ‘+’ is displayed at the end of first line if there are more than two errors. SMART-81x Password Use Authentication authentication option on Smart-81 Unlock Please. Config utility, and printer is Lock with Root Password/User Password. SMART-81x Use Authentication authentication...
  • Page 20 status. Heater Not Retransfer Retransfer head is not Found head connect installed, or cable is not Check Heater check connected, or abnormal temperature. Power off and check Retransfer head status and temperature. BHeater Not Bend Bend retransfer head is Found Retransfer not installed, or cable is head connect...
  • Page 21 xxxxxxxxxxxxxxx Retry Cancel and Initial error Fail to search ribbon or Initialization after closing detect card out while case initialization after Case Open Front Cov Closed. (Refer to Printer LCD Error Table) ‘+’ is displayed at the end of first line if there are more than two errors Card Out Error Retry...
  • Page 22 Hop Card Empty No card in There are not cards in the hopper. input hopper. Hopper Plz Supply Card Cartridge Open takes priority if error occurs at the same time. >> *Cover Open Cancel Cover Cover Open Cover Open Cover open Use the left and right Menu Open...
  • Page 23 Flip * Flipper state message: Top Side: Flipper Top state Bottom Side: Flipper Bottom state Top Side Err: error occurs while Flipper Top motion Bottom Side Err: error occurs while Flipper Bottom motion. MENU Select Cancel Menu - Menu + Select MENU Menu System Config (category menu)
  • Page 24 Length Config Menu + Setting. Menu - >> Y B RT Cancel Print Print Config Setting Print Config Y Bottom Retransfer Length Config Menu + Length Setting. Menu - >>Total Density Setting Cancel Print Print Config Print Config Total Density Setting. Config Menu + Menu -...
  • Page 25 >>PRN Serial Cancel Information Information Check Display printer serial Menu - Menu + Information number. >>LAM Serial Cancel Information Information Check Display Laminator serial Menu - Menu + Information number. >>PRN Cancel Information Information Check Display Printer firmware Firmware Menu - Menu + Information version.
  • Page 26 recognize Ribbon Ribbon Ribbon recognize present, or installed recognize recognize recognize error incorrectly. Press key to Check Ribbon retry or check ribbon. Ribbon Not Retry Ribbon Retry Retry Retry Ribbon If the ribbon and print Found recognize Ribbon Ribbon Ribbon recognize model don’t match.
  • Page 27 Check Please. Ribbon & Ribbon & Ribbon & Ribbon & Ribbon zero Replace the ribbon Film research Film Film Film Ribbon Zero research research research Check Please. Ribbon & Ribbon & Ribbon & Ribbon & Film Zero Replace the film Film research Film Film...
  • Page 28 Waiting HeatOff mode temperature to reduce. (Display only Line1) Cleaning Mode Cleaning Insert Long Cleaning Card mode Insert Cleaner Cleaning Mode Cleaning Cleaning mode Cleaning Cleaning Mode Cleaning Remove cleaning card mode Remove Cleaner...
  • Page 29 The table below details LCD messages based on the laminator’s status and functions. Messages KEY0 KEY1 KEY2 KEY3 State Description Menu/Cancel Left/Down Right/Up Select/OK L Film Zero+ Laminator Laminator Film supply is Plz Error error empty. Install new Laminate film. A ‘+’ is displayed at Clear the end of first line if there are more than two errors.
  • Page 30 2.1. Connect power and USB cable Connect the power and USB cable as shown below and install the communication cable protection cover. Please refer to the ‘Network configuration’ if you use the LAN connection. Figure 7 SMART-81 Connection of power and USB cable...
  • Page 31 2.2. Install Retransfer Film, Ribbon, Cleaning Roller Before you can print, you must install the printer’s consumables. Prepare the related items such as cards, ribbon, retransfer film, and a cleaning roller before you get started. (Caution! Please turn off the printer) (1) Open the printer’s front cover Figure 8 Open front cover (2) Pull out the retransfer film...
  • Page 32 (3) Pull out the ribbon cartridge using the cartridge handle. Figure 10 Take out ribbon cartridge (4) Hold the disposable cleaning roller cartridge handle and pull it out. Figure 11 Take out cleaning roller cartridge (5) Insert the film into the film cartridge. After inserting, tighten the film. (Caution! If the film is not tightened, a winding error might occur) Figure 12 Loading film...
  • Page 33 (6) Insert the ribbon into the film cartridge. After inserting, tighten the ribbon. (Caution! If the ribbon is not tightened, a winding error might occur) Figure 13 Loading the ribbon (7) Insert the disposable cleaning roller into the cartridge. Peel the protective wrapper from the cleaning roller.
  • Page 34 (8) Install cleaning roller cartridge into the printer. Figure 15 Installing the cleaning roller cartridge (9) Install film cartridge into the printer. At this point, do not fully mount the cartridge to the printer as shown in figure 16. Figure 16 Installing film cartridge (10) Install ribbon cartridge into printer.
  • Page 35 (11) Press below the handle to fully mount the film cartridge to the printer. Figure 18 Installing film cartridge (12) Close the front cover. Figure 19 Close cover...
  • Page 36 2.3. Loading cards Open the Input hopper cover in the direction of the arrow in Figure 20. Figure 20 Remove hopper cover If necessary, loosen the card gate screw to adjust height of gate to match thickness of the card. Gate is optimized for standard 30mil/0.86mm cards.
  • Page 37 Prepare the cards before loading by pushing the stack of cards back and forth to an angle of about 45 degrees vertically as shown in Figures 22 and 23. Figure 22 Preparing the cards Figure 23 Preparing the cards Stand the stack of cards vertically after separating.
  • Page 38 2.4. Exit Stacker Installation The exit stacker holds up to 100 printed cards. To install, simply align the hooks. Figure 26 Installation of SMART-81 card stacker...
  • Page 39 Scan the QR Code or Go to www.idp-corp.com and search for “Driver” in the “Support” “Download” menu. Download the “SMART-81 Printer Driver”. Extract the driver and all its components from the ZIP file and save it on your PC. Note: Administrative rights are required to install drivers.
  • Page 40 Turn off the printer if it is connected to a PC. Click “Next”, which will remove any older SMART-81 drivers automatically. This process will take several minutes. You can select the languages by selecting the combo box as shown in Figure 30.
  • Page 41 (In case of USB connection, click “Next” and move to step (9). If you are planning on setting up the SMART-81 as a network device, please proceed to (8) Step 3: Network. Figure 33 Install printer driver STEP 3: Network...
  • Page 42 Right click “SMART-81 Card Printer” and select “Print Properties”.) Figure 36 Install printer driver (11) Select “General” tab and click “Print Test Page” in the “IDP SMART-81 Card Printer Properties” window. Figure 37 Install printer driver...
  • Page 43 (12) Check the test card to see if it is printed properly. If so, click “Close”. (If card is not printed or error occurs, please refer to “Trouble Shooting”.) Figure 38 Install printer driver...
  • Page 44 2.6. Option installation (IC, RF) Step 1: Detach each module from the main body's front cover (1) Turn off printer, open front cover, remove film cartridge and reject card stacker, as shown in Figure 39. (2) Remove the two screws, then pull out encoder mount from the main body, as shown in Figure 39.
  • Page 45 (3) Install the film cartridge, error card stacker, and close the cover. Figure 41 Install module (IC, RF)
  • Page 46 2.7. Option Installation (Laminator) Step 1: Mount module binding bracket to the bottom of the printer (1) Turn off printer, open top cover, remove card stacker, and install the binding bracket under the printer as shown in Figure 42. Figure 42 Install Laminator Module Step 2: Fitting module (Laminator) (1) Place the module to be installed (laminator) to the binding bracket as shown in Figure 42.
  • Page 47 Figure 44 LCD display (with laminator)
  • Page 48 3. Driver Configuration To check printer properties, you need to open the printer driver. Open “Devices and Printers” and right-click “IDP SMART-81 Card Printer”. Click “Printer Properties”. 3.1. Printer Properties Printing Preferences Click “Preferences…” Figure 45 Print Properties Layout Select either Landscape (horizontal) or Portrait (vertical) printing direction.
  • Page 49 Input / Output Supply Tray Supply: You can select “Auto” if SMART-81 has one input hopper. Select the specific hopper if it has a multi-hopper. Tray: SMART-81 supports CR-80 card only. Figure 47 Input / Output Setting Printing Do Print: This option should be checked to print a card.
  • Page 50 Dither: There are 3 possible selections, You can define a mask. Threshold, Random, and Diffusion User defined mask uses Dither. It is relevant for K and KO ribbon BITMAP file (1012 X 636 only. (Select “Diffusion Dither” for high pixels). quality) Blue (RGB (0,0,255)): Print Ribbon Save: Select split function or not...
  • Page 51 Repeat Count: if an encoding fails, you can select the number of retries before ejecting the card. Encoding Advanced Option Card Stripe Side: The location of magnetic stripe [Bottom / Top] Before Flip: Do flipping before encoding [No /Yes] After Flip: Do flipping after encoding [No/ Yes] Figure 51 Encoding Advanced Setting Track Advanced Options:...
  • Page 52 3.2. Advanced Options To change the detailed configuration located in the ‘Layout’ tab shown, click “Advanced…” shown on the bottom of the ‘Layout’ tab in ‘Preferences’. [Graphic]  Print Quality: You can select the print quality (DPI). [Document option]  Reset Default Values: Reset to default. ...
  • Page 53 > Black object: to extract resin black automatically for text, line, box, circle, binary images, etc. > Black Text: to extract resin black for text only. > Black Dots: to extract resin black for all black. > Black Dots Only: to extract resin black for all black and not to print on color panels.
  • Page 54 Default is unchecked “Share this printer.” Figure 53 Printer Sharing Ports The ‘Port’ tab shows which port is connected to the SMART-81. USB ports are assigned by the printer drivers and should not be changed. Ethernet port addresses may be automatically selected by your network (DHCP) or predefined (Static IP).
  • Page 55 In the ‘Color management’ tab, you can select a color management profile fit to the printer. SMART-81 uses a color profile to express optimal color. The driver selects a color profile automatically to fit each ribbon. (IDP recommends not changing the default values.)
  • Page 56 Security You can set printer access permissions. Depending on the permission, a certain group or user can print, manage the printer/documents or not. Contact your Network Administrator for more information. Figure 57 Security Service This tab gives you a view of the printer, and its vital information such as its serial number, driver, firmware versions, and more.
  • Page 57 This utility is used to optimize your printer settings. They are pre-set at the factory for optimal generic use and typically these settings will not need to be changed. Please contact IDP or your Authorized IDP Service Center before making any changes.
  • Page 58 To show connected printers: Device: You can select a printer using the drop-down menu. In Figure 61, the printer is “IDP SMART-81 Card Printer.” “SMART-81” is the printer ID, and “USB007” is the connected port. If you connect to the network printer, ②...
  • Page 59 ⑦ Color density adjustments The SMART-81 allows the user to set different densities for each color, resin black and overlay. Set each density for high quality and optimize the quality by adjusting each value. Click the “Print” button or print a card from your application to view color-adjusted cards.
  • Page 60 Adjust the print density to achieve desired output. ⑧ Print calibration card ⑨ Advanced setup (These options should NOT be changed unless directed by IDP Support) ⑩ Save and Load Configuration Get Config.: Retrieve values from current printer. Set Config.: Set values to current printer.
  • Page 61 Card Printer Advanced Setup Advanced settings allow access to advanced features for the SMART-81 printer.  Changes to these settings should only be made under the direction of IDP Support. ① ② ③ Figure 62 Cardprinterconfig – Advanced setup ①...
  • Page 62 SDK. You can encrypt magnetic stripe encoding data transmitted by USB. You can ② define and save the encryption key to the SMART-81 using “Set Mag. Encrypt Key” Adjust printer’s detailed setting value (Function tabs) Print: Tab showing specific printer setting values. These values should only be changed when directed by IDP Support.
  • Page 63 Retransfer: Tab showing the retransfer setting value. These values should only be changed when directed by IDP Support. Retransfer: Front Card card position when start retransfer (Front) Position Retransfer: Back Card card position when start retransfer (back) Position Retransfer: Operation...
  • Page 64 Extra: Tab showing other setting values. Card In Speed Card in speed Card Out Speed Card out speed Card Move Speed Card move speed (inside printer) DCL Mode DCL mode SBS Only Only SBS commend mode Dump Mode Dump mode Card Out Card out direction Error Card Out...
  • Page 65 Count: Tab showing printer count history. “Total issue Count” is the number of cards prints in the printers life cycle, “User Issue Count” is the number of cards prints after the head has been replaced. “User Issue Count” is initialized by checking “Reset User Issue Count” when replacing the printer head.
  • Page 66 Figure 63 Rear view of SMART-81 The SMART printers support the ability to print in a variety of ways over the network. These settings require network expertise, any changes require the guidance of your Network Administrator.
  • Page 67 Select network printer If no printer is connected to the network, there will be no printer shown in the box. Click “Refresh”. If no printer is shown again, check as below: Ensure the printer is turned on.  Ensure the network cable is connected ...
  • Page 68 NetAdmin log-in Select the correct printer and click  “connect”. Then enter the password and click “OK”. Default password is: admin Figure 67 NetAdmin Log-in (6) USB port state Click “Use port state” to show devices  connected to the USB hub of the network module.
  • Page 69 Reboot network module Click Reboot Module, if desired  Click “Yes” when pop-up window  appears. It takes one minute to reboot.  Click “Refresh” after reboot. When the  proper printer appears, click “connect.” Figure 69 Rebooting network module Reset to default Click Reset to default, if desired ...
  • Page 70 Upgrade network module firmware Click Upgrade Firmware, if desired  A dialog box opens to save the firmware  file (.bin) to a specific location. Note: Please be sure you are using netadmin firmware. Select and save the firmware file that ...
  • Page 71 IP address.  Click “Set Configuration”, Save, and reboot the printer.  We recommend using static IP because it is more stable for use with the Figure 74 DHCP / Static IP configuration SMART-81 network printer.
  • Page 72 (11) Wireless network configuration  The WiFi option must be installed in conjunction with a network module.  Check “WiFi (option)” button to activate  Enter the ESSID value in “WiFi ESSID” to access.  Enter the Key value in “WiFi Key”. ...
  • Page 73 (13) OCP (Open Card Printer) Function This function is for sending print, encode  and other commands through a network without the use of a local driver or other “Use Terminal Emulation” is  communication between the printer and computing device. For security, it supports SSL and User Authentication.
  • Page 74 ① ② ③ ④ ⑤ ⑥ ⑦ Figure 79 CardPrinterTest ① Select Printer: Select a printer to test. In the example, “IDP SMART-81 Card Printer” is the printer name, SMART is the printer ID, and USB003 is the connected port.
  • Page 75 “DoPrint”. It is the main difference between NORMAL mode and SBS mode. When you click “Start”, the SMART-81 is operated in SBS mode, and existing spooled data will be eliminated. To exit SBS mode, click “End”.
  • Page 76 Rotate  Rotate is to flip over a card in the printer installed flipper. “Auto” is to move a card from printer to flipper and flip over a card and move a card to the printing position automatically. “Batch” is to repeat. “Auto” as many times as the number of sets. “To Bottom”...
  • Page 77 (4) Batch Batch is to repeat encoding/decoding test continuously. To repeat, you input the number of repeats and click “Batch Start”, then the test is run as many times as the number of sets. When you check “Include Card In/Out”, each time the printer brings a card from the input hopper and performs an encoding test and ejects the card.
  • Page 78 Figure 80 Magnetic Stripe Encoding IC(PC/SC): Contact Smartcard Encoding In the SMART-81 printer, a contact smartcard encoder can be installed and the “IC(PC/SC)” is to test a contact smartcard encoding. “ICH Contact” is to bring the encoder head into contact with the IC chip of the smartcard physically.
  • Page 79 Figure 81 Contact Smartcard Encoding RF(PC/SC): Contactless Smartcard Encoding A contactless smartcard encoder can be installed in the SMART-81 printer. RF(PC/SC) is to read and write the contactless smartcard. Using the internal encoder, the printer brings a card into the printer from input hopper and encodes it. An antenna is installed under the top cover for the external encoder.
  • Page 80 “Reset” is complete the connection test. After “Contact”, you can run “Read”, “Write” and “Clear”. “Get UID” is to obtain the Chip Serial Number (CSN). “Read” and “Write” are to read and write the defined data (Name, Address and Phone). These may not be applied to all cards. “Clear”...
  • Page 81 Printer and Laminator Status “Get Temperature” is to get and display the temperature of Thermal Print Head. When the “Realtime Check” is ticked, it displays the current temperature of Thermal Print Head in real time. “Get Status” is to get and display the printer status. Please refer to the ‘SMART SDK manual’...
  • Page 82 4.4. Firmware update When you run the CardPrinterFirmware, you can see the pop-up window. CardPrinterFirmware Menu Device: Select the local printer you want to upgrade. Card Printer / Laminator: Select the device you want upgraded. Device Version: Displays the current firmware version of selected printer.
  • Page 83 Firmware update Click “Update” button to upgrade  automatically. The printer is upgraded after rebooting. If there are problems with the  automatic upgrade, click “Manual Update” You can upgrade manually by following prompts. Reboot the printer after the update. ...
  • Page 84 Troubleshooting 5.1. Error Message The SMART-81 printer shows the error message in the LCD display when it occurs. Click the “Menu” button to retry, and “Select” button to cancel an operation. The following shows the error message on your Smart Printer. To check the status of a printer, please use a CardPrinterTest or CardPrinterDiagnostics in the Utilities folder.
  • Page 85 Error occurs while printing. -. Check if a card is jammed. Printing Err -. Check to be sure genuine ribbon and cards are being used. -. Check the rollers, encoders and cards, and clean them if they are dirty. The printer can’t search the ribbon panel in printing or booting up. -.
  • Page 86 The IC Head Up/Down Motor or Sensor does not work correctly in printing, encoding or booting up Check the state of the cable between a module and a mainboard. IC UpDown Err -. Check the operating state of the IC Motor. Check IC Up/Down sensor.
  • Page 87 -. Check the print head installation. -. Contact the place of purchase Retransfer heater is not installed or not recognized. Heater None -. Check the Retransfer installation. -. Contact the place of purchase Band heater is not installed or not recognized. Bheater None -.
  • Page 88 The following shows the error message on your laminator. For checking a status of laminator, please use a CardPrinterTest or CardPrinterDiagnostics in the Utilities folder. Message Description L CardIn Err Card in error L CardFeed Err Card feeding error L CardOut Err Card out error L HT UpDown Err Head up/down error...
  • Page 89 3. After installing the filter, press the protective cover in the direction of the arrow to close it.
  • Page 90 5.3. Cleaning the Printer To maintain the best condition of SMART printer, clean the printer periodically. If you use the exclusive cleaning cards as shown below, you can clean the printer easily. For purchase the exclusive cleaning card, ask your SMART printer provider. Figure 86 Exclusive Cleaning Card When ready, click “Clean Printer”...
  • Page 91 Step 1: Connect the SMART printer to your PC and turn it on and prepare the exclusive cleaning card. Click “Start cleaning.” Figure 88 Printer Cleaning Step 1 Step 2: Check that the printer has entered the cleaning mode on the LCD. Open the cover, and remove the card cartridge, ribbon cartridge, and cleaning roller.
  • Page 92 Figure 90 Printer Cleaning Step 3 Step 4: Wait until the cleaning is completed. When the cleaning is completed, the exclusive cleaning card will be ejected automatically. Figure 91 Printer Cleaning Step 4 Step 5: Remove exclusive cleaning card and install cleaning roller, ribbon cartridge, and film cartridge.
  • Page 93 Figure 92 Printer Cleaning Step 5 5.4. TPH (Thermal Print Head) Replacement 1. Check the serial number and the resistance of new TPH as Figure 93. Serial number Head resistance Figure 93 Printer Head 2. Set up the new Print Head’s configuration using CardPrinterConfig program. Step 1: Run ‘CardPrinterConfig’...
  • Page 94 ③ ② ① ④ Figure 94 Printer head setup 3. Replacing the new Print Head Step 1: Remove the old printer head from the front cover. (1) Turn off the printer and open the front cover. (2) Remove the ribbon cartridge first, release the screw, hold the head with one hand, and remove it.
  • Page 95 Card Transfer Error occurs when the ribbon is coiled around the transfer roller or the printing roller. Open the top cover and remove the card and the coiled ribbon from SMART-81 printer using front buttons. If this problem occurs frequently, check the following: Non-standard cards or bad cards.
  • Page 96 The transfer roller or the printing roller is contaminated with dust and dirt.  Remove the dust and dirt with the cleaning kit as described in Section 6.2. Wrong printing position setting.  Please contact the local supplier. When operating temperature, static and humidity is out of the acceptable ...
  • Page 97 5.6. Printing quality Not printed or wrong colors printed spot. The card surface is contaminated with the  dust and dirt. After checking the card, change it to another card. Figure 98 Printing quality trouble 2 The retransfer head is contaminated with ...
  • Page 98 Raise the retransfer temperature to use CardPrinterConfig. The printer head is contaminated with dust and dirt.  Clean the printer head with the cleaning kit. The print image is not completely transferred to the card. (Front end of card) The card surface is uneven or contaminated ...
  • Page 99 Retransfer film is attached to edge of the card (side of the card) Non-standard card.  Change the card. The card surface is uneven or contaminated  with the dust and dirt. After checking the card, change it to another card.
  • Page 100 Raise the retransfer temperature to use CardPrinterConfig. (8) Colors out of registration Non-standard cards or bad cards.  Change the cards. You can use only ISO CR-80 card (54mm x 86mm). The transfer roller or printing roller is  contaminated with dust and dirt. Figure 105 Printing quality trouble 9 Clean the rollers with the cleaning kit.
  • Page 101 5.7. Magnetic stripe encoding Magnetic encoding error. Please press front-left button to retry. The magnetic head is contaminated with the dust and dirt.  Clean the magnetic head with the cleaning kit. The magnetic encoding data is not transmitted, or the wrong data is transmitted. ...
  • Page 102 Printer power off.  Check the power. Turn on the printer power. Check the printer USB or Ethernet connection. Bad power adaptor.  Please contact the local supplier for a replacement for the adaptor. The printer driver is “Offline.”  Change the printer driver to “Online.”...
  • Page 103 6. Specification Model SMART-81S SMART-81D Printing Print Type Dye-Sublimation & Retransfer Print Area Full Bleed / Over the Edge Printing Resolution 300dpi Dual Side Printing Option Card Card Feeding Automatic Card Size ISO CR80 Card Thickness 0.76mm (30mil) ~ 1.6mm (64mil) Card Type PVC, PC, PET, Composite PVC Printing Speed...
  • Page 104 Certifications 항목 내용 13.56 ㎒ 주파수범위 변조방식 전파형식 채널 2 CH 출력 10 M의 거리에서 47.544 ㎷/M이하 기자재 명칭(모델명): RFID용 무선기기(13.56MHz 주파수 대역) (SMART-81) 인증번호: R-R-IAS-SMART-81 인증 받은 자의 상호: 아이디피(주) 제조년월일: 제조자/제조국가: 아이디피(주) / 한국...
