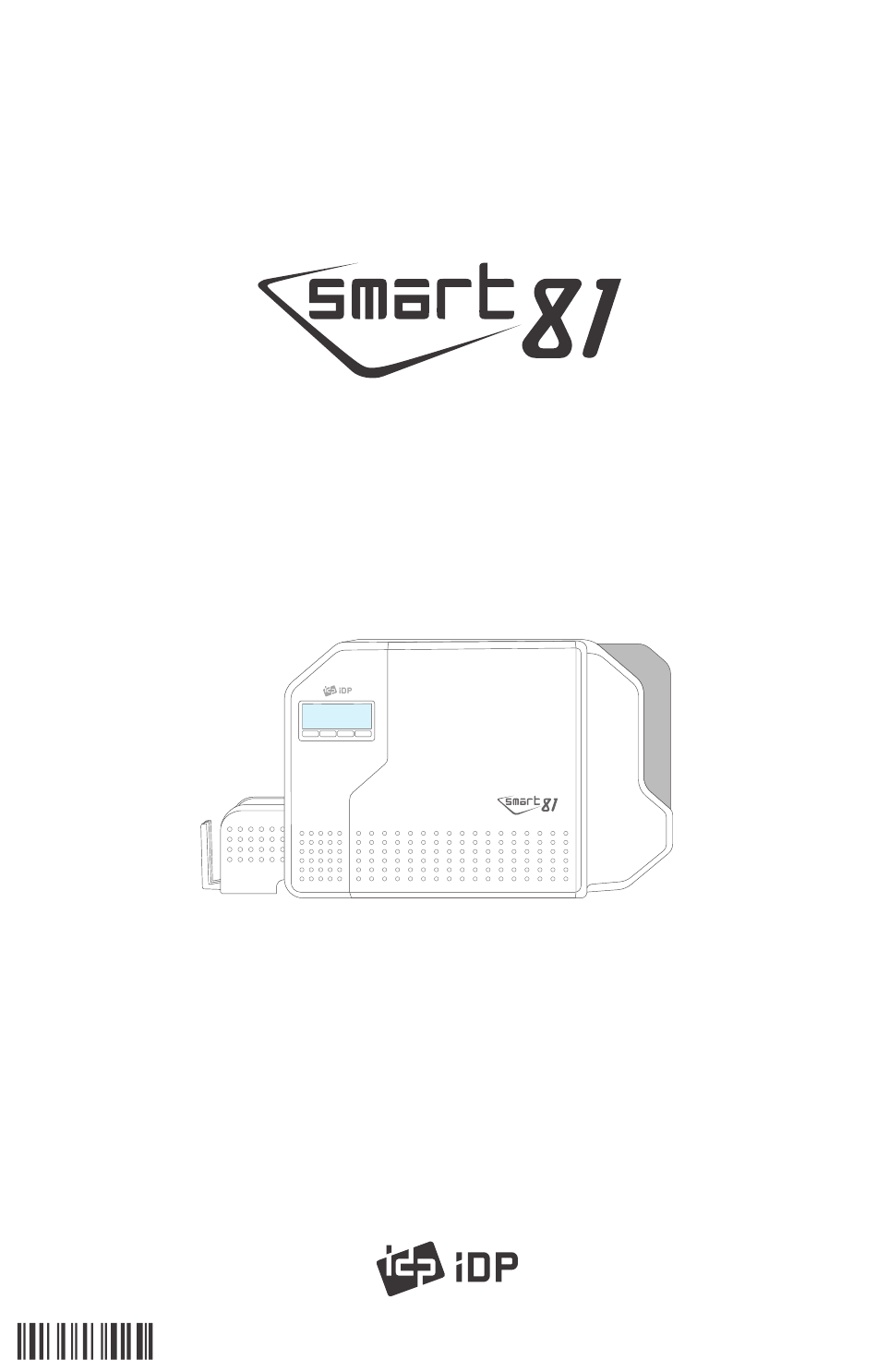

- Page 1 New Trusted Identity Begins QUICK INSTALLATION GUIDE 614061...
- Page 2 8. RS232 Port 4. LCD & Buttons 9. Power Switch 5. Front Cover 10. AC Power Connetor 11. Card Exit Slot 12. IR Comm. Port Included SMART-81 AC Power USB Cable Card Stacker Card Printer cable Ribbon Retransfer Film Cable...
-
Page 3: Display And Buttons
Display & Buttons There is an LCD and 4 buttons on the front side of the SMART-81. Users can check the printer status and change various printer settings. The LCD icons below display the remaining amount of retransfer film or ribbon and status. - Page 4 RF TAG Here ! 5. Insert the ribbon SUPPLY core on the 6. Adjust the tension of the loaded ribbon mounting place of the cartridge core until in the direction of the arrow using it “clicks”. Wind the ribbon around two TENSION KNOB on the front side shafts following the diagram arrow, and of the ribbon cartridge.
- Page 5 11. Mount the Disposable cleaning roller inside 12. Mount Retransfer film cartridge at first the printer. and then, mount Ribbon cartridge. ※ The cartridge should be firmly combined with the printer. 13. Close the front side of printer cover. 14. Open the Input Hopper cover in the 15.
- Page 6 16. Install the Card stacker. 17.Connect the AC Power cable and USB cable. 18. Install the Cable Protection cover. Do not connect the USB cable to the computer and do not turn on the printer at this time as it may interfere with the successful installation of the driver. It will be prompted during the following instructions on when to turn on the printer.
-
Page 7: Printer Driver Installation
II. Printer Driver Installation www.idp-corp.com 1. Scan the QR Code or Go to www.idp-corp.com 2. Navigate through extracted files and and search for "Driver" in the Support - double click on the “DDinstall.exe” file to Download menu. Download the "SMART-81 begin the installation. - Page 8 Step 9. network. Click “OK” after selecting and click “Next”. If you are planning on setting up the SMART-81 If the printer is not found, Please configure network as a network device, please proceed to Step 8.
- Page 9 1485 S County Trail, Unit 306 13F, Jafza View 18, Downtown Guro-gu, Seoul, Korea, East Greenwich, RI 02818 Jebel Ali P.O.Box 17588, 08377 Dubai U.A.E. +82-2-6099-3700 +1-401-400-7111 +971-4-889-5900 +82-2-6099-3717 +1-401-667-7445 mea@idp-corp.com sales@idp-corp.com sales@idpamericas.com © 2022 IDP Corp., Ltd. All rights reserved.
