Growatt MIN 3000-11400TL-XH-US Quick Manual
Growatt MIN 3000-11400TL-XH-US Quick Manual

Growatt MIN 3000-11400TL-XH-US Quick Manual

Hide thumbs Also See for MIN 3000-11400TL-XH-US:

Advertisement

Quick Links

1. General information
1
3
2
DC SWITCH
ON
OFF
PV
7
8
2. Installation
System Overview
ShineServer
Battery
4
5
ANT 1
ANT2
COM
BACKUP
BATTERY
9 10
11
12
Cloud Server
PV
RSD
3
7
9
10
12
13
6
14
Note:
1. Before installing the device, check that the
package contents are intact and complete against
the packing list. If any damage is found or any
component is missing, contact your dealer.
2. This file will be updated from time to time due to
AC
product upgrades or other reasons. Unless
otherwise agreed, this document is intended as a
guide only. All information and suggestions do not
constitute an express or implied warranty. The
final interpretation of the content is at GROWATT
discretion.
3. This document is quick installation guidance
only. For details, please refer to the Commissioning
Guide and User Manual.
4. Machine damage caused by failure to follow the
13
14
content is not covered by the warranty.
ShinePhone
MIN TL-XH-US
Sub Panel

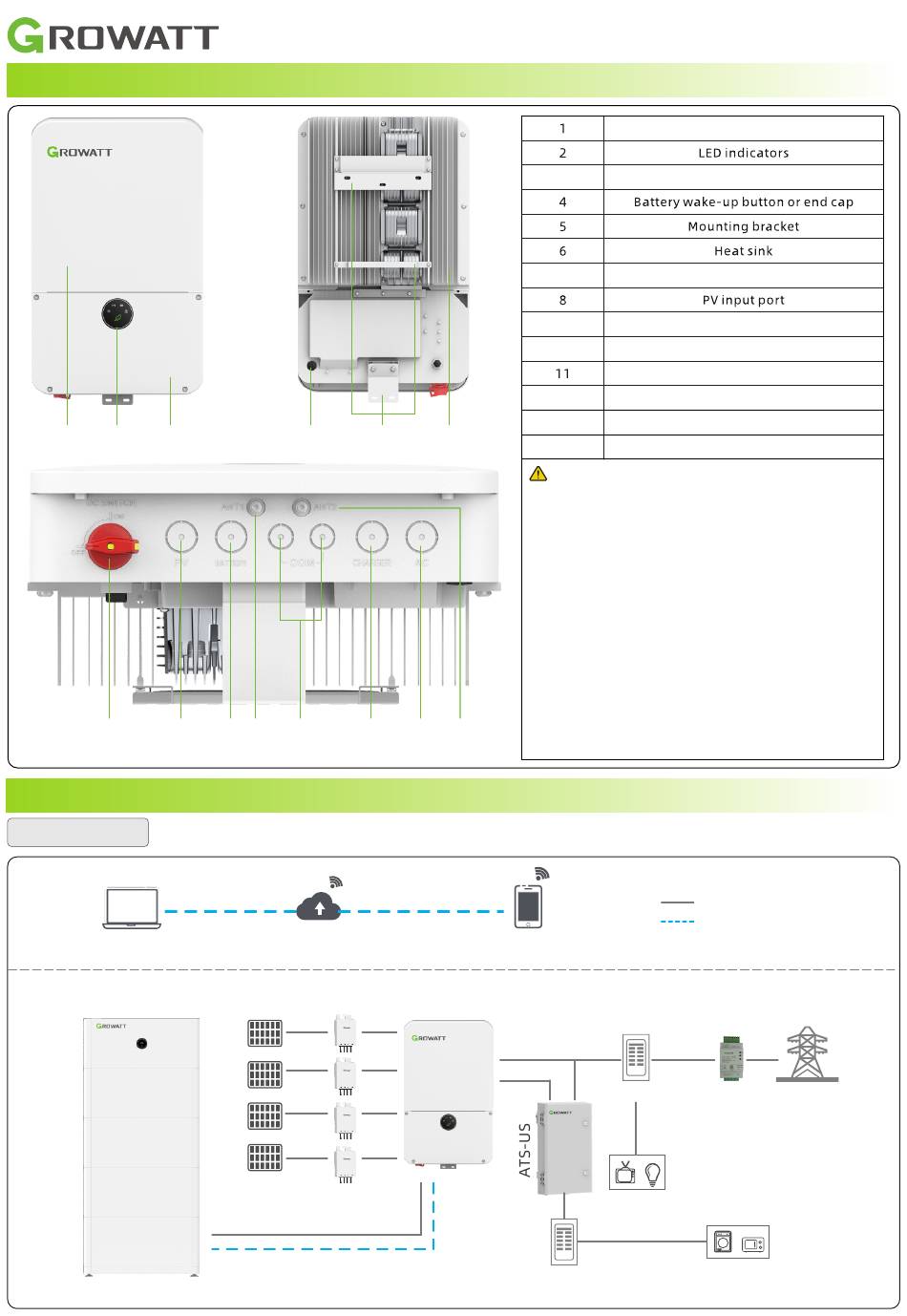

MIN 3000-11400TL-XH-US Quick Guide
Host panel
Wiring box cover
DC switch
Battery input port
WIFI Antenna port
Communication port
Backup output port
AC output port
4G Antenna port
Power line
Communication line
Main Panel
SM-US-200
Home Load
Backup Load
Grid
