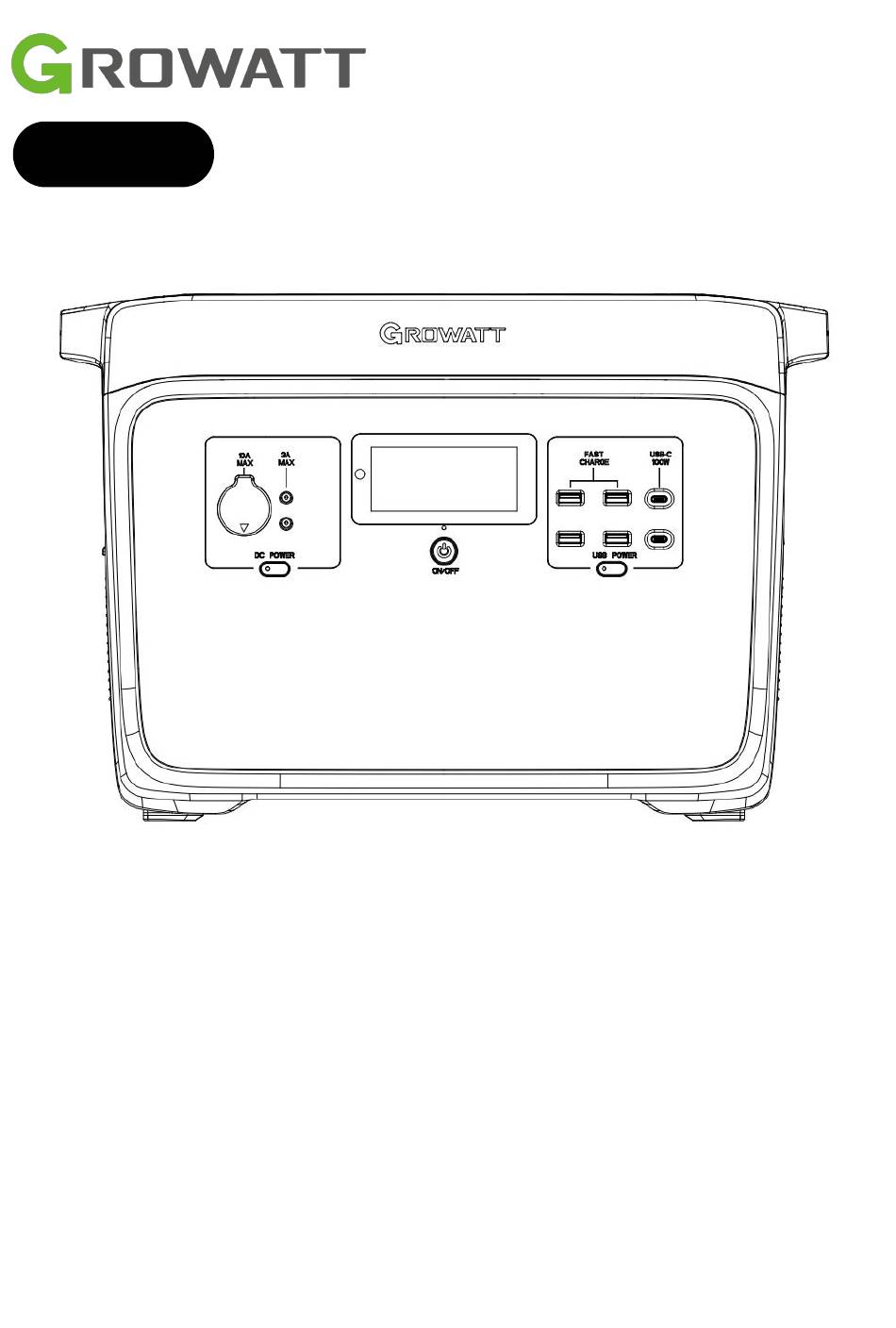

INFINITY 2000
Expansion Battery
User Manual
1. Keep it dry and do not place heavy objects on the INFINITY 2000 Expansion Battery.
2. Do not dismantle, punch, shake, hit, or burn it.
3. Recycle and place INFINITY 2000 Expansion Battery according to local policies.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Growatt INFINITY 2000
Summary of Contents for Growatt INFINITY 2000
- Page 1 Expansion Battery User Manual Contact us 1. Keep it dry and do not place heavy objects on the INFINITY 2000 Expansion Battery. 2. Do not dismantle, punch, shake, hit, or burn it. www.growattportable.com 3. Recycle and place INFINITY 2000 Expansion Battery according to local policies.
-
Page 2: Table Of Contents
HOW TO USE .............................................7 Basic Instruction ........................................7 How To charge ........................................8 I) Independent Charging (AC/Solar Charging) ........................... 8 II) Charge via INFINITY 2000 ..................................9 Advanced Features ........................................10 Cold Startup ........................................... 10 INFINITY 2000 Detachable Trolley................................. 10 Technical Specifications .......................................11 FAQ ..............................................12... -
Page 3: Package Contents
Users promise to be responsible for their actions and all consequences arising therefrom. Growatt is not responsible for any damage caused by using the product not in accordance with the User Manual. - Page 4 26. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. II. Storage and Transportation 1. Keep the INFINITY 2000 Expansion Battery out of the reach of children and pets. If your child accidentally swallows product parts, seek medical help right away. - 2 -...
- Page 5 2. If it prompts that the battery is too low after use, please charge it before storing it. Otherwise, long-term storage with low power may cause damage to the battery inside the product. If the machine's battery is seriously low and idle for too long, the battery will enter deep sleep mode.
- Page 6 REACH EU Directive. The Entire EU Declaration of Conformity can be found at www.growattportable.com Shenzhen Growatt Power Technology Co., Ltd confirms that the Growatt Portable Power Station and accessories described in this document are in compliance with the above mentioned.
-
Page 7: Ports And Buttons
PORTS AND BUTTONS 1.Main Power Button/Indicator 6.USB-A Fast Charge Output Port 2.DC Power Button/Indicator 7.USB-C Output Port 3.Car Cigarette Lighter Output Port 8.USB Power Button/Indicator 4.DC5521 Output Port 9.Expansion Battery Connection Port 5.LCD Display 10.Charging Port - 5 -... -
Page 8: Lcd Screen
Overload Warning The INFINITY 2000 Expansion Battery is overloaded. High Temperature Warning The temperature of the INFINITY 2000 Expansion Battery is too high. Please place it in an open area for cooling. Low Temperature Warning The current battery temperature is low, and the charging efficiency will be reduced. Keep using the Expansion Battery, and the charging efficiency will return to normal as the temperature rises. -
Page 9: How To Use
BASIC INSTRUCTION Before use, please put the INFINITY 2000 Expansion Battery on clean and flat ground to ensure that the machine will not be in contact with liquid or tilted, and check whether there are foreign objects on the body. -
Page 10: How To Charge
You can use up to two 200W solar panels (as shown in the figure ) to charge Expansion Battery. You can use the Solar Charging Cable to connect the Solar Connector on the solar panel and the XT60 port on the right side of the INFINITY 2000 Expansion Battery to supply power to the INFINITY 2000 Expansion Battery. -
Page 11: Ii) Charge Via Infinity 2000
II) CHARGE VIA INFINITY 2000 In addition, Expansion Battery can also be connected to INFINITY 2000 for charging. After connecting to the master unit, then you can connect to AC power for charging. XT60 接口 - 9 -... -
Page 12: Advanced Features
-20℃ (-4℉), the time required to heat to 5℃ (41℉) is 65 minutes. INFINITY 2000 DETACHABLE TROLLEY The INFINITY 2000 Expansion Battery can be used with a trolley to meet users' needs for easy transportation of the portable power station. (See the trolley manual for details) -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Basic Information Net Weight ≈40lbs(≈18kg) Dimensions (L*W*H) 457*247*310mm（17.99*9.72*12.20in.） Input DC Input 58.4V⎓ ，500W MAX Output USB-A Fast Charge（x4） 5V⎓, 2.4A; 9V⎓, 2A; 12V⎓, 1.5A; 18W MAX, TOTAL 72W USB-C（x2） 5V/9V/12V/15V/20V⎓, 5A, 100W MAX, TOTAL 200W Car Cigarette Lighter 13.2V⎓, 10A MAX DC 5521 Port（x2）... -
Page 14: Faq
No, you can't. This product is a lithium battery product. According to international air transport regulations, lithium battery products exceeding 100Wh cannot be carried on the plane. Why does the INFINITY 2000 Expansion Battery not work properly when the total output power of the device is within the rated power of the INFINITY 2000 Expansion Battery? First, please check whether the battery capacity of the product is too low and charge it sufficiently prior to use. -
Page 15: Appendix 1: Error Codes
Please move it to a warmer spot or connect it to AC/PV power before use. Temperature *Note: For other error codes, please contact Growatt Customer Service; F00: Press and hold the USB Power Button to display the actual error codes. - Page 16 Please check if the device’s starting power exceeds the Please choose a model with a higher-rated power. rated power of the INFINITY 2000 Expansion Battery. None of the problems listed above were discovered, but it Contact Growatt Customer Service. still cannot be loaded.
