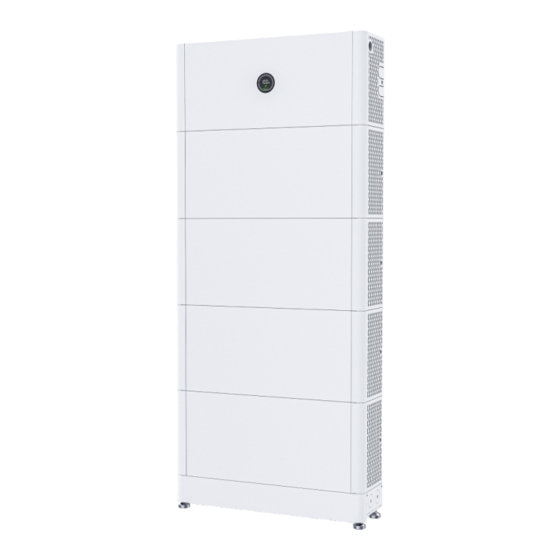

APX 5.0-30.0P-S0-US High Voltage Battery System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APX 5.0P-S0-US and is the answer not in the manual?

Questions and answers

Related Manuals for Growatt APX 5.0P-S0-US

Summary of Contents for Growatt APX 5.0P-S0-US

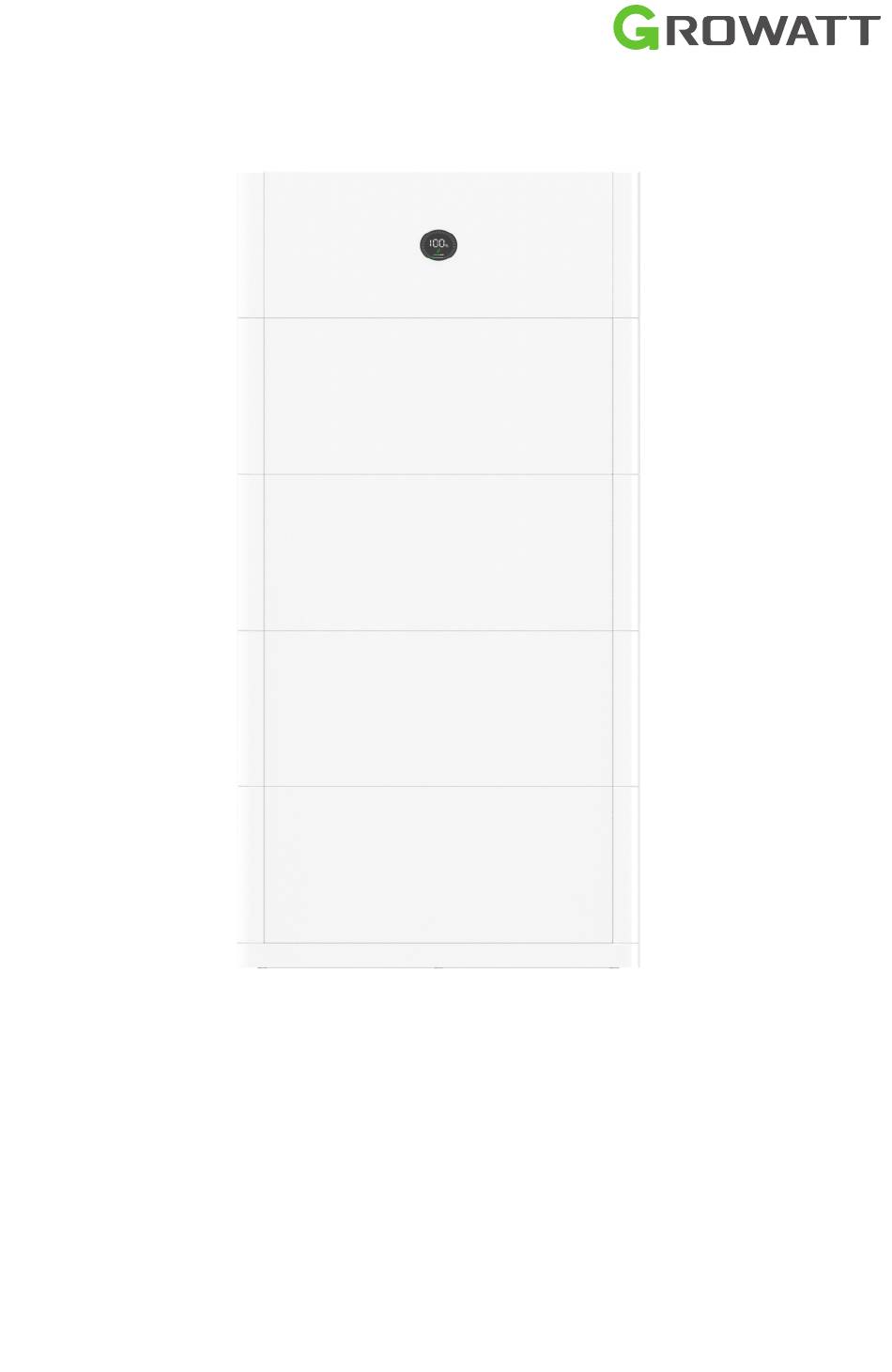

  • Page 1 APX 5.0-30.0P-S0-US High Voltage Battery System User Manual...
  • Page 2 About this Document This document introduces the APX 5.0-30.0P-S0-US Battery System (short for APX) in terms of installation, electrical connection, operation, commission, maintenance, and troubleshooting. Before installing and operating the APX system, ensure that you are familiar with product features, functions, and safety precautions provided in this document.

  • Page 3: Table Of Contents

    Table of Contents 1 Product Overview 1.1 Intended Use 1.2 Appearance 1.3 Working Principle and Function 2 Safety 2.1 General Safety 2.2 Safety Precautions 2.3 Label Description 2.4 Emergency Responses 3 Storage and Transportation 3 1 . Storage Requirements 3.2 Transportation Requirements 4 Installation 4.1 Basic Installation Requirements 4.2 Installation Tools...

  • Page 4: Product Overview

    1 Product Overview 1.1 Intended Use The entire APX 5.0-30.0P-S0-US high-voltage energy storage system is composed of a APX 55042-P0-US (hereinafter referred to as Power Module) and multiple APX 5.0P-B1- US battery modules (hereinafter referred to as Battery Module, the maximum number of Battery Module connected in parallel is 6).
  • Page 5 Port Function Turn on/off the power connection from Power DC switch Module to hybrid Inverter Hole to route through the cables connected to BAT+ and BAT- Hole to route through the parallel communication LINK cable Pressure relief valve Provide protection against excessive pressure Ground terminal, connect to the hybrid inverter Link-out APX system parallel communication output port...
  • Page 6 LED display Figure1- 3: LED display Function Function description Display SOC Display current SOC in a progress circle When upgrading the program, the eight bars Display upgrade status rotate clockwise Display SOC Display SOC in percentage When upgrading the program, "UP" is Display upgrade status displayed Steady green during normal operations;...
  • Page 7 1.2.2 APX 5.0P-B1-US (Battery Module) Battery Module consists of LFP battery cells, a DC-DC converter, mechanical parts, the battery management unit (BMU) as well as power and communication terminals. Product appearance is shown as below. Figure 1-5: Schematic diagram of the power panel Location Port Function...
  • Page 8 Dimensions (unit: mm) Figure 1-6: Dimensions of APX 5.0P-B1-US 1.3 Working Principle and Function The APX 5.0-30.0P-S0-US high voltage battery system is composed of a Power Module APX 55042-P0-US and multiple Battery Modules APX 5.0P-B1-US connected in parallel. It contains electrochemical batteries, battery control units, power control units, battery management units, power and signal terminals, and mechanical parts.

  • Page 9: Safety 2

    The battery system has been designed and tested in accordance with strict rules to meet international safety certification requirements. Before installing or using the battery system, please read all safety instructions carefully and observe the rules. Growatt will not be liable for any consequence of the following circumstances: Damage during the transportation by the customer.
  • Page 10 2.2.2 Operation Precautions Do not touch the battery system with wet hands. Ø Do not disassemble the battery system without authorization. Ø Do not crush, drop or pierce the battery pack and the high voltage controller. Ø Dispose of the batteries according to local safety regulations. Ø...
  • Page 11 APX High Voltage Battery System APX 5.0P-S0-US/ □ □ 400Vdc/2.5kW/ 5kWh/4.5kWh APX 10.0P-S0-US/ □ 400Vdc/5kW/ 10kWh/9kWh System Model/ APX 15.0P-S0-US/ □ Nominal Voltage/ 400Vdc/7.5kW/ 15kWh/13.5kWh Nominal Power/ APX 20.0P-S0-US/ Nominal Energy/ □ 400Vdc/10kW/ Rated Energy/ 20kWh/18kWh APX 25.0P-S0-US/ □ 400Vdc/12kW/ 25kWh/22.5kWh...
  • Page 12 If the battery system is soaked or submerged in water, do not touch Flood emergency the batteries to avoid electric shock. Contact Growatt or your distributor immediately for technical assistance. The shell damage requires extra attention as it is of high risk. Do not Shell damage use batteries with a damaged shell, which may cause safety hazards.

  • Page 13: Storage And Transportation 3

    Storage and Transportation 3 3.1 Storage Requirements Ø Place the batteries according to the signs on the packing case. Do not put batteries upside down or on their side. Ø Do not store damaged batteries near undamaged ones. Ø The storage environment requirements are as follows: Ø...

  • Page 14: Installation

    4 Installation Read through the Guidance before installation to understand product Ø information and safety precautions; Only qualified and well-trained technicians who fully understand the Ø whole photovoltaic system, grid network, battery system, working principle and national/local standards are allowed to perform operations on the battery;...
  • Page 15 4.2 Installation Tools Prepare the following tools to install the battery system: M6-2N·m M4-1N·m Screwdriver Drill Socket Wrench Pencil Tap Measure Multimeter It is recommended to wear the personal protective equipment when operating the battery system. Safety Goggle Safety Shoes Insulated Glove 4.3 Installation Procedures 4.3.1...
  • Page 16 Battery Capacity Floor-mounted Installation Combination Mode 5kwh A+B+D 10kwh A+B*2+D 15kwh A+B*3+D 20kwh A+B*4+D 25kwh A+B*5+D*2+C 30kwh A+B*6+D*2+C 40kwh A+B*8+D*2+E 50kwh A*2+B*10+D*4+C*2+E 4.3.1.2 Check the components of the APX 55042-P0-US Output power cable crimp terminal Ground cable crimp terminal to Battery Module APX 55042-P0-US (PM) System cable Warranty Card...
  • Page 17 4.3.1.3 Check the components of the APX 5.0P-B1-US to Battery Module Parallel cable*1 APX 5.0P-B1-US（BM） Anti-tipping plate * 2 M6 expansion screw * 2 Warranty card *1 Trim-cover*2 M4x9 stainless steel screws * 3 Figure 4-4: Components of the APX 5.0P-B1-US Ensure that you have the standard accessories - the Power Module Ø...
  • Page 18 Marker Level Install the connecting pieces on both Keep the Battery Module level. sides and tighten the two screws. Mark the hole positions for installing Install the anti-tipping plates on both sides the module. and tighten the two screws. Figure 4-6: Installing the battery support Step 1: Install connecting pieces on both sides of the battery support and tighten the two screws.
  • Page 19 Install the connecting pieces on both sides and tighten the two screws. Secure the module on both sides to the wall. Loosen two screw, move up handle on both sides. Tighten the two screws, fix the two battery modules. Figure 4-8: Install the battery module Step 3: Install the remaining battery modules (no more than 4 of them), raise the handles on both sides, tighten the two screws that secure the battery module.
  • Page 20 4.4 Electrical Connection Do not forget to wear ESD wrist strap and gloves, safety gloves and goggles. WARNING 4.4.1 Communication port definition NOTE: Please be careful with the components inside of the inverter during drilling. drilling MIN 3-11.4K TL-XH-US Start BAT+ BAT - RS485...
  • Page 21 4.4.2.1 Battery Capacity Description MIN 3-11.4K TL-XH-US MIN 3-11.4K TL-XH-US MIN 3-11.4K TL-XH-US 2.5kW/5kWh 7.5kW/15kWh 5kW/10kWh Figure 4-10: Installation diagram of the battery system with a battery capacity of 5kWh to 15kWh MIN 3-11.4K TL-XH-US MIN 3-11.4K TL-XH-US MIN 3-11.4K TL-XH-US 10kW/20kWh 12kW/25kWh 12kW/30kWh...
  • Page 22 Fig 4-11 Note: When installing in two columns, please purchase two bases and the parallel extension cables, which include power cables, communication cables, and ground cables. Fig 4-12 Note: If two APXs are cascaded, please purchase the cascade communication cable and select the positions for installing the APX and hybrid inverters considering the length of the cables.
  • Page 23 NOTE: Battery modules must be paralleled with B+ to B+, B- to B-. BAT+ BAT- RS485 Insert Plug Insert Plug APX 5.0P-B1-US Parallel Cable...
  • Page 24 Trim-cover lid Trim-cover lid Figure 4-14: Two-column installation Note: The battery is not allowed to be installed when the machine is running. Ensure that all the lights indicating “RUN” of battery modules are off before installation. Ensure that the PE cable is securely connected. 4.4.2.3 Electrical wiring connection A.
  • Page 25 Figure 4-15: APX 55042-P0-US wiring diagram For a single APX battery system, the “Link-in” and “Link out” port of Ø the Power Module don't need to be connected as they are only used for cascading the APX battery systems. For the cascaded system, connect the “Link out”...
  • Page 26 B. APX 5.0P-B1-US (Battery module) wiring Figure 4-16: APX 5.0P-B1-US wiring diagram Step 1: Insert the power cable into the corresponding port. The click sound indicates a robust connection. Step 2: Insert the communication cables into the “Link-in” and “Link out” port, and then tighten the communication terminals clockwise.
  • Page 27 BAT+ BAT - RS485 APX55042-P0-US Right trim-cover Figure 4-17: Installing external cables...

  • Page 28: Power On/Off The Apx Battery System

    5 Power on/off the APX Battery system Personnel who install and operate the Battery System must receive Ø thorough training and possess the local national required qualifications before operation. Only qualified professionals and trained personnel are allowed to install, operate and maintain the equipment. Please stand on dry insulating objects and do not wear conductive Ø...
  • Page 29 Figure 5-2 Before turning on the battery, please check if the cable is properly connected. Ø You can power on the battery system in two ways: Ø 1)After turning on the DC switch of the power module, turn on the AC breaker on the grid side to power on the hybrid inverter.
  • Page 30 The APX battery system will automatically shut down in a few minutes after the LED indicator and the logo “Growatt” go off. Do not turn on the switch Notice until it is completely powered off.

  • Page 31: Maintenance Guide 6

    Maintenance Guide 6 6.1 Preparation After the system is powered off, the remaining electricity and heat still exist in the chassis, which may cause electric shocks or burns. Therefore, you need to wear protective gloves and perform operations 10 minutes after the system is powered off. 6.2 Replace a fuse Step 1: Power off the APX system.

  • Page 32: Led Indicators

    The Battery Module contains batteries. Dispose of them in compliance Ø with local laws and regulations. Notice 6.4 LED indicators Hibernation mode休眠模式 Figure 6-2: LED indicators...

  • Page 33: Troubleshooting

    6.5 Troubleshooting Indicator Description Cause Measures 1.There is no safety risk. 2.Ensure that the inverter is powered on. Communication To PCS 3.Check if the PCS and battery loss between Communication communication terminals are well PCS and the APX failure connected. battery system 4.If the problem persists , users should contact the installer to...
  • Page 34 Indicator Description Cause Measures The power Check whether the power cable cable is Power cable between the Power Module and disconnected to disconnected the Battery Module is securely the Power connected. Module The external 1.Check whether the External communication communication cable is securely communicatio cable is not connected.

  • Page 35: Apx 55042-P0-Us (Power Module)

    Technical Specifications 7 7.1 APX 55042-P0-US (Power Module) Items Specifications Model APX 55042-P0-US B+/B- voltage range 330V-450V BAT+/BAT- voltage range 380V-550V Maximum current Peak current Temperature range -10~50℃ IP rating IP66 Warranty ≥10 years Communication method CAN2.0 Dimensions (W/D/H) 690*185*295 mm ±2mm Weight 16±1kg IEC60730/UL9540A/...
  • Page 36 IFpP/41/150/102/[1P16S]M/-10+50/90 Formula for calculating the rated capacity: Rated capacity of the measured module: 100 Ah N (Number of modules connected in Parallel): 1~6 Rated capacity (Ah) = 100 Ah *N Growatt USA,Inc 9227 Reseda Blvd,#435 Northridge,CA 91324,USA. 866-686-0298 usaservice@ginverter.com www.growatt-america.com...
  • Page 37 Growatt New Energy Download Manual Growatt USA,Inc 9227 Reseda Blvd,#435 Northridge,CA 91324,USA. 866-686-0298 usaservice@ginverter.com www.growatt-america.com GR-UM-285-A-00...

This manual is also suitable for:

Apx 10.0p-s0-usApx 15.0p-s0-usApx 20.0p-s0-usApx 25.0p-s0-usApx 30.0p-s0-us
