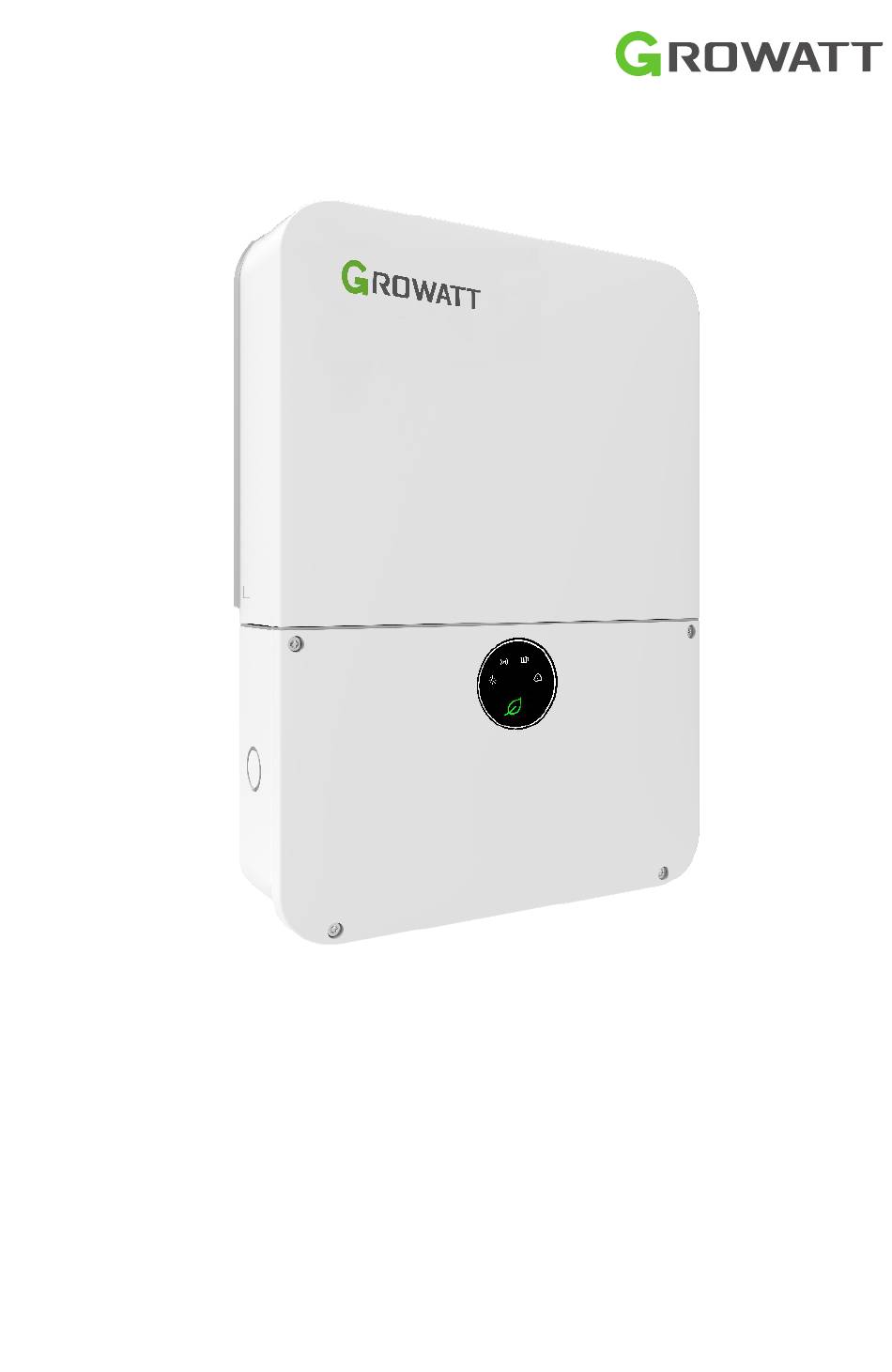

  • Page 1 MIN 3000-11400TL-XH-US Commissioning Guide...
  • Page 2 List 1 system over view 1.1 Energy Management System Introduction 2 Power on the system 2.1 Check System Installation & Power On 3 ShineTools APP Setup 3.1 APP Download 3.2 APP Introduction 3.3 Connecting to Local Wi-Fi Network 3.4 Local Commissioning Main Interface Introduction 4 Grid Code Mapping Table 5 Quick Site Setup...

  • Page 3: System Overview

    1 System overview 1.1 Energy Management System Introduction MIN 3000-11400TL-XH-US energy storage system diagram is shown in the figure below: Note: When installing the emergency stop switch, please refer to its Quick Guide. Power Wire RS485 Signal Wire Main Panel...
  • Page 4 MIN 3000-11400TL-XH-US AC Couple system diagram is shown in the figure below: RS485 Power Wire Signal Wire GRID GRID OFF- Smart Meter SM-US-200 MIN 3000-11400 TL-XH-US Inverter Emergency Home Load stop switch Back anel ub P Battery2 Battery1 Solar Inverter Fig 1.3...
  • Page 5 1.1.1 System Configuration Contains Energy Storage System / Off-Grid System: Ø MIN 3000-11400TL-XH-US inverter. Ø ARO/APX battery(s) or LG battery(s). Ø ATS. Ø Electric meter SM-US-200 . Inverter Grid-Connected System: Ø MIN 3000-11400TL-XH-US inverter. Ø Electric meter SM-US-200 (Optional ).

  • Page 6: Power On The System

    All components were installed according to the installation guides, please check the following highlighted installation locations: Power on the system according to the MIN 3000-11400TL-XH-US Quick Guide which is included in the inverter package/box. Fig 2.1 Inverter Box Wiring Diagram Ø...
  • Page 7 AC:CT wires blue to pin 1,3 wires from AC: brown to pin 2,4 Green/Yellow(GND)-to pin 5 White(N)-to pin 3 Red(L2)-to pin 2 Black(L1)-to pin1 Rs485 wires L1 CT L2 CT To the load Fig 2.3 Fig 2.4 Ø RS485 cables Ground, B- & A+ was installed from the left to right when facing the meter, Please refer to the silk screen on the meter.
  • Page 8 ShineTools APP Setup 3 3.1 APP Download There are two ways to download the ShineTools APP: a) Scan the QR code Ø Scanning the QR code through phone camera for downloading the APP. Fig3.1 ShineTools App QR code b) APP Store Ø...
  • Page 9 3.3 Connecting to Local Wi-Fi Network The steps for using APP are as follows: Setup local Wi-Fi to communicate with the inverter 2.Enter the default 1.Login interface 3.Tap in Direct WiFi password and log in The default password is oss+ day. Ex: if today's date is Dec 29, 2020, the default password would be oss20201229, You can...
  • Page 10 7. Tap in Next 8. Tap in Refresh Now this APP has been connected to the built-in Wi-Fi of the inverter. Note: When no data was present, the communication connection is unsuccessful and you will need to reconnect the build-in Wi-Fi of the inverter by turning off Wi-Fi setting in the phone and turn on again OR power cycle the system.
  • Page 11 3.4 Local Commissioning Main Interface Introduction The main interface of local commissioning consists of three parts: Internal information Power generation Fault and Warning message viewing and parameter information setting...
  • Page 12 Grid Code Mapping Table 4 The factory Default grid mode of the inverter is IEEE1547-240, which can adapt to the most power grids. The different grid code can be changed according to local regulation in the network configuration interface from Quick Setting in ShineTools App. Grid Code Description Grid Code...
  • Page 13 5 Quick Site Setup When installing the inverter for the first time, you need to add the inverter to the power station (O&M User only). 2.Fill in the account 3.Fill in the plant information and save (if you information and save (if you 1.Tap in Quick Site Setup already have an account, already have a plant, please...
  • Page 14 12.Click "Next" to enter be the following prompt (if again. After confirmation, the "Direct Wi-Fi" page. it fails, please try again or please click "Yes" to add it You can continue with contact the GROWATT to the monitoring portal network configuration service team)

  • Page 15: Network Configuration

    6 Network Configuration The first time the inverter is installed, it needs to be configured to connect to the home's Wi-Fi/4G to ensure the remote monitoring. 2.Click “Network Type” to 3.Click to enter the Wi-Fi 1.Tap in Quick Setting icon configure the network list (New version only) 4.(Or) Enter network...
  • Page 16 4G connection procedure: 2.Click “Network Type” to 3.Select “4G”, then tap 1.Tap “Quick Setting” configure the network “Connect to Network” 5.Prompt “Configuring, 6.Prompt indicating a 4.Prompt “SIM service is please be patient ...” is successful configuration is searching ...” is displayed displayed displayed...

  • Page 17: Energy Management System

    PV input, turn on the AC charging function (6.2.3) and set the EMS mode of the system to TOU Charging (6.2.5). 7.1 Management System Mode Introduction The MIN 3000-11400TL-XH-US system provides seven energy storage modes to choose. Storage Mode Description...
  • Page 18 If PV Production < Inverter Maximum Production (nameplate or limited power), discharge battery for self-consumption and grid export until the inverter reaches its power limit or max battery discharge power Grid Shine Phone Inverter Cloud Server Shine Server L2 N TOU Discharging PV1+ PV Panel...
  • Page 19 7.2.1 Battery type Setting The Battery type setting is to choose ARO Battery or LG Battery. Factory Default is ARO/APX Battery. 1.Tap in Quick Setting icon 2.Tap in Battery type 3.Tap in LG Battery button 7.2.2 AC Couple Setting The AC Couple setting is what the AC Coupled system needs to set Factory Default is Disabled.
  • Page 20 7.2.3 AC Charging Setting The AC charging is used to set whether to allow charging the battery from the Grid. Factory Default is Disabled. 1.Tap in Charge and 2.Find Enable AC Charging 3.Tap in ON/OFF button. Discharge Management...
  • Page 21 7.2.4 Power Sensor Setting If an electric meter is installed in the system, please set. Factory Default is Disabled. Note: Power Sensor: IOS = Electric meter Android = Meter 1.Tap in Quick Setting icon 2.Choose Power Sensor 3.Select Electric Meter 4.Prompt message for successful setting...
  • Page 22 7.2.5 EMS Mode Setting If any batteries are installed in the system, you can change the energy storage mode as you need. (Factory Default is Maximum Self-consumption also referred to as "Load First") Note: When working in AC only mode, it also supports the EMS settings. Example: If you want the inverter to run the EMS mode shown in the table below in the third quarter, set it as shown below.
  • Page 23 5.Select month and enable 4.Tap in Quarter 3 6.After success, tap in in turn, save after +Add time period confirmation 7.Select the required 8.Click Read to check 9. If you need to set other setting items in turn, save whether the settings are time periods, please do after confirmation correct...
  • Page 24 7.2.6 Quick Battery Mode Setting If you want to quickly set the Battery Mode to a certain one, you can follow the steps below. Note: Quick battery mode setting has the highest priority. 2.Tap in Battery Mode 3.Select the mode that 1.Tap in EMS Setting needs to be set...
  • Page 25 8 Battery Life Maintenance (Important) a) Unplug Battery power, Battery Communication cables and turn OFF battery modules power (Check battery quick installation guide for the detail), if the following conditions were met: Ø The installation is not completed. Ø No PV and AC power can charge the battery. b) Charge the battery SOC above 60% or higher after installation is complete and pending for AHJ/city review and approval.

  • Page 26: Troubleshooting

    Commissioning Error Code 9 Troubleshooting Enter the local commissioning home page, and view the fault and alarm information on the main interface if there are any after installation. The fault and alarm code on the ShineServer Page will be the same in the APP. If you find a fault or alarm, please click it, and then you will be redirected to the interface of fault explanation and handling tips.
  • Page 27 1.Immediately disconnect the DC switch and check the PV Too many PV panels voltage. Error 202 PV Voltage High connected in series 2.If the fault code still exists after the normal voltage is restored, contact manufacturer. PV panel insulation Error 203 PV Isolation Low 1.
  • Page 28 Account and plant information will be the same in both the web browser version and on the ShinePhone App. 10.1 Register an Account a) Log in to our monitoring website http://server-us.growatt.com and click Register an Account. b) Fill in the appropriate information on the registration interface and log into the account after the registration is completed.
  • Page 29 c) Fill in the appropriate power plant information in order to complete the power plant creation. 10.3 Add Data Logger to power plant a) Click on the power plant just created, enter the power plant page, and then add a data logger.The SN number of the collector is on the barcode on the side of the inverter, starting with VC.
  • Page 30 b) When you have completed these steps, you will be able to view the inverter system remotely through the ShinePhone APP and through any browser.
  • Page 31 11 Shinephone Introduction 11.1 APP Download There are two ways to download the ShinePhone APP: c) Scan the QR code Fig 11.1 ShinePhone downloading QR code Scanning the QR code through WeChat or IOS's Camera, then download the APP. d) APP Store Search for ShinePhone from app stores, download the installation package, and install the ShinePhone app by following the instructions.the ShinePhone icon is displayed on the home screen.
  • Page 32 1.Login: Same as the 2. Dashboard: Overview of 3. Plant: Plant lists and ShineServer account inverters and generation information 4.GroHome: Home Energy 5.Service: Help information, 6. Me: Account Information information customer service and more and other tools...
  • Page 33 Growatt New Energy Download Manual Growatt USA,Inc 9227 Reseda Blvd,#435 Northridge,CA 91324,USA. 1(866) 686-0298 usaservice@ginverter.com www.growatt-america.com GR-UM-251-A-02(PN:044.0093601)
