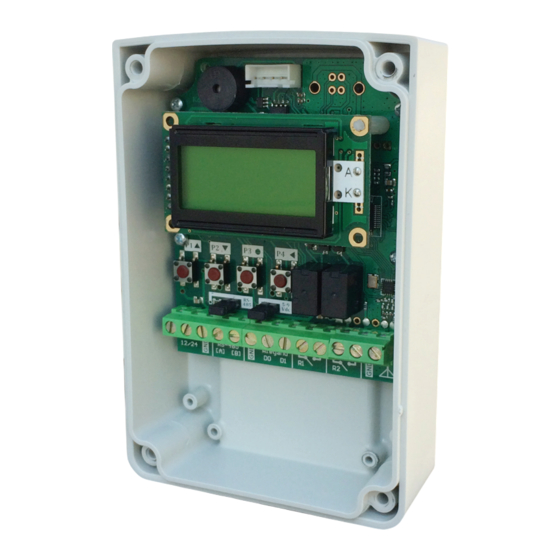

- Page 1 CDVI PASS Receiver RXCP...
- Page 2 OPERATING DETAILS CDVI Pass is based on an active tag equipped with a radio double technology, passive (at 125 KHz ) and active (at 433,92 MHz). The active tag stays always in stand-by: when it arrives inside the aerial detection zone, it wakes-up and starts transmitting at 433,92 MHz.
- Page 3 Then fix the support with the screws provided Option A ) make a hole ( ø11 mm ) on the bottom of the box and pass the cables throught C D V I PA S S Option B ) Use of PG7 cable glands (not provided ) Fig.
- Page 4 CDVI Pass - RXCP Technical specifications Operating frequency ......... 433,92 MHz Demodutaion ............GFSK Sensitivity ( for good signal ) ......-115 dBm Power supply: ...........12/24 Vac/dc Current consumption ( @12 Vdc ) ....from 25 to 50 mA (max) Operating temperature: ........-10 ÷ +70°C Enclosure IP protection: ........
- Page 5 CDVI Pass - RXCP Menu The receiver sends out the serial number of the tag ( on Wiegand bus or over the RS-485 ) or activates the relays. the operating mode of the receiver can be set using the buttons P1, P2, P3 or P4. The push buttons have the following function: P3 x 4 sec.
- Page 6 CDVI Pass - RXCP Output CDVI Menu Option Output Relay: the tags will activate 2 relays Pass Output Relay Relay P3 x 3sec. Wiegand: data of the tag will be forwarded to Output Option the bus Wiegand. Enter submenu config to...
- Page 7 CDVI Pass - RXCP As soon as the user, carrying the active tag, enters the detection zone of 125 KHz, its tag Trigger emits a 433 MHz RF signal to the receiver which replies with a confirmation message that hushes the tag, even if it remains in the field.
- Page 8 CDVI Pass - RXCP Config 10.1 Format wiegand Wiegand Menu Wiegand 26 bit Config 30 bit 44 bit Timing 2 mS 120 uS Wiegand 26 Bit 1 Bit 2 - 25 Bit 26 Even Parity ( 1 bit ) [ 8 bit ID ] + [ 16 bit S/N ]...
- Page 9 CDVI Pass - RXCP 10.3 ID antenna authorization The signal transmitted by the active tag includes its serial number and the identification of the antenna which woke up it (ID). The wiegand protocol contains this information and is preset to transmit on the wiegand bus the value ID=00, which corresponds to the factory setting.
- Page 10 CDVI Pass - RXCP RS-485 The line RS-485 can operate with 3 protocols: • ASCII • ModBUS-RTU • OSDP To enable the serial interface RS-485, select RS-485 in the option “OUTPUT” of the Main menu. The interface must be properly configured, setting the following parameters: •...
- Page 11 CDVI Pass - RXCP 11.2 PROTOCOL ModBUS The ModBUS protocol is a Master-Slave protocol based on a serial bus, where there is only one Master and multiple Slaves. Slave 247 Slave 1 Slave 2 RS-485 Master The protocol implemented follows the recommendations of the ModBUS Organization: visit the site www.modbus.org for more details.
- Page 12 CDVI Pass - RXCP 11.3 PROTOCOL OSDP ( from DRAFT Open Supervised Device Protocol (OSDP v. 2.1.6) ) Control Panel Peripheral device Peripheral device Peripheral device Peripheral device (CP) ( PD #1 ) ( PD #2 ) ( PD #3 )
- Page 13 CDVI Pass - RXCP 11.3.1 WIRING THE RECEIVER TO ATRIUM A22K READER DOOR1 READER DOOR2 GND 12V BUZ GRN GND 12V BUZ GRN CDVI PASS P1 P2 P3 P4 +12/24 Vac/dc The receiver connection is identical to the K1 HIGH SECURITY CARD READER CONNECTING THE RECEIVER TO ATRIUM A22K Once wired to Atrium, the receiver agrees a communication password with the control panel AK22.
- Page 14 The field “Vendor code” of the summary window for the Reader1, once connected to the receiver, displays the uni- que number CID of the manufacturer ( CDVI Wireless ). NOTE : in case of replacement of the receiver for any reason, delete the peripheral from the list of devices and con- nect the brand new: the syncrhronization will commence automatically and the serial number of the new receiver will be written on the corresponding field.
- Page 15 CDVI Pass - RXCP Info The menu info changes dynamically according to the configuration ( Wiegand or Relay ) Output = WIEGAND Output = RELAY Menu Output Menu Output Info Relay Info Wiegand 26 Packet Packet No Ack No Ack...
- Page 16 CDVI Pass - RXCP In case of wiegand output, the receiver forwards on the wiegand bus the Id number of the antenna and the serial number of the active tag. In case of relay output the receiver activates the relays (relay 1 or relay 2 or both) if it receives data from active tags memorized ( up to 500).
- Page 17 CDVI Pass - RXCP Delete The menu allows to delete the S/N of the tags memorized, both individually and from a list. It is even possible to delete all the tags memorized and make a factory default reset. Menu Delete...
- Page 18 Declaration of Conformity Hereby, CDVI Wireless Spa, declares that the radio equipment type RXCP is in compliance with directive 2014/53/ EU. The full text of the EU declaration of conformity is available at the following internet address: www.erone.
- Page 19 CDVI Pass - RXCP cdvigroup.com...
- Page 20 [UNITED KINGDOM - IRELAND - SOUTH AFRICA] www.cdvi.co.uk CDVI WIRELESS www.erone.com w w w. e ro n e . co m Manufactured by : CDVI Wireless SPA Via Piave, 23 - 31020 S.Pietro di Feletto (TV) - Italy tel: +39-0438-450860 - mail: info@erone.com - web:www.erone.com...
