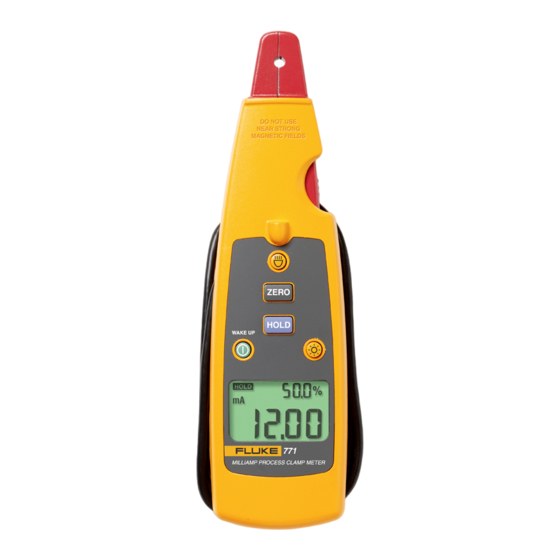

Fluke 771
Milliamp Process
Clamp Meter
Measure 4 to 20 mA
signals without
breaking the loop
Features include:
•
Measure mA signals for PLC and control system
analog I/O
•
Measure 4 to 20 mA output signals from transmitters
without breaking the loop
•
Best in class 0.2 % accuracy
•
Resolution and sensitivity to 0.01 mA
•
Hold function captures and displays changing
measurements
•
Dual backlit display with both mA measurement
and percent of 4 to 20 mA span
•
Measurement Spotlight illuminates hard to see wires
in dark enclosures
•
Detachable clamp with extension cable for measurements
in tight locations
•
Measure 10 to 50 mA signals in older control systems
using the 99.9 mA range
•
Automatic battery savings features
•
Power, 15 minutes automatic power down
•
Backlight, 2 minutes, automatic off
•
Spotlight, 2 minutes, automatic off
Automatic battery saving features can be disabled if desired.
Technical Data
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fluke 771
Summary of Contents for Fluke 771
-
Page 1: Technical Data
Fluke 771 Milliamp Process Clamp Meter Technical Data Measure 4 to 20 mA signals without breaking the loop Features include: • Measure mA signals for PLC and control system analog I/O • Measure 4 to 20 mA output signals from transmitters without breaking the loop • Best in class 0.2 % accuracy • Resolution and sensitivity to 0.01 mA • Hold function captures and displays changing measurements • Dual backlit display with both mA measurement and percent of 4 to 20 mA span • Measurement Spotlight illuminates hard to see wires in dark enclosures •... - Page 2 Vibration Random 2 g, 5 Hz to 500 Hz Shock 1 meter drop test (except the jaw) EMI, RFI, EMC Meets EN61326-1 Temperature Coefficients 0.01 % / °C Power, battery life (2) AA 1.5 V Alkaline, IEC LR6, 20 hours typical Warranty Three years for electronics, one year for clamp cable assembly Fluke. Keeping your world up and running. ™ Ordering Information Fluke Corporation Fluke-771 Milliamp Process Clamp PO Box 9090, Everett, WA USA 98206 Meter Fluke Europe B.V. PO Box 1186, 5602 BD Included Accessories Eindhoven, The Netherlands Soft carrying case, users manual.
