Yetter TITAN Series Operators Manual And Parts Identification

Narrow row short u.n.t. residue manager

Hide thumbs Also See for TITAN Series:

Owner's manual (24 pages)

Operator's manual (24 pages)

Owner's manual (20 pages)

page of 20

/ 20
Bookmarks

Quick Links

Download this manual

2967-013B /2967-014B

NARROW ROW SHORT U.N.T. ™

YETTER MANUFACTURING CO.

FOUNDED 1930

Colchester, IL 62326-0358

Toll free: 800/447-5777

309/776-3222 (Fax)

Website:

www.yetterco.com

E-mail:

info@yetterco.com

TITAN SERIES

RESIDUE MANAGER

OPERATOR'S MANUAL

PART IDENTIFICATION

2565-748_REV_N1 08/2024

Need help?

Do you have a question about the TITAN Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Yetter TITAN Series

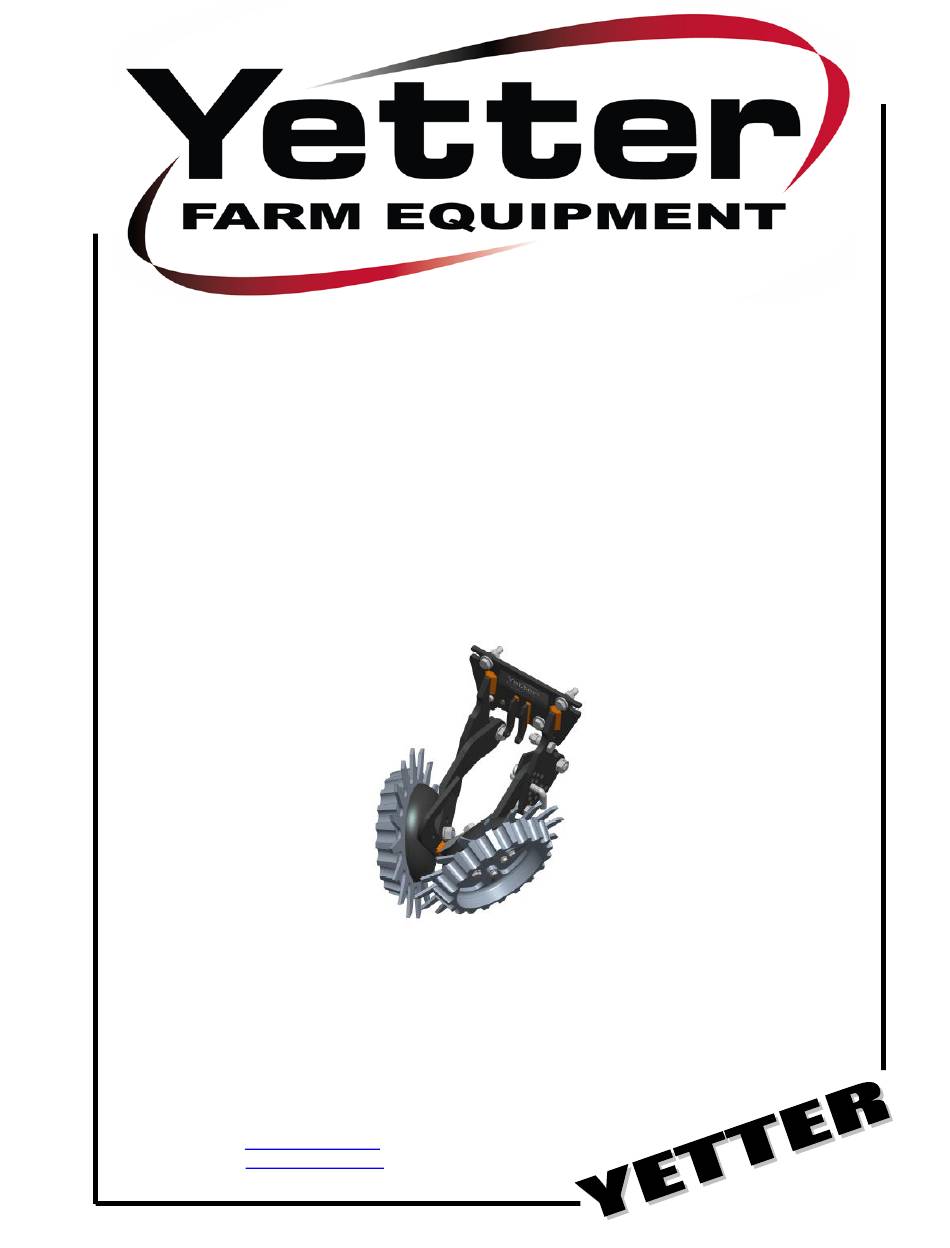

Page 1 TITAN SERIES 2967-013B /2967-014B NARROW ROW SHORT U.N.T. ™ RESIDUE MANAGER OPERATOR’S MANUAL PART IDENTIFICATION 2565-748_REV_N1 08/2024 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
Page 2 It is the user’s responsibility to deliver his machine to the Yetter dealer who sold him the product for service or replacement of defective parts, which are covered by the warranty policy.
Page 3 SAFETY PRECAUTIONS A brief description of signal words that may be used in this manual: DANGER: Indicates an imminently hazardous situation which, if not avoided “will” result in death or serious injury. This signal word is to be limited to the most extreme situations. WARNING: Indicates a potentially hazardous situation which, if not avoided, “could”...
Page 4 TABLE OF CONTENTS SAFETY INFORMATION ................ 2-3 BOLT TORQUE ..................4 INSTALLATION INSTRUCTIONS ............5-6 OPERATION ................... 7-9 PART IDENTIFICATION ..............10-15 BOLT TORQUE NOTICE: Over tightening hardware can cause as much damage as under tightening. Tightening hardware beyond the recommended range can reduce it shock load capacity.
Page 5 INSTALLATION INSTRUCTIONS 2967-013A STEP 1. Attach the Residue Manager Assembly to the planter unit using 3) ½” bolts and lock nuts. INSERT 1/2” X 1” BOLT THROUGH THE LOWER RIGHT HOLE IN ROW UNIT FROM REAR AND THREAD INTO THE MOUNT BRACKET INSERT 1/2”...
Page 6 INSTALLATION INSTRUCTIONS STEP 2. Choose the hole in which to attach the R.M. wheel assemblies. Attach the R.M. wheel/hub assemblies to the combo arm using 5/8” flange hex nuts. Torque to 180 ft. lbs. Step 3: ONLY FOR 2967-014B MOUNTING ON CNH RU Attach the up-stop to the planter row unit parallel arms using the provided hardware.
Page 7 OPERATION NOTICE: Where rocks are present the residue manager should be set in the “float” position, not locked down. Adjust the residue manager to move crop residue aside and not move any soil. Adjustments to the residue manager may have to be made when changing field conditions and type and amount of residue. Use the handle for leverage when changing depth settings.
Page 8 NOTICE: failure to properly set the planter frame height and levelness can result in less than successful operation of the planter and the Yetter product and may result in damaged equipment. All operators should read and thoroughly understand the instructions given prior to using the Yetter product.
Page 9 PLANTER ADJUSTMENT...
Page 10 PART IDENTIFICATION 2967-013B ITEM PART NO. DESCRIPTION 2502-292 ½-13 X 1 HHCS GRADE 5 2502-294 ½-13 X 1-1/2 HHCS GRADE 5 2502-351 ½-13 X 2 HHCS GRADE 5 2520-357 ½-13 LOCK NUT GRADE A 2520-465 5/8-11 FLANGE NUT GRADE 8 2525-352 ½...
Page 11 2502-391 5/8-11 X 2 HHCS GRADE 5 2520-357 ½-13 LOCK NUT GRADE A 2520-459 5/8-11 LOCK NUT GRADE B 2526-453 5/8 SAE FLAT WASHER 2565-162 YETTER DECAL 2570-448 BOW TIE COTTER PIN 2966-290 MOUNT BRACKET 2966-291 2967-622 9/16 SPACER 2967-639...
Page 12 PART IDENTIFICATION 2967-014B ITEM PART NO. DESCRIPTION 2502-244 3/8-16 x 1-1/4 HHCS GRADE 5 2502-293 ½-13 X 1-1/4 HHCS GRADE 5 2502-316 ½-13 x 3-1/2 HHCS GRADE 5 2505-339 ½-13 X 1-1/2 CARRIAGE BOLT 2520-255 3/8-16 LOCK NUT GRADE A 2520-357 ½-13 LOCK NUT GRADE A 2520-361...
Page 13 PARTS IDENTIFICATION 2965-135 UP-STOP KIT ITEM PART # DESCRIPTION 2502-244 3/8-16 x 1-1/4 HHCS GR 5 2960-223 UP-STOP 2520-255 3/8-16 HEX LOCK NUT 2526-253 3/8 SAE FLATWASHER...
Page 14 PARTS IDENTIFICATION 2966-140-ST-FW 2966-140-ST-PFW 2966-140-BW-FW RIGHT HAND BEVEL WHEEL ASSEMBLY...
Page 15 PARTS IDENTIFICATION 2966-140-STF-PFW RIGHT HAND SHARK TOOTH WHEEL ASSEMBLY...
Page 16 ITEM PART NO DESCRIPTION 2502-221 5/16-18 X 1 HHFS GRADE 5 2502-222 5/16-18 X 1-1/4 HHFS GRADE 5 2502-225 5/16-18 X 1-1/2 HHFS GRADE 5 2940-560 SET SCREW 2965-500 HUB ASSEMBLY 1.406 SPINDLE 2965-501 HUB ASSEMBLY 2.406 SPINDLE 2965-502 HUB ASSEMBLY 1.157 SPINDLE ITEM PART NO DESCRIPTION...
Page 17 NOTES...
Page 18 NOTES...
Page 19 NOTES...
Page 20 2565-748_REV_N1 ● 08/2024...

This manual is also suitable for:

2967-013b 2967-014b
