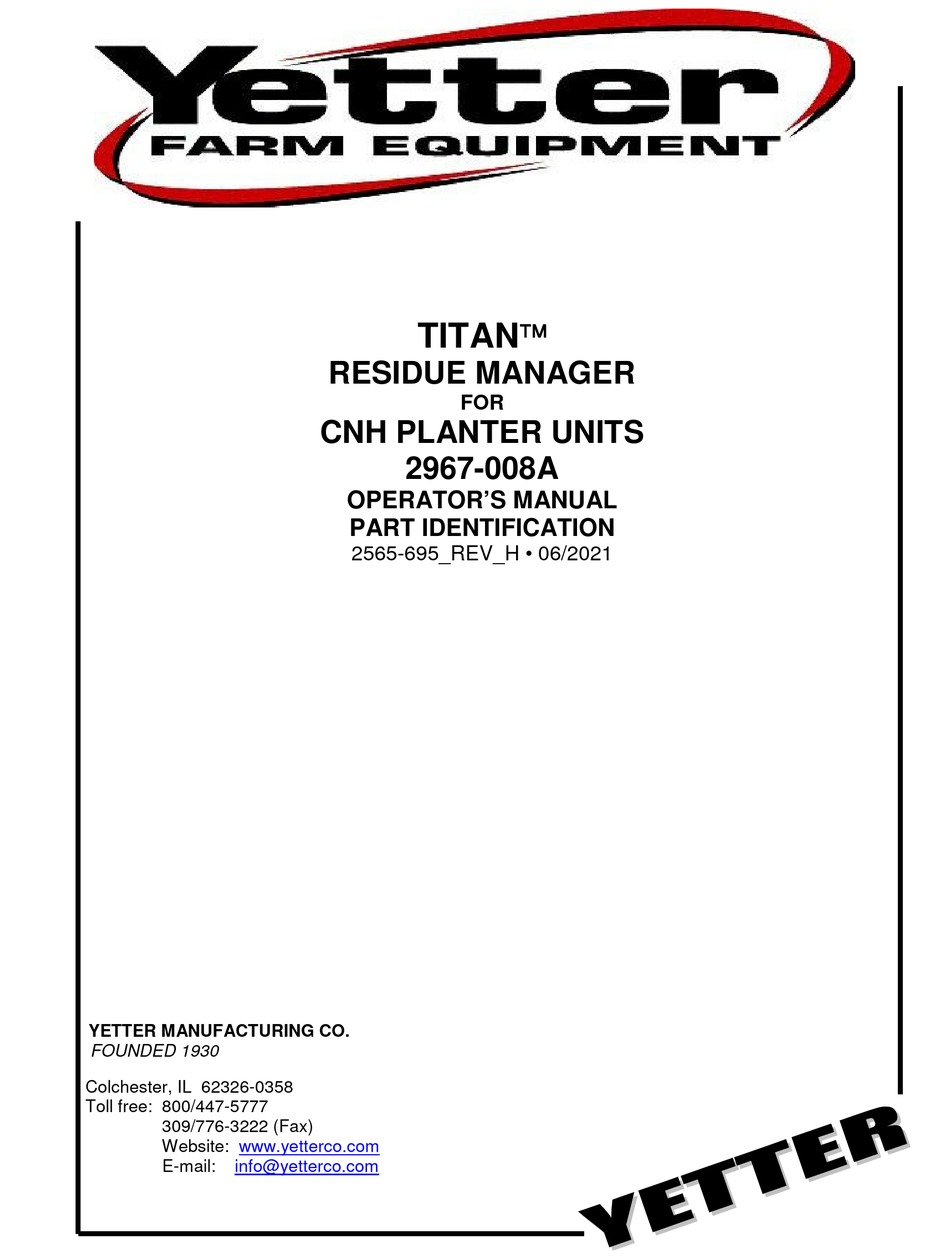

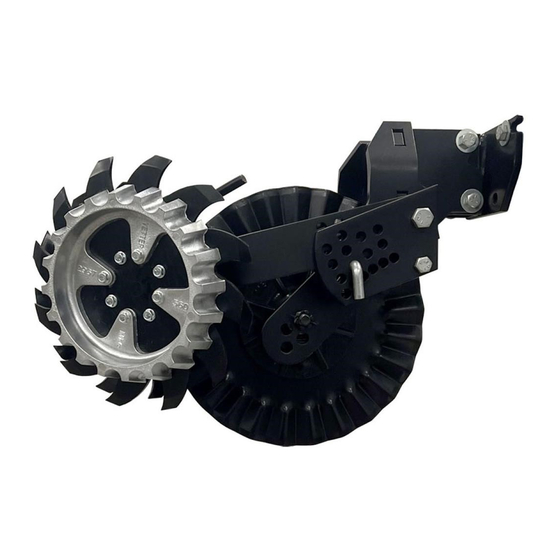

- Page 1 TITAN RESIDUE MANAGER CNH PLANTER UNITS 2967-008A OPERATOR’S MANUAL PART IDENTIFICATION 2565-695_REV_H • 06/2021 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
-
Page 2: Warranty
WARRANTY Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This warranty being expressly limited to replacement at the factory of such parts or products as shall appear to be defective after inspection. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction…………………………………………………………..pg.2 Warranty……………………………….……………………………..pg.2 Table of Contents……………………………………………………pg.3 Optional Equipment………………………………………………….pg.3 Safety Information…………………………………………………...pg.4 Bolt Torque…………………………………………………………...pg.5 Use Guide/Troubleshooting………………………………………...pg.6-7 Installation Instruction……..…….………………..…………..…….pg.8-10 Operation……………………………...……………………………..pg.11 Maintenance………………………..………………………………..pg.12-17 Parts Identification………………………………..………….……...pg.18-1 SAFETY A brief description of signal words that may be used in this manual: CAUTION: Used as a general reminder of good safety practices or to direct attention to unsafe practices. WARNING: Denotes a specific potential hazard. -
Page 4: Bolt Torque
BOLT TORQUE Mounting bolts and hardware Before operating the Titan Residue Manager for the first time, check to be sure that all hardware is tight. Check all hardware again after approximately 50 hours of operation and at the beginning of each planting season. All hardware used on the Titan... - Page 5 OPERATION GUIDE/TROUBLESHOOTING IMPORTANT: Please check the amount of travel that the planter row unit has before going to the field to plant. NOTE: The recommended height of a level planter toolbar frame is 20”-22”. Always visually check seed spacing and depth-calibrate your equipment if necessary. Figure A.
- Page 6 OPERATION GUIDE/TROUBLESHOOTING IMPORTANT: Please check the amount of travel that the planter row unit has before going to the field to plant. IMPORTANT: Check the drive shaft clearance with the residue manager wheels. If the residue manager wheels can make contact with the drive shaft, the drive shaft could be damaged.
-
Page 7: Installation Instruction
INSTALLATION INSTRUCTIONS 2967-008 - TITAN RESIDUE MANAGER WITH A 2960 COULTER ∗ ∗ ∗ ∗ BLADE REMOVED FOR CLARITY STEP 1. Attach the 2966-253 mount bracket to the coulter bracket using 2) ½” x 1-3/4” bolt and ½” lock nuts. - Page 8 INSTALLATION INSTRUCTIONS STEP 2. Attach the 2966-252 combo arm to the 2966-253 mount bracket using the 5/8” bolts, flat washers, bushings, 2967-623 adjustment plate and 5/8” lock nuts. Also, install the ½” x 2” bolt, 2967-622 spacer, ½” lock nut, 2984-326 pin and 2570-446 bowtie cotter on the 2967-623 adjustment plate.
- Page 9 INSTALLATION INSTRUCTIONS STEP 4. Choose the mounting hole in which to attach the R.M. wheels. Attach the R.M. wheel/hub assemblies to the 2966-252 Combo Arm using 5/8” lock washers and hex nuts. Adjust the bearing shield to top dead center, rotate slightly forward. Torque to 150 ft./lbs. MOUNTING CONFIGURATIONS FOR RESIDUE WHEELS 2967-404 –...
-
Page 10: Operation
OPERATION CAUTION: Where rocks are present the residue manager should be set in the “float” position, not locked down. Adjust the residue manager to move crop residue aside and not move any soil. Adjustments to the residue manager may have to be made when changing field conditions and type and amount of residue. Use the handle for leverage when changing depth settings. -
Page 11: Maintenance
• Clean machine thoroughly to remove all dirt, debris and crop residue, which would hold moisture and cause rusting. • Inspect machine for worn or broken parts. See your Yetter Farm Equipment dealer during the off-season so that parts or service can be acquired when machine is not needed in the field. -
Page 12: Parts Identification
PARTS IDENTIFICATION 2967-008A-ST-FW... - Page 13 PARTS IDENTIFICATION 2967-008A-FW...
- Page 14 PARTS IDENTIFICATION PARTS IDENTIFICATION 2966-140-ST-FW 2966-140-BW-FW...
- Page 15 PARTS IDENTIFICATION 2966-141-FW...
- Page 16 2565-695_REV_H • 06/2021...
