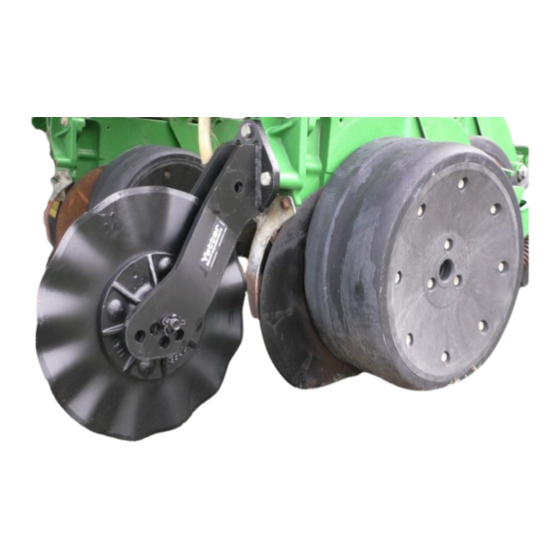

- Page 1 TITAN 2960/2966-021A COULTER-RESIDUE MANAGER JD TWIN ROW PLANTER UNIT OPERATOR’S MANUAL PART IDENTIFICATION 2565-959_REV_D 08/2023 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
- Page 2 WARRANTY Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This warranty being expressly limited to replacement at the factory of such parts or products as shall appear to be defective after inspection.
- Page 3 SAFETY A brief description of signal words that may be used in this manual: CAUTION: Used as a general reminder of good safety practices or to direct attention to unsafe practices. WARNING: Denotes a specific potential hazard. DANGER: Denotes the most serious specific potential hazard. SAFETY PRECAUTIONS You can make your farm a safer place to live and work if you observe the safety precautions given.
-
Page 4: Bolt Torque
BOLT TORQUE Mounting bolts and hardware Before operating the Titan Residue Manager for the first time, check to be sure that all hardware is tight. Check all hardware again after approximately 50 hours of operation and at the beginning of each planting season. All hardware used on the Titan... -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS STEP 1. Attach the 2960-021 coulter to the planter row unit using (3) 12mm x 45mm bolts. Torque @ 99 Nm. STEP 2. Install the 2966-021 residue manager onto the 2960 coulter using the 5/8” x 2” bolts, 5/8” washers, bushings and flange hex nuts. - Page 6 INSTALLATION INSTRUCTIONS STEP 3. Attach the residue manager wheel assembly to the arm and secure with the 5/8” flange hex nut. Torque 180 ft. lbs.
- Page 7 IMPORTANT: Failure to properly set the planter frame height and levelness can result in less than successful operation of the planter and the Yetter product and may result in damaged equipment. All operators should read and thoroughly understand the instructions given prior to using the Yetter product.
-
Page 8: Maintenance
OPERATION PLANTER HEIGHT ADJUSTMENT MAINTENANCE STEP 1. Regularly inspect the residue manager for loose or worn parts. Repair and replace as needed. STEP 2. Lubricate the residue manager wheel bearings using #2 multi-purpose poly urea grease every 50 hours. - Page 9 PARTS IDENTIFICATION 2960-021 UNIT MOUNT COULTER JD TWIN ROW PLANTER...
- Page 10 PARTS IDENTIFICATION 2966-021A-LH-ST-FW RESIDUE MANAGER JD TWIN ROW PLANTER...
- Page 11 PARTS IDENTIFICATION 2966-021A-RH-ST-FW RESIDUE MANAGER JD TWIN ROW PLANTER...
-
Page 12: Parts Identification
PARTS IDENTIFICATION 2966-117-ST-FW (SHOWN) 2966-117-ST-PFW (SHOWN) 2966-116-ST-FW ITEM PART NO DESCRIPTION 2502-220 5/16-18 X ¾ HHFS GRADE 5 2502-221 5/16-18 X 1 HHFS GRADE 5 2571-286 SHARKTOOTH WHEEL 8 BOLT 2965-502 HUB ASSEMBLY 1.157 SPINDLE 2967-957 SHARKTOOTH TIMED FLOATER WHEEL MANUFACTURED 06/2021 –... - Page 13 PARTS IDENTIFICATION 2966-116-STF-FW (SHOWN) RIGHT HAND 2966-117-STF-FW LEFT HAND...
- Page 14 ITEM PART NO DESCRIPTION 2505-207 5/16-18 X 1-1/4 CARRIAGE HEAD BOLT GRADE 5 2520-206 5/16-18 FLANGE LOCK NUT 2570-766 D-BOLT FLANGE HEAD 5/8-11 X 2.562 GRADE 8 2965-128 HUB/BEARING ASSEMBLY 2550-069 SEAL 2570-594 BEARING 2570-715 INSERT 2965-351 2533-110 GREASE FITTING 2965-352 HUB CAP 2967-602...
- Page 15 ITEM PART NO DESCRIPTION 2502-221 5/16-18 X 1 HHFS GRADE 5 2502-222 5/16-18 X 1-1/4 HHFS GRADE 5 2502-225 5/16-18 X 1-1/2 HHFS GRADE 5 2940-560 SET SCREW 2965-500 HUB ASSEMBLY 1.406 SPINDLE 2965-501 HUB ASSEMBLY 2.406 SPINDLE 2965-502 HUB ASSEMBLY 1.157 SPINDLE...
