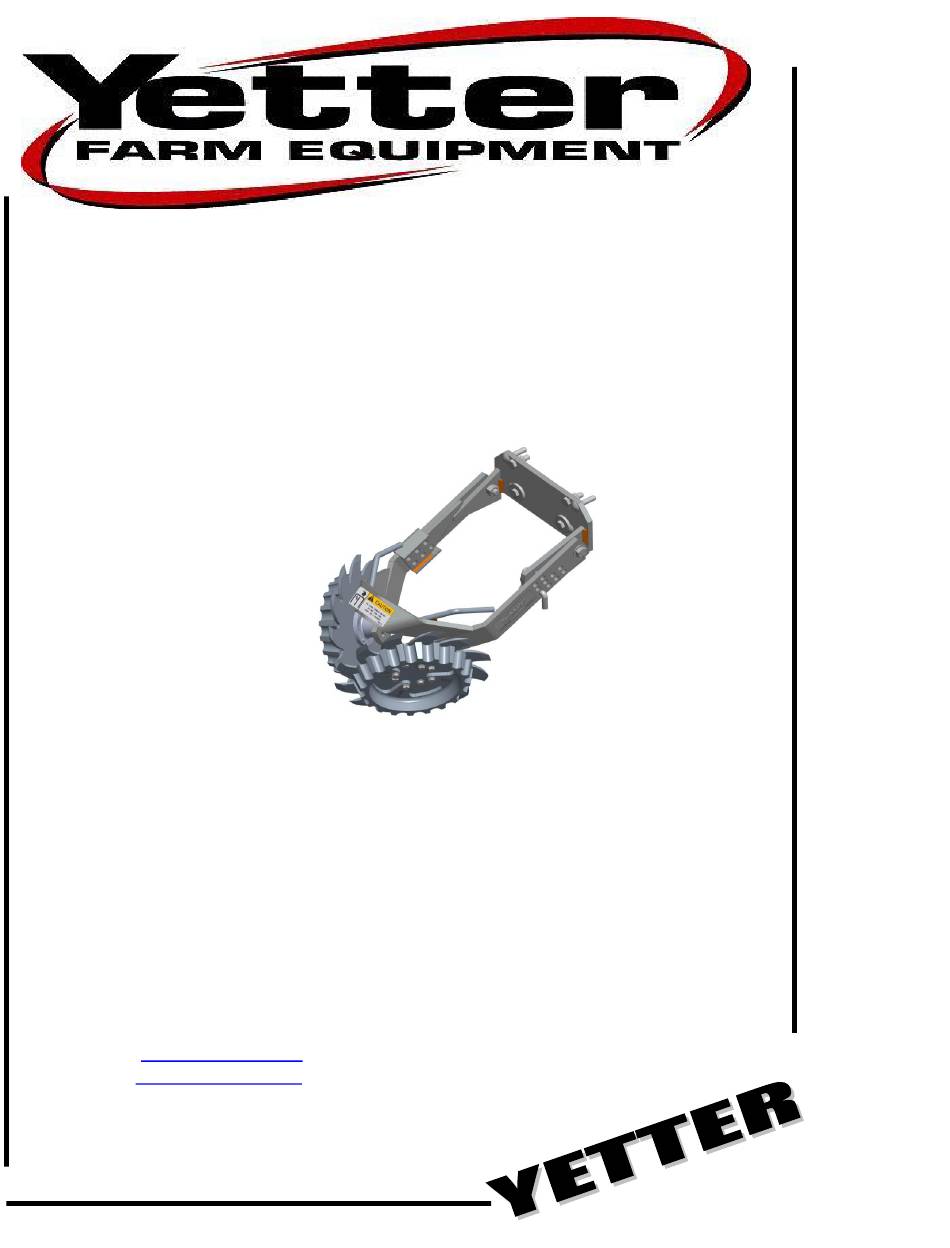

- Page 1 2967-035A RESIDUE MANAGER FOR NO-TILL COULTERS 2565-487_REV_J 08/2024 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
- Page 2 It is the user’s responsibility to deliver his machine to the Yetter dealer who sold him the product for service or replacement of defective parts, which are covered by the warranty policy.
- Page 3 SAFETY PRECAUTIONS A brief description of signal words that may be used in this manual: DANGER: Indicates an imminently hazardous situation which, if not avoided “will” result in death or serious injury. This signal word is to be limited to the most extreme situations. WARNING: Indicates a potentially hazardous situation which, if not avoided, “could”...
- Page 4 TABLE OF CONTENTS Introduction…………………………………………………………..pg. 2 Warranty……………………………….……………………………..pg. 2 Safety Information…………………………………………………...pg. 3 Table of Contents……………………………………………………pg. 4 Optional Equipment…………………………………………………pg. 4 Application/Use Guide………………………………………………pg. 5 Assembly Instruction…………………….………………………….pg.6-9 Operation……………………………...……………………………..pg. 10 Maintenance……………..…………………………………………..pg. 11 Parts Identification………………………………..………….…...pg.12-14...
- Page 5 TITAN F.P.M. RESIDUE MANAGER OPERATION / USE GUIDE The 2967-035 Residue Manager Will Limit the full “up-travel” of the planter row unit. NOTICE: Please check the amount of travel that the planter row unit has before going to the field to plant. The recommended height of a level planter toolbar frame is 18”-22”.
- Page 6 Yetter 2960-130 Double Arm Coulter. 2960 SERIES II UNIT MOUNTED CONSERVATION COULTER Use 2) ½” x 2” carriage bolts (upper holes), 1) ½” x 2” hex bolt and a large flat washer (lower left hole) are used when mounting the Yetter Series II coulter.
- Page 7 ASSEMBLY INSTRUCTIONS STEP 1 Install the 2967-283 Adjustment Slide onto the right hand side of the 2967-282 Combo Arm. The adjustment slide should move freely on the combo arm. Attach the combo arm assembly to the 2967-281 Mount Bracket using 2) 5/8” x 2” STEP 2 bolts, flat washers, bushings, and lock nuts.
- Page 8 ASSEMBLY INSTRUCTIONS STEP 3. Install the 2984-326 Adjustment Pin through the adjustment holes of the slide (float) or through the adjustment arm of the mount bracket (rigid) and secure with the 2570-448 Hairpin clip.
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Choose the mounting hole in which to attach the R.M. wheels. Both wheels mounted in the front holes – wheels are interlocked. One wheel mounted in the front hole and one mounted in the rear hole – wheels are offset. Both wheels mounted in the rear holes – wheels are spaced apart. Attach the R.M.
- Page 10 OPERATION Where rocks are present the residue manager should be set in the “float” CAUTION: position, not locked down. STEP 1. Adjust the residue manager to move crop residue aside and not move any soil. Adjustments to the residue manager may have to be made when changing field conditions and type and amount of residue.
- Page 11 Clean machine thoroughly to remove all dirt, debris and crop residue, which would hold moisture and cause rusting. Inspect machine for worn or broken parts. See your Yetter Farm Equipment dealer during the off-season so that parts or service can be acquired when machine is not needed in the field.
- Page 12 PARTS IDENTIFICATION 2967-035A-ST-FW ITEM PART NO. DESCRIPTION 2502-294 ½-13 X 1-1/2 HHCS GRADE 5 2502-351 ½-13 x 2 HHCS GRADE 5 2502-391 5/8-11 x 2 HHCS GRADE 5 2505-345 ½-13 X 2 CARRIAGE BOLT GRADE 5 2520-357 ½-13 LOCK NUT GRADE A...
- Page 13 PARTS IDENTIFICATION 2966-140-ST-FW 2966-140-ST-PFW 2966-140-BW-FW...
- Page 14 PARTS IDENTIFICATION 2966-140-STF-PFW RIGHT HAND SHARKTOOTH FINGER WHEEL ASSEMBLY...
- Page 15 ITEM PART NO DESCRIPTION 2502-221 5/16-18 X 1 HHFS GRADE 5 2502-222 5/16-18 X 1-1/4 HHFS GRADE 5 2502-225 5/16-18 X 1-1/2 HHFS GRADE 5 2940-560 SET SCREW 2965-500 HUB ASSEMBLY 1.406 SPINDLE 2965-501 HUB ASSEMBLY 2.406 SPINDLE 2965-502 HUB ASSEMBLY 1.157 SPINDLE ITEM PART NO DESCRIPTION...
- Page 16 2565-487_REV_J 08/2024...
