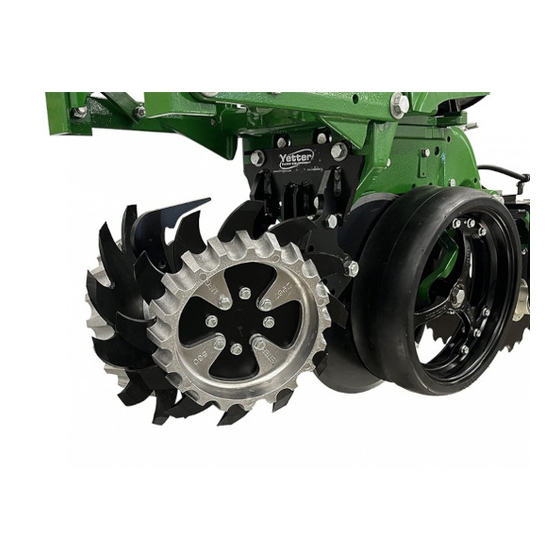

- Page 1 2967-003A SINGLE WHEEL RESIDUE MANAGER FOR MONOSEM PLANTER OPERATOR’S MANUAL PART IDENTIFICATION 2565-768_REV_D – 06/2021 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
-
Page 2: Introduction
WARRANTY Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This warranty being expressly limited to replacement at the factory of such parts or products as shall appear to be defective after inspection. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction……………………………………………………………….……2 Warranty……………………………….……………………………………..2 Table of Contents……………………………………………………………..3 Optional Equipment…………………………………………………………..3 Bolt Torque…………………………………………………………………….4 Operation……………………………………………………………………5-6 Planter Adjustment………………………..……………………………...…..7 Installation Instruction……..…….………………..…………..……..…..8 Maintenance……………………………………………………………….9-10 Parts Identification………………………………..………….…….…..11-15... -
Page 4: Bolt Torque
BOLT TORQUE Mounting bolts and hardware Before operating the Residue Manager for the first time, check to be sure that all hardware is tight. Check all hardware again after approximately 50 hours of operation and at the beginning of each planting season. All hardware used on the Residue Manager is Grade 5 unless otherwise noted. -
Page 5: Operation
OPERATION ROW CLEANER DO’S AND DON’TS 1. DO NOT move soil; Residue Managers are designed to move crop residue only. 2. DO NOT operate planter at slow speeds, ground speed affects how aggressive the spoke wheels are; operate at sufficient speed (4-6 mph) to maintain good residue flow. 3. - Page 6 IMPORTANT: failure to properly set the planter frame height and levelness can result in less than successful operation of the planter and the Yetter product and may result in damaged equipment. All operators should read and thoroughly understand the instructions given prior to using the Yetter product.
-
Page 7: Planter Adjustment
PLANTER ADJUSTMENT... -
Page 8: Installation Instruction
INSTALLATION INSTRUCTIONS STEP 1. Attach the Residue Manager Arm Assembly to the planter unit using 3) M10 x 45MM bolts, nuts, and lockwashers. Attach the R.M. wheel/hub assembly to the arm using 5/8” lock washer and hex nut. STEP 2. Adjust the bearing shield to top dead center, rotated slightly forward. -
Page 9: Maintenance
Conditions in certain geographical areas may require special lubricants and lubrication practices which do not appear in the operator's manual. If there are any questions, consult Yetter Manufacturing Co. to obtain latest information and recommendation. Storing Lubricants Your machine can operate at top efficiency only if clean lubricants are used. - Page 10 Clean machine thoroughly to remove all dirt, debris and crop residue, which would hold moisture and cause rusting. Inspect machine for worn or broken parts. See your Yetter Farm Equipment dealer during the off-season so that parts or service can be acquired when machine is not needed in the field.
-
Page 11: Parts Identification
PARTS IDENTIFICATION 2967-003A-L-ST... - Page 12 PARTS IDENTIFICATION PARTS IDENTIFICATION 2966-140-ST-FW 2966-140-BW-FW...
- Page 13 PARTS IDENTIFICATION 2966-141-FW...
- Page 14 PARTS IDENTIFICATION 2967-192 ARM ASSEMBLY RIGHT HAND...
- Page 15 PARTS IDENTIFICATION 2967-193 ARM ASSEMBLY LEFT HAND...
- Page 16 Canada. We’re even getting orders from as far away as Australia and Africa. So, when you buy Yetter products . . .you’re buying a name that’s recognized. A name that’s known and respected. A name that’s become a part of American agriculture and has become synonymous with quality and satisfaction in the field of conservation tillage.
