TPD2: Configuration of Altronix Power Supplies, Sub-Assemblies and PDK Modules
1. Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers (Fig. 2, pg. 3).
Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 2, pg. 3).
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 2a, pg. 3).
3. Fasten spacers (provided) to pems that match the hole pattern for PDK modules.
Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 2, 2a, pg. 3).
4. Fasten TPD2 backplane to Trove2 enclosure utilizing pan head screws (provided).
Access Controller Position Chart for the Following Models:
Altronix / PDK
AL400ULXB2, AL400ULXB2V, AL600ULXB, AL600XB220, AL1012ULXB, AL1012XB220, AL1024ULXB2, AL1024XB2V,
eFlow4NB, eFlow4NBV, eFlow6NB, eFlow6NBV, eFlow102NB, eFlow102NBV, eFlow104NB, eFlow104NBV, Tango1B
NetWay4EB, NetWay4E1B, NetWaySP3B, NetWaySP4B, NetWaySP8B
ACM8, ACM8CB, ACMS8, ACMS8CB, ACMS12, ACMS12CB, LINQ8ACM, LINQ8ACMCB
ACM4, ACM4CB, LINQ8PD, LINQ8PDCB, MOM5, PD4UL, PD4ULCB, PD8UL, PD8ULCB, PDS8, PDS8CB, PDS16, PDS16CB, VR6
red1, red2, red4

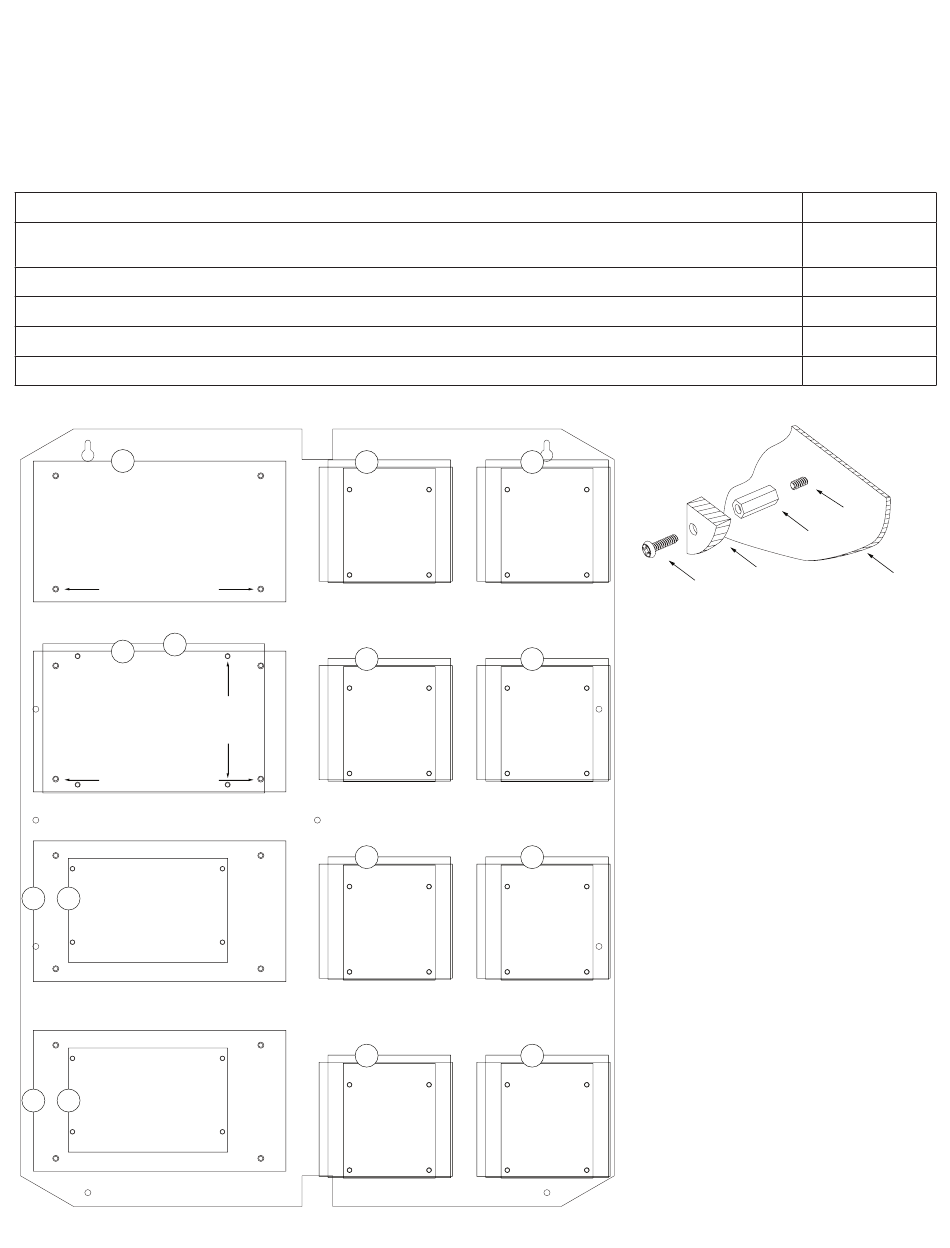

Fig. 2 - Trove2PD2/TPD2 Configuration
A
Metal Spacer Placement
B
A
Metal Spacer Placement
C D
C D
Trove2PD2 / TPD2 Installation Guide
E
E
Metal
Spacer
Placement
E
E
E
Pan Head
Screw
E
E
E
Pem Mounting
A
B
C
D
E
Fig. 2a
Pem
Spacer
Altronix
Backplane
Power Supply or
Sub-Assembly or
PDK Red Module
