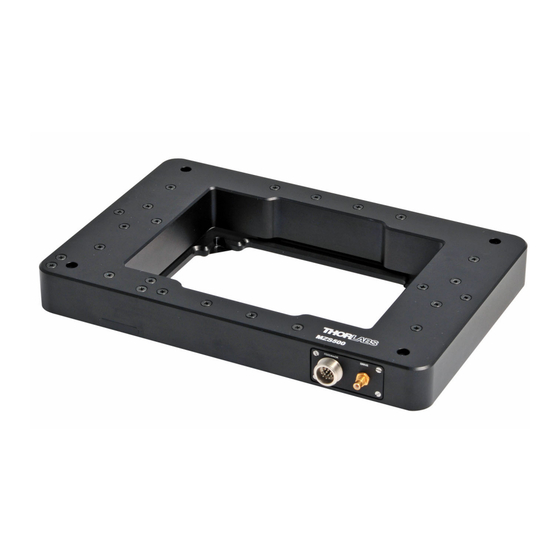

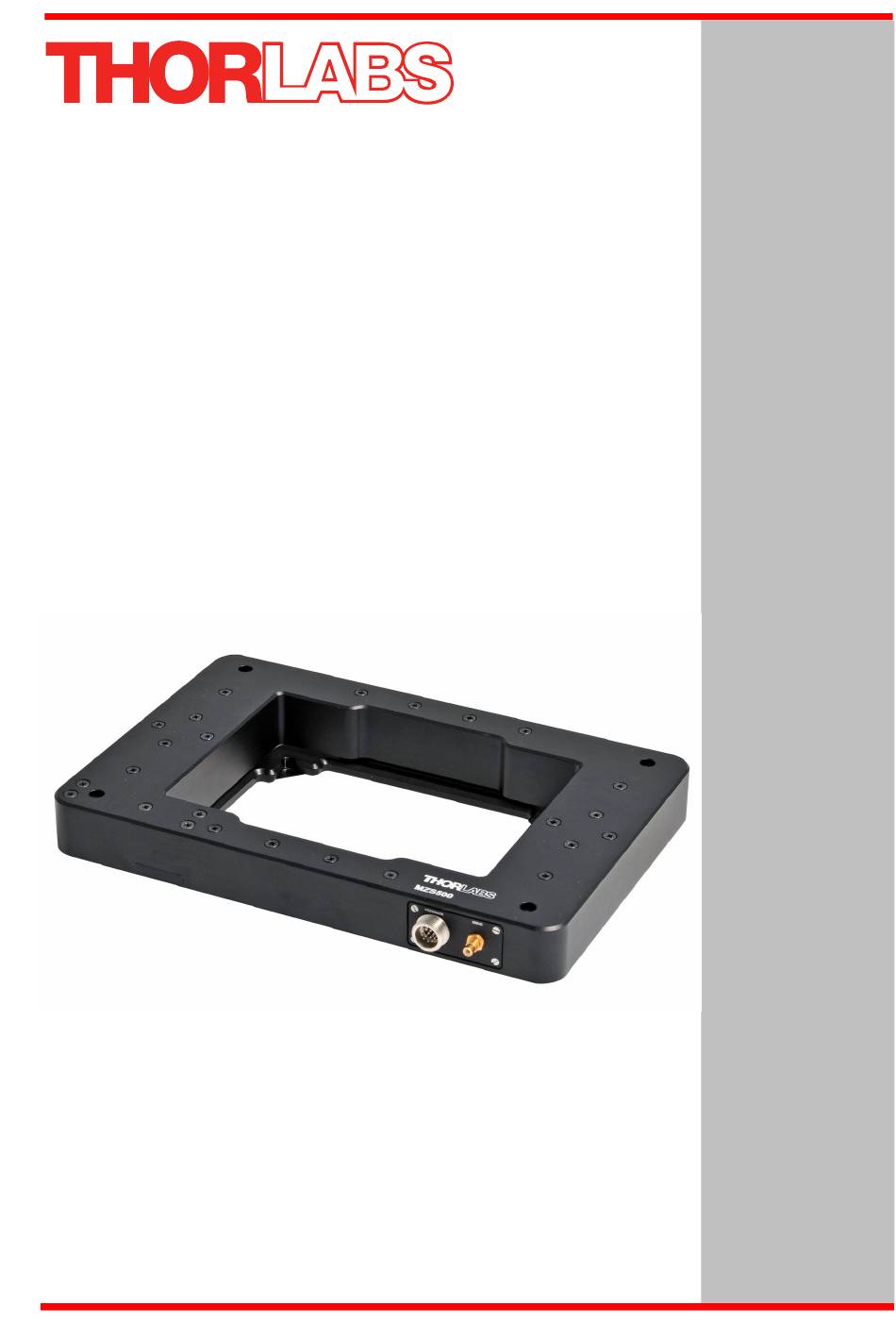

- Page 1 MZS500 Piezo Z-Axis Stage User Guide Original Instructions...
- Page 2 MZS500 Piezo Z-Axis Stage Contents Chaper 1 Overview ..................... 1 1.1 Introduction ..................1 Chaper 2 Safety ......................3 2.1 Safety Information ................3 2.2 General Warnings ................3 Chaper 3 Installation ....................4 3.1 Unpacking ................... 4 3.2 Mounting ..................... 4 3.2.1 General ....................
- Page 3 Z-axis positioning and active location feedback. The MZS500-E stage is fully compatible with the MLS203 series of XY stage systems.These two products combined present a versatile 3D solution for translating samples over a long travel range or scanning across a sample with high precision.
- Page 4 MZS500 Piezo Z-Axis Stage Fig. 1.1 MLS203 stage with MZS500 stage fitted, mounted on a microscope Page 2 21427-D02...
- Page 5 Chapter 2 Safety Chapter 2 Safety 2.1 Safety Information For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself. The following safety symbols may be used throughout the handbook and on the equipment itself.
- Page 6 MZS500 Piezo Z-Axis Stage Chapter 3 Installation 3.1 Unpacking Caution Once removed from its packaging, the stage can be easily damaged by mishandling. The unit should only be handled by its base, not by any attachments to the moving platform.
- Page 7 MLS203, then proceed as follows: 1) Place the MZS500 stage into the recess in the MLS203 stage as shown below. 2) Loosely fit the four M3 x 25 hex bolts supplied to secure the MZS500 stage to the MLS203 stage.
- Page 8 MZS500 Piezo Z-Axis Stage 3.2.3 Fitting a Multiwell Plate If required, first fit the stage to the MLS203 stage as detailed in the previous section, then proceed as follows: 1) Push back the release catch with the edge of the well plate as shown, and fit the well plate into the recess.
- Page 9 When making connections, use only the leads supplied with the stage and controller. Using the leads provided, connect the MZS500 DRIVE to the BPC301 HV OUT, and the MZS500 FEEDBACK to the BPC301 PIEZO IN terminals. FEEDBACK...
- Page 10 MZS500 Piezo Z-Axis Stage 3.4 Dimensions 110.0 mm [4.33 in] 86.5 mm [3.41 in] 128.8 mm [5.07 in] 143.0 mm [5.63 in] 191.0 mm [7.52 in] 100.0 mm 226.0 mm [3.94 in] [8.90 in] 125.0 mm 193.0 mm [4.92 in] [7.60 in]...
- Page 11 For a complete tutorial on using the stage, see the manual supplied with the BPC30x series controller. Basic steps in controlling the stage are as follows: 1) Mount the MZS500 stage to the MLS203 stage as detailed in Section 3.2. Caution The MZS500 stage and the connecting cable supplied with it are tuned at the factory.
- Page 12 4.2 Maintenance The product is maintenance free. If any problems occur, the user should contact the local Thorlabs tech support for more information. 4.3 Transportation Caution When packing the unit for shipping, use the original packing. If this is not available, use a strong box and surround the unit with at least 100 mm of shock absorbent material.
- Page 13 Chapter 5 Specification Chapter 5 Specification Parameter Value Drive Voltage 0 to 150 V Travel 500 µm Resolution 25 nm Minimum Step Size 250 nm Typical Feedback Transducer Type Capacitive Position Linearity Error <0.05% over Full Travel Range Typical Settling Time for 1 to 100 µm Step 25 ms Max Travel Bandwidth 10 Hz...
- Page 14 MZS500 Piezo Z-Axis Stage Chapter 6 Spares and Accessories 6.1 Parts List We offer a number of options for mounting your biological samples to your stage. The MZS500P series of microscope sample platforms has been designed to provide flexible options of sample types: traditional slides, petri dishes or well plates, as well as uniquely shaped sample holders for biofilms, microfluidic studies and live sample viewing.
- Page 15 Chapter 6 Spares and Accessories 6.2 Accessories and Adapter Plates MZS500P2 Features • Compatible with Standard Microscope Slides and 30 mm or 60 mm Petri Dishes • Can be used with Imperial or Metric Accessories MZS500P3 Features • Ideal for Custom or Non-Standard Applications •...
- Page 16 MZS500 Piezo Z-Axis Stage Chapter 7 Regulatory 7.1 Declarations Of Conformity 7.1.1 For Customers in Europe This equipment has been tested and found to comply with the EC Directives 89/336/EEC ‘EMC Directive’ and 73/23/EEC ‘Low Voltage Directive’ as amended by 93/68/EEC.
- Page 17 Chapter 7 Regulatory 7.2 CE Certificates Page 15 Rev G Mar 2022...
- Page 18 MZS500 Piezo Z-Axis Stage Page 16 21427-D02...
- Page 19 Waste treatment is your own responsibility. "End of life" units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
- Page 20 www.thorlabs.com...
