Gradall G660 Operator's Manual page 9

1. Elec on
2. Heater (except Deutz engines)
3. Ignition Switch (also starter switch for
Detroit Diesel and Caterpillar)
4. Defroster
5. Throttle Control Lever
6. Oil Pressure Gage
7. Voltmeter
8. Water Temperature Gage
(except Deutz engines)
9. Horn Button
10. Boom Raise and Lower Lever
11. Boom Tilt Lever
12. Boom Extend & Retract Lever
13. Hourmeter
14. Open Bucket Pedal
15. Close Bucket Pedal
16. Swing Boom Left Pedal
17. Swing Boom Right Pedal
18. Clutch Engagement Stud

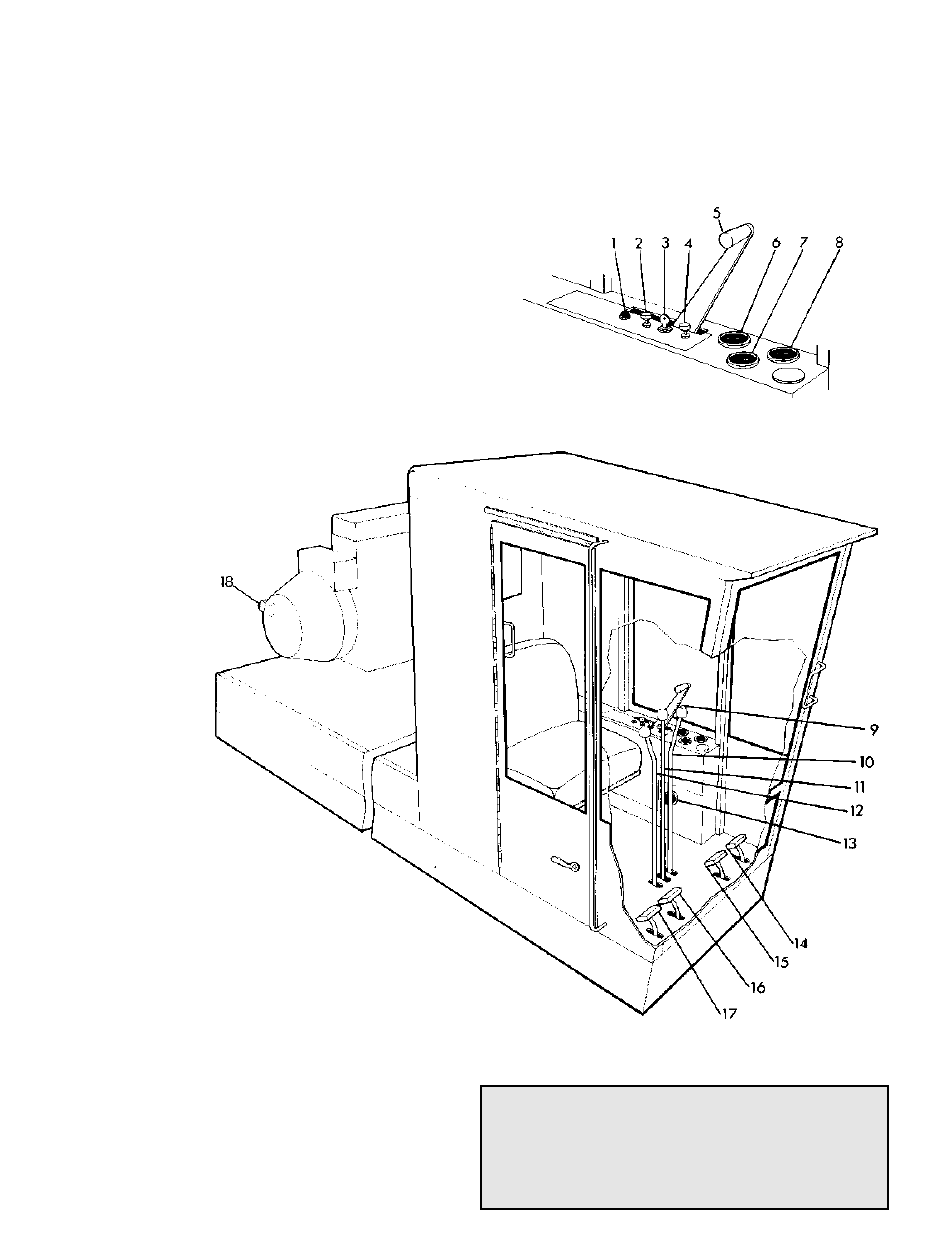

CONTROLS, INSTRUMENTS
AND INDICATORS
(Common to all units unless noted)
Know and understand controls and instru-
ments before operating the Gradall.
5
WARNING
