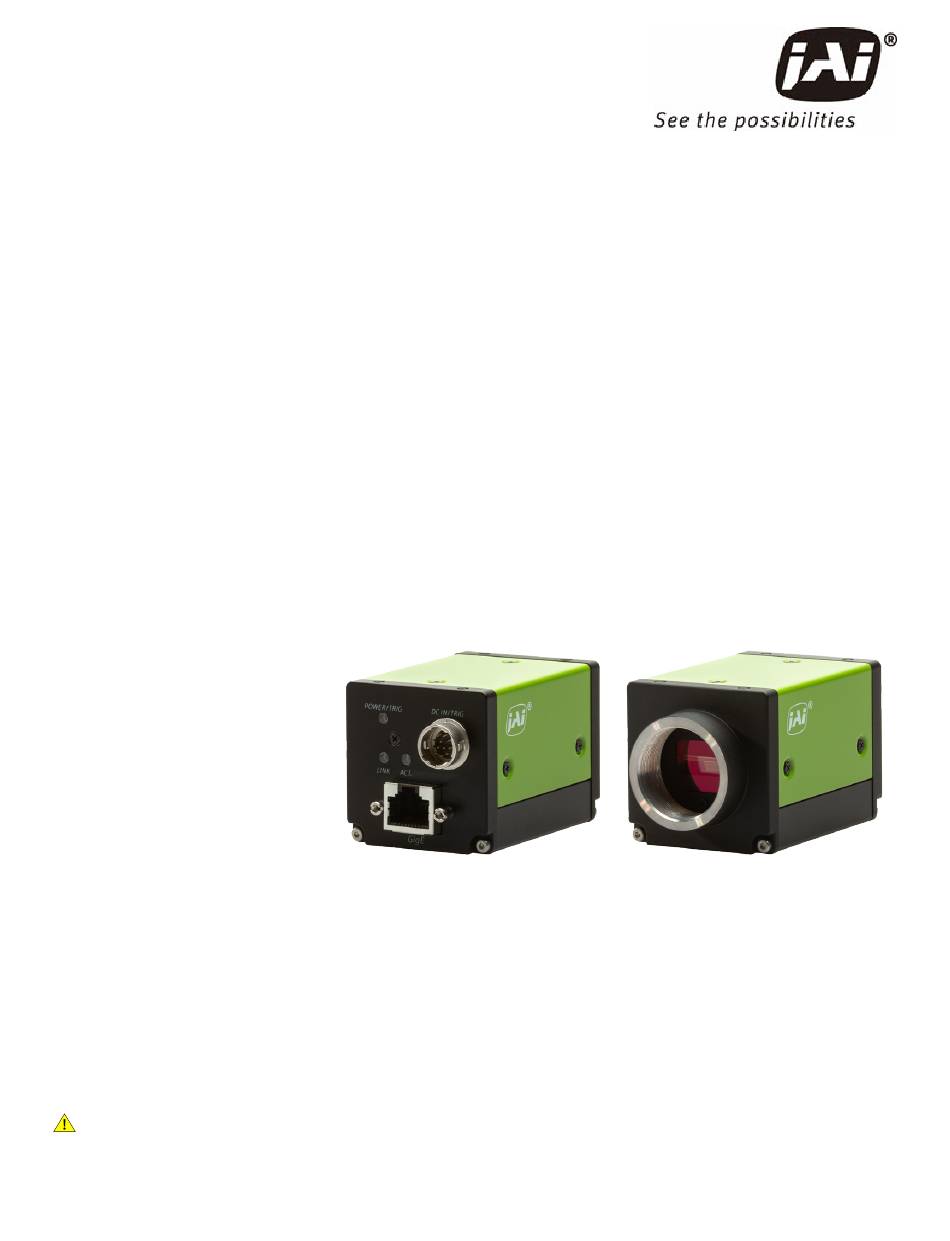

User Manual
Sweep Series - GigE Vision Interface
SW-2005TL-5GE
SW-2005M-5GE
Thank you for purchasing this product.
Be sure to read this documentation before use.
This documentation includes important safety precautions and instructions on how to operate the unit. Be sure to read this documentation to ensure
proper operation.
The contents of this documentation are subject to change without notice for the purpose of improvement.
© 2024 JAI
Digital CMOS Progressive Line Scan Camera (Trilinear and Monochrome)
Document Version: Tentative
Date: 2024-09-26

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sweep Series and is the answer not in the manual?

Questions and answers

Related Manuals for JAI Sweep Series

Summary of Contents for JAI Sweep Series

  • Page 1 User Manual Sweep Series - GigE Vision Interface SW-2005TL-5GE SW-2005M-5GE Digital CMOS Progressive Line Scan Camera (Trilinear and Monochrome) Document Version: Tentative Date: 2024-09-26 Thank you for purchasing this product. Be sure to read this documentation before use. This documentation includes important safety precautions and instructions on how to operate the unit. Be sure to read this documentation to ensure proper operation.
  • Page 2 User Manual (Tentative) - Table of Contents SW-2005TL-5GE | SW-2005M-5GE Table of Contents Table of Contents About Technical Note Notice/Warranty Notice Warranty Certifications CE Compliance Warning China RoHS Usage Precautions Notes on Cable Configurations Notes on LAN Cable Connection Notes on Attaching the Lens Phenomena Specific to CMOS Image Sensors Notes on Exportation Features...
  • Page 3 User Manual (Tentative) - Table of Contents SW-2005TL-5GE | SW-2005M-5GE ② Mounting ③ LAN Cable ➃ Network Card ⑤ DC IN / Trigger IN Connection Cable ⑥ AC adapter (Power Supply, If Necessary) Step 3: Verify Camera Operation Step 4: Verify the Connection between the Camera and PC Step 5: Configure Trigger, Exposure, and Line Rate Settings Control via External Triggers with the Specified Exposure Time Control via External Triggers without Specifying the ExposureTime...
  • Page 4 User Manual (Tentative) - Table of Contents SW-2005TL-5GE | SW-2005M-5GE FrameStart Trigger and AcquisitionTransferStart Trigger Exposure Mode Exposure Time Gain Control Gamma Function LUT (Lookup Table) Color Space Conversion (ColorTransformationControl) GPIO (Digital Input/Output Settings) ExposureActive Signal Counter and Timer Control Connecting Rotary Encoders EncoderDivider Trigger Option EdgeDetection Trigger Option...
  • Page 5 User Manual (Tentative) - Table of Contents SW-2005TL-5GE | SW-2005M-5GE AcquisitionControl AnalogControl LUT Control Color Transformation Control DigitalIOControl Counter and Timer Control EncoderControl Logic Block Control ActionControl EventControl ChunkDataControl UserSetControl PulseGenerator Shading Correction SpatialControl Miscellaneous Troubleshooting Specifications Spectral Response (SW-2005TL-5GE) Spectral Response (SW-2005M-5GE) Dimensions Comparison of the Decibel Display and Multiplier Display...
  • Page 6 About Technical Note Some additional technical information is provided on the JAI website as Technical Notes. In this manual, if a technical note is available for a particular topic, the above icon is shown. Please refer to the following URL for Technical notes.
  • Page 7 The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan, and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
  • Page 8 상 호: JAI Ltd. Japan 기자재명칭: Industrial Camera 기자재명칭: Industrial Camera 모 델 명: SW-2005TL-5GE 모 델 명: SW-2005M-5GE 제조자 및 제조국가: JAI Ltd., Japan / JAPAN 제조자 및 제조국가: JAI Ltd., Japan / JAPAN 제조년월은 제품상자의 라벨을 참조하십시오. - 8 -...
  • Page 9 User Manual (Tentative) - Notice/Warranty SW-2005TL-5GE | SW-2005M-5GE China RoHS The following statement is related to the regulation on “Measures for the Administration of the Control of Pollution by Electronic Information Products “, known as “China RoHS“. The table shows contained Hazardous Substances in this camera.
  • Page 10 User Manual (Tentative) - Usage Precautions SW-2005TL-5GE | SW-2005M-5GE Usage Precautions Notes on Cable Configurations The presence of lighting equipment and television receivers nearby may result in video noise. In such cases, change the cable configurations or placement. Notes on LAN Cable Connection Secure the locking screws on the connector manually, and do not use a driver.
  • Page 11 User Manual (Tentative) - Usage Precautions SW-2005TL-5GE | SW-2005M-5GE Phenomena Specific to CMOS Image Sensors The following phenomena are known to occur on cameras equipped with CMOS image sensors. These do not indicate malfunctions. Aliasing: When shooting straight lines, stripes, and similar patterns, vertical aliasing (zigzag distortion) may appear on the monitor.
  • Page 12 User Manual (Tentative) - Features SW-2005TL-5GE | SW-2005M-5GE Features This camera is a linescan camera using trilinear (RGB) and monochrome CMOS line sensors. It has a small (44mm × 44mm × 64mm), lightweight (SW-2005TL-5GE: 186 g; SW-2005M-5GE: 185 g) design with a 5 Gigabit interface.
  • Page 13 User Manual (Tentative) - Parts Identification SW-2005TL-5GE | SW-2005M-5GE Parts Identification Note: See "Dimensions" for external view of the entire camera. Lens Mount (C-Mount) Mount a C-mount lens here. Note: Before mounting a lens, be sure to refer to ① Lens and confirm the precautions for attaching a lens and the supported lens types.
  • Page 14 User Manual (Tentative) - Parts Identification SW-2005TL-5GE | SW-2005M-5GE DC IN/TRIG Connector (12-Pin Round) Related Setting Items: DigitalIOControl Connect the cable for a power supply or for DC IN / trigger IN here. PN: HR-10A-10R-12PB (71) Pin No. Input/Output Signal Description Power In DC In...
  • Page 15 User Manual (Tentative) - Parts Identification SW-2005TL-5GE | SW-2005M-5GE LEDs The table below shows the LED light and camera status. POWER TRIG Light Status Lit amber Camera initializing. Lit green Camera in operation. During operation in trigger mode, trigger signals are being input. Blinking Note: The blinking interval is not related to the actual input interval of the external green...
  • Page 16 User Manual (Tentative) - Parts Identification SW-2005TL-5GE | SW-2005M-5GE Mounting Holes Use these holes to mount the camera directly to a structural system. Location Available Mounting Holes M3, Depth 3mm x 4 Bottom M3, Depth 3mm x 4 Note: Refer to "Dimensions" for the location of the mounting holes. - 16 -...
  • Page 17 Step 1: Install the Software (First Time Only) Install the software for configuring and controlling the camera (eBUS SDK for JAI) on the computer. Step 2: Connect Devices Connect the lens, cables, AC adapter, computer, and other devices.
  • Page 18 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Step 2: Connect Devices ① Lens ② Mounting ③ LAN Cable ➃ Network Card ⑤ DC IN / Trigger IN Connection Cable ⑥ AC adapter (Power Supply, If Necessary) ① Lens C-mount lenses with lens mount protrusions of 9 mm or less can be attached.
  • Page 19 When supplying power via PoE, connect to a PoE-compatible switching hub or a PoE-compatible network card. Note: JAI does not recommend using a PoE injector. If a PoE injector is used, the camera may not be able to transmit images properly.
  • Page 20 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE ⑤ DC IN / Trigger IN Connection Cable Performs external I/O such as power supply and trigger input. ⑥ AC adapter (Power Supply, If Necessary) Connect the AC adapter and the round connector of the connection cable to the DC IN / trigger IN connector on the camera.
  • Page 21 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Step 4: Verify the Connection between the Camera and PC Verify whether the camera is properly recognized eBUS Player for JAI. 1. Launch eBUS Player for JAI. eBUS Player for JAI startup screen appears.
  • Page 22 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Control via External Triggers with the Specified Exposure Time In the example below, TriggerSelector is set to LineStart. Notes: When using external triggers, the line rate is determined by the trigger period. The ExposureTime value cannot be longer than the trigger period.
  • Page 23 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Control via External Triggers without Specifying the ExposureTime In the example below, TriggerSelector is set to LineStart. Notes: When using external triggers, the line rate is determined by the trigger period. The exposure is performed with an exposure time calculated from 1 / (line rate). Item Setting Trigger Mode...
  • Page 24 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Control via External Triggers with Exposure Time Controlled by the Pulse Width of the Trigger Input Signal In the example below, TriggerSelector is set to LineStart. Notes: When using external triggers, the line rate is determined by the trigger period. Item Setting Trigger Mode...
  • Page 25 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Control without External Triggers with the Specified Exposure Time Notes: ExposureTime can be set up to 1 line cycle to match the speed of the object or to lengthen the accumulation time to increase sensitivity. The ExposureTime value cannot be longer than the line period.
  • Page 26 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Step 6: Adjust the Image Quality Display the camera image and adjust the image quality. DSNU Correction (Pixel Black Correct) Related Setting Items: Correction DSNU (dark signal non-uniformity) is a variation between pixels in the dark areas generated by the sensor. If the line rate is slowed or a long exposure time is set, the dark current in the sensor may change and the state of the DSNU may change.
  • Page 27 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE PRNU Correction (Pixel Gain Correct) Related Setting Items: Correction PRNU (photo response non-uniformity) is a variation between pixels generated by the sensor under bright conditions. If the line rate is slowed or a long exposure time is set, the dark current in the sensor may change and the state of the PRNU may change.
  • Page 28 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE 2. Specify the setting (User1, User2, User3, or User Area) to save the gain correction value in PixelGainCorrectionMode (Correction). For detailed information on each correction setting, see the "PRNU Correction Modes (PixelGainCorrectionMode)" section. Note: Default saves the correction data set at the factory.
  • Page 29 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Adjust the Gain Related Setting Items: AnalogControl Note: For details on gain control, see “Gain Control” in the Main Functions chapter. Manual Adjustment Monochrome Model: 1. If you want to disable the camera's internal fixed gain (= InGain) and only enable the user-set gain, set InGainBypassMode to On (default = Off).
  • Page 30 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE 3. Configure AGCReference to set the convergence level. 4. Set GainAuto to Once. 5. The Gain value is automatically adjusted. After the adjustment, GainAuto returns to Off. 6. The adjustment status can be checked in AGCOnceStatus. Adjust the White Balance Related Setting Items: AnalogControl...
  • Page 31 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE 2. If necessary, use BalanceWhiteAutoWidth and BalanceWhiteAutoOffsetX to configure the white balance adjustment area. 3. Set BalanceWhiteAuto to Once or OnceUserAreaBe. For more information, see "Automatic Adjustment Modes". Caution: The BalanceWhiteAutoWidth and BalanceWhiteAutoOffsetX settings apply only to the Once option.
  • Page 32 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE Adjust the Black Level Related Setting Items: AnalogControl 1. Select the black level you want to configure in BlackLevelSelector. Monochrome model: All (Master black) only Color model: All (Master black), Red, Blue 2.
  • Page 33 User Manual (Tentative) - Preparation SW-2005TL-5GE | SW-2005M-5GE To Save User Settings 1. Stop image acquisition. 2. Expand UserSetControl and select the save destination (UserSet1 to UserSet3) in UserSetSelector. Note: The factory default setting values are stored in Default and cannot be overwritten. Caution: Settings can only be saved when image acquisition on the camera is stopped.
  • Page 34 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Main Functions This chapter describes the camera's main functions. ROI (Regional Scanning Function) Related Setting Items: ImageFormatControl The ROI (region of interest) function allows you to output images by specifying the area to scan. ROI Settings Specify the area to scan by specifying the Width, Horizontal offset (OffsetX), Height (number of lines), and Vertical offset (OffsetY) values (ImageFormatControl).
  • Page 35 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE ROI Examples For example, when OffsetX is set to 8 and OffsetY is set to 4, the first pixel to read out is the 9th pixel on the 5th line. - 35 -...
  • Page 36 Note: This camera supports Horizontal x2 digital binning on the FPGA. Setting Pixel Size, Resolution Image Example 1 (Off) 2 (On) (Sum Mode) Note: Refer to JAI's blog "Using pixel binning to increase image quality under low light conditions" on how to use the Binning function. - 36 -...
  • Page 37 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Pixel Format Related Setting Items: ImageFormatControl Selectable PixelFormat is as follows. Color model RGB8 (Default) , RGB10V1Packed, RGB10p32, RGB12V1Packed Monochrome model Mono8 (Default) , Mono10, Mono12, Mono10Packed, Mono12Packed Acquisition Control Related Setting Items: AcquisitionControl Use the AcquisitionControl...
  • Page 38 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Change the Line Rate When TriggerMode is set to Off, you can set the line rate using AcquisitionLineRate. This function can be used to match the scanning speed of the camera to the feeding speed of the object or to lengthen the accumulation time to increase sensitivity.
  • Page 39 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Trigger Control Related Setting Items: AcquisitionControl The camera allows the following controls to be performed via external trigger signals. Note: When TriggerMode is On, the camera first receives the AcquisitionStart command (ImageFormatControl), the Acquisition trigger signal, and then outputs images.
  • Page 40 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Trigger Delay Based on Encoder Input The TriggerDelayLine function allows you to set the number of lines between the AcquisitionStart trigger input and the time when image data is output to the host. This function is useful when you want to delay the time between receiving a trigger and outputting image data to the host, for example, when the object detection sensor and the line scan camera cannot be installed in the same location.
  • Page 41 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Frame Start Trigger In this camera, Data Leader and Data Trailer are added to every frame. The number of lines per frame is set by Offset Y and Height of ImageFormatControl. Offset Y’s setting range is 0 to 4096.
  • Page 42 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE FrameStart Trigger and AcquisitionTransferStart Trigger On this camera, when AcquisitionTransferStart is On, the camera expects that the number of AcquisitionTransferStart trigger inputs is the same as the number of FrameStart trigger inputs. Otherwise, a GVSP error may occur.
  • Page 43 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Exposure Mode Related Setting Items: AcquisitionControl The following exposure modes are available on the camera. Exposure Description Examples Mode Control via External Triggers without Specifying the ExposureTime Exposure control is not performed (free-running operation).
  • Page 44 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE ExposureModeOption Specifies whether to prioritize exposure time (PrioritizeExposureTime) or line rate (PrioritizeLineRate) when controlling line rate and exposure. ExposureModeOption Description The maximum AcquisitionLineRate value is limited by the line rate value calculated from the current ExposureTime setting.
  • Page 45 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Exposure Time The ExposureTime function allows you to set the exposure to a preconfigured accumulation time. The minimum ExposureTime setting is 0.11 μs (step 0.01), and the maximum Exposure setting depends on other settings (e.g., PixelFormat).
  • Page 46 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Gain Control Related Setting Items: AnalogControl Gain control can be performed in the following two modes on this camera. Note: For details on how to configure the settings, see “Adjust the Gain”.
  • Page 47 Description Gamma 0.45, 0.5, 0.55, 0.6, 0.65, 0.75, 0.8, 0.9, 1.0 Select the gamma correction value. JAI LUT Mode Gamma Use gamma. Note: You can use the LUT function to configure a curve with more detailed points. For details, see “LUT...
  • Page 48 You can specify the output curve using 257 setting points (indexes). To use the LUT function Configure the settings as follows. Setting Value / Item Description Selectable Range JAI LUT Use LUT. Mode Select the LUT channel to control. Red, Green, Blue Selector Note: Color model only Select the LUT index to configure.
  • Page 49 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Color Space Conversion (ColorTransformationControl) Related Setting Items: Color Transformation Control This camera allows you to convert the standard color space (RGB) that is used to produce colors into other color spaces. Note: This function is only supported on the color model.
  • Page 50 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE GPIO (Digital Input/Output Settings) Related Setting Items: DigitalIOControl The camera is equipped with GPIO (general-purpose input/output) functions for generating and using combinations of triggers and other necessary signals within the camera and of signals output from the camera to the system such as those used for lighting equipment control.
  • Page 51 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE ExposureActive Signal Perform external output for the timing at which video is accumulated to the sensor. The signal is output to the DC IN / TRIG IN connector (12-pin round). ExposureActiveSource (Color model only) When LineSource is set to ExposureActive, the timing of the ExposureActive signal output will be different for each RGB channel due to the difference in RGB exposure time.
  • Page 52 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE How to Configure 1. Select the counter you want to use from CounterSelector. 2. Enable the counter by selecting the event source in ConterEventSource (Defaut = Off). 3. CounterEventActivation displays the timing for counting for the selected counter. 4.
  • Page 53 Line Rate Does NOT Match the Belt Speed Line Rate Matches the Belt Speed Note: JAI cameras only support 2 Phase (Phase A and Phase B) incremental encoders. How to Configure 1. Connect the two signals (Phase A and Phase B) from the rotary encoder to the camera's inputs (EncoderSourceA and EncoderSourceB).
  • Page 54 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Note: With this setting, input pulses are generated on the rising edge of the Phase A signal. EncoderDetection: Specify the number of edges to pass between each encoder trigger signal. The number of edges to pass is specified by EncoderEdgeDectionPassCount. For more information, see "EdgeDetection Trigger Option".
  • Page 55 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE When set to 0 (Default) , the trigger output period is calculated using only the encoder input period. When set to anything other than 0, the trigger output period is calculated using the encoder input period and this setting.
  • Page 56 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE EncoderDivider Examples EncoderDivider PhaseA Input Number of Triggers Timing Chart Setting Pulse (Output Pulse No.) 2 (= 65536/32768) 32768 The camera generates "two" triggers per a PhaseA input pulse signal. 1 (= 65536/65536) 65536 The camera generates "one"...
  • Page 57 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE EdgeDetection Examples Edge Dection Pass Count Description Timing Chart Setting The camera generates "one" trigger per an input pulse (Default) signal. The camera generates "one" trigger per "two" input pulse signals. The camera generates "one"...
  • Page 58 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Logic Block Control Related Topic: Logic Block Control This camera supports the Logic Block Control function. A Logic Block is a combinational logic element that conditions various input signal sources by determining true/false and generates output signals accordingly. This camera supports up to 4 Logic Blocks, and each block has two input sources.
  • Page 59 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Action Control Function Related Setting Items: ActionControl How to use GigE Vision Action Commands The Action Control Function is a function that executes the pre-configured action when the camera receives action commands. Action commands can send both unicast and broadcast messages and give instructions for actions to multiple cameras simultaneously by broadcasting them.
  • Page 60 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE PTP (Precision Time Protocol) Related Setting Items: Transport Layer Control The camera can work as the slave for Precision Time Protocol defined in IEEE 1588. When the IEEE 1588 master clock exists in the network where the camera is connected, this function synchronizes the camera to the time of the master clock.
  • Page 61 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Event Control Function Related Setting Items: EventControl The Event Control function is a function that outputs a signal change point inside the camera as information indicative of an event occurrence (event message). Flow from Detecting an Event to Sending an Event Message How to Configure 1.
  • Page 62 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Chunk Data Function Related Setting Items: ChunkDataControl The Chunk Data function adds camera configuration information to the image data that is output from the camera. In addition, when images are acquired with a single camera in sequence under multiple setting conditions, you can search for images by their setting conditions.
  • Page 63 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Pulse Generator Related Setting Items: PulseGenerator Tips for using the Pulse Generator By using this function, any signal can be generated inside the camera. The following is an example of signal generation. Settings PulseGeneratorStartPoint = 2 PulseGeneratorEndPoint = 6...
  • Page 64 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Shading Correction Related Setting Items: Shading The ShadingCorrection function corrects non-uniformity (i.e., shading) in the amount of light generated by the lens and lighting equipment. This camera supports the following shading correction modes. FlatShading, FlatShadingUserAreaBE ColorShading*, ColorShadingUserArera BE* R-channel and B-channel properties are adjusted by...
  • Page 65 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Shading Correction Blocks The camera makes adjustments in blocks (1 block = 2 pixels). The block Index number (ShadingDataIndex) can be used to view and change the settings per block (ShadingData). For more information, see "How to Configure the Shading Correction Function".
  • Page 66 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE 5. Once the shading correction is successfully completed, the shading correction values are automatically saved to the area specified in ShadingMode. Also, the calibration result "Succeeded" is displayed in ShadingDetectResult. 6. If the image is too bright or too dark, the camera will operate differently depending on the selected Shading Correction Mode.
  • Page 67 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE User Area BE "Best Effort" Correction Example In this example, the blue cylinder on the conveyor belt is the object you want to correct shading. However, because a yellow object with a high brightness level is also included in the image, FlatShading or ColorShading modes, which calculate the correction value from the entire image, may not be able to correct shading properly.
  • Page 68 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Pixel Sensitivity Correction (DSNU, PRNU) Related Topic: Correction Correct variations between the sensor’s pixels. Calibration must be performed within the camera and correction data must be created beforehand. DSNU (PixelBlackCorrect) / PRNU (PixelGainCorrect) can be reduced using that correction data. We recommend performing calibration and creating correction data whenever the line rate setting is changed significantly.
  • Page 69 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Chromatic Aberration Correction Related Setting Items: Correction This function corrects the magnification differences between the color channels which is caused by the chromatic aberration of the lens. In simpler terms when the object appears with a slightly different width on the blue, green and red channels.
  • Page 70 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE 3. Configure the correction settings, which vary depending on the selected correction method. Simple Interpolation: Select R Channel from ChromaticAberrationCorrectionSelecter and set the correction value in ChromaticAberrationCorrection. Linear Spline Interpolation: Configure the correction settings as follows. 1.
  • Page 71 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Note: When the selected correction method is Linear Spline Interpolation or Custom, the correction value of each index will be calculated using the following formula. [Linear Spline Interpolation]: Correction value[ChromaticAberrationCorrectionIndex] = pow (ChromaticAberrationCorrectionIndex/10, ChromaticAberrationCorrectionCoeff) x ChromaticAberrationCorrection [Custom]: Correction value[ChromaticAberrationCorrectionIndex] = ChromaticAberrationCorrection...
  • Page 72 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Tilt View Correction Related Setting Items: Correction This function corrects the trapezoidal distortion that occurs when a trilinear camera is placed at an off-axis viewing angle. The trapezoidal distortion is caused due to the fact that the optical path from object surface to the closest color channel on the sensor is shorter than the other two color channels.
  • Page 73 Select the target to apply the filter from Red, Green, Blue, and set the Median Filter Mode. When set to On, this function is enabled. (Default = Off). Noise Reduction: Apply the noise filter using JAI's own algorithm. Set the noise reduction intensity in 4 levels. Level1 = weak, Level4 = strong.
  • Page 74 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Spatial Compensation Related Setting Items: SpatialControl Note: This function is supported only on the color model. This function corrects the spatial pixel differences individually for the R, G, and B lines captured by the trilinear line sensor.
  • Page 75 User Manual (Tentative) - Main Functions SW-2005TL-5GE | SW-2005M-5GE Note: The object direction signal is used to obtain the direction of the imaging subject. The direction signal from the rotary encoder, the I/O signal input of the camera, or the high/low control signal from the software can be used as the object direction signal.
  • Page 76 This camera complies with GenICam. Each setting item name conforms to GenICam SFNC (Standard Features Naming Convention). (There are some JAI-specific setting items). Each setting item is an integer type (IInteger), a real type (IFloat), an element enumeration type (IEnumeration), a character string (IString), a logical type (IBoolean), and a category type (ICategory) or a command type (ICommand) for executing the function.
  • Page 77 Display/configure information related to the device. DeviceControl Item Setting Range Default Description DeviceScanType 1: Line Scan Display the device's scan type. DeviceVendorName “JAI Corporation” Display the manufacturer name. DeviceManufacturerInfo See the possibilities Display manufacturer information. DeviceVersion Display the software version. DeviceFirmwareVersion Display the firmware version.
  • Page 78 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE DeviceControl Item Setting Range Default Description Display the minor version number of the Transport DeviceTLVersionMinor Layer type. Display the sub minor version number of the Transport DeviceTLVersionSubMinor Layer type. DeviceLinkSelector Selects which Link of the device to control.
  • Page 79 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Transport Layer Control Configure Transport Layer settings. Transport Layer Control Item Setting Range Default Description Display the payload size information. (Default) PayloadSize 48 ~ 67109240 SW-2005M-5GE: TBD SW-2005TL-5GE: TBD GigEVision GevPhysicalLinkConfiguration SingleLink (Fixed)
  • Page 80 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Transport Layer Control Item Setting Range Default Description 0: False GevCurrentIPConfiguration True Select whether to set the IP configuration to DHCP. DHCP 1: True 0: False GevCurrentIPConfiguration Select whether to set the IP configuration to False PersistentIP 1: True...
  • Page 81 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Transport Layer Control Item Setting Range Default Description Display the IEEE 1588 Status. 1: Initializing, 2: Faulty, 3: Disabled, 4: Listening, 5: GevIEEE1588Status PreMaster, 6: Master, 7: Passive, 8: Uncalibrated, 9: Slave GevGVCPExtendedStatus 0:Version1_1...
  • Page 82 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Transport Layer Control Item Setting Range Default Description Enables the selected GVSP transmitter to use the 0: False GevSCCFGAllInTransmission False single packet per data block All-in Transmission 1: True mode.
  • Page 83 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Transport Layer Control Item Setting Range Default Description aPAUSEMACCtrlFrames Displays the number of Pause frames received. Received ImageFormatControl Configure image format settings. Image Format Control Setting Range Default Description Item SW-2005M-5GE: 2048 SensorWidth...
  • Page 84 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Image Format Control Setting Range Default Description Item Color Model: 0x02180014:RGB8 (Default) 0x0220001C:RGB10V1Packed 0x0220001D:RGB10p32 0x02240034 :RGB12V1Packed PixelFormat Monochrome Model: Set the Pixel Format. 0x01080001:Mono8 (Default) 0x01100003:Mono10 0x01100005:Mono12 0x010C0004:Mono10Packed 0x010C0006:Mono12Packed Color Model: RGB8: Bpp24 (Default) RGB10V1Packed: Bpp32...
  • Page 85 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE AcquisitionControl Related Topic: Acquisition Control Configure image capture settings. Acquisition Control Setting Range Default Description Item AcquisitionMode 0: SingleFrame 1: MultiFrame 2: Continuous Select the image capture mode. Related Topic: 2: Continuous Acquisition Control AcquisitionStart...
  • Page 86 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Acquisition Control Setting Range Default Description Item 7-10: PulseGenerator0-3 11-14: UserOutput0-3 15-18:Action0-3 19: Software TriggerSource 23: Line4 TTL In1 (Default) Select the trigger signal source. 24: Line5 Opt In1 33: Line14 TTL In4 36-39: Logic Block0-3 40: EncoderTrigger...
  • Page 87 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Acquisition Control Setting Range Default Description Item ExposureModeOption 0: PrioritizeExposureTime Specifies whether to prioritize exposure time (PrioritizeExposureTime) or (Default) Related Topic: line rate (PrioritizeLineRate) when controlling line rate and exposure. 1: PrioritizeLineRate Exposure Mode AnalogControl...
  • Page 88 Gamma 0.65, 0.75, 0.8, 0.9, 1.0 Function 0: Off (Default) LUT Mode 1: Gamma Select the JAI LUT mode. 2: LUT GainAuto Enable/disable gain auto adjustment. Once automatically changes to 0: Off (Default) Off when the signal level converges once.
  • Page 89 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Analog Control Item Setting Range Default Description GainAutoWidth The same value as Width [ImageFormatControl]. GainAutoOffsetX The same value as OffsetX [ImageFormatControl]. AGCReference 30 ~ 95 % Set the target level for GainAuto in percentage. 0: Idle (Default) 1: Processing 3: Succeeded...
  • Page 90 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Color Transformation Control Related Topic: Color Space Conversion (ColorTransformationControl) Configure LUT settings. Note: Color model only Color Transformation Setting Range Default Description Control Item 0: RGB (Default) ColorTransformationMode Set the output image format. 2: XYZ 0: Off (Default) 1: sRGB...
  • Page 91 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE DigitalIOControl Related Topic: GPIO (Digital Input/Output Settings) Configure settings for digital input/output. Digital IO Control Item Setting Range Default Description 20: Line1 TTL Out1 (Default) 23: Line4 TTL In1 LineSelector 24: Line5 Opt In1 Select the input/ output to configure.
  • Page 92 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Digital IO Control Item Setting Range Default Description 1: AcquisitionActive 2: FrameActive 4: ExposureActive 6: LVAL 7-10: PulseGenerator0-3 Select the line source signal for the item selected in Line Selector. 11-14: UserOutput0-3 The following is fixed to "-": LineSource...
  • Page 93 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Counter and Timer Control Related Topic: Counter and Timer Control Configure counter settings. (This camera only supports counter functions.) Counter and Timer Control Setting Range Default Description Item 0: Counter0 (Default) 1: Counter1 2: Counter2 CounterSelector...
  • Page 94 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Counter and Timer Control Setting Range Default Description Item 0: CounterIdle (Default) (CounterEventSource = Off) 1: CounterTriggerWait 2: CounterActive (CounterEventSource = CounterStatus Display the counter status. other than Off) 3: CounterCompleted 4: CounterOverflow (CounterEventSource = other than Off AND CouterValue = Max)
  • Page 95 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Setting Encoder Control Item Default Description Range Specify the condition under which a valid encoder output signal is generated. PositionUp: Generate output pulses at all new positions in the positive 1: PositionUp direction.
  • Page 96 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Logic Block Control Related Topic: Logic Block Control Configure Logic Block settings. Logic Block Control Item Setting Range Default Description 0: Logic Block 0 (Default) 1: Logic Block 1 Logic Block Selector Specifies the Logic Block to configure.
  • Page 97 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE ActionControl Related Topic: Action Control Function Configure action control settings. Action Control Item Setting Range Default Description Action Device Key 0x00 Set the action device key. Action Queue Size Set the size of action queue.
  • Page 98 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Setting Event Control Item Default Description Range Select whether to output the Event message selected by EventSelector. 0: Off (Default) EventNotification When set to On, the following data will be displayed each time the 1: On specified Event occurs.
  • Page 99 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Setting Event Control Item Default Description Range EventExposureRedEndData Display the following data when the Event occurs. Note: Color model only Event ExposureRedEnd 0x09303 Display the EventID. EventExposureRedEnd 0 ~ 64bit Display the Timestamp value when the Event occurred.
  • Page 100 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Setting Event Control Item Default Description Range EventExposureBlueEndtFrameID Displays the FrameID value when an event occurs. EventLVALStartData Display the following data when the Event occurs. EventLVALStart 0x9330 Display the EventID. 0 ~ 64bit EventLVALStartTimestamp Display the Timestamp value when the Event occurred.
  • Page 101 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE ChunkDataControl Related Topic: Chunk Data Function Configure Chunk Control settings. Setting Chunk Data Control Items Default Description Range 0: False ChunkModeActive 0: False Set whether to enable ChunkData. 1: True Selects which Chunk to enable or control.
  • Page 102 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Setting Chunk Data Control Items Default Description Range Display the CounterValue (Counter and Timer Control). The ChunkCounterValue data acquisition timing is FrameStart. ChunkExposureTimeSelector Select the ExposureTime to display. Display the ExposureTime (AcquisitionControl) value. The ChunkExposureTime data acquisition timing is on the first line's ExposureTime.
  • Page 103 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE PulseGenerator Related Topic: Pulse Generator Configure pulse generator settings. Pulse Generators Item Setting Range Default Description Set the division value for the prescaler (12-bit) ClockPre-scaler 1~ 4096 using the pixel clock as the base clock. Set the clock used for the pulse generator.
  • Page 104 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Pulse Generators Item Setting Range Default Description PulseGeneratorPulseWidth = Display High interval width for the pulse in ms. This PulseGeneratorPulseWidth 1/PulseGeneratorClock * is a calculation of the time between the Start Point 0.15 (ms) (PulseGeneratorEndPointValue -...
  • Page 105 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Shading Related Topic: Shading Correction Configure settings for other JAI functions. Shading Control Item Setting Range Default Description 0: Flat Shading (Default) 1: Flat Shading User Area BE 2: Color Shading* ShadingCorrectionMode Select the shading correction method.
  • Page 106 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Correction Correct variations due to sensors and lenses. Note: Items with "*" are only supported on the color model. Correction Control Item Setting Range Default Description PixelBlackCorrectionMode 0: Off (DSNU) Select under which setting to store / load the correction 1: Default (Default) values.
  • Page 107 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Correction Control Item Setting Range Default Description (PRNU) Generate gain correction data automatically from the captured image. CalibratePixelGainCorrection Caution: When Pixel Black Correction Mode is set to Off or Default and a test pattern is being output instead of an image, this command cannot be executed.
  • Page 108 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE Correction Control Item Setting Range Default Description TiltViewCorrectionMode* 0: Off (Default) 1: User1 Selects the area to load or save the Tilt View Correction values. Related Topic: Tilt View 2: User2 Correction 3: User3...
  • Page 109 User Manual (Tentative) - Setting List (Feature Properties) SW-2005TL-5GE | SW-2005M-5GE SpatialControl Corrects the spatial pixel differences individually for the R, G, and B lines captured by the trilinear line sensor. Related Topic: Spatial Compensation Note: This function is supported only on the color model. Spatial Control Item Setting Range Default Description...
  • Page 110 Miscellaneous Troubleshooting Check the following before requesting help. If the problem persists, contact your local JAI distributor. Power Supply and Connections Issue: The POWER/TRIG LED remains lit amber and does not turn green, even after power is supplied to the camera.
  • Page 111 User Manual (Tentative) - Miscellaneous SW-2005TL-5GE | SW-2005M-5GE Specifications Item Specifications SW-2005TL-5GE: Trilinear CMOS line scan image sensor SW-2005M-5GE: Monochrome CMOS line scan image sensor Image Sensor Effective Pixels Pixel Size SW-2005TL-5GE 2048 x 3 (R, G, B) 7.0um x 7.0um SW-2005M-5GE 2048 x 1 7.0um x 7.0um...
  • Page 112 User Manual (Tentative) - Miscellaneous SW-2005TL-5GE | SW-2005M-5GE Item Specifications Width: 128(64) ~ 2048(1024) pixels, 8 (8) pixels/step ROI (Horizontal) / OffsetX: 0 ~ 2048(1024) pixels, 16 (8) pixels/step Binning ( ): BinningHorizontal = 2 ROI (Vertical) 1 ~ 4096 Digital Image Output Format SW-2005TL-5GE: RGB8 (Default), RGB10V1Packed, RGB10p32, RGB12V1Packed Pixel Format...
  • Page 113 User Manual (Tentative) - Miscellaneous SW-2005TL-5GE | SW-2005M-5GE Item Specifications Input Range DC + 10.8V ~ + 26.4V SW-2005TL-5GE: 6.3W Typical (Default Setting/25°C 12-pin Environment) @DC +12V, 7.5W (Max) Consumption SW-2005M-5GE: 6.2W Typical (Default Setting/25°C Environment) @DC +12V, 7.5W (Max) Power Supply Input Range DC +37V ~ 57V...
  • Page 114 User Manual (Tentative) - Miscellaneous SW-2005TL-5GE | SW-2005M-5GE If the above temperature conditions are exceeded, take measures to dissipate heat according to your installation environment and conditions. - 114 -...
  • Page 115 User Manual (Tentative) - Miscellaneous SW-2005TL-5GE | SW-2005M-5GE Spectral Response (SW-2005TL-5GE) Spectral Response (SW-2005M-5GE) - 115 -...
  • Page 116 User Manual (Tentative) - Miscellaneous SW-2005TL-5GE | SW-2005M-5GE Dimensions Notes: Dimensional tolerance: ± 0.3mm Unit: mm - 116 -...
  • Page 117 User Manual (Tentative) - Miscellaneous SW-2005TL-5GE | SW-2005M-5GE Comparison of the Decibel Display and Multiplier Display Decibels (dB) Multipliers (×) Remarks 0.501 0.562 0.631 0.708 0.794 0.891 1.122 1.259 1.413 1.585 1.778 1.995 2.239 2.512 2.818 3.162 3.548 3.981 4.467 5.012 5.623 6.31...
  • Page 118 User Manual (Tentative) - Miscellaneous SW-2005TL-5GE | SW-2005M-5GE Decibels (dB) Multipliers (×) Remarks 39.811 44.668 50.119 56.235 63.096 User's Record Model name: …………… Revision: …………… Serial No: …………… Firmware version: …………… For camera revision history, please contact your local JAI distributor. - 118 -...
