sauter BSWA-01 Manual

Manual sound calibrator for soundlevel sw

Advertisement

Quick Links

English Version
Manual Sound Calibrator
Version
1.0
2024-07
en
BSWA-01-BA-e-2410
Soundlevel
SW
BSWA-01
PROFESSIONAL MEASURING

Advertisement

loading
Need help?

Need help?

Do you have a question about the BSWA-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for sauter BSWA-01

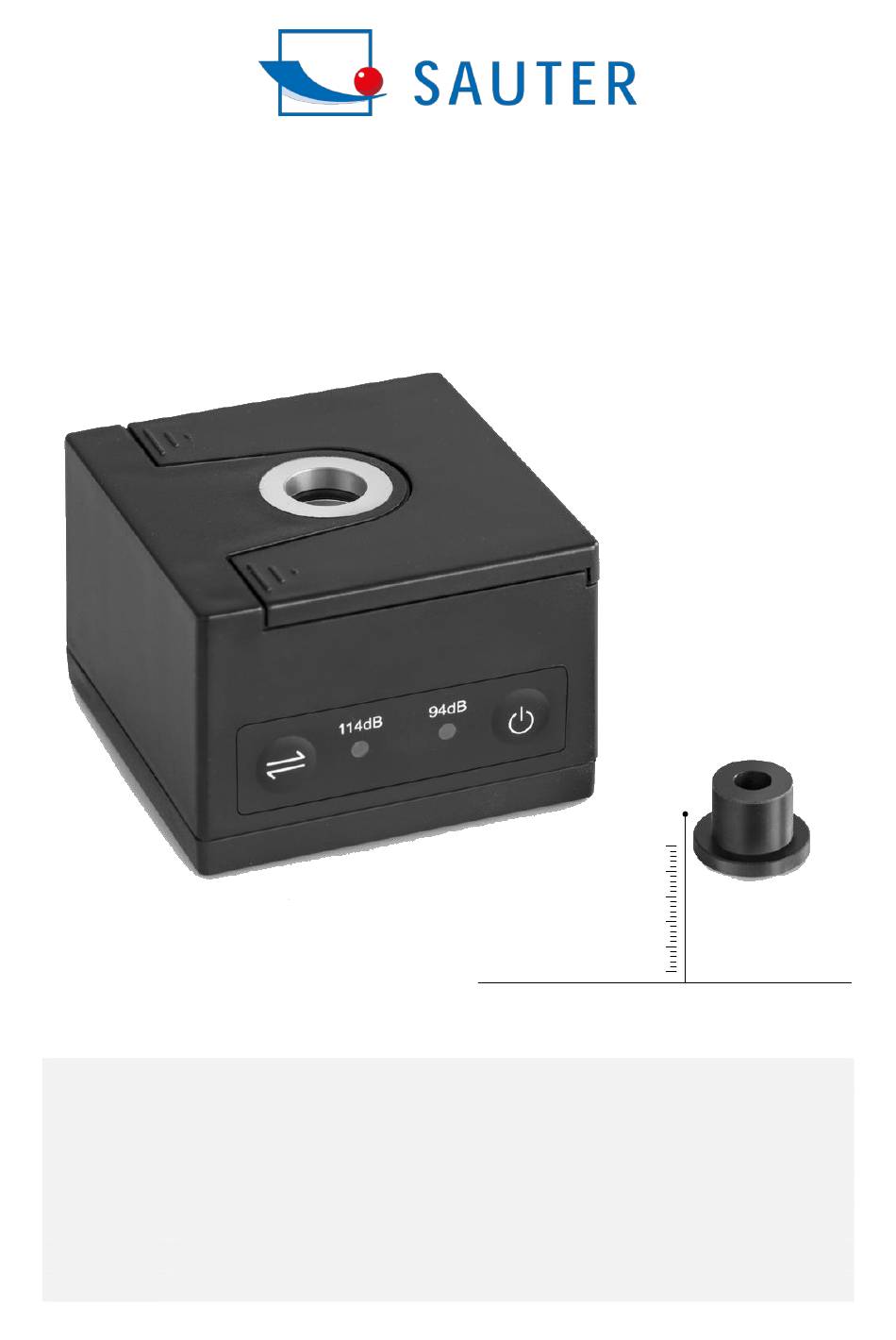

  • Page 1 Soundlevel BSWA-01 PROFESSIONAL MEASURING English Version Manual Sound Calibrator Version 2024-07 BSWA-01-BA-e-2410...
  • Page 2 Druge jezikovne različice na Övriga språkversioner finns voljo na spletni strani här www.kern- www.kern- sohn.com/manuals sohn.com/manuals SAUTER GmbH Ziegelei 1 72336 Balingen-Frommern Germany +0049-[0]7433-9933-0 +0049-[0]7433-9933-149 info.sauter@kern-sohn.com www.sauter.eu...
  • Page 3 How to measure ........................13 Battery operation / power supply ..................14 Maintenance, servicing and disposal ................... 15 10.1 Cleaning ........................... 15 10.2 Maintenance and repair ......................15 10.3 Waste disposal ......................... 15 Battery law ..........................16 BSWA-01-BA-e-2410 (002) en | 1...
  • Page 4 Temperature: -10°C-50°C (14°F -122°F) / Pressure: 65 kPa to 108 kPa Humidity: 10 to 90%RH (non-condensing) Conditions Batteries: 1.5 V LR6 (AA battery) × 2 Power Supply Lifetime: Typically, 40 hours with alkaline batteries at 25°C (77°F) Dimensions 48*70*70mm Weight: ≈180g, including batteries Weight 2 | en BSWA-01-BA-e-2410 (002)
  • Page 5 Declaration of conformity The current EC/EU Declaration of Conformity can be found online at https://www.kern-sohn.com/shop/de/DOWNLOADS/ BSWA-01-BA-e-2410 (002) en | 3...
  • Page 6 Overview Scope of delivery - Manual - Battery AA 1,5 V 2x 4 | en BSWA-01-BA-e-2410 (002)
  • Page 7 Components Beschreibung Funktion Switch for Changing sound pressure from 94dB to 114dB LED 114dB LED 94 dB Power on switch Adaptor ¼ inch microphone BSWA-01-BA-e-2410 (002) en | 5...
  • Page 8 In order to use the device as intended, drastic changes in the external environment of the device should be avoided during the measurement, e.g. flickering of the ambient light and rapid temperature fluctuations. During the measurement, the device should 6 | en BSWA-01-BA-e-2410 (002)
  • Page 9 After use, place the appliance and its accessories in the appliance box and store it properly. The device should be stored in a dry and cool environment. If you have any questions, please contact SAUTER or visit our website www.sauter.eu.
  • Page 10 Basic warnings and safety instructions Observe the notes in the operating instructions Read the operating instructions carefully before commissioning/using the appliance, even if you already have experience with SAUTER appliances. Always keep the instructions in the immediate vicinity of the appliance. Staff training The appliance may only be used by persons who have read and understood the operating instructions, in particular the chapter on safety.
  • Page 11 CAUTION ● Keep a sufficient distance from heat sources. ● Do not use the device in environments with high humidity or water mist. BSWA-01-BA-e-2410 (002) en | 9...
  • Page 12 NOTE ● To prevent damage to the device, do not expose it to extreme temperatures, extreme humidity or moisture. ● Do not use harsh cleaning agents, abrasive cleaners or solvents to clean the appliance. 10 | en BSWA-01-BA-e-2410 (002)
  • Page 13 • Only the original packaging is to be used for return transport. • Disconnect all connected cables and loose/movable parts before despatch. • Refit any transport locks provided. • Secure all parts against slipping and damage. BSWA-01-BA-e-2410 (002) en | 11...
  • Page 14 On receipt of the appliance, you should first check that no damage has occurred during transport, that the outer packaging, the housing, other parts or even the appliance itself have not been damaged. If any damage is evident, please notify SAUTER GmbH immediately.
  • Page 15 (or calibration modus if you want to calibrate the device). • If the sound level meter is in the measurement mode switch on the BSWA-01 by pressing the power on switch. • The calibrator starts to send at 94dB for 8 to 10 seconds.
  • Page 16  Observe the national and international transport regulations for devices with a permanently installed lithium-ion battery.  Do not replace defective batteries yourself! Contact SAUTER or a specialist dealer directly. This device is powered by commercially available batteries (AA, 2x). Please only use undamaged batteries and replace them if necessary to ensure that the device functions properly.
  • Page 17 Rechargeable batteries and batteries do not belong in household waste. The disposal of rechargeable batteries and batteries must be carried out by the operator in accordance with the applicable national or regional law of the place of use. BSWA-01-BA-e-2410 (002) en | 15...
  • Page 18 • Batteries containing harmful substances are labelled with a symbol consisting of a crossed-out dustbin and the chemical symbol (Cd = cadmium, Hg = mercury, or Pb = lead) of the heavy metal that is decisive for the classification as containing harmful substances. 16 | en BSWA-01-BA-e-2410 (002)
